Citroen C4 2009 1.G Owner's Manual

22
09
4
1
23
51
2
1
23
4
53
4
1
C4 STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
1. Volume increase.
2. Volume decrease.
3. Successive presses mute/restore the sound.
4. Rotation - associated with a pop-up. Radio - access the 6 stored stations: next or previous. Music players: previous/next track.
5. Radio: next station. Music players: next track.
1. Press. Repeat the current spoken navigation instruction.
2. Short press to make a telephone call. Pick up/Hang up. Access the telephone menu. Display the call list. Long press to reject an incoming call.
3. Personalisation. Short press to confi rm the choice made using the d ial.
4. Rotation. Scroll through the call list in the phone book. Personalisation selection.
1. Short press: provides access to the menu according to the display on the screen.
2. Successive presses: provides access according to th e current display on the screen. MAP/NAV (if navigation is in progress), TEL (if a conversation is in progress), RADIO or MEDIA in progress, Trip computer. Long press: switch to black screen - Dark (night d riving). Touching a control restores the display.
3. ESC: abandon the current operation.
4. Rotation: selects the access to the short-cut menus according to the current display.
5. Confi rms the choice displayed on the screen.

10
1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
4
4
4
4
4
3
3
12332
3
3
24
"RADIO" MENU
MAIN FUNCTION CHOICE A choice A1 choice A2 CHOICE B...
SCREEN MENU MAP
"MUSIC" MENU
"TRAFFIC" MENU
MESSAGES ON ROUTE
ONLY WARNINGS ON ROUTE
ALL WARNING MESSAGES
ALL MESSAGES
GEO. FILTER
Within 2 miles (3 km)
Within 3 miles (5 km)
Within 6 miles (10 km)
Within 30 miles (50 km)
Within 60 miles (100 km)
SELECT MUSIC
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings
WAVEBAND
FM
AM
MANUAL TUNE
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings

25
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
24
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
2
2
3
3
ROUTE OPTIONS
Route type
Fast route
Short route
Optimized route
STOPOVERS
Add stopover
Address input
Navigate HOME
Choose from address book
Choose from last destinations
Rearrange route
Replace stopover
Delete stopover
Recalculate
Fast route
Short route
Optimized route

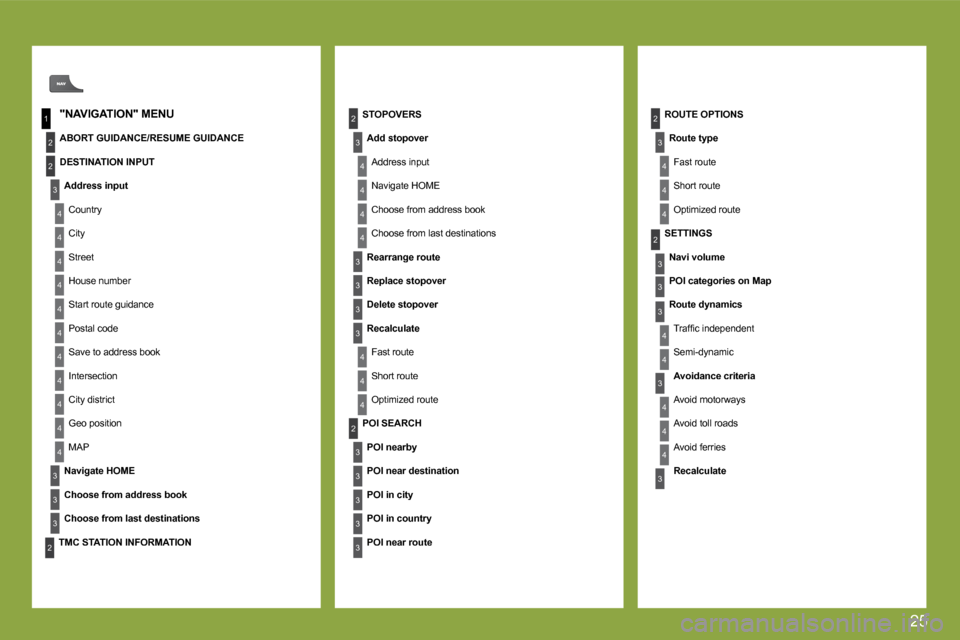

"NAVIGATION" MENU
ABORT GUIDANCE/RESUME GUIDANCE
DESTINATION INPUT
Address input
Country
City
Street
House number
Start route guidance
Postal code
Save to address book
Intersection
City district
Geo position
MAP
Navigate HOME
Choose from address book
Choose from last destinations
POI SEARCH
POI nearby
POI near destination
POI in city
POI in country
POI near route
Route dynamics
Traffi c independent
Semi-dynamic
Avoidance criteria
Avoid motorways
Avoid toll roads
Avoid ferries
Recalculate
TMC STATION INFORMATION
SETTINGS
Navi volume
POI categories on Map

26
1
2
3
4
1
2
3
4
2
3
4
2
2
2
3
4
4
4
4
2
3
3
3
2
3
3
3
3
3
3
3
3
3
3
3
2
3
4
4
4
4
4
3
2
4
3
2
4
4
4
4
3
4
4
4
3
3
3
"PHONE" MENU SETUP
DIAL NUMBER
DIAL FROM ADDRESS BOOK
CALL LISTS
CONNECT PHONE
Search phone
phones connected
Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details
SETTINGS
Select ring tone
Phone/Ring tone volume
Enter mailbox number
SYSTEM LANGUAGE
Deutsch
English
Español
Français
Italiano
Nederlands
Polski
Portuguese
DATE & TIME
Set date & time
Date format
Time format
DISPLAY
Brightness
Colour
Pop titanium
Toffee
Blue steel
Technogrey
Dark blue
Map colour
Day mode for map
Night mode for map
Auto. Day/Night for map
VEHICLE
Vehicle information
Alert log
Status of functions
UNITS
Temperature
Celsius
Fahrenheit
Metric/Imperial
Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)
SYSTEM
Factory reset
Software version
Automatic scrolling

27
sound quality between the different audio sources (radio, CD, CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD, CD changer...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the Audio section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system. - The CD changer does not play MP3 CDs.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The CD player sound is poor. Insert good quality CDs and store them in suitable conditions. The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
The table below groups together the answers to the most frequently asked questions concerning the MyW ay.
QUESTION SOLUTION ANSWER
FREQUENTLY ASKED QUESTIONS

28
SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.

29
QUESTION SOLUTION ANSWER
The TRAFFIC INFO box is ticked. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways , ...) are listed for the traffi c information.
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is dependent on the traffi c information available.
The performance of the system may slow down tempor arily if a CD/DVD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD/DVD has been copied or stop the copying before starting the guidance function.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
The route calculation is not successful. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a toll motorway). Check the exclusion criteria.
There is a long waiting time after inserting a CD or SD card.
When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be deactiva ted or the equipment may not be visible. - Check that your telephone's Bluetooth function is activated. - Check that your telephone is visible.

63
IV
A C C E S S
ELECTRIC WINDOWS
System intended to open or close a
window manually or automatically.
Fitted with a safety anti-pinch sys-
tem and a deactivation system for
the prevention of misuse of the rear
controls.

1. Front left electric window
control.

2. Front right electric window
control.

3. Rear right electric window
control.

4. Rear left electric window
control.

5. Deactivation of the rear
electric window controls
or
Deactivation of the rear
electric window and door
controls * .
One-touch electric windows
There are two options:
- manual mode

 Press or pull the control gently.
The window stops when the
control is released.
- automatic mode


Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.

 Pressing the control again stops
the movement of the window.
The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driv-
er's door control pad, carry out the
operation from the control for the
passenger door concerned. Safety anti-pinch
When the window rises and meets
an obstacle, it stops and partially
lowers again.
If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:

 press and hold the control until
the window opens fully,

 then pull the control immediate-
ly and hold it until the window
closes,

 continue to hold the control for
approximately one second after
the window has closed.

The safety anti-pinch function
is not operational during these
operations.
* Depending on version.

64
IV
A C C E S S
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:

 pull the control until the window
stops,

 release the control and pull it
again until the window closes
fully,

 continue to hold the control for
approximately one second after
the window has closed,

 press the control to lower the
window automatically to the low
position,

 when the window has reached
the low position, press the con-
trol again for approximately
one second.

The safety anti-pinch function is not
operational during these operations.
Deactivation of the rear
electric window controls
or
Deactivation of the rear
electric window and door
controls *

 For the safety of your children,
press control 5 to deactivate the
rear electric window controls re-
gardless of their position.
Indicator lamp on, the rear controls
are deactivated.
Indicator lamp off, the rear controls
are activated. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, he must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
This control also deactivates the in-
terior controls of the rear doors (see
"Child safety - § Electric child lock").
This indicator lamp in the
instrument panel comes on
temporarily when deactivat-
ing and every time the igni-
tion is switched on.
Any other status of the indica-
tor lamp indicates a malfunction of
the system. Have it checked by a
CITROËN dealer.
* Depending on version.

94
VII
C H I L D S A F E T Y
MANUAL CHILD LOCK
Locking

 Turn the red control one quarter
of a turn to the right using the
ignition key.
Unlocking

 Turn the red control one quarter
of a turn to the left using the igni-
tion key.
ELECTRIC CHILD LOCK *
Mechanical system to prevent ope-
ning of the rear door using its interior
control.
The control is located on the edge of
each rear door. Remote control system to prevent
opening of the rear doors using their
interior controls and use of the rear
electric windows.
Activation

 Press the button A .
The indicator lamp on the button A
comes on, accompanied by a mes-
sage on the multifunction screen.
This indicator lamp remains on until
the child lock is deactivated. The indicator lamp on the button
A
switches off, accompanied by a mes-
sage on the multifunction screen.
This indicator lamp remains off until
the child lock is activated.
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a CITROËN dealer.
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactiva-
ted automatically to permit the exit
of the rear passengers. This warning lamp comes
on temporarily on the instru-
ment panel when the child
lock is activated.
The control A is located on the dri-
ver's door, with the electric window
controls. Deactivation

 Press the button A again.
* Depending on version.
It also comes on when the ignition
is switched on, then switches off ap-
proximately ten seconds after the
engine is started.
