IX
D R I V I N G
Displays on the instrument panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille as- sociated with the selector allows
you to view the position selected. Moving off
When the ignition is on, lighting of
the service warning lamp, accom-
panied by an audible signal and
the message "Gearbox faulty" in-
dicates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is differ-
ent, reposition the selector on N
in order to be able to start.
To start the engine, the selector
must be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Operate the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to select reverse gear
when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Reverse gear
Page 118 of 279
113
IX
D R I V I N G
AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Therefore, you have a choice of four
driving modes:
- automatic operation for elec-
tronic control of the gears by the
gearbox,
- the SPORT programme for a
more dynamic style of driving,
- the SNOW programme to im-
prove driving in conditions of
poor grip,
- manual operation for sequen-
tial changing of the gears by the
driver. Mode selection
Automatic mode: selector in po-
sition D .
Sequential mode: selector in po-
sition M .
SPORT mode: selector in posi-
tion D with button " S " pressed.
SNOW mode: selector in posi-
tion D with button " " pressed.
Displays on the instrument
panel
The position of the gear selector is
displayed on the instrument panel.
A position grille on the selector al-
lows you to view the position that is
selected.
To start the engine, the selector
has to be in position P or N .
For safety:
- position
P can be disengaged
only if you press the brake
pedal,
- when a door is opened, an au- dible signal is heard if the se-
lector is not in position P ,
- always make sure that the se- lector is in position P before
you leave your vehicle.
If the gearbox is in position P but the
position of the selector is different,
reposition the selector on P so that
you can start the vehicle.
Moving off
Page 121 of 279
116
IX
D R I V I N G
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched
on manually: a speed of at least
20 mph (around 30 km/h) must be
programmed.
The speed limiter cannot, in any cir-
cumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver.
Steering wheel controls
The speed limiter controls are lo-
cated on the left-hand side of the
steering wheel.
Displays on the instrument panel
The programmed information is
grouped together in zone A of the
instrument panel display.
Programming
Rotate the control 1 to the "LIM" po-
sition.
On selection of the function, the
previous memorised speed and the
information "OFF" are displayed on
the instrument panel.
With the engine running, you can
adjust the memorised maximum
speed, by means of short or long
presses on:
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps of
3 mph. Activation
When the desired maximum speed
is displayed, press button
3 so that
the limitation is activated.
The information "OFF" then disappears from the instrument panel display.
While the function is active, pressing
the accelerator pedal will not enable
the programmed speed to be ex-
ceeded, except if you press the pedal
hard down to beyond the end-of-
travel switch.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
Deactivation
Press on button 3 .
This action causes the information
"OFF" to appear on the instrument
panel display.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A of the
instrument panel.
Page 122 of 279
117
IX
D R I V I N G
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl a s h e s .
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again.
If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for exam-
ple on a steep descent or under heavy
a c c e l e r a t i o n ) t h e n t h e s p e e d fl a s h e s .
Adapt your speed as necessary.
The function will re-engage when
your speed returns below the de-
sired maximum speed. Return to normal driving
By moving the control 1 from po-
sition "LIM" to position 0 .
By the engine stopping.
The speed previously chosen is still
memorised.
Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by an audible signal and
lighting of the service warning lamp.
Have it checked by a CITROËN
dealer.
On a steep downhill gradient or on
sharp acceleration, the speed limiter
will not be able to prevent the vehi-
cle from exceeding the programmed
speed.
U s e o f fl o o r m a t s t h a t a r e n o t a p -
proved by CITROËN may hinder
access to the accelerator pedal and
thus interfere with the functioning of
the speed limiter.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
Page 123 of 279
118
IX
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (approx. 40 km/h)
and you must engage:
- fourth gear on a manual gearbox,
- second gear, in sequential mode, on an electronic gearbox or
automatic gearbox,
- position A on an electronic
gearbox or D on an automatic
gearbox.
The cruise control cannot, in any
circumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver. Steering wheel controls
The cruise control switches are
located on the left-hand side of the
steering wheel.
Displays on the instrument panel
The programmed information is
grouped together in zone
A of the
instrument panel display. Programming
Rotate the control
1 to the "REG"
position.
Activation
On selection of the function via con-
trol 1, no cruise speed has yet
been memorised.
Once the desired speed has been
reached using the accelerator, press
button 2 or button 4 . The cruise
speed is then memorised. It is dis-
played in zone A of the instrument
panel.
You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
on the instrument panel display by
pressing on:
button 4 to increase the speed,
button 2 to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph and a
sustained press in steps of 3 mph.
Page 124 of 279
119
IX
D R I V I N G
Deactivation
Either by pressing on the brake
pedal or on the clutch pedal.
Or by pressing button 3 .
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
These actions cause the information
"OFF" to appear on the instrument
panel display.
These actions do not cancel the
cruise speed which remains dis-
played in the instrument panel.
Reactivation
By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.
By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display. Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to use the
accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone
A fl a s h e s .
You have only to release the acce-
lerator pedal to return to the cruise
speed.
Return to normal driving
By an action on the control 1 from
position "REG" to position 0 .
By the engine stopping.
The cruise speed previously chosen
is no longer memorised. Operating fault
If there is a malfunction, a message
will display accompanied by an
audible signal and lighting of the
service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
t h e n t h e s p e e d fl a s h e s . A d a p t y o u r
speed as necessary. Cruise control should only be used
when the driving conditions allow
you to drive at a constant speed.
D o n o t u s e i t i n h e a v y t r a f fi c , o r o n
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep your
feet within range of the pedals.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r -
rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
Page 126 of 279
121
IX
D R I V I N G
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING ASSISTANCE
System consisting of four proximity
sensors, installed in the front and/or
rear bumper.
It detects any obstacle (person, ve-
hicle, tree, barrier...) located behind
the vehicle, however, it will not be
able to detect obstacles located im-
mediately below the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. The parking assistance is
switched
off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward
gear,
- when the vehicle has been sta- tionary for more than three sec-
onds in forward gear.
The parking assistance system
cannot, in any circumstances, re-
place the need for vigilance and
responsibility on the part of the
driver.
The parking assistance is
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible
signal and/or displaying of the vehi-
cle on the multifunction screen.
The proximity information is indicated
by:
- an audible signal which be- comes more rapid as the vehicle
approaches the obstacle,
- a diagram on the multifunction screen, with blocks which move
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; front or rear and right
or left.
When the distance between the ve-
hicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears,
depending on the multifunction screen
version.
Page 127 of 279
122
D R I V I N G
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
When the vehicle is being driven
at a speed below approximately
6 mph (10 km/h), certain sourc-
es of noise (motorcycles, lorries,
pneumatic drills, ...) may trigger the
reversing audible signal.
Reactivation
Press button A again, the warning
lamp switches off, the system is
reactivated.
Deactivation Operating fault
If an operating fault occurs, this warn-
ing lamp is displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompa-
nied by an audible signal (short beep),
when reverse gear is engaged.
Consult a CITROËN dealer.
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN).
Page 181 of 279
174
11
22
10101111
131314141515
33445566778899
1212

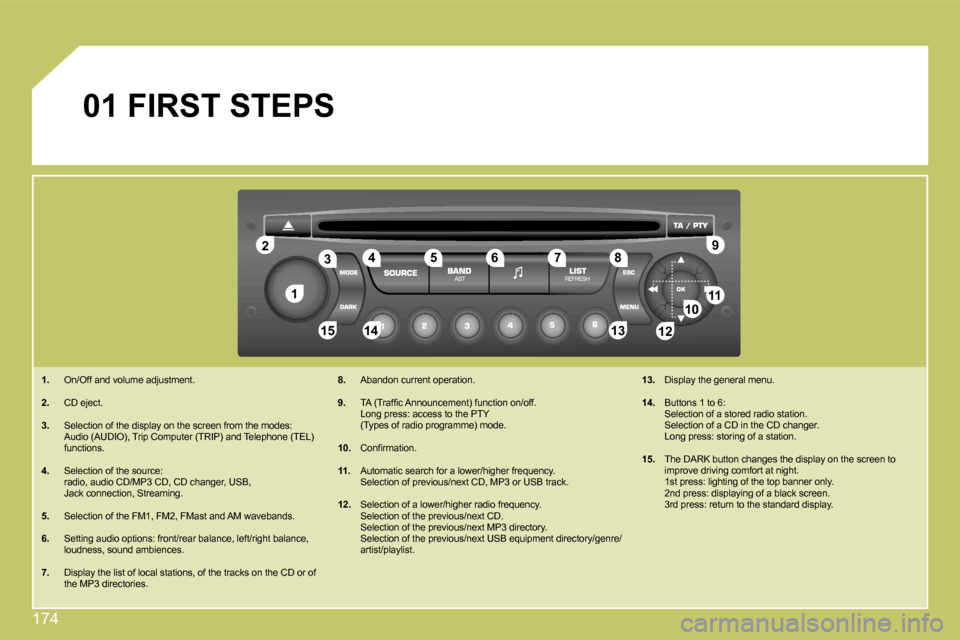

01 FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen from the modes: Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL) functions.
4. Selection of the source: r a d i o , a u d i o C D / M P 3 C D , C D c h a n g e r , U S B , J a c k c o n n e c t i o n , S t r e a m i n g .
5. Selection of the FM1, FM2, FMast and AM wavebands.
6. S e t t i n g a u d i o o p t i o n s : f r o n t / r e a r b a l a n c e , l e f t / r i g h t b a l a n c e , loudness, sound ambiences.
7. Display the list of local stations, of the tracks on the CD or of the MP3 directories.
8. Abandon current operation.
9. T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( T y p e s o f r a d i o p r o g r a m m e ) m o d e .
10. C o n fi r m a t i o n .
11. A u t o m a t i c s e a r c h f o r a l o w e r / h i g h e r f r e q u e n c y . S e l e c t i o n o f p r e v i o u s / n e x t C D , M P 3 o r U S B t r a c k .
12. S e l e c t i o n o f a l o w e r / h i g h e r r a d i o f r e q u e n c y . Selection of the previous/next CD. Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t U S B e q u i p m e n t d i r e c t o r y / g e n r e /artist/playlist.
13. D i s p l a y t h e g e n e r a l m e n u .
14. B u t t o n s 1 t o 6 : Selection of a stored radio station. S e l e c t i o n o f a C D i n t h e C D c h a n g e r . L o n g p r e s s : s t o r i n g o f a s t a t i o n .
15. T h e D A R K b u t t o n c h a n g e s t h e d i s p l a y o n t h e s c r e e n t o i m p r o v e d r i v i n g c o m f o r t a t n i g h t . 1 s t p r e s s : l i g h t i n g o f t h e t o p b a n n e r o n l y . 2 n d p r e s s : d i s p l a y i n g o f a b l a c k s c r e e n . 3rd press: return to the standard display.
Page 183 of 279
1 7 6
11
22
33
44
22
44
33
11

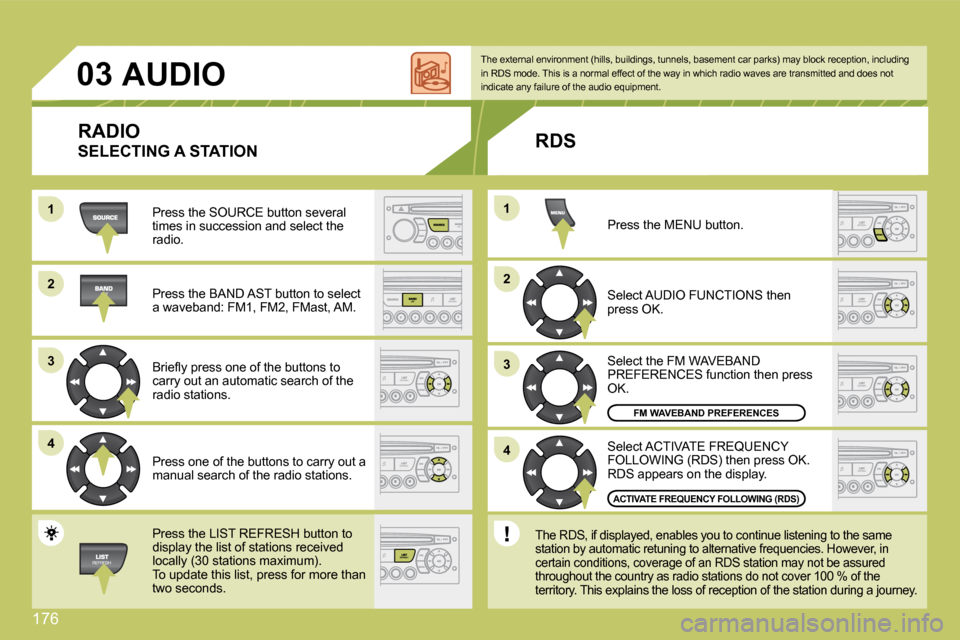

03 AUDIO
Press the SOURCE button several times in succession and select the radio.
P r e s s t h e B A N D A S T b u t t o n t o s e l e c t a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
S e l e c t A C T I V A T E F R E Q U E N C Y FOLLOWING (RDS) then press OK. RDS appears on the display.
S e l e c t t h e F M W A V E B A N D PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s ) m a y b l o c k r e c e p t i o n , i n c l u d i n g in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
T h e R D S , i f d i s p l a y e d , e n a b l e s y o u t o c o n t i n u e l i s t e n i n g t o t h e s a m e s t a t i o n b y a u t o m a t i c r e t u n i n g t o a l t e r n a t i v e f r e q u e n c i e s . H o w e v e r , i n c e r t a i n c o n d i t i o n s , c o v e r a g e o f a n R D S s t a t i o n m a y n o t b e a s s u r e d t h r o u g h o u t t h e c o u n t r y a s r a d i o s t a t i o n s d o n o t c o v e r 1 0 0 % o f t h e t e r r i t o r y . T h i s e x p l a i n s t h e l o s s o f r e c e p t i o n o f t h e s t a t i o n d u r i n g a j o u r n e y .
RADIO
SELECTING A STATION
