187
11
2 2
3 3
4 4
5
6 6
7 7
8 8
0 4

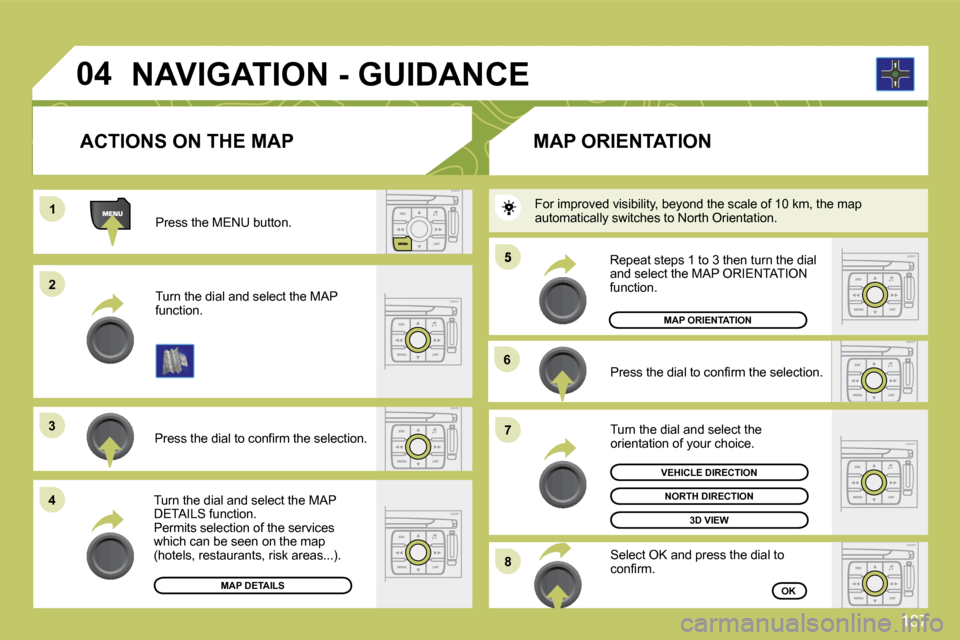

Press the MENU button.
Turn the dial and select the MAP function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the MAP DETAILS function. Permits selection of the services which can be seen on the map (hotels, restaurants, risk areas...).
ACTIONS ON THE MAP
MAP DETAILS
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the orientation of your choice.
Select OK and press the dial to c o n fi r m .
Repeat steps 1 to 3 then turn the dial and select the MAP ORIENTATION function.
MAP ORIENTATION
MAP ORIENTATION
3 D V I E W
OK
NORTH DIRECTION
VEHICLE DIRECTION
For improved visibility, beyond the scale of 10 km, the map automatically switches to North Orientation.
N A V I G A T I O N - G U I D A N C E
Page 212 of 284
188
11
2 2
3 3
4 4
5 5
6 6
7 7
0 4
Press the MENU button.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the MAP function.
Turn the dial and select the MAP IN WINDOW or FULL SCREEN MAP tab.
Select OK and press the dial to c o n fi r m
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DISPLAY MAP function.
DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW
N A V I G A T I O N - G U I D A N C E
Page 213 of 284
189
5 5
6 6
7 7
8 8
11
2 2
3 3
4 4
0 5
CONFIGURING THE FILTERING OF
TMC ANNOUNCEMENTS
T h e T M C ( T r a f fi c M e s s a g e C h a n n e l ) m e s s a g e s p r o v i d e i n f o r m a t i o n r e l a t i n g t o t h e t r a f fi c a n d t h e weather conditions, received in real time and communicated to the driver in the form of audible announcements and icons on the navigation map. The guidance system may then suggest a diversion r oute.
Press the MENU button.
Turn the dial and select the TRAFFIC INFORMATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
FILTER TRAFFIC INFORMATION
TRAFFIC INFORMATION
P r e s s t h e d i a l t o c o n fi r m t h e selection.
Select the GEOGRAPHIC FILTER f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
T u r n t h e d i a l a n d s e l e c t t h e fi l t e r o f your choice.
Select OK and press the dial to c o n fi r m .
GEOGRAPHIC FILTER
AROUND THE VEHICLE
ON THE ROUTE
OK
T h e fi l t e r s a r e i n d e p e n d e n t a n d t h e i r r e s u l t s a r e e l i m i n a t e d . We recommend: - a fi l t e r o f 6 m i l e s ( 1 0 k m ) a r o u n d t h e v e h i c l e i n h e a v y t r a f fi c , - a fi l t e r o f 3 0 m i l e s ( 5 0 k m ) a r o u n d t h e v e h i c l e o r a fi l t e r o n t h e route for motorway journeys.
Turn the dial and select the FILTER TRAFFIC INFORMATION function.
Page 214 of 284
190
11
2 2
3 3
4 4
6 6
5 5
7 7
0 5
Press the MENU button.
READ MESSAGES
NEW MESSAGE DISPLAY
OK
CONFIGURING THE DISPLAY OF
TMC MESSAGES W e r e c o m m e n d t h a t y o u d o n o t t i c k t h e N E W M E S S A G E D I S P L A Y t a b f o r r e g i o n s w i t h h e a v y t r a f fi c .
Turn the dial and select the TRAFFIC INFORMATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the CONFIGURE MESSAGE ANNOUNCEMENT function.
Select the READ MESSAGES tab.
T h e T r a f fi c I n f o r m a t i o n M e s s a g e s w i l l be read by the voice synthesiser. Select the NEW MESSAGE DISPLAY tab. T h e t r a f fi c i n f o r m a t i o n m e s s a g e s a r e e x t e n d e d t o t h e fi l t e r s s e l e c t e d (geographic...) and can also be displayed when guidance is not active.
CONFIGURE MESSAGE ANNOUNCEMENT
TRAFFIC INFORMATION
S e l e c t O K a n d p r e s s t h e d i a l t o c o n fi r m .
Page 215 of 284
191
0 5
2
1
3
2
1
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
R e d a n d y e l l o w t r i a n g l e : t r a f fi c i n f o r m a t i o n , p a r
e x a m p l e :
Black and blue triangle: general information, for example:
With the current audio source displayed on the screen, press the dial.
The shortcut menu for the source appears and give s acces access to:
S e l e c t T r a f fi c A n n o u n c e m e n t s ( T A ) a n d p r e s s t h e d i a l t o c o n fi r m a n d g o to the associated settings.
TA
T h e T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n g i v e s p r i o r i t y t o T A a l e r t messages. To operate, this function needs good rece ption of a radio s t a t i o n t r a n s m i t t i n g t h i s t y p e o f m e s s a g e . W h e n a t r a f fi c r e p o r t i s transmitted, the current audio source (Radio, CD, J ukebox, ...) is interrupted automatically to play the TA message. N ormal playback of the audio source resumes at the end of the transmission of the message.
RECEIVING TA MESSAGES
Page 216 of 284
192
11
2 2
3 3
4 4
11
2 2
3 3
4 4
0 6
RADIO
SELECTING A STATION
Press the SOURCE button several times in succession and select the RADIO.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to display the list of stations received locally (60 maximum). To update this list, press for more than two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of t he way in which radio waves are transmitted and doe s not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue lis tening to the same station by automatic retuning to alternative fequen cies. However, in certain conditions, coverage of an RDS station may not be assured throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
Page 217 of 284
193
11
2 2
0 6 AUDIO/VIDEO
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h a s a m p l i n g r a t e o f 2 2 . 0 5 K H z o r 4 4 . 1 K H z . N o o t h e r t y p e o f fi l e (.wma, .mp4, .m3u...) can be played.
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g special characters (e.g. " ? ; ù) to avoid any play ing or displaying problems.
Insert circular compact discs only. Some anti-pira ting systems, on original discs or CDs copied using a personal recorder, may generate malfunctions regardless of the quality of the original player. Insert an audio CD or an MP3 compilation in the pl ayer, play begins automatically.
If the player already contains a disc, press the SOURCE button several times in succession and select CD to listen to it.
Press one of the buttons to select a track on the CD. Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation m ay depend on the recording programme and/or the parameter settin gs used. We recommend use of the ISO 9660 recording standard.
M P 3 C D
P L A Y I N G A C D O R A N M P 3 C O M P I L A T I O N
CD
Empty CDs are not recognised and may damage the s ystem.
Page 218 of 284
194
2 2
3 3
11
5 5
6 6
4 4
0 6
COPY CD TO JUKEBOX
COMPLETE CD
STOP COPY
OKAUDIO FUNCTIONS
Select COPY CD TO JUKEBOX and p r e s s t h e d i a l t o c o n fi r m .
Select COMPLETE CD to copy the entire CD and press the dial to c o n fi r m .
To stop the copy, repeat points 2 and 3. Select STOP COPY and press the dial t o c o n fi r m .
The AUTO CREATION tab automatically copies the CD by default into an album of the type "album n°...".
The audio or MP3 CD is copied onto the hard disk. Copying may take up to 20 minutes depending on the duration of the C D. During this copying phase, it is not possible to listen to the albums previously recorded on the hard disk or the CDs.
Select the letters one by one and select O K t o c o n fi r m .
If it is not an MP3 CD, the Jukebox automatically compresses the CD in MP3 format. The compression may take appr oximately 20 minutes depending on the duration of the CD. During this compression phase, it is possible to listen to the CD or to albums previously recorded on the hard disk.
A long press on the SOURCE button starts the copyi ng of the CD.
I t i s n o t p o s s i b l e t o c o p y fi l e s f r o m t h e J u k e b o x t o a C D . T h e S T O P T H E C D C O P Y a c t i o n d o e s n o t d e l e t e t h e fi l e s w h i c h have already been transferred onto the jukebox hard disk.
Select AUDIO FUNCTIONS then select C D a n d p r e s s t h e d i a l t o c o n fi r m .
Insert an audio CD or an MP3 compilation and press the MENU button.
JUKEBOX
COPYING A CD ONTO THE HARD DISK
AUDIO/VIDEO
Page 219 of 284
195
11
11
2 2
0 6

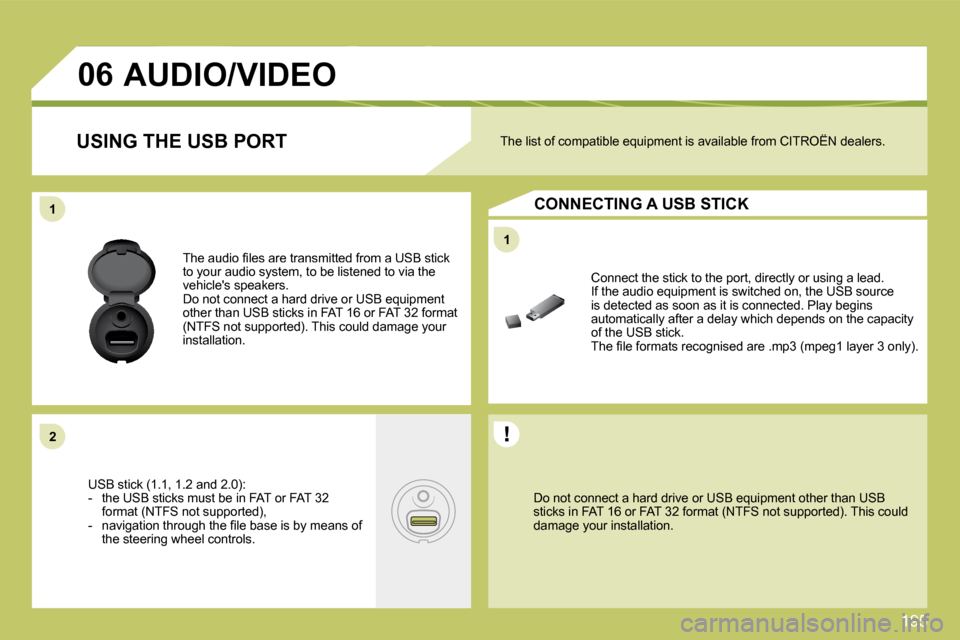

Do not connect a hard drive or USB equipment other than USB sticks in FAT 16 or FAT 32 format (NTFS not support ed). This could damage your installation.
Connect the stick to the port, directly or using a lead. If the audio equipment is switched on, the USB sour ce is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. T h e fi l e f o r m a t s r e c o g n i s e d a r e . m p 3 ( m p e g 1 l a y e r 3 o n l y ) .
The list of compatible equipment is available from CITROËN dealers. USING THE USB PORT
CONNECTING A USB STICK
T h e a u d i o fi l e s a r e t r a n s m i t t e d f r o m a U S B s t i c k to your audio system, to be listened to via the vehicle's speakers. Do not connect a hard drive or USB equipment other than USB sticks in FAT 16 or FAT 32 format (NTFS not supported). This could damage your installation.
USB stick (1.1, 1.2 and 2.0): - the USB sticks must be in FAT or FAT 32 format (NTFS not supported), - n a v i g a t i o n t h r o u g h t h e fi l e b a s e i s b y m e a n s o f the steering wheel controls.
AUDIO/VIDEO
Page 220 of 284
196
2 2
11
3 3
4 4
5 5
2 2
3 3
11
0 6
USB
COPY USB TO JUKEBOX
COMPLETE DISC
Select USB and press the dial to c o n fi r m .
Select COPY USB TO JUKEBOX and p r e s s t h e d i a l t o c o n fi r m .
Select COMPLETE DISC to copy the entire USB stick and press the dial to c o n fi r m .
Select AUDIO FUNCTIONS and press t h e d i a l t o c o n fi r m .
Insert a USB stick in the space provided and press the MENU button.
JUKEBOX
C O P Y I N G A N M P 3 U S B S T I C K O N T O T H E H A R D D I S K
If another source is being played, press the SOURCE button several times in succession and select USB to play it.
Press one of the buttons to select a track on the USB stick. Press the LIST button to display the list of folders on the MP3 USB stick.
To eject the USB stick, use the short-cut menu (press OK) or press the MENU button, select AUDIO FUNCTIONS, USB, then select EJECT USB. The playing and displaying of an MP3 compilation may depend on the parameters programme used.
JUKEBOX
Insert a USB stick in the space provided. ded.
AUDIO/VIDEO
P L A Y I N G A N M P 3 U S B S T I C K
In order to be read, a USB stick must be in FAT 16 or 32 format. The reader only reads USB sticks.
