Page 20 of 284
23
I
M O N I T O R I N G
INSTRUMENT PANEL WITH TRANSLUCENT SCREEN
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Central screen
5. Trip mileage recorder
6. Fuel gauge
7. Engine oil level check
8. Coolant temperature Control buttons
1. Rev counter
2. Cruise control or speed limiter
setting
3. Speedometer
4. Service indicator when the ig-
nition is switched on, then total
mileage recorder
A. Trip mileage recorder reset
B. Lighting rheostat
C. Display of alerts and Status of
functions
Page 22 of 284
25
I
M O N I T O R I N G
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's airbag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e
dashboard, permits deactivation of
t h e s y s t e m . T h i s i s c o n fi r m e d b y
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.
The passenger's airbag sys-
tem is put into service auto-
matically when the vehicle is
started.
A control switch, located in the glove
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen.
Page 26 of 284
25
I
M O N I T O R I N G
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's airbag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e
dashboard, permits deactivation of
t h e s y s t e m . T h i s i s c o n fi r m e d b y
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.
The passenger's airbag sys-
tem is put into service auto-
matically when the vehicle is
started.
A control switch, located in the glove
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen.
Page 27 of 284
25
I
M O N I T O R I N G
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's airbag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e
dashboard, permits deactivation of
t h e s y s t e m . T h i s i s c o n fi r m e d b y
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.
The passenger's airbag sys-
tem is put into service auto-
matically when the vehicle is
started.
A control switch, located in the glove
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen.
Page 33 of 284
30
I
M O N I T O R I N G
Total distance recorder
System which measures the total
distance travelled by the vehicle
during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the
driver's door is opened and when
the vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other pe-
riod since it was reset to zero by the
driver.
With the ignition on, press the
button until zeros appear. Dashboard lighting rheostat
Activation
Turn control A or press control
B to adjust the brightness of the
dashboard lighting,
With control B , press until the
brightness is at maximum, re-
lease, press until you reach mini-
mum.
Deactivation
When the vehicle lighting is off, or in
d a y m o d e i n t h e c a s e o f v e h i c l e s fi t -
ted with daytime running lamps, the
button has no effect.
System permitting manual adjustment
of the brightness of the dashboard to
suit the level of ambient light.
The rheostat is active if the sidelamps
are on and applies to:
- the instrument panel,
- the display screens.
Page 47 of 284
42
III
C O M F O R T
Air conditioning
To ensure that your system operates
correctly, it is recommended to have
it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sun-
light the interior temperature is ex-
cessive, ventilate the passenger
compartment by opening the win-
dows for a few moments, then close
them again.
The air conditioning operates by using
power from the engine. This results in
a slight increase in fuel consumption.
Dust filter/Odour filter
(active carbon)
T h e r e i s a fi l t e r f o r e x c l u d i n g o d o u r s
and dust.
T h i s fi l t e r h a s t o b e c h a n g e d i n a c -
cordance with the vehicle servicing
schedule (see "Maintenance and
Warranty Guide").
Air circulation
Maximum comfort is obtained when
there is a good distribution of air in
the passenger compartment, both in
the front and in the rear.
F o r o p t i m u m o p e r a t i n g e f fi c i e n c y ,
take care not to obstruct the air out-
lets under the front seats.
Air vents
The face-level air vents have grilles
a n d t h u m b w h e e l s t o a d j u s t t h e a i r fl o w
and direction (up-down, right-left).
The automatic regulation of the air
conditioning, inside the cabin, uses
the sunshine sensor located on the
dashboard behind the instrument
panel.
Be careful not to obstruct it.
Sensor
Page 124 of 284
102
VIII
S A F E T Y
AIRBAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact,
the airbags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n o f
the rear centre passenger); im-
mediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear impact or in certain roll-over
conditions, the airbags will not
be triggered; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The airbags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not operate.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is incorporated
in the centre of the steering wheel;
the front passenger's airbag is incor-
porated in the dashboard above the
g l o v e b o x .
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all
or part of the front impact zone
A ,
in the longitudinal centreline of the
vehicle on a horizontal plane and di-
rected from the front to the rear of
the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Page 126 of 284
105
VIII
S A F E T Y

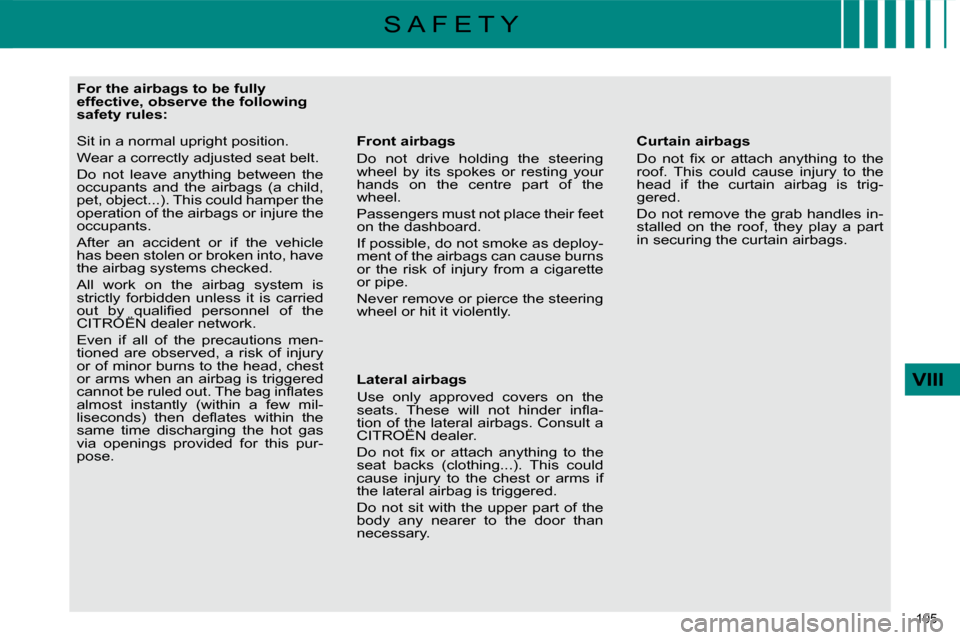

F o r t h e a i r b a g s t o b e f u l l y
effective, observe the following
s a f e t y r u l e s :
Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Lateral airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the lateral airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
seat backs (clothing...). This could
cause injury to the chest or arms if
the lateral airbag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose.
Page 128 of 284
105
VIII
S A F E T Y
F o r t h e a i r b a g s t o b e f u l l y
effective, observe the following
s a f e t y r u l e s :
Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Lateral airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the lateral airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
seat backs (clothing...). This could
cause injury to the chest or arms if
the lateral airbag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose.
Page 147 of 284
124
X
C H E C K S
BONNET
Protects the components of the
engine and provides access for
checking levels.
Opening
Push the exterior safety catch B
to the left and raise the bonnet.
Unclip the stay C from its housing.
Fix the stay in the notch to hold
the bonnet open. Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet then slam it
fi r m l y a t t h e e n d o f i t s t r a v e l .
Pull on the bonnet to check that
it is secured correctly.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns). This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
Pull to the right the interior re-
lease lever A , located under the
dashboard.
