Page 6 of 284
9
F A M I L I A R I S A T I O N
D A S H B O A R D
1. Bonnet release.
2. Fusebox cover.
3. Storage drawer (left and right).
4. Lateral air vent (left and right).
5. Side window demister vent
(left and right).
6. Loudspeaker (Tweeter)
(left and right).
7. Passenger’s airbag.
8. Control for central locking of doors
and boot.
9. Multifunction screen.
10. Hazard warning lamps control.
11. Scented air freshener.
12. Controls:
- Lighting.
- Direction indicators.
- Front foglamps
- Rear foglamps.
13. Steering column adjustment lever.
14. Radio-CD or NaviDrive radio
navigation.
15. Air conditioning or heating/
ventilation.
16. Cigar lighter.
17. 12-volt accessory socket
(120 W max). or USB port.
18. Ashtray.
19. Key-operated switch:
- Passenger’s airbag activation/ deactivation.
20. Lower glovebox.
- Handbook pack storage.

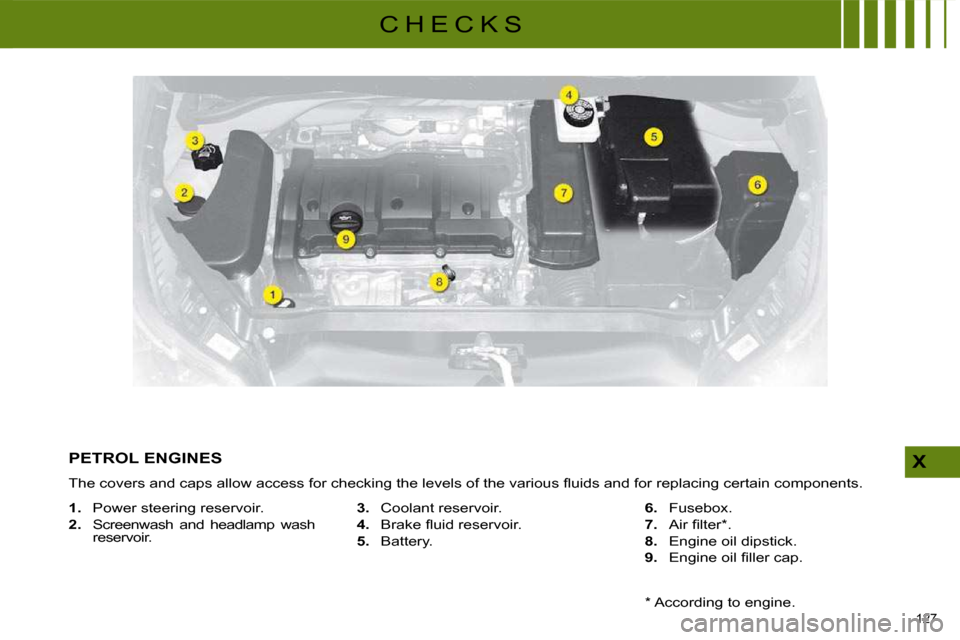

Page 150 of 284
127
X
C H E C K S
PETROL ENGINES
T h e c o v e r s a n d c a p s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
* A c c o r d i n g t o e n g i n e .

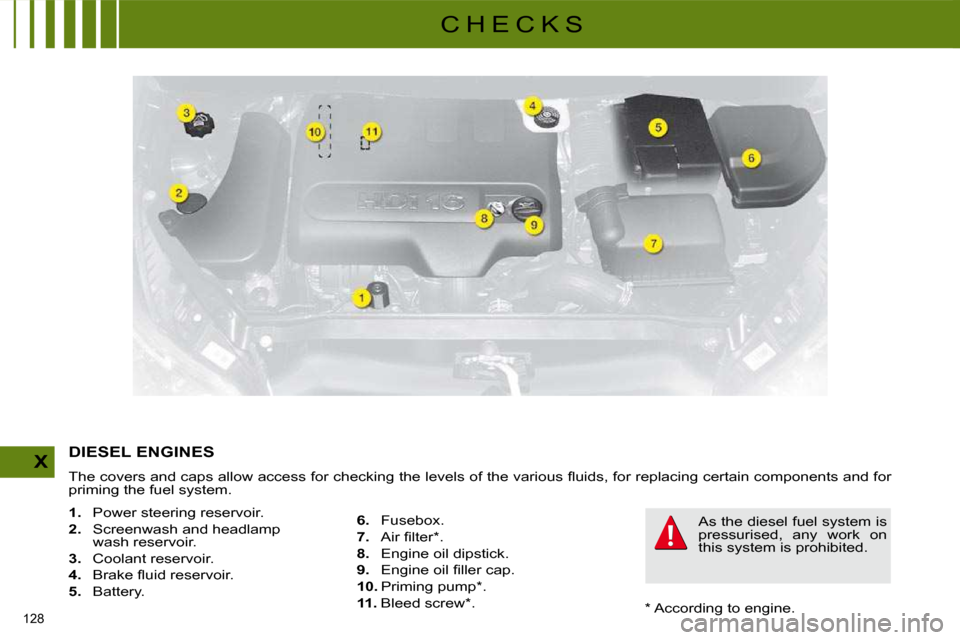

Page 151 of 284
128
X
C H E C K S * A c c o r d i n g t o e n g i n e .
DIESEL ENGINES
T h e c o v e r s a n d c a p s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d f o r
priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp
wash reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. P r i m i n g p u m p * .
11. B l e e d s c r e w * . As the diesel fuel system is
pressurised, any work on
this system is prohibited.

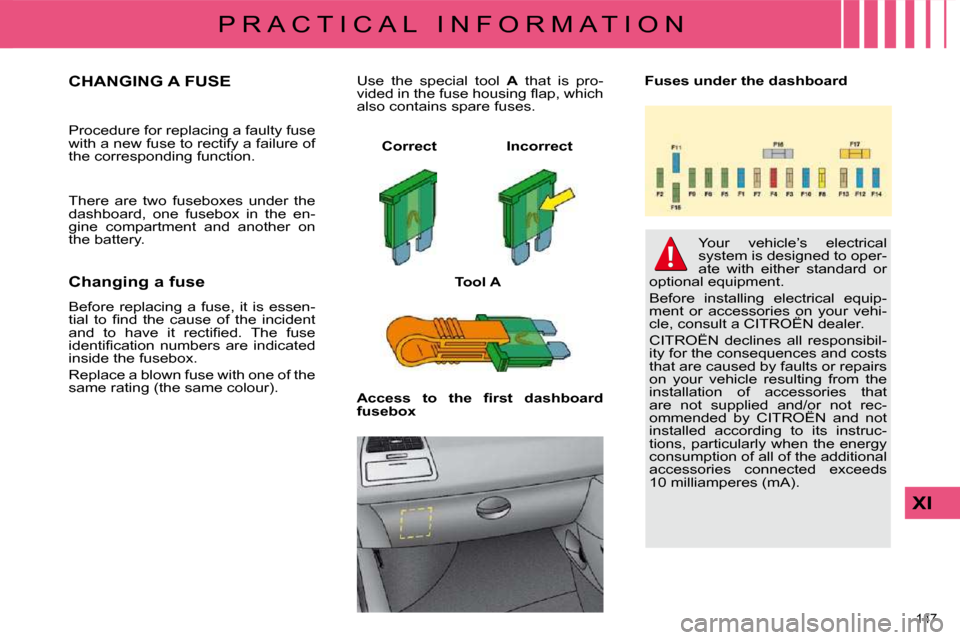

Page 171 of 284
147
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
P r o c e d u r e f o r r e p l a c i n g a f a u l t y f u s e
w i t h a n e w f u s e t o r e c t i f y a f a i l u r e o f
t h e c o r r e s p o n d i n g f u n c t i o n .
There are two fuseboxes under the
dashboard, one fusebox in the en-
gine compartment and another on
t h e b a t t e r y .
Changing a fuse
Before replacing a fuse, it is essen-
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
Replace a blown fuse with one of the
s a m e r a t i n g ( t h e s a m e c o l o u r ) . Use the special tool
A that is pro-
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A
A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Your vehicle’s electrical
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
Before installing electrical equip-
m e n t o r a c c e s s o r i e s o n y o u r v e h i -
c l e , c o n s u l t a C I T R O Ë N d e a l e r .
CITROËN declines all responsibil-
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
a r e n o t s u p p l i e d a n d / o r n o t r e c -
o m m e n d e d b y C I T R O Ë N a n d n o t
installed according to its instruc-
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
consumption of all of the additional
accessories connected exceeds
1 0 m i l l i a m p e r e s ( m A ) .

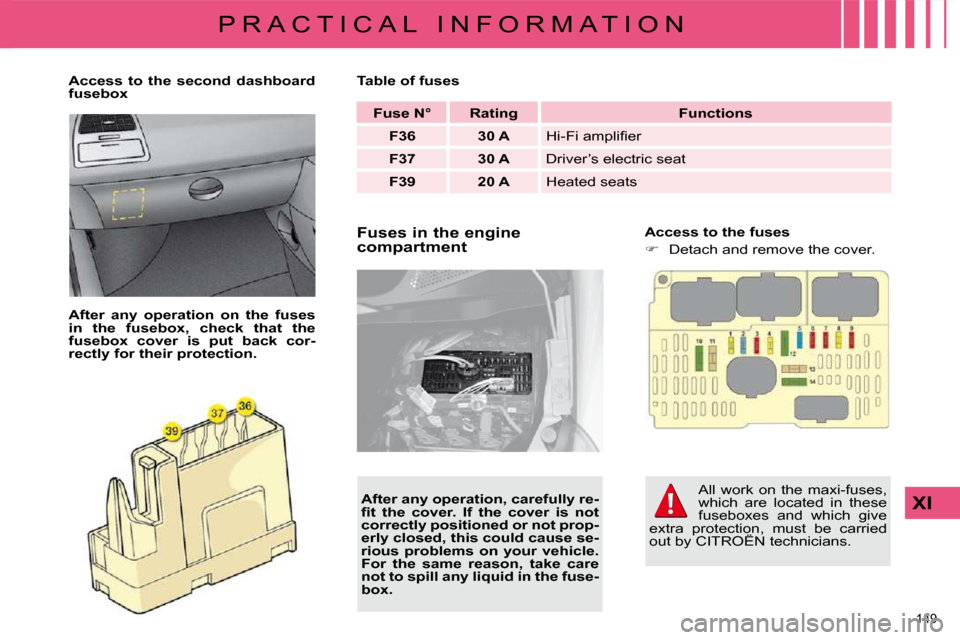

Page 173 of 284
149
XI
P R A C T I C A L I N F O R M A T I O N Fuses in the engine
compartment Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r .
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection. Table of fuses
Fuse N° Rating Functions
F36 30 A H i - F i a m p l i fi e r
F37 30 A D r i v e r ’ s e l e c t r i c s e a t
F39 20 A Heated seats
After any operation, carefully re-
fi t t h e c o v e r . I f t h e c o v e r i s n o t
correctly positioned or not prop-
erly closed, this could cause se-
rious problems on your vehicle.
For the same reason, take care
not to spill any liquid in the fuse-
box. All work on the maxi-fuses,
which are located in these
fuseboxes and which give
extra protection, must be carried
o u t b y C I T R O Ë N t e c h n i c i a n s .
Page 174 of 284
149
XI
P R A C T I C A L I N F O R M A T I O N Fuses in the engine
compartment Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r .
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection. Table of fuses
Fuse N° Rating Functions
F36 30 A H i - F i a m p l i fi e r
F37 30 A D r i v e r ’ s e l e c t r i c s e a t
F39 20 A Heated seats
After any operation, carefully re-
fi t t h e c o v e r . I f t h e c o v e r i s n o t
correctly positioned or not prop-
erly closed, this could cause se-
rious problems on your vehicle.
For the same reason, take care
not to spill any liquid in the fuse-
box. All work on the maxi-fuses,
which are located in these
fuseboxes and which give
extra protection, must be carried
o u t b y C I T R O Ë N t e c h n i c i a n s .
Page 176 of 284
151
XI
P R A C T I C A L I N F O R M A T I O N
Fuses on the battery
After any operation, carefully re-
fi t t h e c o v e r . I f t h e c o v e r i s n o t
correctly positioned or not prop-
erly closed, this could cause se-
rious problems on your vehicle.
For the same reason, take care
not to spill any liquid in the fuse-
box.
Table of fuses
Fuse N° Rating
Functions
F1 - Not used
F
2 * 30 A G e a r b o x ( e l e c t r o n i c s y s t e m o r a u t o m a t i c )
F3 - Not used
F4 - Not used
F5 * 80 A P o w e r s t e e r i n g e l e c t r o p u m p a s s e m b l y
F6 * 70 A H e a t i n g u n i t ( D i e s e l )
F7 * 100 A Switching and protection unit
F8 - Not used
F9 * 30 A E l e c t r o n i c g e a r b o x s y s t e m e l e c t r o p u m p a s s e m b l y
F10 *
30 A Valvetronic electric motor
Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r . * The maxi-fuses provide additional
p r o t e c t i o n f o r t h e e l e c t r i c a l s y s -
t e m s . A l l w o r k o n t h e s e f u s e s m u s t
b e c a r r i e d o u t b y C I T R O Ë N t e c h n i -
c i a n s .
Page 178 of 284
153
XI
P R A C T I C A L I N F O R M A T I O N
BATTERY
P r o c e d u r e f o r c h a r g i n g y o u r b a t t e r y
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n -
g i n e u s i n g a n o t h e r b a t t e r y .
Access to the battery
T h e b a t t e r y i s l o c a t e d u n d e r t h e
b o n n e t .
To gain access to it:
open the bonnet using the interi-
or release lever, then the exterior
s a f e t y c a t c h ,
s e c u r e t h e b o n n e t s t a y ,
remove the plastic cover to gain
access to the two terminals,
unclip the fusebox to remove the
b a t t e r y , i f n e c e s s a r y . Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e
v e h i c l e .
Follow the instructions for use
p r o v i d e d b y t h e m a n u f a c t u r e r o f
t h e c h a r g e r .
Reconnect starting with the neg-
a t i v e t e r m i n a l ( - ) .
Check that the terminals and
c o n n e c t o r s a r e c l e a n . I f t h e y a r e
c o v e r e d w i t h s u l p h a t e ( w h i t i s h o r
greenish deposit), remove them
a n d c l e a n t h e m .
Starting using another
battery
The batteries contain harm-
ful substances such as sul-
p h u r i c a c i d a n d l e a d . T h e y
must be disposed of in accordance
with regulations and must not, in
a n y c i r c u m s t a n c e s , b e d i s c a r d e d
w i t h h o u s e h o l d w a s t e .
Take used remote control batteries
and vehicle batteries to a special
c o l l e c t i o n p o i n t .
It is advisable to disconnect the
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t
u n u s e d f o r m o r e t h a n o n e m o n t h .
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
t h e s l a v e b a t t e r y B .
Connect one end of the green or
black cable to the negative ter-
m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Operate the starter, let the en-
g i n e r u n .
Wait until the engine returns to
i d l e a n d d i s c o n n e c t t h e c a b l e s .
Page 228 of 284
204
1
2 2
3 3
5 5
6 6
4 4
0 7 USING THE TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
You can also press and hold the steering wheel Tel button to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoo th telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Sele ct t h e n u m b e r r e q u i r e d a n d c o n fi r m t o m a k e t h e c a l l .
DIAL
