Citroen C4 2011.5 2.G Owner's Manual

229
03
SEARCHING USING PREVIOUSDESTINATIONS, A STORED ADDRESS OR A RETURN HOME
- Select a location using an address stored in the E address book. Sort by:
- Icon, E1
- Name, E2
- Date.E3
- Select a location using one of the 20 previousD destinations.
- Select a return home directly. F
Press YES to store your home address (the fi rst time).
NAVIGATION - GUIDANCE
E2 E1E3
DEF

230
03

NAVIGATION SETTINGS AND
INFORMATION (1/2) - Select the settings of functions linked with the G navigation to:
- set the screen display parameters such as: G1
- display 1 or 2 maps,
- display or do not display the POIs on the map, display selected icons,
- change the colours of the map,
- display or do not display the name of the currentstreet.
- display or do not display the address of the current street.
- set route conditions, such as:G2



- avoiding traffi c problems,


- avoiding selected areas,


- avoiding roads at a certain time.
- set the route guidance mode and the displayingG3 of the results of the route search.
- save, change or delete a location in the addressG4 book,
- display and select the traffi c information such as G5 traffi c jams or road works by selecting dynamic guidance.

NAVIGATION - GUIDANCE
G1G2G3
G4G5
G

231
03
- Select basic information relating to theH navigation as well as a pre-set routedemonstration to:
- choose to divert your route to avoid certain H1 areas,
- select a location using an advanced searchH2 based on a POI along a motorway or in the
vicinity of the motorway exit,
- start/stop the demonstration, H3
- recall a stored map screen.H4

NAVIGATION SETTINGS AND
INFORMATION (2/2)
NAVIGATION - GUIDANCE
H1H2
H3H4
H

232
03
SELECTING POINTS OF INTEREST (POI) ICONS DISPLAYED ON THE MAP

You can select up to 40 t
ypes of point of interest icon which are displayed on your map screen.
Press the MENU button then [Navi
gation Settings].

Press [
Screen] then [Select] on the POI line.

Press [] which is displayed.

Press each POI required.

At each contact with a POI, the display of [α] changes(α = the POI will be displayed on the screen).
General

Town centre

Locality
Shops, fi nance and businesses (Green)
Major companies
Shopping centre

Vehicles and travel (Dark blue)
CITROÀN

Airport
Bus stop
Vehicle hire
Suburban / main line station

Ferry terminal

Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station

Restaurant (Orange)
Night life / night club
Restaurant
Public places and emergency services(Brown)
Town Hall
Community centrey
Convention / exhibition centre

Hospitalp

University / college

Entertainment and attractions (Blue)

Theme park p

Bowling alley gy
Casino
Cinema
Golf course
Historical monument
Skating rink g

Marina

Museum

Flying clubyg
Leisure area
Ski station
Sports centrep

Theatre / opera p

Tourist attraction

Vineyard / wine and spirit store

NAVIGATION - GUIDANCE

233
03


Entering an address and starting guidance (1/2)

Press
ExplanationResult
Pr
ess the MENU button.

Press [Address
/Junction].
Press [Countr
y] and enter the name of the country using the touch keypad.
When a character of the name of the countr
y is entered, if 5 countries or fewer are
recognised, you can select a country from a list which is displayed or press [List].

You can select one of the 5 most recently selected countries by pressing [Last 5]on the "Country" line.

Press [
City] then [Keyword] and enter the name of the city using the touch keypad.
When a character o
f the name of the city is entered, if 5 cities or fewer are recognised,you can select a city from a list which is displayed or press [List].

You can select a city using the post code.


Press [Post Code] and enter the number.
NAVIGATION - GUIDANCE


You can select one of the 5 most recently selected cities by pressing [Last 5] on the "City" line.

234
03

Entering an address and starting guidance (2/2)

Press


Explanation Result

Press [Street] and enter the name of a street usin
g the touch keypad.
When a character of the name of the street is entered, if 5 streets or fewer are
reco
gnised, you can select a street from a list which is displayed or press [List].

Press [House
#] and enter the number of the house using the touch keypad.
You can enter the name of a junction instead of the number of thestreet. Press [Junction] and select the name from a list which isdisplayed.
Thi
s is the result once all of the information has been entered:

If
you agree with the information press [Set], otherwise press one of the buttons to correct.

Press [Start] to start the navi
gation.

/

NAVIGATION - GUIDANCE

235
03


TRAFFIC INFORMATION
Press
Explanation

Result
Press [Route].
Press [Displa
y new route].
The s
ystem offers a detour route (dynamic guidance).
Press [Back] and enter to return to the previous screen.
The s
ystem asks you to confi rm or not the new route.
Press [Yes] to confi rm your choice. The system displays the name of the new route.
Press [No] to not register the route.



During navigation, the system gives you traffi c
information received in real time.
The s
ystem can then suggest a detour route, if dynamic guidance has been activated by pressingMENU, [Navigation settings] then [TMC].
NAVIGATION - GUIDANCE

236
04
WHAT IS RDS?
The Radio Data
System (RDS) function on the FM waveband permits: - automatic retuning to alternative frequencies carrying the samestation while travelling through different regions (if the transmittersgqyggqyg
of this station cover the area through which you are travelling),gg g(gg g(
- temporary tuning to traffi c information announcements,
- display of the name of the station, etc...
Most FM stations use RDS.
These stations transmit non-audible data in addition to their programmes. The data transmitted in this way allows you access to variousfunctions, mainly displaying of the name of the station, temporary yyyy
tuning to traffi c information announcements or automatic retuning to y pyg p yy pyg p
alternative frequencies.gg
RDS allows you to continue listening to the same station automatically by means of alternative frequencies. However, alternative frequencies yg yyg
may not be provided throughout the country. Radio stations do not yq qqq
cover the whole country, which explains the loss of reception of the yp g ypg y
station during a journey. y

REGIONAL MODE
Some stations are organised in a network.
In different regions, they broadcast different or shared programmesdepending on the time of day. gyg,y

You can follow:


- a regional station only,

- the entire network, with the possibility that you will be listeningto a different programme.



















RADIO, RDS, AF, REG, TP, PTY

AUDIO / VIDEO
RDS ALTERNATIVE FREQUENCIES
Your radio automatically checks and selects the best frequency for the radio station to which it is tuned (if the station broadcasts on yqyyq
several transmitters or frequencies). The frequency of a radio station covers approximately 30 miles(50 km). The change from one frequency to another explains theq y pp yq y pp y
loss of reception during a journey. () g q() g
If the station to which you are listening does not have several frequencies in the region in which you are currently located, you canygyg
deactivate automatic alternative frequencies. qgyqgy


TRAFFIC INFORMATION FUNCTION

The Tra
ffic Programme (TP) function permits automatic and
temporary switching to an FM station broadcasting traffi c information.
The radio station or the source that
you are listening to at this point ispaused.

Once the traffi c information has ended, the system switches back to
the radio station or the source that you were listening to initially.

PROGRAMME TYPES

Some stations offer the option of listening to a themed type of
programme as a priority, selected from the list available below:
NEWS, AFFAIRS, INF
OS, SPORT, EDUCATE, DRAMA, CULTURE,SCIENCE, VARIED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN,SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ,COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT.

237
04AUDIO / VIDEO
INFORMATION DISPLAYED IN RADIO MODE
A preset number is displayed when a


A. preset station has been selected.
The name of the station is displayed
B. during the reception of RDS information. If
the station name has not been transmitted,
the frequency is displayed.
Stereo is displayed when a stereo
C. transmission is received.
AF is displayed when the AF function is on.
D.
PTY (programme type) is displayed if the
E. RDS information received is displayed.
TRAFINF is displayed, during an interruption, for traffi c information.
ALARM is displayed, during an interruption, for urgent information.
Display of 6 preset stations.

F.
To receive the preset station.

G.
Press and hold to store a station.
To change the frequency step by step.

H.
Press and hold for continuous frequency changing.
To search for currently broadcasting

I. stations which can be received in the current location, until a station is found.
To display the programme type setting

J. screen, e.g.: sport, rock, classical, news, ...
Press PTY again to exit.
Press this button to display the secondary
K. menu.
REG is displayed during the reception of
L. regional frequencies information.
RDS is displayed during the reception of
M. RDS information.
TP is displayed when the traffi c
N. information is in standby mode.
ABCDE
G
HIJK
LMN
F

238
04 AUDIO / VIDEO

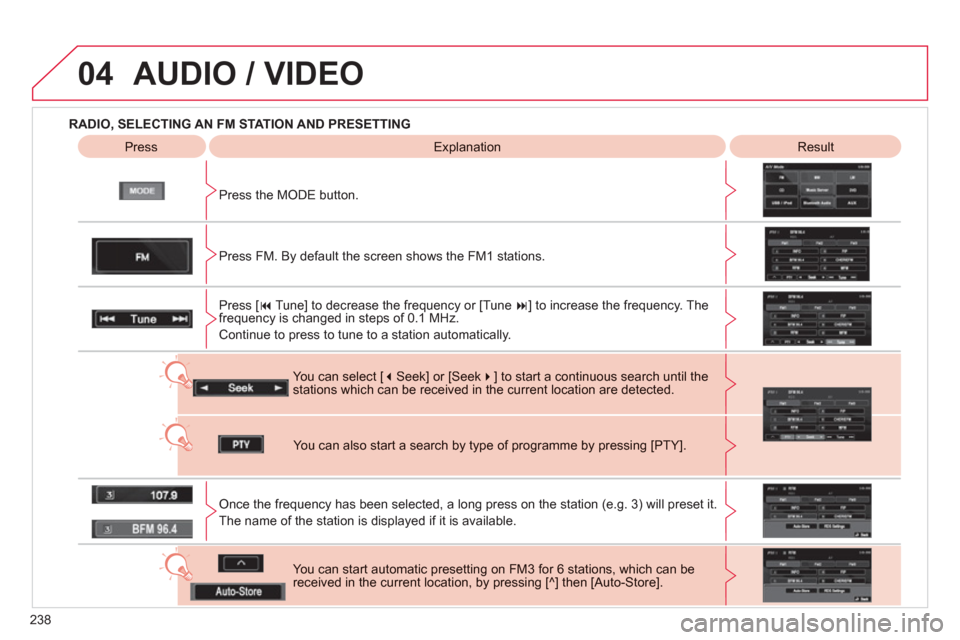

RADIO, SELECTING AN FM STATION AND PRESETTING

Pr
ess the MODE button.


Press


Explanation Result
You can select [ Seek] or [Seek ] to start a continuous search until the stations which can be received in the current location are detected.
Press FM. B
y default the screen shows the FM1 stations.

Press [
Tune] to decrease the frequency or [Tune
] to increase the frequency. The
frequency is changed in steps of 0.1 MHz.

Continue to press to tune to a station automatically.

Once the frequency has been selected, a long press on the station (e.g. 3) will preset it.
The name of the station is displa
yed if it is available.
You can start automatic presetting on FM3 for 6 stations, which can be received in the current location, by pressing [^] then [Auto-Store].



You can also start a search by type of programme by pressing [PTY].
