Practical information
the floor.
Depending on version, the spare wheel may be
a standard size steel or alloy wheel, or for some countries it is the "space saver" type.
For access to the spare wheel, see "Access to
t
he tools".

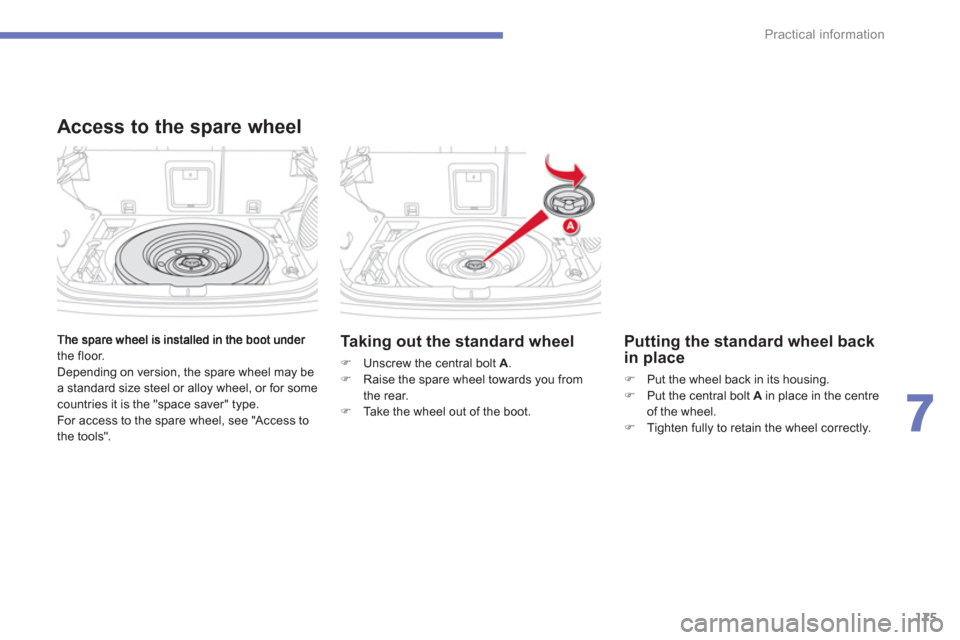

Access to the spare wheel
Ta k i ng out the standard wheel
)Unscrew the central bolt A . )Raise the spare wheel towards you from
the rear.)Take the wheel out of the boot.

Putting the standard wheel backin place
)
Put the wheel back in its housing.)
Put the central bolt Ain place in the centre of the wheel. )
Tighten fully to retain the wheel correctly.

184
Practical information
1.Third brake lamp (LEDs).2.Number plate lamps (W5W-5W).3.Rear foglamp (W21W-21W).4.Reversing lamp (W16W-16W).5.Direction indicators (W Y21W-21W).6.Sidelamps / brake lamps (W21-5W).

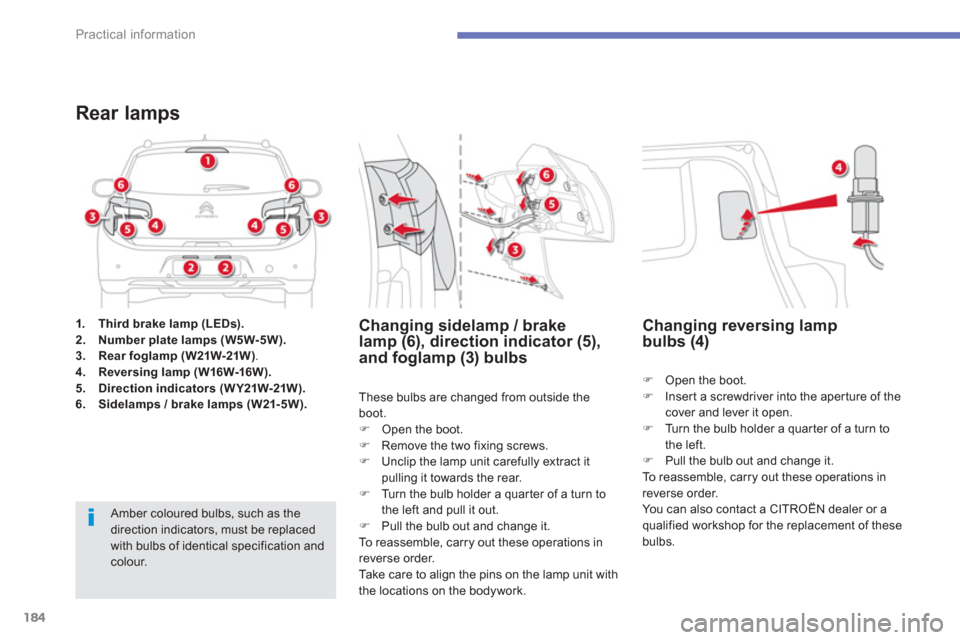

Rear lamps
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specification andcolour. These bulbs are chan
ged from outside the boot. )
Open the boot. )
Remove the two fixing screws. )
Unclip the lamp unit carefully extract it
pulling it towards the rear.) Turn the bulb holder a quar ter of a turn to
the left and pull it out.
) Pull the bulb out and change it.

To reassemble, carry out these operations in reverse order.
Take care to align the pins on the lamp unit with
the locations on the bod
ywork.
Changing sidelamp / brake
lamp (6), direction indicator (5),
and foglamp (3) bulbs
)Open the boot.)Inser t a screwdriver into the aper ture of thecover and lever it open.)Turn the bulb holder a quarter of a turn to
th
e left.)Pull the bulb out and change it.
To r e a s s e m b l e , c a r ry out these operations in
reverse order.
You can also contact a CITROËN dealer or a qualified workshop for the replacement of thesebulbs.

Changing reversing lamp
bulbs (4)

198
Practical information
) On the rear bumper, remove the cover by
pulling at the bottom using the jack handle 1 . )Screw in the towing eye 2fully using the
wheelbrace 3.)Install the towing bar. )Switch on the hazard warning lamps on both vehicles.)Move off gently and travel slowly for a shor t distance only.

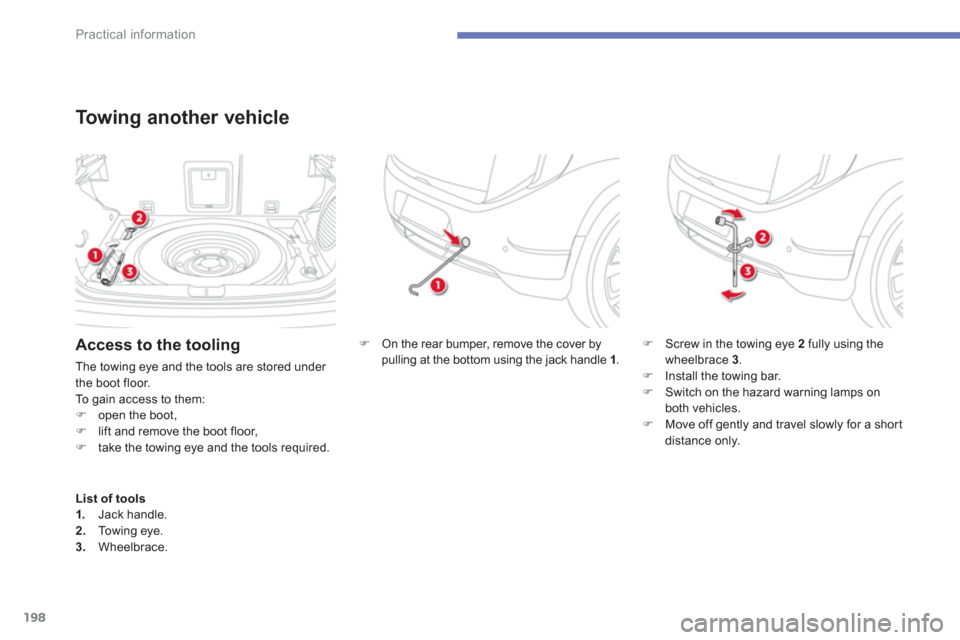

To w i ng another vehicle
Access to the tooling
The towing eye and the tools are stored under
the boot floor. To gain access to them: )open the boot,
)lift and remove the boot floor, )take the towing eye and the tools required.
List of tools1. Jack handle. 2.
To w i ng eye.
3.Wheelbrace.

202
Practical information




Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
front and rear parking sensors, smoker'skit, coat hanger on head restraint, insulatedmodule, aluminium footrest, reading lamp, air
deflectors, sun blinds...
"Transport solutions":
towbar with quickly detachable ball, rear carrying platform (easy base), roof bars, boot
liner, boot spacers, bicycle carrier for roof bars, ski carrier, canoe carrier, rigid roof boxes, flexible roof boxes, boot net...

"Style":

16 inch alloy wheels, 18 inch alloy wheels, chromed door handle shells, chromed mirror
shells, front spoiler, brushed aluminium interior
trim kit, gloss black interior trim kit, parkingbrake lever trim, aluminium gear knob, leather
steering wheel...

"Security and safety":

anti-intrusion alarm, warning triangle, high
visibility vest, breathalyser, first aid kit, snowchains, anti-slip covers, wheel security bolts, child seats, fire extinguisher, foglamp kit, dog guard, stolen vehicle tracking system,
accessories for pets (seat belts, seat and boot
protectors, cage)...

"Protection":

mat *
, boot carpet, side protective mouldings, door sill protectors, boot sill protector, vehiclecover, front and rear bumper protectivemouldings...
Conversion kits
You can obtain an "Enterprise" kit to conver t a
trade vehicle to a private car and vice-versa.



If a towbar and its harness is fitted outside the CITROËN dealer network, this must be done in line with themanufacturer's instructions.

*

To prevent any risk of jamming of thepedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.

232
03

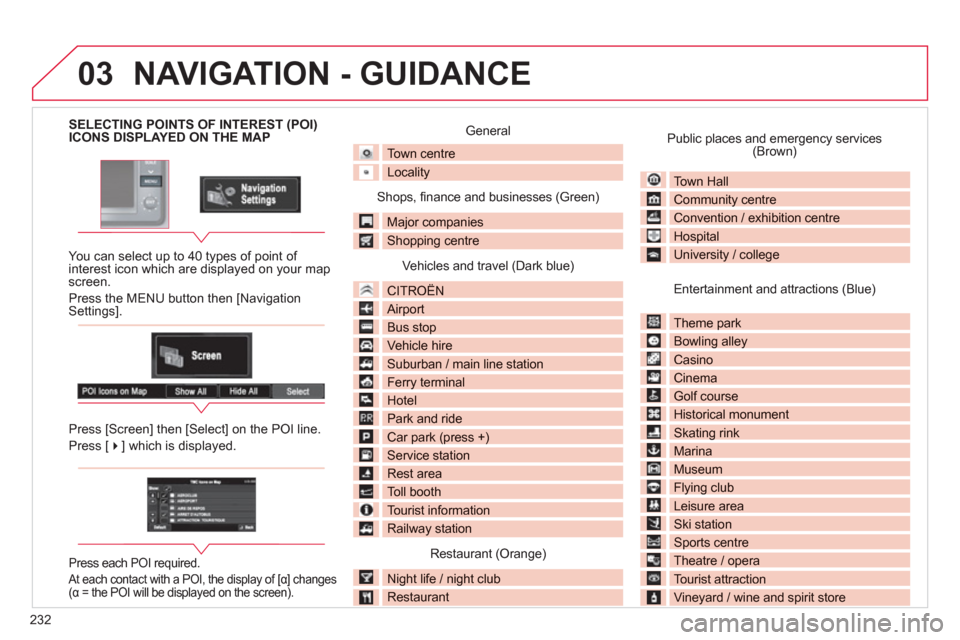

SELECTING POINTS OF INTEREST (POI) ICONS DISPLAYED ON THE MAP

You can select up to 40 t
ypes of point of interest icon which are displayed on your map screen.
Press the MENU button then [Navi
gation Settings].

Press [
Screen] then [Select] on the POI line.

Press [] which is displayed.

Press each POI required.

At each contact with a POI, the display of [α] changes(α = the POI will be displayed on the screen).
General

Town centre

Locality
Shops, fi nance and businesses (Green)
Major companies
Shopping centre

Vehicles and travel (Dark blue)
CITROÀN

Airport
Bus stop
Vehicle hire
Suburban / main line station

Ferry terminal

Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station

Restaurant (Orange)
Night life / night club
Restaurant
Public places and emergency services(Brown)
Town Hall
Community centrey
Convention / exhibition centre

Hospitalp

University / college

Entertainment and attractions (Blue)

Theme park p

Bowling alley gy
Casino
Cinema
Golf course
Historical monument
Skating rink g

Marina

Museum

Flying clubyg
Leisure area
Ski station
Sports centrep

Theatre / opera p

Tourist attraction

Vineyard / wine and spirit store

NAVIGATION - GUIDANCE

.
