FAMILIARISATION

Front seats


Head restraint


Backrest angle


Seat height adjustment

Lumbar support


Forwards-backwards
adjustment

Armrest

Electric adjustments

Manual adjustments



68



Heated seat control
(lo-
cated on the inside of the
front seats)



67

1.
Adjustment of seat height, angle
and forwards-backwards position

2.
Adjustment of backrest angle and
lumbar support

3.
Driver: storing driving positions
The seats can also be adjusted on a
temporary basis:


- on opening one of the front doors,

- after switching on the ignition.

SITTING COMFORTABLY

19
FAMILIARISATION

Deactivation of front passenger
airbag


Child lock

The 3 second-row seats of your vehicle
are fi tted with regulation ISOFIX mount-
ing points, with 3 rings for each seat po-
sition A B C.

This fi xing system is designed for chil-
dren weighing up to 18 kg.
Electric control



135




125



122



Front airbags


Manual control

PASSENGER SAFETY



1.
Insert the key in lock A
.

2.
Select the "OFF"
position.

3.
Remove the key. The rear doors are locked by operating
the lever using the key (aperture at an
angle).

Pressing the button prohibits operation
of the electric windows from the rear
of the vehicle and opening of the rear
doors from inside.

ISOFIX mounting system

21
FAMILIARISATION

SECOND ROW SEATS

The 3 second-row seats are indepen-
dent of each other and are all the same
width. They can all be adjusted to the
"comfort" position.

Placing a seat in the "comfort"
position

Returning the seat to its original position




70




Longitudinal adjustment

Lift up control A
, located at the front of
the seat, and adjust the seat into the
desired position.

INTERIOR

"Comfort" position



)
Pull on strap B.

The backrest reclines and the seat base
pivots slightly.


)
Pull on strap B
and guide the seat
forwards.

22
FAMILIARISATION
INTERIOR

Folding the seats


From the boot - whilst loading,
for example (CITROËN Grand
C4 Picasso)

SECOND ROW SEATS


From outside


)
Pull fi rmly upwards on strap C
, as
indicated by the red arrow, to unlock
the seat; keep pulling until the seat
is fully folded.



)
Slide latch A
of the panel down-
wards, to unlock it.

)
Return the panel to the upright posi-
tion, then slide latch A
upwards to
lock it.
Before deploying the rigid panels, check
that the second row seats are in their
fully rear position.



72

Having fi rstly folded the third-row
seats.


)
Pull on strap D
to unlock the re-
quired seat.




Repositioning the seats

Return the rigid panels of the second-
row seats to their initial (upright) position
and lock them in position (CITROËN
Grand C4 Picasso).
Raise the backrest and push it back-
wards until it locks in position.


Rigid panel (CITROËN Grand
C4 Picasso)
A rigid panel is attached to each sec-
ond-row seat backrest.

Unlocking/Locking the rigid panel

23
FAMILIARISATION
Fold the concertina boards ( 1 2 3
) ar-
ranged above each of the third-row
seats.
Pull on the black strap F
, located on the
seat backrest.



74
Before moving the third-row seats,
do not forget to lock in the rigid pan-
els fi rst (located at the base of the
second-row seat backrests).

Installing the seats

Put the three sections of the concertina
boards ( 1 2 3
) to their vertical position,
then pull on the red strap G
.
Before moving the third-row seats, re-
turn the rigid panels to the upright posi-
tion and lock them. Pull on control E
, located at the top of
the second-row seats backrest.



73


INTERIOR


Stowing the seats
Access to third-row seats

Do not leave objects either on or un-
derneath the second-row seats when
you are folding them.


THIRD ROW SEATS (CITROËN GRAND C4 PICASSO)

30
FAMILIARISATION

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow tyres
and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.


Have your vehicle serviced regularly (en-
gine oil, oil fi lter, air fi lter...) and observe
the schedule of operations recommended
by the manufacturer.




When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

III
57
COMFORT

Air conditioning

To ensure that your system operates
correctly, it is recommended that you
have it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To preserve the sealing of the air
conditioning compressor, operate
the air conditioning at least once a
month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sunlight
the interior temperature is excessive,
air the passenger compartment by
opening the windows for a few mo-
ments, then close them again.
The air conditioning operates by
using power from the engine. This
results in a slight increase in fuel
consumption.


Dust filter/Odour filter (active
carbon)
There is a fi lter for excluding odours
and dust.
This fi lter has to be changed in ac-
cordance with the vehicle's servicing
schedule (see the servicing booklet).


Air circulation

Air vents on the fl oor underneath the
front seats provide enhanced heat-
ing for the rear seat positions; take
care not to obstruct them.


Air vents

The air vents to the face have grilles
and thumb wheels to adjust the air
fl ow and direction (up-down, right-
left).
The automatic regulation of the air
conditioning in the passenger com-
partment uses a number of sensors
(sunshine sensor, ambient tempera-
ture sensor...) that relieve you of the
need to make frequent adjustments to
the displayed temperature.
Take care not to obstruct the sun-
shine sensor, located on the dash-
board behind the instrument panel.


Sensors

III
67
COMFORT

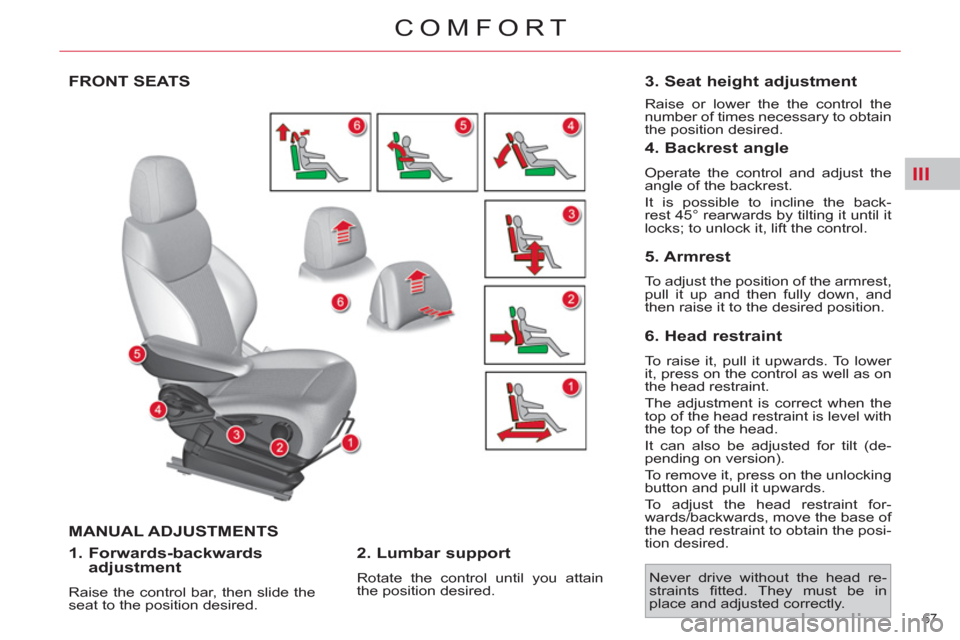

FRONT SEATS
MANUAL ADJUSTMENTS

1. Forwards-backwards
adjustment
Raise the control bar, then slide the
seat to the position desired.


2. Lumbar support

Rotate the control until you attain
the position desired.


3. Seat height adjustment

Raise or lower the the control the
number of times necessary to obtain
the position desired.


4. Backrest angle

Operate the control and adjust the
angle of the backrest.
It is possible to incline the back-
rest 45° rearwards by tilting it until it
locks; to unlock it, lift the control.


5. Armrest

To adjust the position of the armrest,
pull it up and then fully down, and
then raise it to the desired position.


6. Head restraint

To raise it, pull it upwards. To lower
it, press on the control as well as on
the head restraint.
The adjustment is correct when the
top of the head restraint is level with
the top of the head.
It can also be adjusted for tilt (de-
pending on version).
To remove it, press on the unlocking
button and pull it upwards.
To adjust the head restraint for-
wards/backwards, move the base of
the head restraint to obtain the posi-
tion desired.
Never drive without the head re-
straints fi tted. They must be in
place and adjusted correctly.

III
68
COMFORT

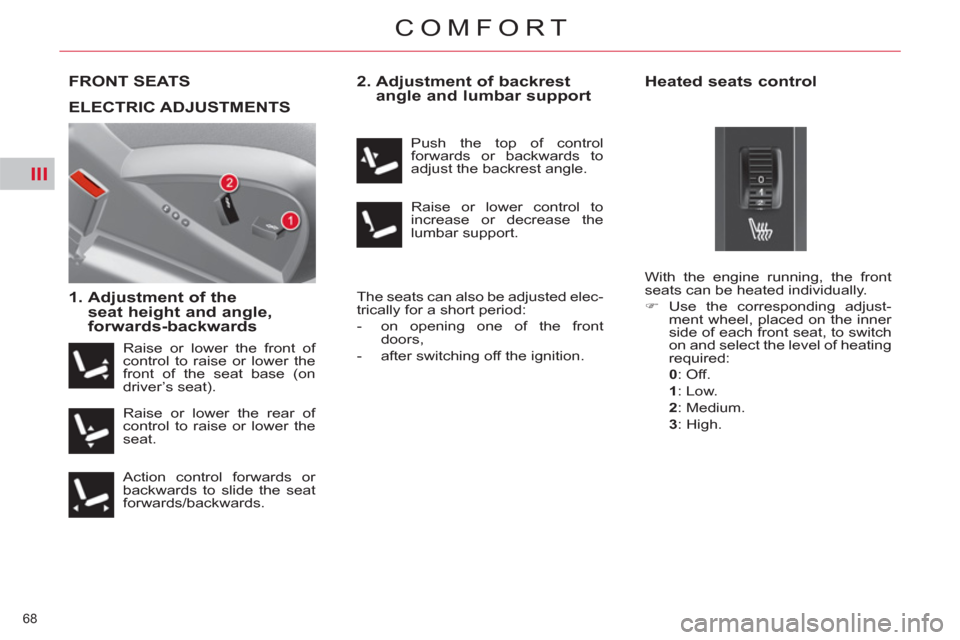

FRONT SEATS

1. Adjustment of the
seat height and angle,
forwards-backwards
2. Adjustment of backrest
angle and lumbar support
The seats can also be adjusted elec-
trically for a short period:


- on opening one of the front
doors,

- after switching off the ignition.










Heated seats control
ELECTRIC ADJUSTMENTS

Raise or lower the front of
control to raise or lower the
front of the seat base (on
driver’s seat).
Raise or lower the rear of
control to raise or lower the
seat.
Action control forwards or
backwards to slide the seat
forwards/backwards. Push the top of control
forwards or backwards to
adjust the backrest angle.
Raise or lower control to
increase or decrease the
lumbar support.

With the engine running, the front
seats can be heated individually.


)
Use the corresponding adjust-
ment wheel, placed on the inner
side of each front seat, to switch
on and select the level of heating
required:

0
: Off.

1
: Low.

2
: Medium.

3
: High.
