Page 33 of 352
I
31
MONITORING
MONOCHROME INSTRUMENT PANEL (WITH MULTIFUNCTION SCREEN A)
1.
Rev counter
2.
Gear effi ciency indicator for a
manual gearbox or gear selector
lever and gear for the electronic
gearbox system or automatic
gearbox
3.
"Foot on brake" warning lamp for
the electronic gearbox system or
automatic gearbox/Electric park-
ing brake
4.
Speedometer
5.
Cruise control or speed limiter
setting
A.
Lighting rheostat (available day
and night)
B.
Trip mileage recorder reset
Central screen
Controls
TWO-TONE INSTRUMENT PANEL (WITH MULTIFUNCTION SCREEN C)
6.
Fuel gauge
7.
Trip mileage recorder
8.
Multifunction screen A/C
9.
Total mileage recorder
In this zone, the following infor-
mation appears in succession
when the ignition is switched on:
- service indicator,
- engine oil level indicator,
- total mileage recorder.
Page 34 of 352
I
32
MONITORING
INSTRUMENT PANEL WITH MyWayOR NaviDriveMULTIFUNCTION
SCREEN
1.
Cruise control or speed limiter
setting
2.
Speedometer
3.
MyWay or NaviDrive multifunc-
tion screen
4.
Rev counter
5.
"Foot on brake” warning lamp for
the electronic gearbox system or
automatic gearbox/Electric park-
ing brake
6.
Fuel gauge
A.
Lighting rheostat (available day
and night)
B.
Trip mileage recorder reset
Central screen
Controls
7.
Gear effi ciency indicator for a
manual gearbox or selector lever
position and gear for the elec-
tronic gearbox system or auto-
matic gearbox
8.
Trip mileage recorder
9.
Total mileage recorder
In this zone, the following infor-
mation appears in succession
when the ignition is switched on:
- service indicator,
- engine oil level indicator,
- total mileage recorder.
10.
Warning lamp zone.
Page 44 of 352
I
42
MONITORING
Service indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service. 5 seconds after the ignition is switched
on, the spanner
goes
off
; the dis-
tance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 1 000 km remain
before the next service is due
Example:
900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to indicate that the service must be
carried out as soon as possible.
Example:
the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation. The
spanner remains on
to indicate that
a service must be carried out soon. 5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains
on
.
More than 1 000 km remain
before the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbol-
ising the service operations comes
on. The distance recorder display
line indicates the distance remaining
before the next service is due.
Example:
4 800 km remain before
the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Page 45 of 352
I
43
MONITORING
Service indicator zero reset
Engine oil level indicator
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:
)
switch off the ignition,
)
press and hold the trip distance
recorder zero reset button,
)
switch on the ignition; the dis-
tance recorder display begins a
countdown,
)
when the display indicates "=0"
,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is cor-
rect or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 30 minutes.
Oil level correct
Oil level low
This is indicated by the fl ashing of
"OIL"
, accompanied by an audible
signal and a message on the multi-
function screen.
If the low oil level is confi rmed by a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine.
Oil level gauge fault
This is indicated by the fl ashing of
"OIL--"
. Contact a CITROËN dealer
or a qualifi ed workshop.
Dipstick
Refer to the "Checks" section to lo-
cate the dipstick and the oil fi ller cap
on your engine.
There are 2 marks on
the dipstick:
- A
= max; never ex-
ceed this level (risk
of engine damage),
- B
= min; top up the
level via the oil fi ller,
using the type of oil
suited to your en-
gine.
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into ac-
count.
Page 86 of 352
IV
84

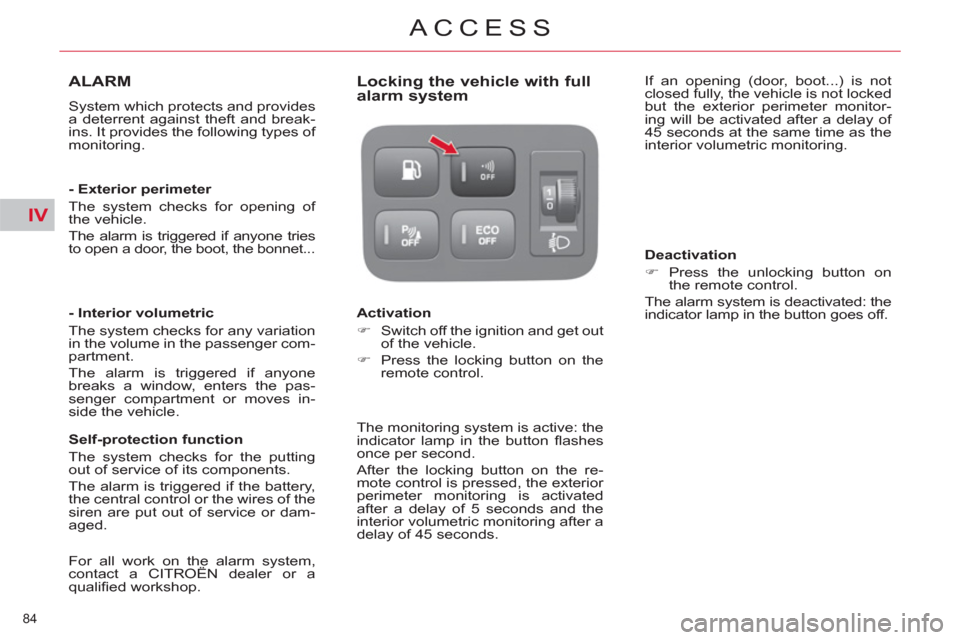

ACCESS
ALARM
System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring.
- Exterior perimeter
The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation
in the volume in the passenger com-
partment.
The alarm is triggered if anyone
breaks a window, enters the pas-
senger compartment or moves in-
side the vehicle.
Self-protection function
The system checks for the putting
out of service of its components.
The alarm is triggered if the battery,
the central control or the wires of the
siren are put out of service or dam-
aged.
Locking the vehicle with full
alarm system
Activation
)
Switch off the ignition and get out
of the vehicle.
)
Press the locking button on the
remote control.
Deactivation
)
Press the unlocking button on
the remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric monitoring.
The monitoring system is active: the
indicator lamp in the button fl ashes
once per second.
After the locking button on the re-
mote control is pressed, the exterior
perimeter monitoring is activated
after a delay of 5 seconds and the
interior volumetric monitoring after a
delay of 45 seconds.
For all work on the alarm system,
contact a CITROËN dealer or a
qualifi ed workshop.
Page 161 of 352
IX
159
DRIVING
Manual operation
Position of the gear lever for manual
gear changing.
)
Move the gear lever to
position M
.
)
Pull the " +
" paddle to change up
a gear.
)
Pull the " -
" paddle to change
down a gear.
- If the vehicle stops or reduces
speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatically
to fi rst gear.
- In manual mode, it is not neces-
sary to release the accelerator
during gear changes.
- A request to change gear is ac-
cepted only if the engine speed
permits it.
- For safety reasons, depending
on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to
change mode, by moving the
gear lever from position D
to po-
sition M
or vice versa.
Flashing of the indicator for
the position requested sig-
nals that this position is not
yet obtained.
If the indicator is on fi xed, the posi-
tion is confi rmed.
Display of a dash in the rev counter
indicates a malfunction. Contact
a CITROËN dealer or a qualifi ed
workshop.
Illumination of the service warning
lamp accompanied by a message
and an audible signal indicates an
operating fault. In this case:
- a marked snatching may be felt
when selecting R
for reverse
gear,
- the gearbox is locked in one
gear,
- do not exceed a speed of 60 mph
(approximately 100 km/h).
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
Page 170 of 352
IX
168
DRIVING

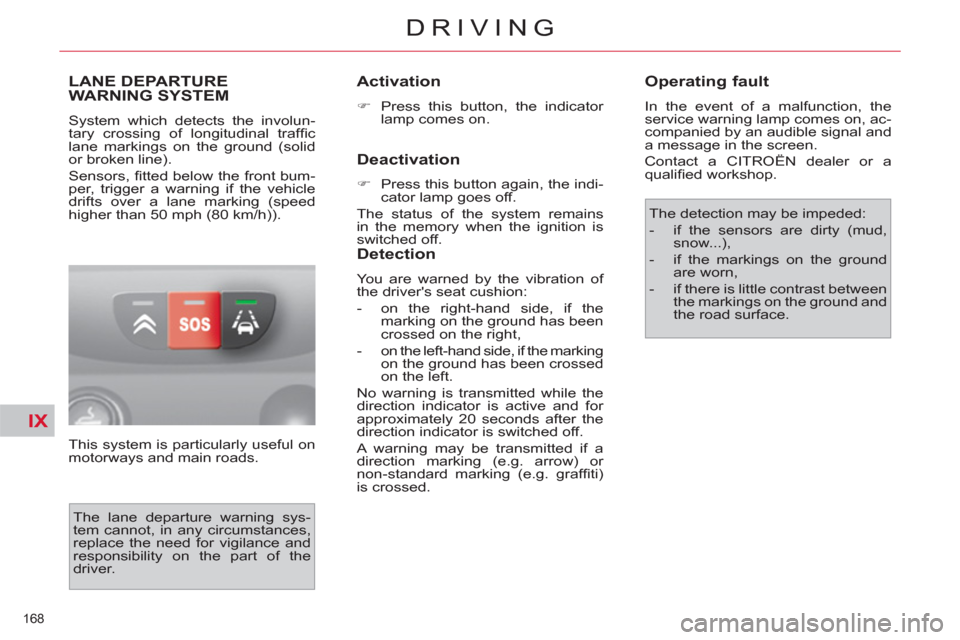

LANE DEPARTURE
WARNING SYSTEM
System which detects the involun-
tary crossing of longitudinal traffi c
lane markings on the ground (solid
or broken line).
Sensors, fi tted below the front bum-
per, trigger a warning if the vehicle
drifts over a lane marking (speed
higher than 50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads.
Activation
)
Press this button, the indicator
lamp comes on.
Deactivation
)
Press this button again, the indi-
cator lamp goes off.
The status of the system remains
in the memory when the ignition is
switched off.
Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the
marking on the ground has been
crossed on the right,
- on the left-hand side, if the marking
on the ground has been crossed
on the left.
No warning is transmitted while the
direction indicator is active and for
approximately 20 seconds after the
direction indicator is switched off.
A warning may be transmitted if a
direction marking (e.g. arrow) or
non-standard marking (e.g. graffi ti)
is crossed.
Operating fault
In the event of a malfunction, the
service warning lamp comes on, ac-
companied by an audible signal and
a message in the screen.
Contact a CITROËN dealer or a
qualifi ed workshop.
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver.
The detection may be impeded:
- if the sensors are dirty (mud,
snow...),
- if the markings on the ground
are worn,
- if there is little contrast between
the markings on the ground and
the road surface.
Page 173 of 352
IX
171
DRIVING

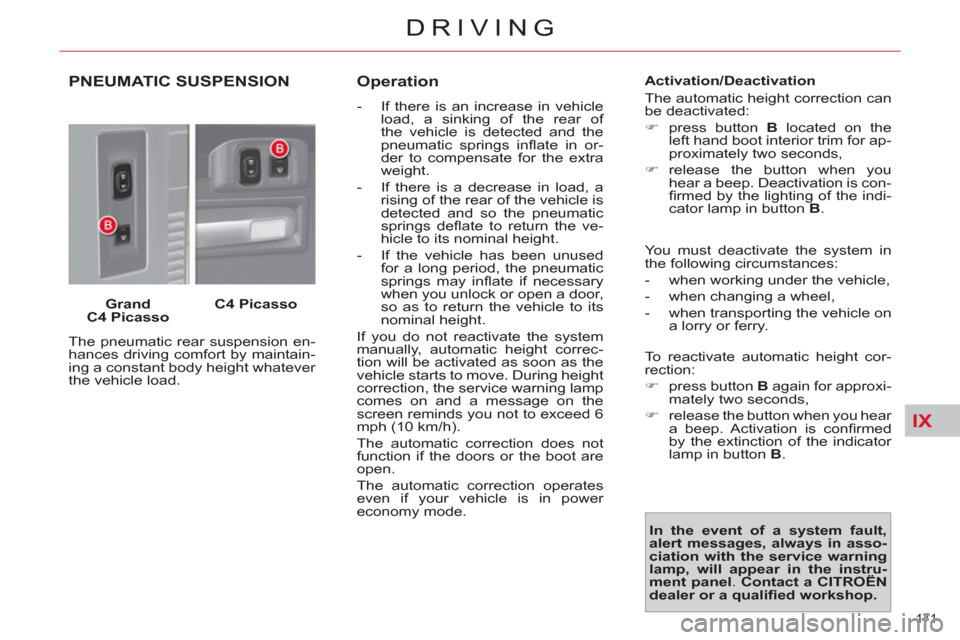

PNEUMATIC SUSPENSION
Grand
C4 Picasso
C4 Picasso
The pneumatic rear suspension en-
hances driving comfort by maintain-
ing a constant body height whatever
the vehicle load.
Operation
- If there is an increase in vehicle
load, a sinking of the rear of
the vehicle is detected and the
pneumatic springs infl ate in or-
der to compensate for the extra
weight.
- If there is a decrease in load, a
rising of the rear of the vehicle is
detected and so the pneumatic
springs defl ate to return the ve-
hicle to its nominal height.
- If the vehicle has been unused
for a long period, the pneumatic
springs may infl ate if necessary
when you unlock or open a door,
so as to return the vehicle to its
nominal height.
If you do not reactivate the system
manually, automatic height correc-
tion will be activated as soon as the
vehicle starts to move. During height
correction, the service warning lamp
comes on and a message on the
screen reminds you not to exceed 6
mph (10 km/h).
The automatic correction does not
function if the doors or the boot are
open.
The automatic correction operates
even if your vehicle is in power
economy mode.
Activation/Deactivation
The automatic height correction can
be deactivated:
)
press button B
located on the
left hand boot interior trim for ap-
proximately two seconds,
)
release the button when you
hear a beep. Deactivation is con-
fi rmed by the lighting of the indi-
cator lamp in button B
.
In the event of a system fault,
alert messages, always in asso-
ciation with the service warning
lamp, will appear in the instru-
ment panel
. Contact a CITROËN
dealer or a
qualifi ed workshop.
You must deactivate the system in
the following circumstances:
- when working under the vehicle,
- when changing a wheel,
- when transporting the vehicle on
a lorry or ferry.
To reactivate automatic height cor-
rection:
)
press button B
again for approxi-
mately two seconds,
)
release the button when you hear
a beep. Activation is confi rmed
by the extinction of the indicator
lamp in button B
.
Page 181 of 352
X
179
CHECKS
CHECKING LEVELS
Oil level
Oil specifi cation
The oil must be the correct grade
for your engine and conform to the
manufacturer's recommendations.
Brake fl uid level
Changing the fl uid
Refer to the servicing booklet for de-
tails of the interval for this operation.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations
and meet the DOT4 standard.
The check is carried out ei-
ther when the ignition is
switched on using the oil lev-
el indicator on the instrument
panel, or using the dipstick.
This manual check will only be cor-
rect if the vehicle is on level ground
and the engine has been off for more
than 30 minutes.
It is normal to top up the oil lev-
el between two services (or oil
changes). CITROËN recommends
that you check the level, and top
up if necessary, every 3 000 miles
(5 000 kms). The brake fl uid level should
be close to the "MAX" mark.
If it is not, check the brake
pad wear.
In order to maintain the re-
liability of the engine and
emission control system,
the use of additives in the engine
oil is prohibited.
Take care when working
under the bonnet, as cer-
tain areas of the engine
may be extremely hot (risk
of burns).
Power steering fl uid level
The power steering fl uid
level should be close to the
"MAX" mark. With the en-
gine cold, unscrew the cap
to check the level.
If a level drops signifi cantly, have
the corresponding system checked
by a CITROËN dealer or a qualifi ed
workshop.
Check all of these levels regularly
and top them up if necessary, unless
otherwise indicated.
Engine oil change
Refer to the servicing booklet for de-
tails of the interval for this operation. After topping up the oil, the check
when switching on the ignition with
the oil level indicator in the instru-
ment panel is not valid during the
30 minutes after topping up.
Page 231 of 352
229

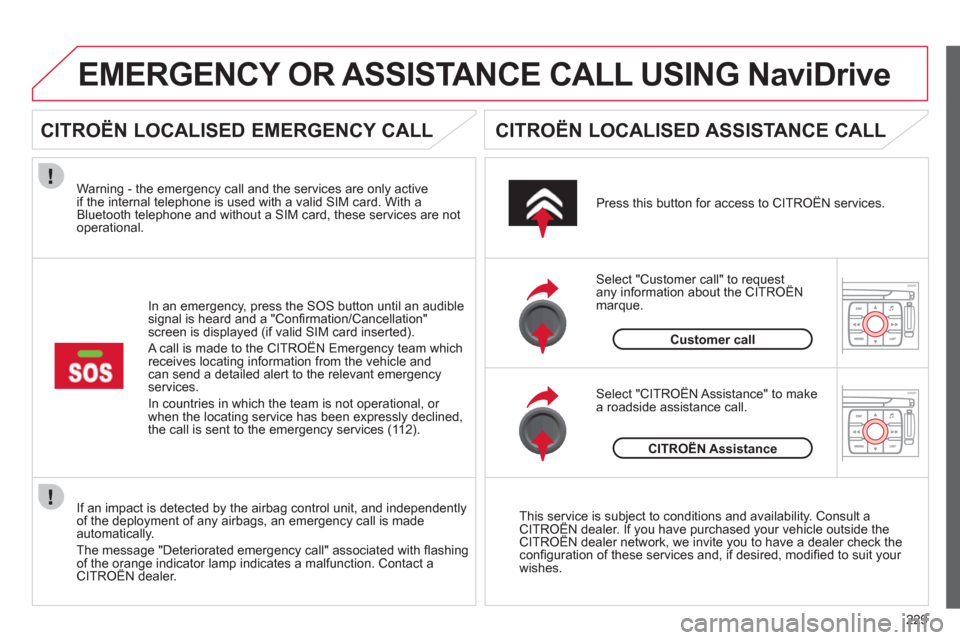

If an impact is detected by the airbag control unit, and independentlyof the deployment of any airbags, an emergency call is made automatically.
The messa
ge "Deteriorated emergency call" associated with fl ashing of the orange indicator lamp indicates a malfunction. Contact a CITROËN dealer.
g
In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the CITRO
ËN Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services.
In countries in which the team is not o
perational, or
when the locating service has been expressly declined,
the call is sent to the emergency services (11 2).
Warning - the emergency call and the services are only active
if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to CITROËN services.
Customer call
Select "Customer call" to requestany information about the CITROËNq
marque.
Select "CITROËN Assistance" to make a roadside assistance call.
CITROËNAssistance
This service is subject to conditions and availability. Consult aCITROËN dealer. If you have purchased your vehicle outside the jy
CITROËN dealer network, we invite you to have a dealer check the yp y
confi guration of these services and, if desired, modifi ed to suit your
wishes.
EMERGENCY OR ASSISTANCE CALL USING NaviDrive
CITROËN LOCALISED EMERGENCY CALL
CITROËN LOCALISED ASSISTANCE CALL
