6
FITTINGS
11 9
230 V/50 HZ POWER SOCKET
A 230 V/50 Hz socket (maximum power:
120 W) is fi tted to the centre console.
To use the socket:
)
lift the front armrest cover for ac-
cess to its compartment,
)
check that the warning lamp is on
green,
)
connect your multimedia or other
electrical device (telephone charger,
laptop computer, CD-DVD player,
baby food warmer...).
This socket works with the engine
running, as well as in STOP mode on
Stop & Start.
)
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.
12 V ACCESSORY SOCKET
Connect only one device at a
time to the socket (no extension
or multi-way connector).
Connect only devices with class
II insulation (shown on the de-
vice).
As a safety measure, when elec-
trical consumption is high and
when required by the vehicle's
electrical system (particular
weather conditions, electrical
overload...), the current supply
to the socket will be cut off; the
green warning lamp goes off.
In the event of a fault with the socket,
the green warning lamp fl ashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
Page 122 of 332
6
FITTINGS
120
MATS
Removable carpet protection.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as pos-
sible,
)
unclip the fi xings,
)
remove the mat.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured cor-
rectly.
To avoid any risk of jamming of
the pedals:
- only use mats which are
suited to the fi xings already
present in the vehicle; these
fi xings must be used,
- never fi t one mat on top of
another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise con-
trol/speed limiter.
STORAGE DRAWERS
Located under each front seat, except
for the driver's seat on versions with
electric seat.
Opening
)
Raise the front of the drawer and
pull it open.
Do not place heavy objects in the drawer.
Removal
Avoid removing the drawer completely,
as refi tting it is not easy.
)
Open the drawer fully.
)
Pull the drawer upwards to disengage it.
Refitting
However, if it has been completely re-
moved, to refi t it:
)
use the torch to illuminate the area
under the seat,
)
engage the drawer in its runners,
)
lift the retaining tongues and slide
the drawer under these tongues,
)
at the end of its travel, press down
on the drawer to engage it.
Page 123 of 332
6
FITTINGS
121
REAR ARMREST
Comfort system for the rear passen-
gers.
)
Lower the rear armrest for a more
comfortable position.
This also gives access to the ski fl ap.
SKI FLAP
Arrangement for storing and transporting
long objects.
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
Page 124 of 332
6
FITTINGS
122
BOOT FITTINGS
1.
Rear parcel shelf
(see details on a following page)
2.
Hooks
(see details on a following page)
3.
12 V accessory socket
(see details on a following page)
4.
Torch
(see details on following pages)
5.
Lashing rings
6.
Storage box
(see details on following pages)
7.
Retaining straps
8.
Storage net
Page 125 of 332
6
FITTINGS
123
To remove the shelf:
)
unhook the two cords,
)
raise the shelf slightly, then remove it.
There are several options for storing
the shelf:
- either upright behind the front
seats,
- or fl at at the base of the boot.
Rear parcel shelf
The hooks can be used to secure shop-
ping bags.
Hooks
An additional hook under the
shelf is used to hold up the boot
fl oor using its cord, to facilitate
access to the tools and spare
wheel or the temporary puncture
repair kit...
Access to the storage box
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on posi-
tion.
12 V accessory socket
Page 126 of 332
6
FITTINGS
124
This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Torch
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling it upwards.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its lo-
cation starting with the lower part.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
)
Raise the boot carpet for access to
the storage box.
This has areas for the storage a box of
spare bulbs, a fi rst aid kit, two warning
triangles...
It also contains the vehicle tools, the
temporary puncture repair kit...
Storage box
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable
batteries with normal disposable
batteries. It the torch is not engaged cor-
rectly, it may not charge and may
not come on when the boot is
opened.
Page 127 of 332
6
FITTINGS
125

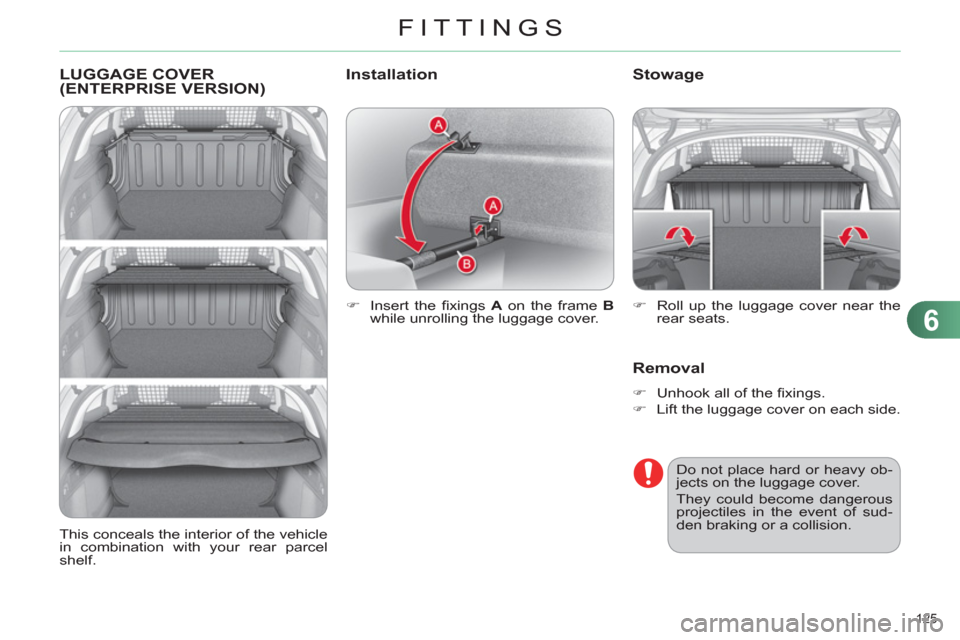

LUGGAGE COVER
(ENTERPRISE VERSION)
)
Insert the fi xings A
on the frame B
while unrolling the luggage cover.
Stowage
Removal
)
Unhook all of the fi xings.
)
Lift the luggage cover on each side.
This conceals the interior of the vehicle
in combination with your rear parcel
shelf.
Installation
)
Roll up the luggage cover near the
rear seats.
Do not place hard or heavy ob-
jects on the luggage cover.
They could become dangerous
projectiles in the event of sud-
den braking or a collision.
Page 128 of 332
7
CHILD SAFETY
126
*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of CITROËN's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European regu-
lations, all children under the age
of 12 or less than one and a half
metres tall must travel in approved
child seats suited to their weight
,
on seats fi tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
CITROËN recommends
that
children should travel in the rear
seats
of your vehicle:
- "rearwards-facing"
up to
the age of 2,
- "forwards-facing"
over the
age of 2.
CHILD SEAT IN THE FRONT
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
Intermediate longitudinal position
Page 129 of 332
7
CHILD SAFETY
127
Passenger airbag OFF
Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.
To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed
if the airbag were deployed.
Page 130 of 332
7
CHILD SAFETY
128

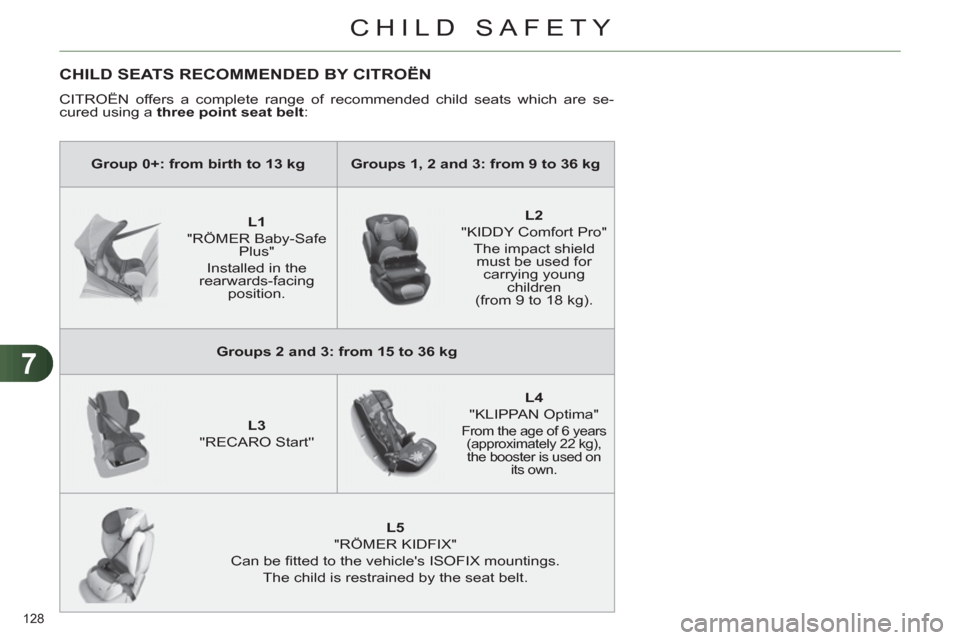

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
"RÖMER Baby-Safe
Plus"
Installed in the
rearwards-facing
position.
L2
"KIDDY Comfort Pro"
The impact shield
must be used for
carrying young
children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg),
the booster is used on
its own.
L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
