LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using the seat belt
and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
Seat
Weight of the child/
indicative age
Less than 13 kg
(groups 0 (b)
and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to
≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to
≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to
≈ 10 years
Front passenger seat (c)
- fi xed
U(R1)
U(R1)
U(R1)
U(R1)
- height adjustable
U(R2)
U(R2)
U(R2)
U(R2)
Outer rear seats
U
U
U
U
Centre rear seat
X
X
X
X
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".
U(R1)
: identical to U
, with the vehicle's seat backrest inclined fully forwards.
U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position.
X
: seating position not suitable for installing a child seat for the weight group indicated.
Page 132 of 332
7
CHILD SAFETY
130
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
ADVICE ON CHILD SEATS
As a safety precaution, do not leave:
- a child or children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rm-
ly on the seat of your vehicle. If your
passenger seat is adjustable, move it
forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Page 133 of 332
7
CHILD SAFETY
131
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new
ISOFIX regu-
lation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: There are three rings for each seat:
- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B
, behind the seat, referred to
as the TOP TETHER
for fi xing the
upper strap. This ISOFIX mounting system provides
fast, reliable and safe fi tting of the child
seat in your vehicle.
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table showing
the locations for installing ISOFIX child
seats. When fi tting an ISOFIX child
seat to the left hand rear seat,
before fi tting the seat, fi rst move
the centre rear seat belt towards
the middle of the vehicle, so as
to avoid the seat interfering with
the operation of the seat belt.
The ISOFIX child seats
are fi tted with
two latches which are secured on the
two rings A
.
Some seats also have an upper strap
,
known as the Top Tether, which is at-
tached to ring B
.
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.
Page 134 of 332
7
CHILD SAFETY
132
ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
RÖMER
Duo Plus ISOFIX
(size category B1
)
Group 1: from 9 to 18 kg
Installed only in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B
, referred to as the
TOP TETHER.
Three seat body angles: sitting, reclining, lying.
)
Adjust the front seat of the vehicle so that the child's feet do not touch the
back of the seat.
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached
to the vehicle seat using the three point seat belt.
Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.
Page 135 of 332
7
CHILD SAFETY
133
*
Infant car seats and "car cots" cannot be installed on the front passenger seat.
**
The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.
LOCATIONS FOR ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to
G
, is indicated on the child seat next to the ISOFIX logo.
IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" secured using the upper strap.
IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:
- "rear facing" fi tted with an upper strap or a stay,
- "forward facing" fi tted with a stay,
- an infant car seat fi tted with an upper strap or a stay.
For advice on securing of the upper strap, refer to the paragraph "ISOFIX mountings".
Weight of the child
/indicative age
Less than
10 kg
(group 0)
Up to approx.
6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat
Infant car
seat
*
"rear facing"
"rear facing"
"forward facing"
ISOFIX size category
F
G
C
D
E
C
D
A
B
B1
ISOFIX child seats universal
and semi-universal which
can be installed on the rear
outer seats
IL-SU
**
IL-SU
IL-SU
IUF
IL-SU
Page 136 of 332
7
CHILD SAFETY
134

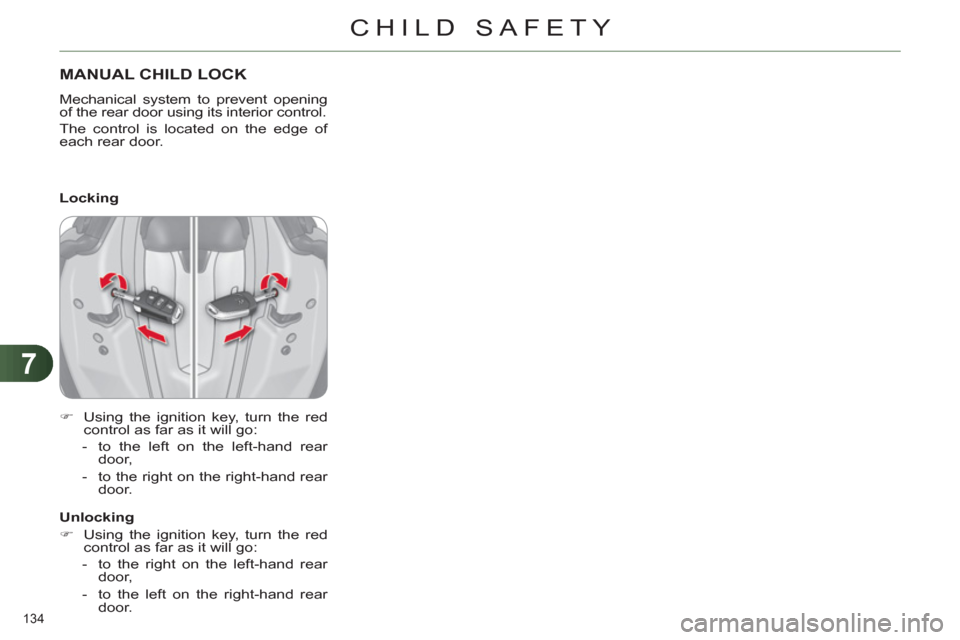

MANUAL CHILD LOCK
Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.
)
Using the ignition key, turn the red
control as far as it will go:
- to the left on the left-hand rear
door,
- to the right on the right-hand rear
door.
Locking
Unlocking
)
Using the ignition key, turn the red
control as far as it will go:
- to the right on the left-hand rear
door,
- to the left on the right-hand rear
door.
Page 137 of 332
8
SAFETY
135

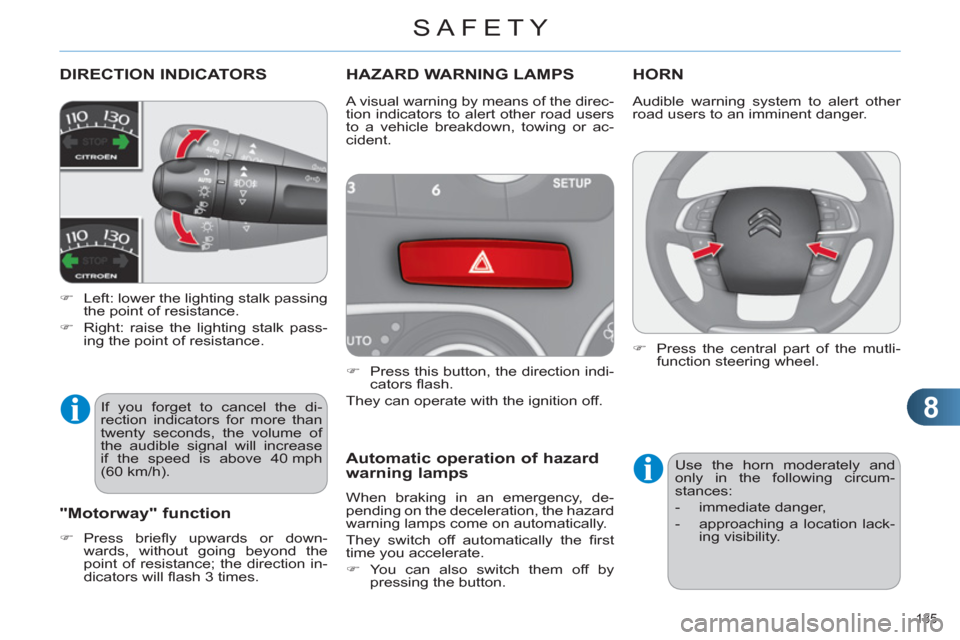

DIRECTION INDICATORS
)
Left: lower the lighting stalk passing
the point of resistance.
)
Right: raise the lighting stalk pass-
ing the point of resistance.
HAZARD WARNING LAMPS
)
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.
)
You can also switch them off by
pressing the button.
HORN
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
"Motorway" function
)
Press briefl y upwards or down-
wards, without going beyond the
point of resistance; the direction in-
dicators will fl ash 3 times.
If you forget to cancel the di-
rection indicators for more than
twenty seconds, the volume of
the audible signal will increase
if the speed is above 40 mph
(60 km/h). Audible warning system to alert other
road users to an imminent danger.
)
Press the central part of the mutli-
function steering wheel.
Use the horn moderately and
only in the following circum-
stances:
- immediate danger,
- approaching a location lack-
ing visibility.
Page 138 of 332
8
SAFETY
136
TYRE UNDER-INFLATION
DETECTION
System which automatically and continu-
ously checks the pressure of the tyres
while driving.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed
on the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal,
to identify the wheel concerned.
Under-infl ated tyre
The STOP
warning lamp
comes on and/or this warn-
ing lamp is displayed on the
instrument panel, accompa-
nied by an audible signal and
a message in the screen iden-
tifying the wheel concerned.
)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.
)
Repair or change the damaged
wheel (punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.
Puncture
Sensor(s) not detected or faulty
A message appears in the screen, ac-
companied by an audible signal, to
identify the wheel or wheels which are
not detected or to indicate a malfunc-
tion in the system.
Contact a CITROËN dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired)
or when one or more wheels
without a sensor are fi tted.
If your vehicle is equipped with
a spare wheel, this is not fi tted
with a sensor. All repairs and changing of tyres
on a wheel fi tted with this sys-
tem must be carried out by a
CITROËN dealer or a qualifi ed
workshop.
If, when changing a tyre, you
install a wheel which is not de-
tected by your vehicle (example:
fi tting of snow tyres), you must
have the system reinitialised by
a CITROËN dealer or a qualifi ed
workshop.
The tyre under-infl ation detec-
tion system is an aid to driving
which does not replace the need
for the driver to be vigilant or to
drive responsibly. This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" sec-
tion) to ensure that the optimum
dynamic performance of the ve-
hicle is maintained and prevent
premature wear of the tyres, par-
ticularly in arduous driving condi-
tions (heavy load, high speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detec-
tion system may experience
temporary interference due to
electro-magnetic emissions on a
frequency close to that used by
the system.
)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Page 139 of 332
8
SAFETY
137
BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:
- anti-lock braking system (ABS),
- electronic brake force distribution
(EBFD),
- emergency braking assistance (EBA).
When braking in an emergency,
press very fi rmly without releas-
ing the pressure.
When replacing wheels (tyres
and rims), ensure that they con-
form to the manufacturer's rec-
ommendations.
When braking in an emergency,
press fi rmly without releasing
the pressure.
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.
Operating fault
If this warning lamp comes on,
accompanied by an audible
signal and a message in the
screen, it indicates a malfunc-
tion of the anti-lock braking system
which could result in loss of control of
the vehicle when braking.
If this warning lamp comes on,
together with the STOP
and
ABS
warning lamps, accompa-
nied by an audible signal and
a message in the screen, it indicates a
malfunction of the electronic brake force
distribution which could result in loss of
control of the vehicle when braking.
You must stop as soon as it is safe
to do so.
Emergency braking assistance
System which, in an emergency, en-
ables you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.
Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
In either case, contact a CITROËN
dealer or a qualifi ed workshop.
Page 140 of 332
8
SAFETY
138

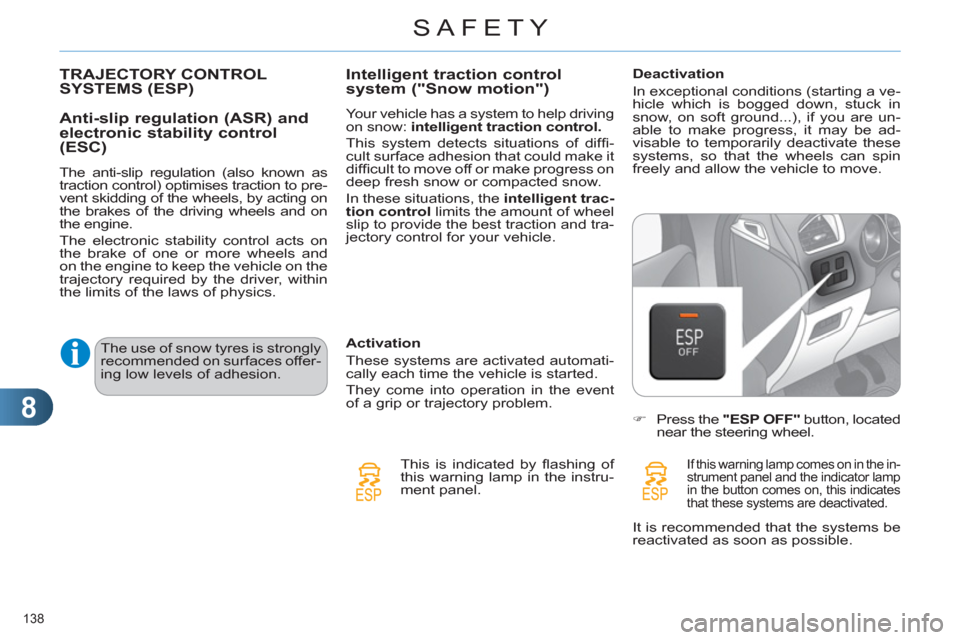

TRAJECTORY CONTROL
SYSTEMS (ESP)
Anti-slip regulation (ASR) and
electronic stability control
(ESC)
The anti-slip regulation (also known as
traction control) optimises traction to pre-
vent skidding of the wheels, by acting on
the brakes of the driving wheels and on
the engine.
The electronic stability control acts on
the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
This is indicated by fl ashing of
this warning lamp in the instru-
ment panel.
Intelligent traction control
system ("Snow motion")
Your vehicle has a system to help driving
on snow: intelligent traction control.
This system detects situations of diffi -
cult surface adhesion that could make it
diffi cult to move off or make progress on
deep fresh snow or compacted snow.
In these situations, the intelligent trac-
tion control
limits the amount of wheel
slip to provide the best traction and tra-
jectory control for your vehicle.
Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), if you are un-
able to make progress, it may be ad-
visable to temporarily deactivate these
systems, so that the wheels can spin
freely and allow the vehicle to move.
)
Press the "ESP OFF"
button, located
near the steering wheel.
If this warning lamp comes on in the in-
strument panel and the indicator lamp
in the button comes on, this indicates
that these systems are deactivated.
The use of snow tyres is strongly
recommended on surfaces offer-
ing low levels of adhesion.
It is recommended that the systems be
reactivated as soon as possible.
