04 NAVIGATION - GUIDANCE


ALERT PARAMETERS
RISK AREAS

Press NAV
to display the " Navigation -
guidance
" menu.

Select:


- "Visual alert"

- "Audible alert"

- "Alert only in guidance"

- "Overspeed alarm only".
The choice of time of notifi cation defi nes
how long in advance that speed camera
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select " Set parameters for risk
areas
" and confi rm.
These functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updating risk areas can be found
at www.citroen.co.uk.

245
04
3
4
1
2

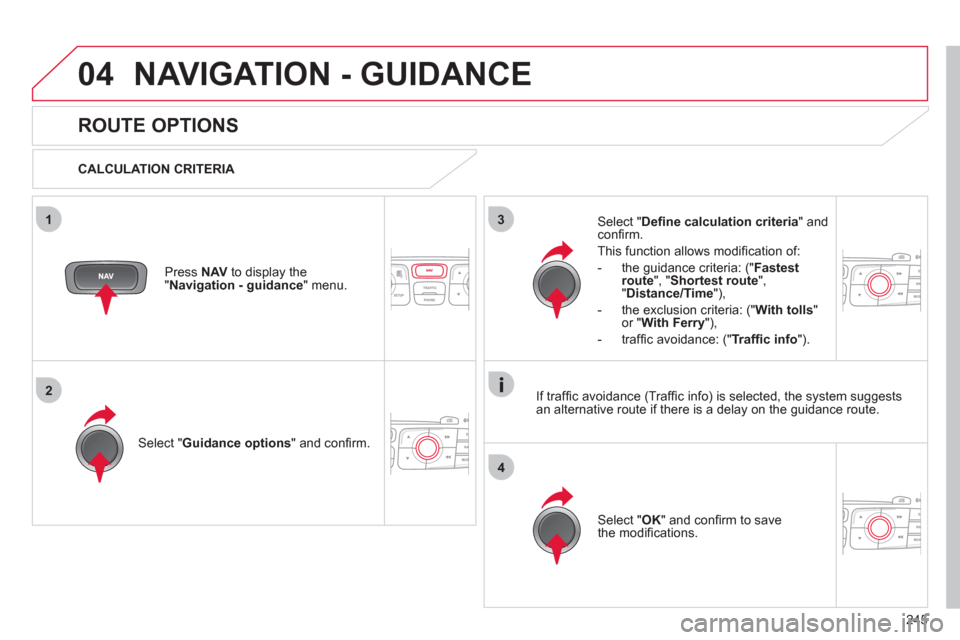

NAVIGATION - GUIDANCE







ROUTE OPTIONS


CALCULATION CRITERIA

Select " Guidance options
" and confi rm.

Select " OK
" and confi rm to save
the modifi cations.

Select " Defi ne calculation criteria
" and
confi rm.
This function allows modifi cation of:


- the guidance criteria: (" Fastest
route
", " Shortest route
",
" Distance/Time
"),

- the exclusion criteria: (" With tolls
"
or " With Ferry
"),

- traffi c avoidance: (" Traffi c info
").

Press NAV
to display the
" Navigation - guidance
" menu.
If traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.

246
04
35
1
2
4

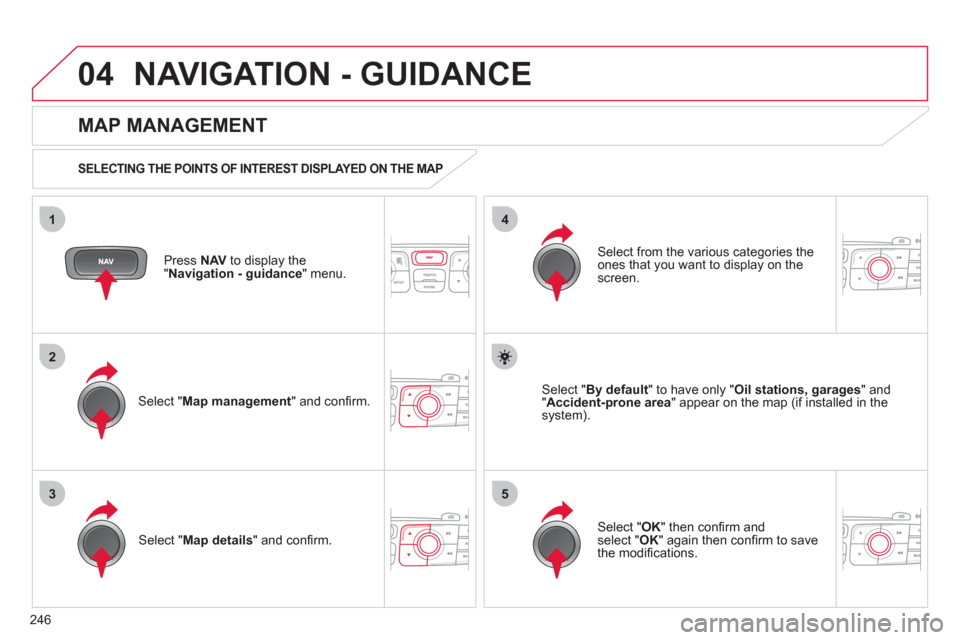

NAVIGATION - GUIDANCE


Press NAV
to display the
" Navigation - guidance
" menu.


MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP


Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on the
screen.

Select " Map details
" and confi rm.
Select " By default
" to have only " Oil stations, garages
" and
" Accident-prone area
" appear on the map (if installed in the
system).

Select " OK
" then confi rm and
select " OK
" again then confi rm to save
the modifi cations.

249
04
3
1
2

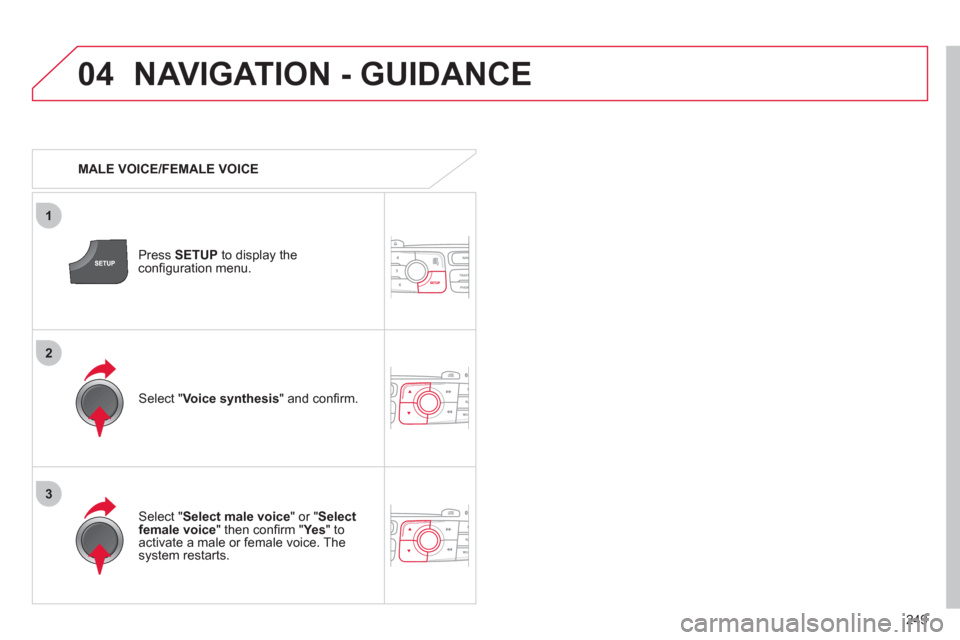

NAVIGATION - GUIDANCE



MALE VOICE/FEMALE VOICE

Press SETUP
to display the
confi guration menu.

Select " Select male voice
" or " Select
female voice
" then confi rm " Ye s
" to
activate a male or female voice. The
system restarts.

Select " Voice synthesis
" and confi rm.

251
05
1
2
3
4

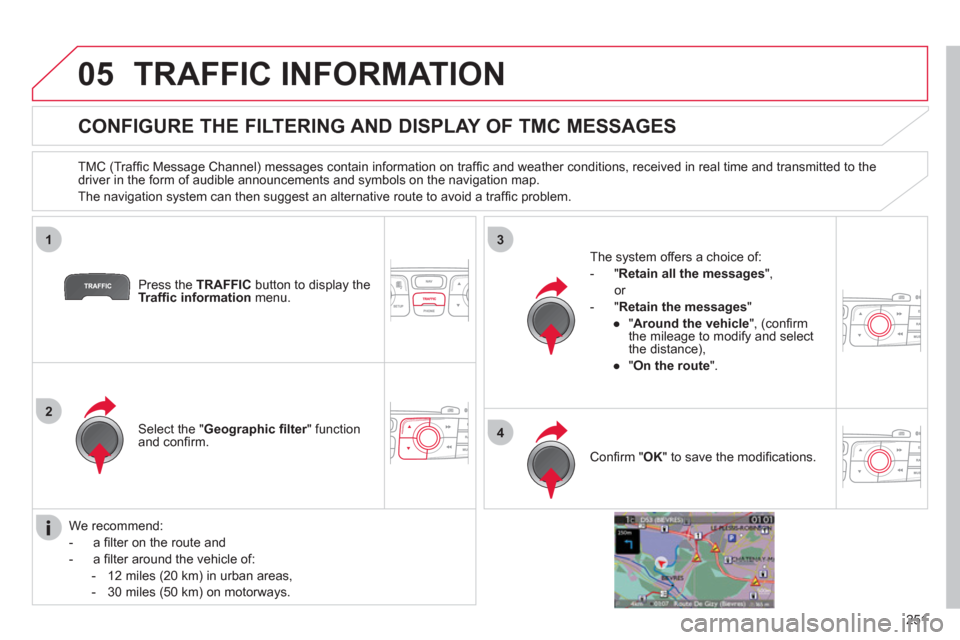

TRAFFIC INFORMATION










CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES


TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a traffi c problem.

Press the TRAFFIC
button to display the
Traffi c information
menu.

Select the " Geographic fi lter
" function
and confi rm.
The system offers a choice of:


- " Retain all the messages
",
or

- " Retain the messages
"


●
" Around the vehicle
", (confi rm
the mileage to modify and select
the distance),

●
" On the route
".



Confi rm " OK
" to save the modifi cations.


We recommend:


- a fi lter on the route and

- a fi lter around the vehicle of:


- 12 miles (20 km) in urban areas,

- 30 miles (50 km) on motorways.

277

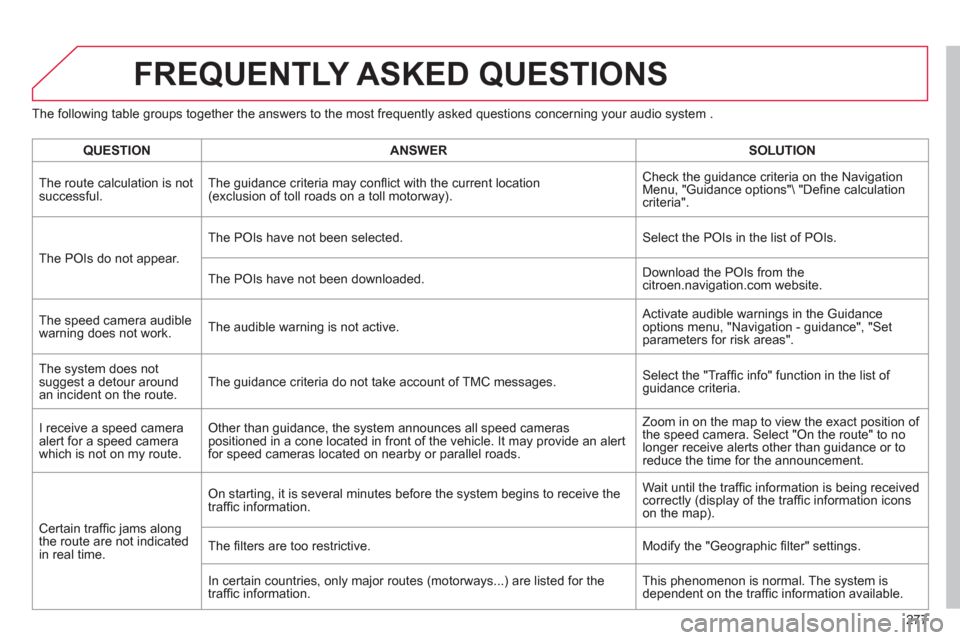

FREQUENTLY ASKED QUESTIONS


The following table groups together the answers to the most frequently asked questions concerning your audio system .



QUESTION



ANSWER



SOLUTION


The route calculation is not
successful. The guidance criteria may confl ict with the current location
(exclusion of toll roads on a toll motorway). Check the guidance criteria on the Navigation
Menu, "Guidance options" "Defi ne calculation
criteria".
The POIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The POIs have not been downloaded. Download the POIs from the
citroen.navigation.com website.
The speed camera audible
warning does not work. The audible warning is not active. Activate audible warnings in the Guidance
options menu, "Navigation - guidance", "Set
parameters for risk areas".
The system does not
suggest a detour around
an incident on the route. The guidance criteria do not take account of TMC messages. Select the "Traffi c info" function in the list of
guidance criteria.
I receive a speed camera
alert for a speed camera
which is not on my route. Other than guidance, the system announces all speed cameras
positioned in a cone located in front of the vehicle. It may provide an alert
for speed cameras located on nearby or parallel roads. Zoom in on the map to view the exact position of
the speed camera. Select "On the route" to no
longer receive alerts other than guidance or to
reduce the time for the announcement.
Certain traffi c jams along
the route are not indicated
in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (display of the traffi c information icons
on the map).
The fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.

309


08 TRIP COMPUTER


Each press of the button, located at the end of the
wiper stalk, displays the different trip computer
information in succession, depending on the screen.


- the "vehicle " tab with:


●
the range, the current fuel consumption and
the distance remaining to the destination or the
Stop & Start time counter,

- the "1" tab (trip 1) with:


●
the average speed, the average consumption
and the distance travelled calculated over trip " 1
",

- the "2" tab (trip 2) with the same information for a
second trip.

Zero reset
When the required trip is displayed, press the control
for more than two seconds.

Range:
displays the distance which can travelled with the remaining fuel
detected in the tank, basd on the average consumption over the last few
miles (kilometres).
This displayed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 10 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits,
contact a CITROËN dealer.
A FEW DEFINITIONS


Current fuel consumption:
only calculated and displayed above 20 mph (30 km/h).


Average fuel consumption:
this is the average fuel consumption since
the last trip computer zero reset.

Distance travelled:
calculated since the last trip computer zero reset.

Distance remaining to the destination:
calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.

Average speed:
this is the average speed calculated since the last trip
computer zero reset (ignition on).







Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop & Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero every time the ignition is switched on with the key.

319
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Instrument panels ....................... 28-32
Warning lamps ............................ 33-43
Indicators .................................... 44-46
Manual test ...................................... 47
Setting buttons............................ 48-50


- trip distance recorder

- dashboard lighting dimmer/black
panel

- customisation of dials and screens


Lighting controls ....................... 99-103
Adjusting headlamps ..................... 105
Stop & Start ............................ 163-165
Lane departure warning system .... 166

Door mirrors ................................ 77-78
Electric windows ......................... 93-94

Dashboard fuses .................... 203-205

Opening the bonnet ....................... 180

Adjusting the steering wheel............ 79
Horn ............................................... 135
Audio system .......................... 283-316
Setting the date/time...................... 308
eMyWay satellite
navigation system ................... 231-282
Setting the date/time...................... 273

Manual gearbox ...................... 154-155
6-speed electronic
gearbox system ...................... 156-158
Automatic gearbox.................. 159-161
Parking brake ................. 147-153, 154
Wiper controls..........................108-110
Trip computer ............................. 59-62
Rear view mirror .............................. 79
Emergency or assistance call ...139, 229
Seat belt and front passenger airbag
warning display screen ........... 140-141
Courtesy lamps............................... 111

Interior mood lighting ...................... 112

Hazard warning lamps ................... 135
Central locking ............................ 87-88
Black panel ...................................... 49
Multifunction screens .................. 51-58

Ventilation ................................... 63-64
Manual air conditioning......... 65-66, 70

Digital air conditioning .......... 67-69, 70
Demisting/Defrosting
the rear screen ................................ 70
Memorising speeds ....................... 170
Speed limiter........................... 171-172
Cruise control ......................... 173-174

323
ALPHABETICAL INDEX
L Lane Departure Warning System
(LDWS) ....................................166
Level, brake fl uid ........................184
Level, power steering fl uid .........184
Levels and checks ...............182-185
Lighting, guide-me home ....102, 103
Lighting, interior ...................111, 112
Lighting bulbs
(replacement) ...................197, 201
Lighting control stalk ............99, 102
Lighting dimmer .................28-31, 49
Loading ................................26, 210
Load reduction mode .................209
Load space cover .......................125
Locating your vehicle ...................82
Locking from the inside ................87
Locking the boot ...........................92
Long objects, transporting ..........121
LPG ............................................221
Luggage retaining strap .............122
M Main beam ...................99, 197, 199
Maintenance .................................26
Map reading lamps ..................... 111
Markings, identifi cation ...............228
Massage function .........................74
Mat .............................................120
Menu, main ................................286
Mini fuel level ...............................96
Mirror, rear view ...........................79
Mirrors, door ...................77, 78, 167
Misfuel prevention ........................98
Motorway function
(direction indicators) .................135
Mountings for ISOFIX seats .......131
MP3 CD ..............................291, 292
Music media players ..................266N Navigation ..........................237, 238
Number plate lamps ...................202
O Oil fi lter .......................................186
Oil level ................................44, 184
Opening the bonnet ....................180
Opening the boot ..........................92
Opening the doors ........................91
Opening the panoramic
sunroof blind ...............................95
Operation indicator
lamps ........................35, 40, 41, 43
P Paint colour code .......................228
Panoramic glass sunroof ..............95
Parcel shelf, rear ................123, 125
Parking brake .....................154, 187
Parking brake, electric ........147, 150
Parking lamps ............................102
Parking sensors, front ................178
Parking sensors, rear .................177
Parking space sensor .................175
Particle emission fi lter ........185, 186
Passenger compartment fi lter ....186
Personalisation .............................50
Player, CD MP3 ..................291, 292
Port, USB ........................... 115, 293
Priming the fuel system ..............181
Protecting
children ..... 126, 129, 131-133, 143
Puncture .....................................188
R Radio ..........................263, 264, 287
Radio pre-equipment ..................214
Rear screen (demisting) ...............70
Recharging the battery ...............207
Reduction of electrical load ........209R Reinitialising the electric
windows .....................................93
Reinitialising the remote
control ..................................84, 85
Remote control .................80, 82, 86
Removable screen
(snow shield) ............................210
Removing a wheel ......................195
Removing the mat ......................120
Repair kit, puncture ....................188
Replacing bulbs ..................197, 201
Replacing fuses ..........................203
Replacing the air fi lter ................186
Replacing the oil fi lter .................186
Replacing the particle
emission fi lter ...........................186
Replacing the passenger
compartment fi lter ....................186
Replacing wiper blades ...... 110, 209
Resetting the service indicator .....46
Resetting the trip recorder ............48
Rev counter .............................28-32
Reversing lamps ........................201
Risk areas (update) ....................242
Roof bars ....................................210
Roof blind .....................................95
Routine checks ...................186, 187
Running out of fuel (Diesel) ........181
S Safety for children ................93, 134
Satellite navigation system ...........56
Screen, colour and
mapping ...............56, 57, 235, 274
Screen,
monochrome ........51, 53, 286, 310
Screen, multifunction (with audio
equipment) .............51, 53, 56, 286

324
ALPHABETICAL INDEX
S Screen menu map ...... 274, 310-312
Screenwash, front ......................109
Seat, rear bench ...........................76
Seat adjustment .....................71, 72
Seat belts ............................140-142
Seats, electric ...............................72
Seats, rear ....................................76
Serial number, vehicle ................228
Service indicator .....................45, 47
Servicing ......................................26
Setting the clock ...................48, 273
Short-cut menus .........................236
Sidelamps ....99, 102, 197, 199, 201
Side repeater ..............................200
Ski fl ap .......................................121
Spare wheel ...............................193
Speakers (fi tting) ........................214
Speed limiter ......................170, 171
Speedometer ...........................28-31
Spotlamps, side ..................104, 200
Starting the vehicle .......83, 156, 159
Steering mounted
controls .............................234, 285
Stopping the vehicle .....83, 156, 159
Stop & Start ............... 62, 68, 70, 96,
163, 180, 186, 207, 309
Storage .........113, 114, 116-118, 122
Storage compartments ............... 116
Storage drawer ...........................120
Storage net .................................122
Storing driving positions ...............75
Stowing rings ..............................122
Sun visor .................................... 114
Synchronising the remote
control ..................................84, 85
Synthesiser, voice ......................248
System, navigation .....................238T Table of weights .........217, 221, 223
Tables of engines .......217, 221, 223
Tables of fuses ...........................203
Tank, fuel ......................................98
Technical data ............217, 221, 223
Telephone ...................254, 258, 299
Temperature control
for heated seats .........................73
Temporary tyre repair kit ............188
Ticket holder ............................... 113
Time ...........................................308
TMC (Traffi c info) .......................251
Tools ...........................................193
Torch ..........................................124
Total distance recorder .................48
Towbar ........................................213
Towed loads ...............217, 221, 223
Towing another vehicle ............... 211
Traction control (ASR) ................138
Traffi c information
(TA) ..........................252, 265, 288
Traffi c information
(TMC) ...............................251, 252
Trajectory control systems .........138
Trip computer ..........................59-62
Trip distance recorder ..................48
Tyre pressures ...........................228
Tyres ............................................26
Tyre under-infl ation
detection .............................47, 136
U Under-infl ation (detection) ..........136
Under fl oor storage ....................124
Unlocking from the inside .............87
Unlocking the boot ...........80, 81, 92
Unlocking the doors ...............80, 81
Update risk areas .......................242U Updating the date .......................273
Updating the time .................48, 273
USB Box ..................................... 115
V Vehicle
confi guration .............51, 53, 56, 57
Ventilation ................................63-65
W Warning lamps ...........33, 35, 41, 47
Wash-wipe, rear ......................... 110
Weights ......................217, 221, 223
Welcome lighting ........................104
Window controls ...........................93
Wiper, rear .................................. 110
Wiper control stalk ............... 108-110
Wipers ..........................42, 108, 109
X Xenon headlamps ......................197
