237
04
List of recent destinations.
" Navigation - guidance
"

To delete the list of recent destinations, select " Guidance
options
" in the navigation menu then select " Delete last
destinations
" and confi rm. Select " Ye s
" then confi rm.
Deleting just one destination is not possible.
Go from the list to the menu (left/right).
" Select destination
"
" Journey leg and route
"
" Guidance options
"
" Map management
"
" Stop/Restore guidance
"

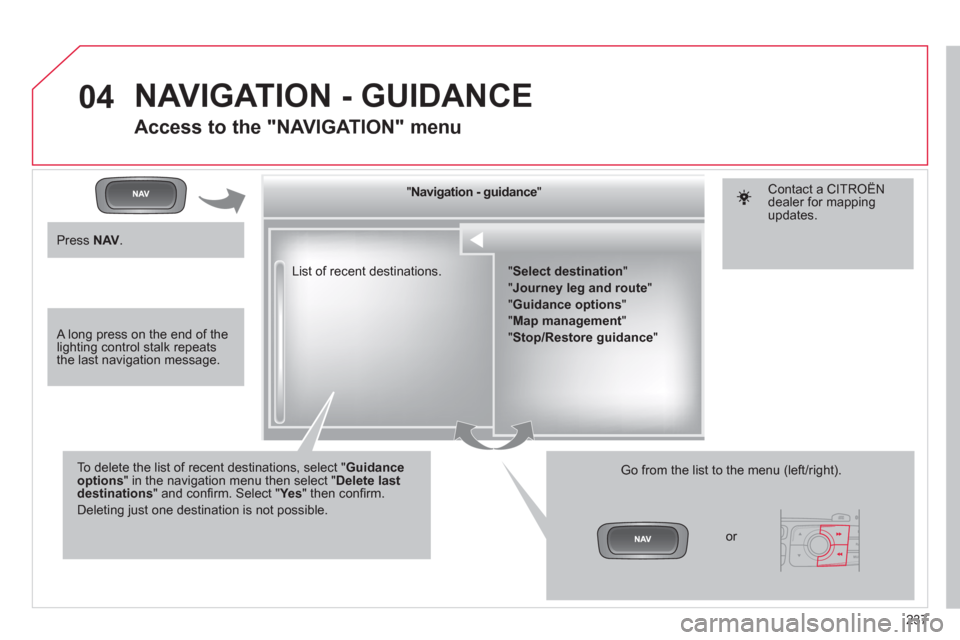

NAVIGATION - GUIDANCE







Access to the "NAVIGATION" menu


Press NAV
.
or

Contact a CITROËN
dealer for mapping
updates.

A long press on the end of the
lighting control stalk repeats
the last navigation message.

284
01
1
2
7
45
6
3
8
9
10
13
1112
14

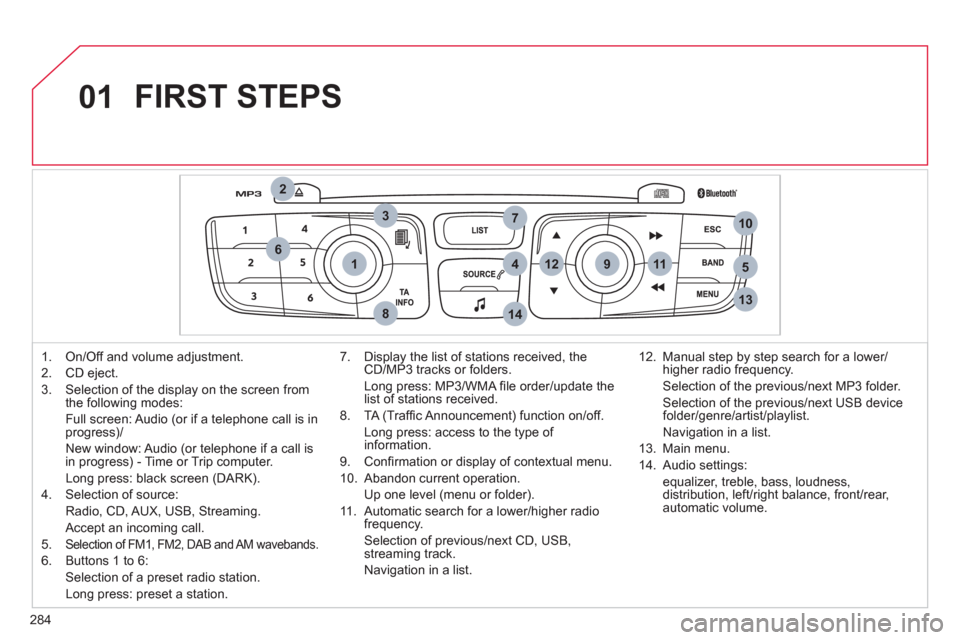

FIRST STEPS



1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from
the following modes:
Full screen: Audio (or if a telephone call is in
progress)/
New window: Audio (or telephone if a call is
in progress) - Time or Trip computer.
Long press: black screen (DARK).

4. Selection of source:
Radio, CD, AUX, USB, Streaming.
Accept an incoming call.

5.
Selection of FM1, FM2, DAB and AM wavebands.


6. Buttons 1 to 6:
Selection of a preset radio station.
Long press: preset a station.
7. Display the list of stations received, the
CD/MP3 tracks or folders.
Long press: MP3/WMA fi le order/update the
list of stations received.

8. TA (Traffi c Announcement) function on/off.
Long press: access to the type of
information.

9. Confi rmation or display of contextual menu.

10. Abandon current operation.
Up one level (menu or folder).

11 . Automatic search for a lower/higher radio
frequency.
Selection of previous/next CD, USB,
streaming track.
Navigation in a list.
12. Manual step by step search for a lower/
higher radio frequency.
Selection of the previous/next MP3 folder.
Selection of the previous/next USB device
folder/genre/artist/playlist.
Navigation in a list.

13. Main menu.

14. Audio settings:
equalizer, treble, bass, loudness,
distribution, left/right balance, front/rear,
automatic volume.

323
ALPHABETICAL INDEX
L Lane Departure Warning System
(LDWS) ....................................166
Level, brake fl uid ........................184
Level, power steering fl uid .........184
Levels and checks ...............182-185
Lighting, guide-me home ....102, 103
Lighting, interior ...................111, 112
Lighting bulbs
(replacement) ...................197, 201
Lighting control stalk ............99, 102
Lighting dimmer .................28-31, 49
Loading ................................26, 210
Load reduction mode .................209
Load space cover .......................125
Locating your vehicle ...................82
Locking from the inside ................87
Locking the boot ...........................92
Long objects, transporting ..........121
LPG ............................................221
Luggage retaining strap .............122
M Main beam ...................99, 197, 199
Maintenance .................................26
Map reading lamps ..................... 111
Markings, identifi cation ...............228
Massage function .........................74
Mat .............................................120
Menu, main ................................286
Mini fuel level ...............................96
Mirror, rear view ...........................79
Mirrors, door ...................77, 78, 167
Misfuel prevention ........................98
Motorway function
(direction indicators) .................135
Mountings for ISOFIX seats .......131
MP3 CD ..............................291, 292
Music media players ..................266N Navigation ..........................237, 238
Number plate lamps ...................202
O Oil fi lter .......................................186
Oil level ................................44, 184
Opening the bonnet ....................180
Opening the boot ..........................92
Opening the doors ........................91
Opening the panoramic
sunroof blind ...............................95
Operation indicator
lamps ........................35, 40, 41, 43
P Paint colour code .......................228
Panoramic glass sunroof ..............95
Parcel shelf, rear ................123, 125
Parking brake .....................154, 187
Parking brake, electric ........147, 150
Parking lamps ............................102
Parking sensors, front ................178
Parking sensors, rear .................177
Parking space sensor .................175
Particle emission fi lter ........185, 186
Passenger compartment fi lter ....186
Personalisation .............................50
Player, CD MP3 ..................291, 292
Port, USB ........................... 115, 293
Priming the fuel system ..............181
Protecting
children ..... 126, 129, 131-133, 143
Puncture .....................................188
R Radio ..........................263, 264, 287
Radio pre-equipment ..................214
Rear screen (demisting) ...............70
Recharging the battery ...............207
Reduction of electrical load ........209R Reinitialising the electric
windows .....................................93
Reinitialising the remote
control ..................................84, 85
Remote control .................80, 82, 86
Removable screen
(snow shield) ............................210
Removing a wheel ......................195
Removing the mat ......................120
Repair kit, puncture ....................188
Replacing bulbs ..................197, 201
Replacing fuses ..........................203
Replacing the air fi lter ................186
Replacing the oil fi lter .................186
Replacing the particle
emission fi lter ...........................186
Replacing the passenger
compartment fi lter ....................186
Replacing wiper blades ...... 110, 209
Resetting the service indicator .....46
Resetting the trip recorder ............48
Rev counter .............................28-32
Reversing lamps ........................201
Risk areas (update) ....................242
Roof bars ....................................210
Roof blind .....................................95
Routine checks ...................186, 187
Running out of fuel (Diesel) ........181
S Safety for children ................93, 134
Satellite navigation system ...........56
Screen, colour and
mapping ...............56, 57, 235, 274
Screen,
monochrome ........51, 53, 286, 310
Screen, multifunction (with audio
equipment) .............51, 53, 56, 286

324
ALPHABETICAL INDEX
S Screen menu map ...... 274, 310-312
Screenwash, front ......................109
Seat, rear bench ...........................76
Seat adjustment .....................71, 72
Seat belts ............................140-142
Seats, electric ...............................72
Seats, rear ....................................76
Serial number, vehicle ................228
Service indicator .....................45, 47
Servicing ......................................26
Setting the clock ...................48, 273
Short-cut menus .........................236
Sidelamps ....99, 102, 197, 199, 201
Side repeater ..............................200
Ski fl ap .......................................121
Spare wheel ...............................193
Speakers (fi tting) ........................214
Speed limiter ......................170, 171
Speedometer ...........................28-31
Spotlamps, side ..................104, 200
Starting the vehicle .......83, 156, 159
Steering mounted
controls .............................234, 285
Stopping the vehicle .....83, 156, 159
Stop & Start ............... 62, 68, 70, 96,
163, 180, 186, 207, 309
Storage .........113, 114, 116-118, 122
Storage compartments ............... 116
Storage drawer ...........................120
Storage net .................................122
Storing driving positions ...............75
Stowing rings ..............................122
Sun visor .................................... 114
Synchronising the remote
control ..................................84, 85
Synthesiser, voice ......................248
System, navigation .....................238T Table of weights .........217, 221, 223
Tables of engines .......217, 221, 223
Tables of fuses ...........................203
Tank, fuel ......................................98
Technical data ............217, 221, 223
Telephone ...................254, 258, 299
Temperature control
for heated seats .........................73
Temporary tyre repair kit ............188
Ticket holder ............................... 113
Time ...........................................308
TMC (Traffi c info) .......................251
Tools ...........................................193
Torch ..........................................124
Total distance recorder .................48
Towbar ........................................213
Towed loads ...............217, 221, 223
Towing another vehicle ............... 211
Traction control (ASR) ................138
Traffi c information
(TA) ..........................252, 265, 288
Traffi c information
(TMC) ...............................251, 252
Trajectory control systems .........138
Trip computer ..........................59-62
Trip distance recorder ..................48
Tyre pressures ...........................228
Tyres ............................................26
Tyre under-infl ation
detection .............................47, 136
U Under-infl ation (detection) ..........136
Under fl oor storage ....................124
Unlocking from the inside .............87
Unlocking the boot ...........80, 81, 92
Unlocking the doors ...............80, 81
Update risk areas .......................242U Updating the date .......................273
Updating the time .................48, 273
USB Box ..................................... 115
V Vehicle
confi guration .............51, 53, 56, 57
Ventilation ................................63-65
W Warning lamps ...........33, 35, 41, 47
Wash-wipe, rear ......................... 110
Weights ......................217, 221, 223
Welcome lighting ........................104
Window controls ...........................93
Wiper, rear .................................. 110
Wiper control stalk ............... 108-110
Wipers ..........................42, 108, 109
X Xenon headlamps ......................197
