5
FAMILIARISATION
EXTERIOR


Blind spot sensors
In certain conditions, this system de-
tects the presence of a vehicle in the
blind spot. It informs you by means of a
warning lamp in the corresponding door
mirror.



167


Under-infl ation detection
This system continuously monitors the
pressure in each tyre and warns you in
the event of a puncture or defl ation.



136


Panoramic sunroof
This roof provides incomparable visibil-
ity and light in the passenger compart-
ment.



95


Temporary puncture repair kit
This kit is a complete system, consisting
of a compressor and a sealant cartridge,
for the temporary repair of a tyre.



188

7
FAMILIARISATION
OPENING


Boot


2-button remote control

3-button remote control


Fuel tank
Panoramic sunroof



1.
Unlocking the vehicle.

2.
Opening the boot.



80, 92



1.
Selective unlocking of the boot.

2.
Opening the boot.



81, 92



A.
Opening the fuel fi ller fl ap.
Capacity of the fuel tank: approximately
60 litres.

1.
Opening the blind (four positions
possible).

2.
Closing the blind (initial position).



96



95

11
FAMILIARISATION
ROOF CONSOLES - CENTRE CONSOLES




A.
Rear view mirror.

B.
Emergency call/Warning lamps
display for front passenger's airbag
and seat belt/Assistance call.

C.
Courtesy lamp/Map reading lamps/
Interior mood lighting.

D.
Microphone for audio and telematic
system.

E.
Panoramic sunroof blind control.




1.
Central adjustable air vents.

2.
Monochrome screen and small
storage box with fl ap or colour and
mapping screen.

3.
Audio system or eMyWay satellite
navigation system.

4.
Central switch panel.

5.
Heating/air conditioning controls.

6.
USB port/auxiliary Jack socket and
cigarette lighter/12 V accessory
socket.

7.
Gear lever, manual or automatic
gearbox.

8.
Manual parking brake.

9.
Portable ashtray.

10.
Large open storage or front
armrest.

26
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents
open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrost-
ing controls, if not automatic.
Switch off the heated seat as soon as
possible.













































ECO-DRIVING

27

Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.



Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.



When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

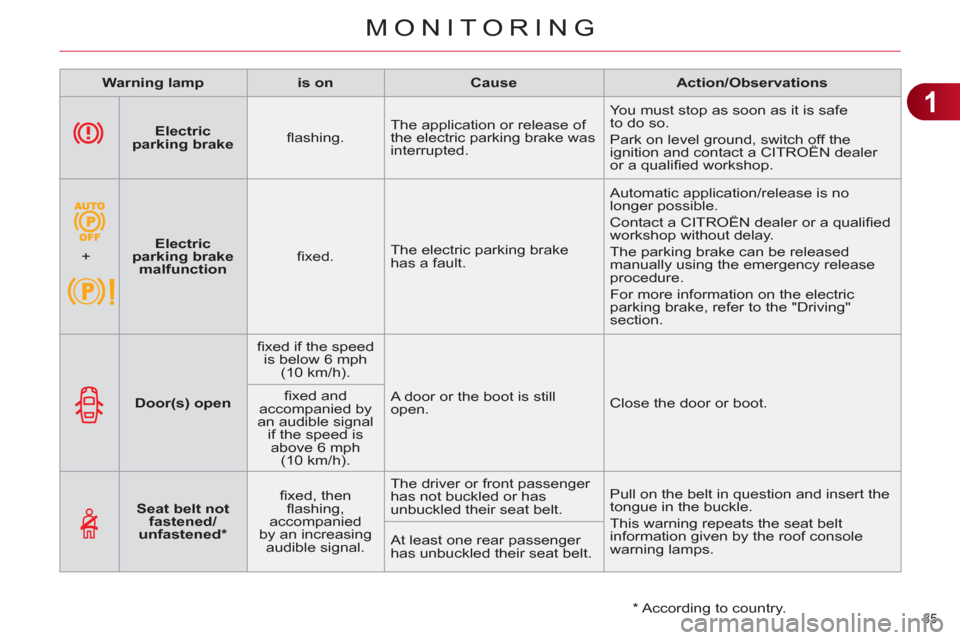

1
MONITORING
35





Electric
parking brake


fl ashing. The application or release of
the electric parking brake was
interrupted. You must stop as soon as it is safe
to do so.
Park on level ground, switch off the
ignition and contact a CITROËN dealer
or a qualifi ed workshop.

+

Electric
parking brake
malfunction


fi xed. The electric parking brake
has a fault. Automatic application/release is no
longer possible.
Contact a CITROËN dealer or a qualifi ed
workshop without delay.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.

Warning lamp



is on



Cause



Action/Observations








Door(s) open


fi xed if the speed
is below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied by
an audible signal
if the speed is
above 6 mph
(10 km/h).


Seat belt not
fastened/
unfastened *


fi xed, then
fl ashing,
accompanied
by an increasing
audible signal. The driver or front passenger
has not buckled or has
unbuckled their seat belt. Pull on the belt in question and insert the
tongue in the buckle.
This warning repeats the seat belt
information given by the roof console
warning lamps. At least one rear passenger
has unbuckled their seat belt.

* According to country.

4
ACCESS
95











PANORAMIC SUNROOF

Your vehicle is fi tted with a tinted glass
panoramic sunroof which increases the
light and visibility in the passenger com-
partment. Its electric blind helps control
the temperature in the passenger com-
partment.

Electric blind


Opening
Turn the dial to the left (four possible
settings).

Closing
Return the dial to the initial position.
Safety anti-pinch
If the blind encounters an obstacle dur-
ing closing, it stops and partially opens
again.
If the blind fails to close at a second at-
tempt, it may be necessary to force the
closing of the blind using the reinitiali-
sation procedure.
The blind is controlled electrically by a
rotary dial.
In the event of contact during op-
eration of the blind, you must re-
verse its movement. To do this,
turn the dial.
When the driver operates the
dial, they must ensure that noth-
ing prevents the blind from clos-
ing correctly.
The driver must ensure that the
passengers use the blind cor-
rectly.
Be aware of children during
operation of the blind.



Reinitialising the system


Following reconnection of the battery,
or in the event of a malfunction in its
operation, it may be necessary to reini-
tialise the system:


)
turn the dial to the fully closed posi-
tion,

)
then immediately press the dial, clos-
ing starts after about 10 seconds,

)
maintain pressure on the dial until
the blind has fully closed.

The anti-pinch function is inopera-
tive during these operations.


If the position of the blind does not
agree with the position indicated by the
dial, press the dial to open the blind to
this position.

8
SAFETY
146













For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat
belt.
Do not leave anything between
the occupants and the airbags
(a child, pet, object...). This could
hamper the operation of the air-
bags or injure the occupants.
After an accident or if the ve-
hicle has been stolen or broken
into, have the airbag systems
checked.
All work on the airbag system must
be carried out by a CITROËN
dealer or a qualifi ed workshop.
Even if all of the precautions men-
tioned are observed, a risk of in-
jury or of minor burns to the head,
chest or arms when an airbag is
deployed cannot be ruled out.
The bag infl ates almost instantly
(within a few milliseconds) then
defl ates within the same time dis-
charging the hot gas via openings
provided for this purpose.
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.



Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateral
airbags. For information on the range of seat covers suitable for your vehicle, you
can contact a CITROËN dealer (see "Practical information - § Accessories").
Do not fi x or attach anything to the seat backs (clothing...). This could cause in-
jury to the chest or arms if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.

Curtain airbags
Do not fi x or attach anything to the roof. This could cause injury to the head if the
curtain airbag is deployed.
If fi tted on your vehicle, do not remove the grab handles installed on the roof, they
play a part in securing the curtain airbags.
