1
MONITORING
28
TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM
Dials and screens
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.
3.
Cruise control or speed limiter setting.
4.
Digital speedometer (mph or km/h).
5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).
7.
Trip mileage recorder (miles or km).
8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).
9.
Time.
Control buttons
A.
Lighting dimmer (available in night
mode).
B.
Reminder of servicing information
Reset service indicator or trip mile-
age recorder.
A
and B.
Setting the time and selecting
units.
Page 31 of 332
1
MONITORING
29
TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM
Dials and screens
A.
Lighting dimmer (available in night
mode).
B.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.
7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).
10.
Range (miles or km).
Control buttons
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear shift indicator for manual gear-
box or gear lever position and gear
for the electronic gearbox system or
automatic gearbox.
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter setting.
5.
Digital speedometer (mph or km/h).
6.
Engine oil level indicator.
Page 32 of 332
1
MONITORING
30
CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter setting.
5.
Digital speedometer (mph or km/h).
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation of
the background colour of the screens.
C.
Lighting dimmer (available in night
mode).
D.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.
Dials and screens
6.
Engine oil level indicator.
7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
level warning lamp.
10.
Range (miles or km).
Control buttons
Page 33 of 332
1
MONITORING
31
CUSTOMISABLE COLOUR INSTRUMENT PANEL ASSOCIATED WITH THE SATELLITE NAVIGATION
SYSTEM
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.
3.
Speedometer (mph or km/h).
Dials and screens
4.
Central screen associated with the
satellite navigation system.
5.
Fuel gauge and associated low fuel
level warning lamp.
6.
Trip mileage recorder (miles or km).
7.
Service spanner (if a service is due
or missed),
total mileage recorder.
(miles or km)
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation
of the background colour of the
screens.
C.
Dashboard lighting dimmer (in night
mode).
D.
Start a manual test (procedure for
checking the status of systems and
display of vehicle alerts).
Reset service indicator or trip mileage
recorder.
Control buttons
Page 47 of 332
1
MONITORING
45

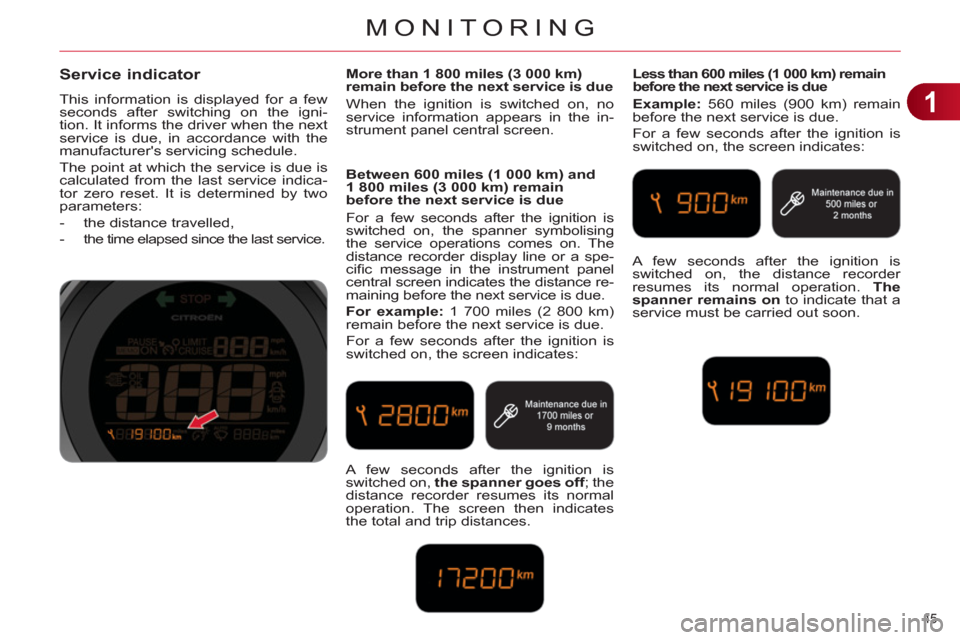

Service indicator
This information is displayed for a few
seconds after switching on the igni-
tion. It informs the driver when the next
service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last service indica-
tor zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last service.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears in the in-
strument panel central screen.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line or a spe-
cifi c message in the instrument panel
central screen indicates the distance re-
maining before the next service is due.
For example:
1 700 miles (2 800 km)
remain before the next service is due.
For a few seconds after the ignition is
switched on, the screen indicates:
Less than 600 miles (1 000 km) remain
before the next service is due
Example:
560 miles (900 km) remain
before the next service is due.
For a few seconds after the ignition is
switched on, the screen indicates:
A few seconds after the ignition is
switched on, the spanner goes off
; the
distance recorder resumes its normal
operation. The screen then indicates
the total and trip distances. A few seconds after the ignition is
switched on, the distance recorder
resumes its normal operation. The
spanner remains on
to indicate that a
service must be carried out soon.
Page 48 of 332
1
MONITORING
46

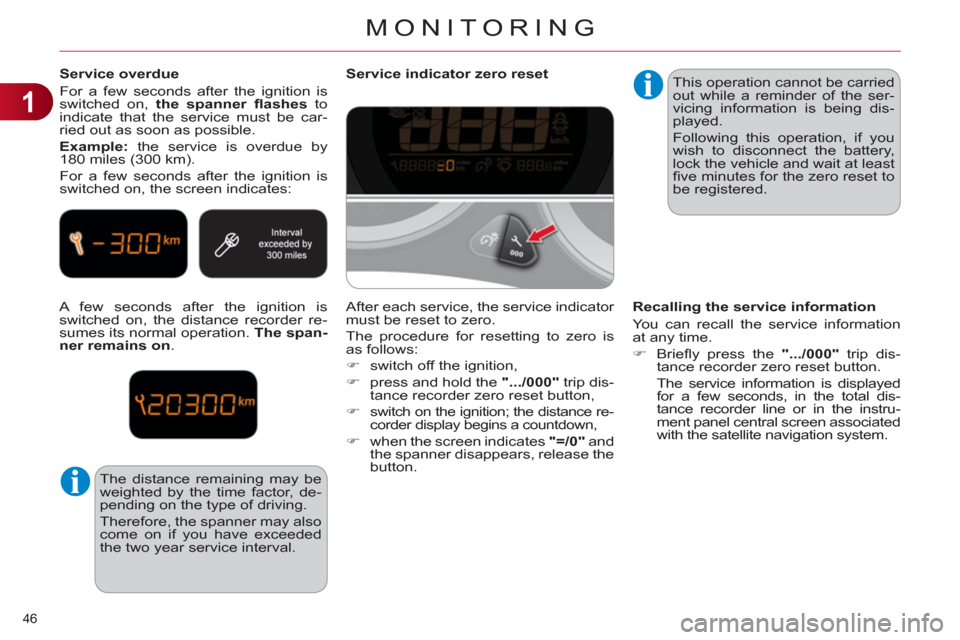

Service overdue
For a few seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be car-
ried out as soon as possible.
Example:
the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the screen indicates:
A few seconds after the ignition is
switched on, the distance recorder re-
sumes its normal operation. The span-
ner remains on
.
The distance remaining may be
weighted by the time factor, de-
pending on the type of driving.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval.
Service indicator zero reset
This operation cannot be carried
out while a reminder of the ser-
vicing information is being dis-
played.
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be registered.
Recalling the service information
You can recall the service information
at any time.
)
Briefl y press the ".../000"
trip dis-
tance recorder zero reset button.
The service information is displayed
for a few seconds, in the total dis-
tance recorder line or in the instru-
ment panel central screen associated
with the satellite navigation system.
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is
as follows:
)
switch off the ignition,
)
press and hold the ".../000"
trip dis-
tance recorder zero reset button,
)
switch on the ignition; the distance re-
corder display begins a countdown,
)
when the screen indicates "=/0"
and
the spanner disappears, release the
button.
