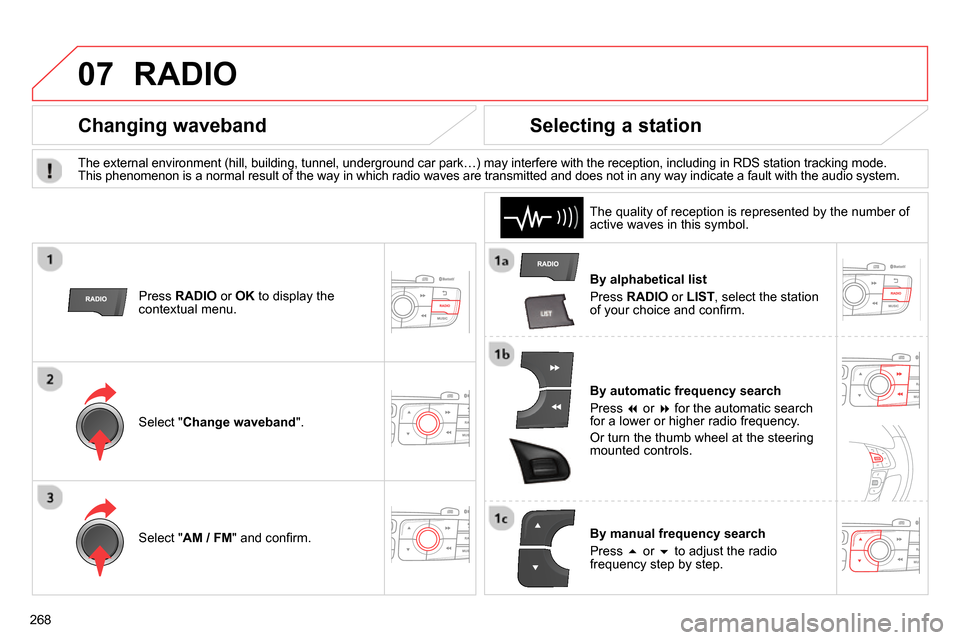

display Citroen C4 2014 2.G Owners Manual

07
268
RADIO


By alphabetical list
Press RADIO
or LIST
, select the station
of your choice and confi rm.

By automatic frequency search
Press 
or 
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel at the steering
mounted controls.

By manual frequency search
Press 
or 
to adjust the radio
frequency step by step.








Selecting a station


The external environment (hill, building, tunnel, underground car park…) may interfere with the reception, including in RDS station tracking mode.
This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.

The quality of reception is represented by the number of
active waves in this symbol.

Press RADIO
or OK
to display the
contextual menu.






Changing waveband


Select " Change waveband
".

Select " AM / FM
" and confi rm.

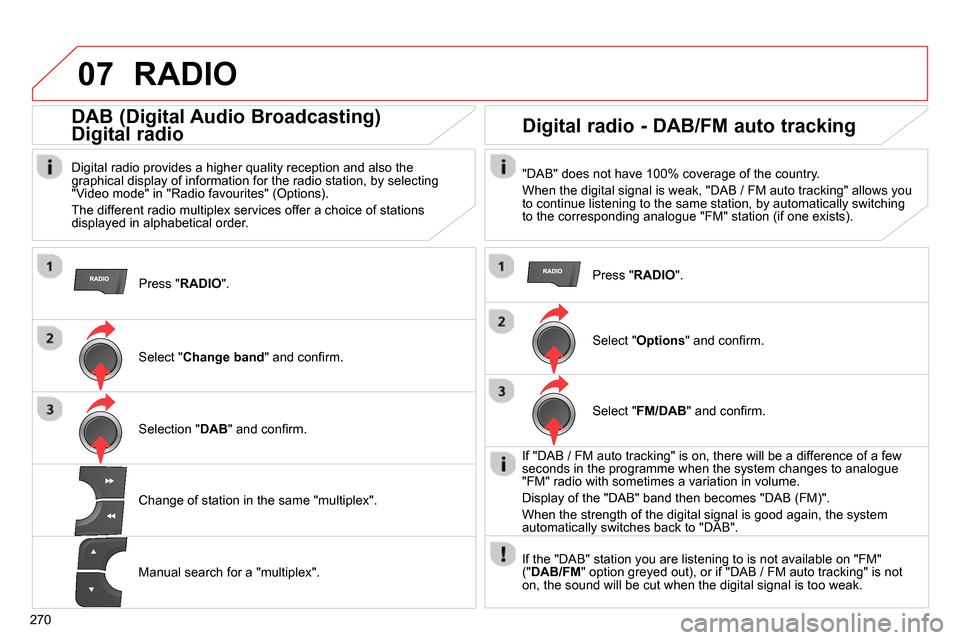

07
270
RADIO


Press " RADIO
".






DAB (Digital Audio Broadcasting)
Digital radio

Digital radio provides a higher quality reception and also the
graphical display of information for the radio station, by selecting
"Video mode" in "Radio favourites" (Options).
The different radio multiplex services offer a choice of stations
displayed in alphabetical order.

Select " Change band
" and confi rm.

Selection " DAB
" and confi rm.







Digital radio - DAB/FM auto tracking


"DAB" does not have 100% coverage of the country.
When the digital signal is weak, "DAB / FM auto tracking" allows you
to continue listening to the same station, by automatically switching
to the corresponding analogue "FM" station (if one exists).

Change of station in the same "multiplex".

Manual search for a "multiplex".

Press " RADIO
".

Select " Options
" and confi rm.

Select " FM/DAB
" and confi rm.

If "DAB / FM auto tracking" is on, there will be a difference of a few
seconds in the programme when the system changes to analogue
"FM" radio with sometimes a variation in volume.
Display of the "DAB" band then becomes "DAB (FM)".
When the strength of the digital signal is good again, the system
automatically switches back to "DAB".

If the "DAB" station you are listening to is not available on "FM"
(" DAB/FM
" option greyed out), or if "DAB / FM auto tracking" is not
on, the sound will be cut when the digital signal is too weak.

08
271
MUSIC MEDIA PLAYERS







Access to the "MUSIC MEDIA PLAYER" menu


" MEDIA
"

" Change Media
"
" Eject USB device
" (if USB
connected)
" Play mode
" (" Normal
",
" Random
", " Random on all
media
", " Repetition
")
" Audio settings
" (see this section)
" Activate / Deactivate AUX input
" List of the current media
tracks.

This list can also be displayed by pressing LIST

at the steering mounted controls.
Go from the list to the menu (left/right).
or

Press MUSIC
.

08
272
MUSIC MEDIA PLAYERS


CD, MP3 CD / USB player


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac,
.ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u…) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are greater than 32 KHz.

It is advisable to restrict fi le names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format (udf, …), it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Information and advice

The system supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
If a partitioned USB memory key is connected to the
system, only the fi rst partition is recognised.
Control of the peripheral device is with the audio
system controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
If the current consumption at the USB port exceeds
500 mA, the system goes into protection mode and
deactivates the port.
Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable
(not supplied).

In order to be read, a USB memory stick must be formatted FAT 16 or 32.



The system does not support the operation of an Apple
®
player and a
USB memory stick connected at the same time.

It is recommended that offi cial Apple
®
USB cables are used to ensure
correct operation.

08
273
MUSIC MEDIA PLAYERS



Sources

Insert the CD in the player, insert the USB memory
stick in the USB player or connect the USB
peripheral to the USB port using a suitable cable
(not supplied) .
The system builds playlists (in temporary memory),
an operation which can take from a few seconds to
several minutes at the fi rst connection.
Reduce the number of non-music fi les and the
number of folders to reduce the waiting time.
The playlists are updated every time the ignition is
switched off or connection of a USB memory stick.
However, the system memorises these lists and
if they are not modifi ed, the loading time will be
shorter.
Play starts automatically after a period which
depends on the capacity of the USB memory stick.


Selection of source
The SOURCE
button on the steering mounted controls allows a
direct change to the next media source.
" CD / CD MP3
"
" USB, iPod
"
" AUX
"
" STREAMING
" " RADIO
"

Press MUSIC
to display the " MEDIA
"
menu.

Select " Following media source
" and
confi rm.

Repeat the operation as many times as necessary to obtain the
desired media source (except for radio which is accessible either
with SOURCE
or RADIO
).

08
276
MUSIC MEDIA PLAYERS
















USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED


Connect the portable device (MP3, WMA player…) to the RCA audio
sockets (white and red) using a JACK-RCA audio cable.
Press MUSIC
to display the " MUSIC
"
menu.

Select " Activate / Deactivate AUX
input
" and confi rm.
First adjust the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.

Display and management of the controls are via the portable device.

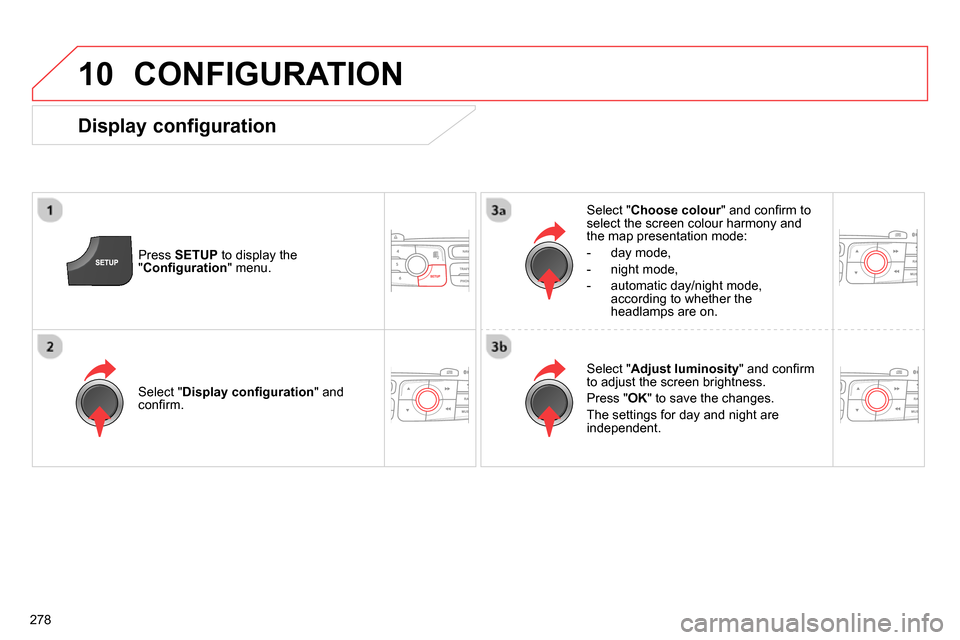

10
278
CONFIGURATION


Press SETUP
to display the
" Confi guration
" menu.
Select " Choose colour
" and confi rm to
select the screen colour harmony and
the map presentation mode:


- day mode,

- night mode,

- automatic day/night mode,
according to whether the
headlamps are on.


Select " Adjust luminosity
" and confi rm
to adjust the screen brightness.
Press " OK
" to save the changes.
The settings for day and night are
independent.

Select " Display confi guration
" and
confi rm.


Display configuration

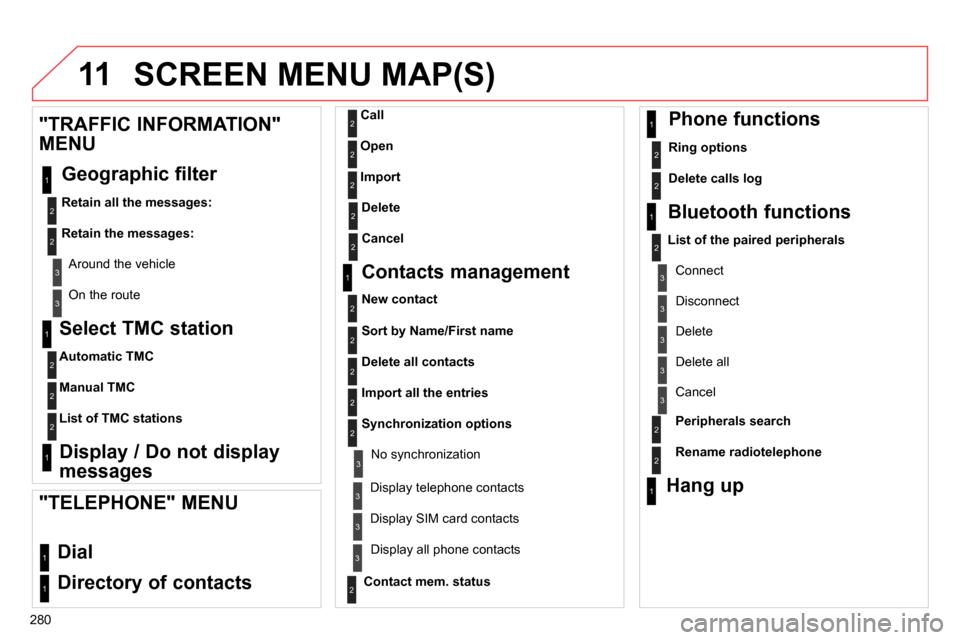

11
280
SCREEN MENU MAP(S)


Select TMC station



Automatic TMC


Manual TMC


List of TMC stations





Display / Do not display
messages
"TRAFFIC INFORMATION"
MENU
Geographic filter



Retain all the messages:


Retain the messages:


Around the vehicle

On the route


1
2
2
2
1
2
2
3
3
1

Dial
Directory of contacts



Call


Open


Import



"TELEPHONE" MENU
1
2
2
2
1
2
2
2
2
1
2
3
3
3
2
2
2
1
1
1
3
3
3
2
3
2
2
3



List of the paired peripherals


Connect

Disconnect

Delete

Delete all

Contact mem. status





Phone functions



Ring options


Delete calls log





Bluetooth functions


Peripherals search


Rename radiotelephone





Hang up


Display all phone contacts
Delete



Contacts management



New contact


Delete all contacts


Import all the entries


Synchronization options


Display telephone contacts
No synchronization

Display SIM card contacts
2

Cancel



2

Sort by Name/First name

3

Cancel

11
282
SCREEN MENU MAP(S)
2
1
2
2


Crystal symphony


Urban rythmik



"SETUP" MENU
Sound choice



Classic

2

Jungle fantasy




*
Depending on vehicle equipment. 1

Alert log
2


Guidance instructions volume

1

Speech synthesis setting
2

Select male voice/Select female voice



2
1
2
2


Adjust luminosity


Set date and time



Display configuration



Choose colour

2

Select units



1

Select language
1
Define vehicle parameters *

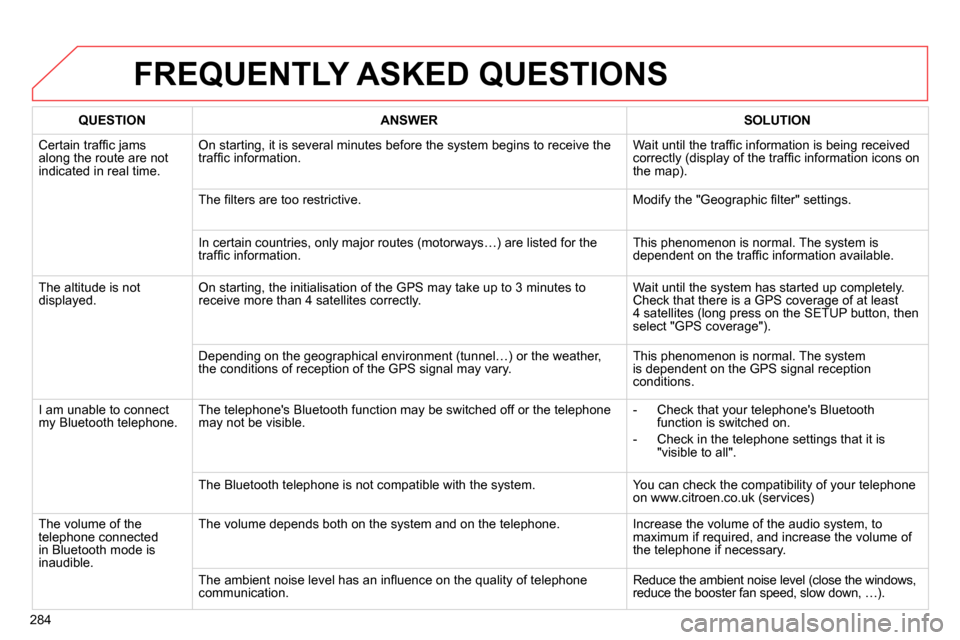

284
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


Certain traffi c jams
along the route are not
indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (display of the traffi c information icons on
the map).
The fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, only major routes (motorways…) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then
select "GPS coverage").
Depending on the geographical environment (tunnel…) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
I am unable to connect
my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone
may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone
on www.citroen.co.uk (services)
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an infl uence on the quality of telephone
communication. Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, …).
