MULTIFUNCTION SCREENS
51































MONOCHROME SCREEN C

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- parking sensor information,

- parking space measurement,

- current audio source,

- telephone or Bluetooth system in-
formation,

- trip computer (refer to the end of the
section),

- alert messages,

- settings menus for the screen and
the vehicle equipment.
From the control panel of your audio
system, you can press:



button A
to chooses between the
display of audio information in full
screen or the shared display of au-
dio and trip computer information,


the "MENU"
button for access to
the main menu
,


the " 
" or " 
" buttons to scroll
through the items on the screen,


the " 
" or " 
" buttons to change a
setting value,


the "OK"
button to confi rm,
or



the "Back"
button to abandon the
operation in progress.



Controls




Press the "MENU"
button for ac-
cess to the main menu
:


- "Multimedia",

- "Telephone",

- "Trip computer",

- "Bluetooth connection",

- "Personalisation-confi guration",


Press the " 
" or " 
" button to se-
lect the menu required, then confi rm
by pressing the "OK"
button.



Main menu

"Multimedia" menu

With the audio system switched on,
this menu allows you to activate or de-
activate the functions associated with
use of the radio (RDS, DAB / FM auto
tracking, RadioText (TXT) display) or to
choose the media play mode (Normal,
Random, Random all, Repeat).
For more information on the
"Multimedia" application, refer to the
"Audio and Telematics" section.

2
MULTIFUNCTION SCREENS
55






















COLOUR SCREEN

From the navigation system control
panel, to select one of the applications:



press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for
access to the corresponding menu,


turn the dial A
to select a function,
an item in a list,


press button B
to confi rm the selec-
tion,
or


press the "Back"
button to aban-
don the current operation and return
to the previous display.
With repeated presses on the C

"MODE"
button, the screen displays:


- "RADIO / MEDIA" * ,

- "TELEPHONE" * ,

- "FULL SCREEN MAP" * ,

- "MAP IN A WINDOW" * ,

- "TRIP COMPUTER".





Controls
"SETUP" menu





Press the "SETUP"
button to open
the confi guration menu:


- "Sound choice",

- "Display confi guration",

- "Speech synthesis setting".

- "Select language",

- "Defi ne vehicle parameters",

- "Alert log".


For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.


Displays in the screen

Depending on the context, it displays
the following information:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),

- parking sensor information,

- parking space measurement,

- audio functions,

- directory and telephone informa-
tion,

- satellite navigation system informa-
tion,

- trip computer,

- alert messages,

- settings menus for the screen, the
satellite navigation system and ve-
hicle systems.



*
For more information on these appli-
cations, refer to the "Audio and telem-
atics" section.

3
COMFORT
62










RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:



To obtain an even air distribution, take care not to obstruct the exterior
air intake grilles located at the base of the windscreen, the nozzles, the
vents and the air outlets, as well as the air extractor located in the boot.


Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the air conditioning system.


Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.


Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly.
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).


To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly as recommended in the mainte-
nance and warranty guide.


If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature is
very high, fi rst ventilate the pas-
senger compartment for a few
moments.
Put the air fl ow control at a set-
ting high enough to quickly
change the air in the passenger
compartment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.

The condensation created by
the air conditioning results in a
discharge of water under the ve-
hicle which is perfectly normal.



Stop & Start
The heating and air conditioning systems only work when the engine is
running. To maintain a comfortable temperature in the passenger compart-
ment, you can temporarily deactivate the Stop & Start system (see the
corresponding section).

3
COMFORT
78







Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle,
this system automatically and progres-
sively changes between the day and
night uses.

In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.









STEERING WHEEL ADJUSTMENT





When stationary
, pull the control
lever to release the adjustment
mechanism.


Adjust the height and reach to suit
your driving position.


Push the control lever to lock the
adjustment mechanism.

As a safety precaution, these opera-
tions should only be carried out while
the vehicle is stationary.

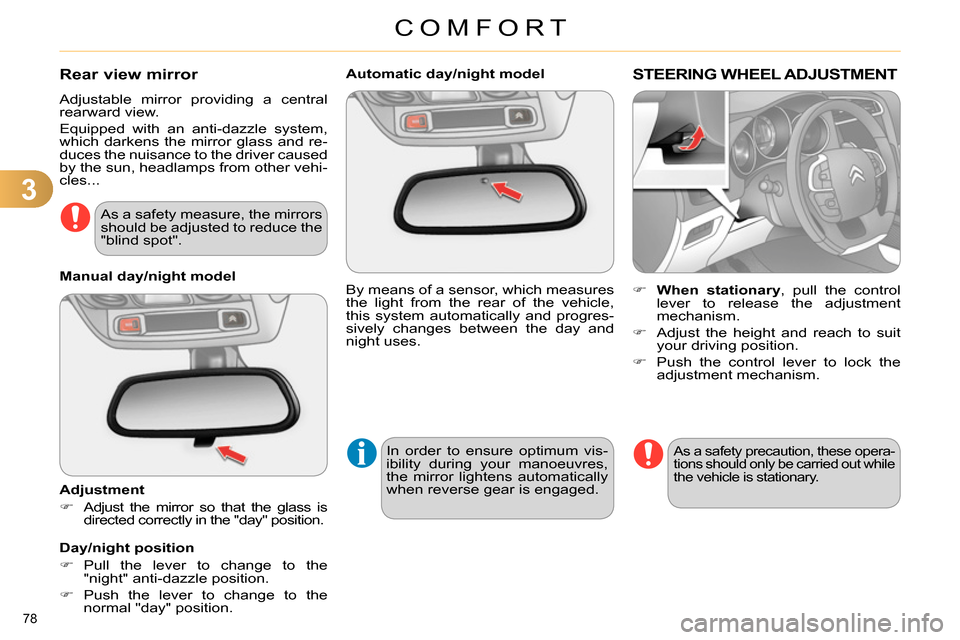

Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass and re-
duces the nuisance to the driver caused
by the sun, headlamps from other vehi-
cles...


Manual day/night model

Adjustment



Adjust the mirror so that the glass is
directed correctly in the "day" position.


Day/night position



Pull the lever to change to the
"night" anti-dazzle position.


Push the lever to change to the
normal "day" position.


As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".

5
VISIBILITY
102

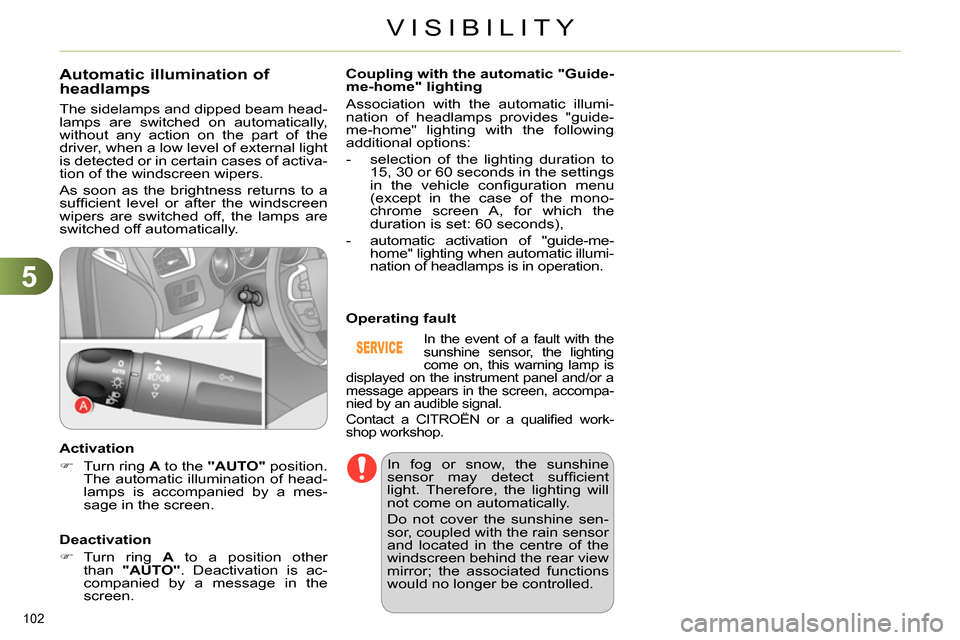

Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation



Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.


Deactivation



Turn ring A
to a position other
than "AUTO"
. Deactivation is ac-
companied by a message in the
screen.

Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:


- selection of the lighting duration to
15, 30 or 60 seconds in the settings
in the vehicle confi guration menu
(except in the case of the mono-
chrome screen A, for which the
duration is set: 60 seconds),

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.


In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp is
displayed on the instrument panel and/or a
message appears in the screen, accompa-
nied by an audible signal.
Contact a CITROËN or a qualifi ed work-
shop workshop.

Operating fault
In fog or snow, the sunshine
sensor may detect suffi cient
light. Therefore, the lighting will
not come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.

5
VISIBILITY
103

Switching off
On the outside, the welcome lighting
switches off automatically after a set
time, when the ignition is switched on
or on locking the vehicle.
On the inside, the welcome lighting
switches off automatically after a pre-
determined time or on opening one of
the doors. On the inside, the footwell and courtesy
lamps come on.













WELCOME LIGHTING


Switching on



Press the open padlock on
the remote control; your ve-
hicle is unlocked. The remote switching on of the pas-
senger compartment lighting makes
your access to the vehicle easier in
poor light. It is activated depending on
the light level detected by the sunshine
sensor.
On the outside, the sidelamps and
dipped beam headlamps, as well as the
side spotlamps, located under the door
mirrors, come on.
Programming
Activation or deactivation, as
well as the duration of the light-
ing duration for the exterior
welcome lighting can be set via
the vehicle confi guration menu.

5
VISIBILITY
108

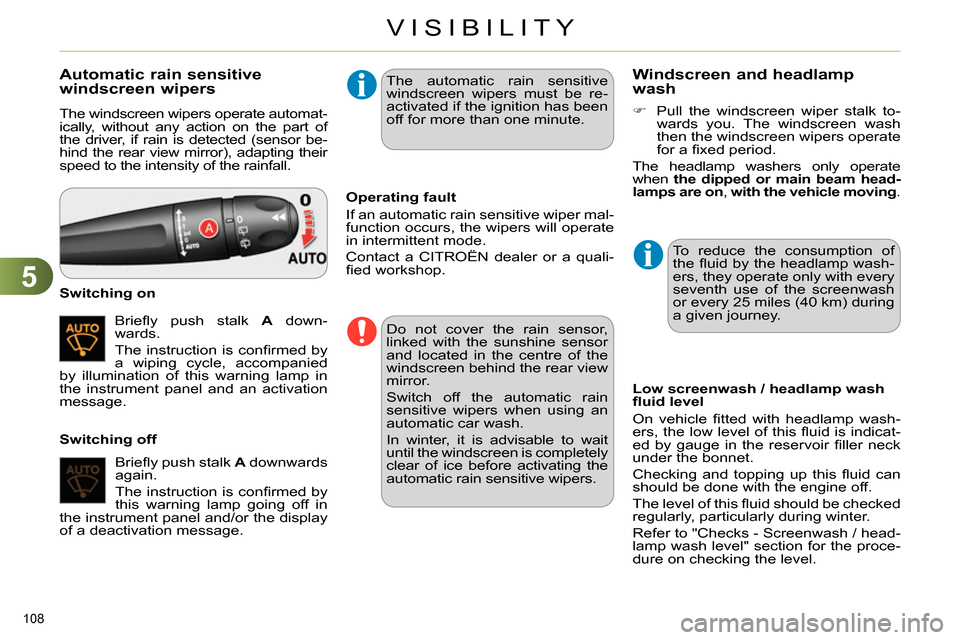

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automat-
ically, without any action on the part of
the driver, if rain is detected (sensor be-
hind the rear view mirror), adapting their
speed to the intensity of the rainfall.
Briefl y push stalk A
down-
wards.
The instruction is confi rmed by
a wiping cycle, accompanied
by illumination of this warning lamp in
the instrument panel and an activation
message.
Switching on

Switching off
Operating fault
If an automatic rain sensitive wiper mal-
function occurs, the wipers will operate
in intermittent mode.
Contact a CITROËN dealer or a quali-
fi ed workshop.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

The automatic rain sensitive
windscreen wipers must be re-
activated if the ignition has been
off for more than one minute.
Briefl y push stalk A
downwards
again.
The instruction is confi rmed by
this warning lamp going off in
the instrument panel and/or the display
of a deactivation message.










Windscreen and headlamp
wash


Low screenwash / headlamp wash
fl uid level
On vehicle fi tted with headlamp wash-
ers, the low level of this fl uid is indicat-
ed by gauge in the reservoir fi ller neck
under the bonnet.
Checking and topping up this fl uid can
should be done with the engine off.
The level of this fl uid should be checked
regularly, particularly during winter.
Refer to "Checks - Screenwash / head-
lamp wash level" section for the proce-
dure on checking the level.



Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped or main beam head-
lamps are on
, with the vehicle moving
.

To reduce the consumption of
the fl uid by the headlamp wash-
ers, they operate only with every
seventh use of the screenwash
or every 25 miles (40 km) during
a given journey.

9
DRIVING
166

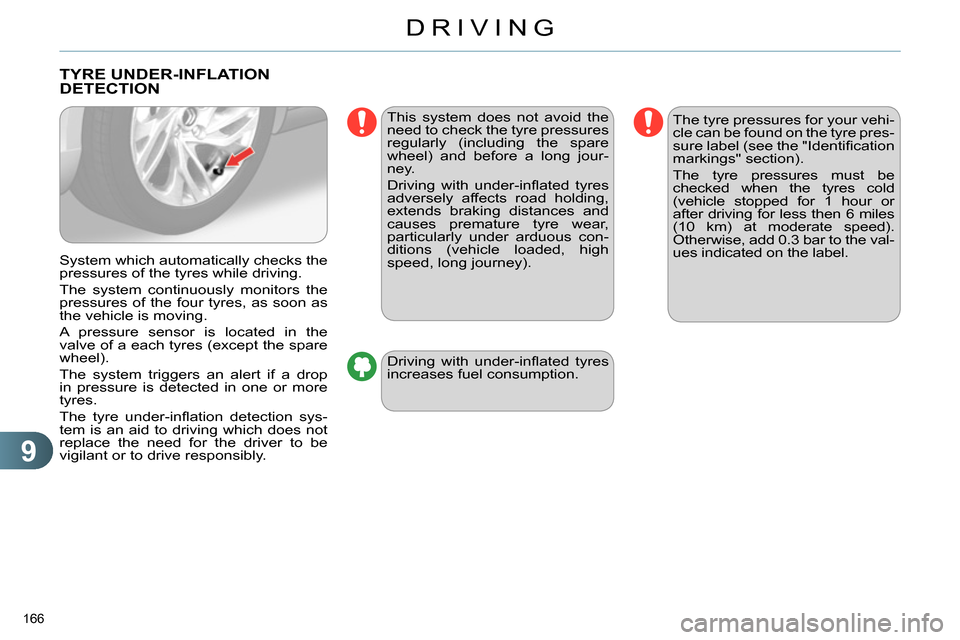

TYRE UNDER-INFLATION
DETECTION

System which automatically checks the
pressures of the tyres while driving.
The system continuously monitors the
pressures of the four tyres, as soon as
the vehicle is moving.
A pressure sensor is located in the
valve of a each tyres (except the spare
wheel).
The system triggers an alert if a drop
in pressure is detected in one or more
tyres.
The tyre under-infl ation detection sys-
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not avoid the
need to check the tyre pressures
regularly (including the spare
wheel) and before a long jour-
ney.
Driving with under-infl ated tyres
adversely affects road holding,
extends braking distances and
causes premature tyre wear,
particularly under arduous con-
ditions (vehicle loaded, high
speed, long journey).

Driving with under-infl ated tyres
increases fuel consumption.
The tyre pressures for your vehi-
cle can be found on the tyre pres-
sure label (see the "Identifi cation
markings" section).
The tyre pressures must be
checked when the tyres cold
(vehicle stopped for 1 hour or
after driving for less then 6 miles
(10 km) at moderate speed).
Otherwise, add 0.3 bar to the val-
ues indicated on the label.

9
DRIVING
167
The fl ashing and then fi xed
illumination of the under-infl a-
tion warning lamp accompa-
nied by the illumination of the
"service" warning lamp indi-
cates a fault with the system.

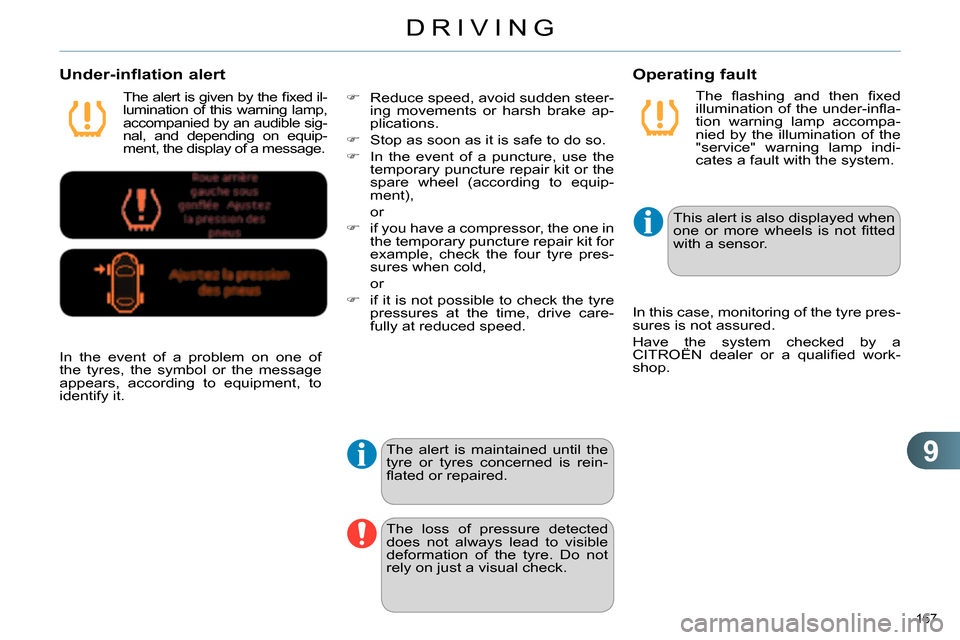

Operating fault

The alert is given by the fi xed il-
lumination of this warning lamp,
accompanied by an audible sig-
nal, and depending on equip-
ment, the display of a message.

Under-inflation alert


The alert is maintained until the
tyre or tyres concerned is rein-
fl ated or repaired.

The loss of pressure detected
does not always lead to visible
deformation of the tyre. Do not
rely on just a visual check.

This alert is also displayed when
one or more wheels is not fi tted
with a sensor.
In the event of a problem on one of
the tyres, the symbol or the message
appears, according to equipment, to
identify it.


Reduce speed, avoid sudden steer-
ing movements or harsh brake ap-
plications.


Stop as soon as it is safe to do so.


In the event of a puncture, use the
temporary puncture repair kit or the
spare wheel (according to equip-
ment),
or


if you have a compressor, the one in
the temporary puncture repair kit for
example, check the four tyre pres-
sures when cold,
or


if it is not possible to check the tyre
pressures at the time, drive care-
fully at reduced speed. In this case, monitoring of the tyre pres-
sures is not assured.
Have the system checked by a
CITROËN dealer or a qualifi ed work-
shop.

9
DRIVING
171





LANE DEPARTURE WARNING
SYSTEM
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver.

Activation




Press this button, the indicator lamp
comes on.



Deactivation




Press this button again, the indicator
lamp goes off.
The status of the system remains in the
memory when the ignition is switched off.


Detection

You are warned by the vibration of the
driver's seat cushion:


- on the right-hand side, if the mark-
ing on the ground has been crossed
on the right,

- on the left-hand side, if the marking
on the ground has been crossed on
the left.
No warning is transmitted while the
direction indicator is active and for ap-
proximately 20 seconds after the direc-
tion indicator is switched off.
A warning may be transmitted if a direc-
tion marking (e.g. arrow) or non-standard
marking (e.g. graffi ti) is crossed.


Operating fault


The detection may be impeded:


- if the sensors are dirty (mud,
snow...),

- if the markings on the ground
are worn,

- if there is little contrast be-
tween the markings on the
ground and the road surface.

System which detects the involuntary
crossing of longitudinal traffi c lane mark-
ings on the ground (solid or broken line).
Sensors, fi tted below the front bumper,
trigger a warning if the vehicle drifts
over a lane marking (speed higher than
50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads. In the event of a malfunction,
the service warning lamp
comes on, accompanied by
an audible signal and a message in the
screen.
Contact a CITROËN dealer or a qualifi ed
workshop.
