Citroen C4 2014 2.G Owner's Manual

319
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
I am unable to connect
my Bluetooth telephone. It is possible that Bluetooth is switched off on the telephone or that the
telephone has not been made not visible.

- Check that your telephone has Bluetooth
switched on.

- Check in the telephone's settings that it is
"Visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone
on www.citroen.co.uk (services) .
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.

320
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The message "USB
device error" is displayed
on the screen. The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick (FAT 32).
A telephone connects
automatically,
disconnecting another
telephone. Automatic connection overrides manual connection. Modify the telephone settings to remove automatic
connection.
The Apple
®
player is
not recognised when
connecting to the USB
port. The Apple ®
player is of a generation that is not compatible with the USB. Connect the Apple ®
player to the AUX Jack socket
using a suitable cable (not supplied).
When I connect my
Apple
® player or my
BlackBerry ® to the
USB port, I have alert
messages on the current
consumption by the USB
port. When charging, the current consumption of these smartphones is greater
than the rating of the USB port, which is 500 mA.
The hard disk or device
is not recognised when
connecting to the USB
port. Some hard disks and devices need a power supply greater than is
provided by the audio system. Connect the device to the 230 V socket, the 12 V
socket or an external power supply.

Caution
: ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).
When streaming, the
sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le to
improve streaming.

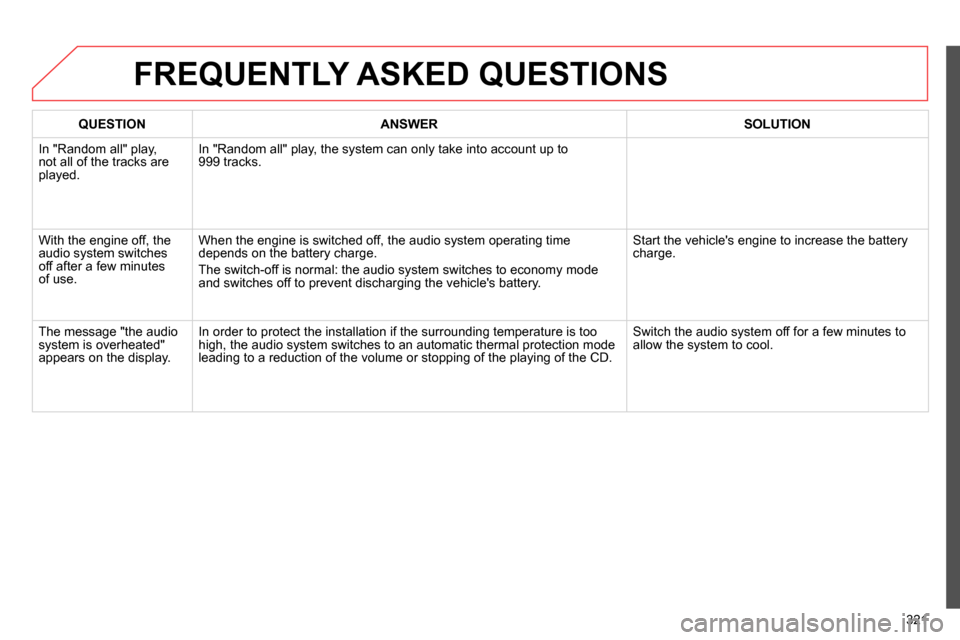

321
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


In "Random all" play,
not all of the tracks are
played. In "Random all" play, the system can only take into account up to
999 tracks.
With the engine off, the
audio system switches
off after a few minutes
of use. When the engine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode
and switches off to prevent discharging the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD. Switch the audio system off for a few minutes to
allow the system to cool.

322

323
VISUAL SEARCH
EXTERIOR


Remote control ........................... 79-85


- opening / closing

- antitheft protection

- starting

- battery


Wiper controls......................... 107-109
Changing a wiper
blade .............................................. 216
Door mirrors ................................ 76-77
Blind spot sensors .................. 172-174

Boot ........................................... 80, 91
Temporary puncture
repair kit .................................. 193-197
Changing a wheel ................... 198-201


- tools

- removing / refi tting
Snow chains .................................. 202

Changing bulbs....................... 207-208


- rear lamps

- 3rd brake lamp

- number plate lamp


Parking sensors ...................... 182-183
Parking space sensors ........... 180-181
Towbar ........................................... 220
Towing .................................... 218-219

Accessories ............................ 222-223
Roof bars ....................................... 217
Panoramic sunroof .......................... 94

Braking assistance ........................ 140
Trajectory control .................... 141-142
Tyre under-infl ation detection ...166-167
Tyre pressures ....................... 197, 231
Lighting controls ....................... 98-102
Headlamp adjustment.................... 104
Welcome lighting ........................... 103
Directional lighting systems .... 105-106
Changing bulbs....................... 203-206


- front lamps

- front foglamps


- side repeaters


Doors ......................................... 86, 90


- opening / closing

- emergency control
Child lock ....................................... 138
Electric windows ......................... 92-93
Alarm .......................................... 88-89

Fuel tank ..................................... 95-96
Misfuel prevention ........................... 97

324
VISUAL SEARCH
INTERIOR


Boot fi ttings ............................. 121-123


- rear parcel shelf

- hooks

- 12 V socket

- torch

- lashing eyes

- storage compartment
Luggage cover (C4 enterprise) ...... 124

Rear seats ....................................... 75
Rear armrest / Ski fl ap ................... 120

Child seats .............................. 125-133
ISOFIX mountings .................. 134-136
Front seats.................................. 70-74
Seat belts................................ 143-145

Airbags ................................... 146-149

Interior fi ttings ..........................112-120


- auxiliary socket / USB port

- 12 V socket

- front armrest

- 230 V / 50 Hz socket

- mats

Glove box ....................................... 113
Deactivating the passenger's
airbag............................................. 147

325
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Instrument panels ....................... 28-31
Warning lamps ............................ 32-42
Indicators .................................... 43-45
Setting buttons............................ 46-48


- trip distance recorder

- dashboard lighting dimmer / black
panel

- customisation of dials and screens


Lighting controls ....................... 98-102
Adjusting headlamps ..................... 104
Stop & Start ............................ 168-170
Lane departure
warning system.............................. 171

Door mirrors ................................ 76-77
Electric windows ......................... 92-93

Dashboard fuses .................... 209-211

Opening the bonnet ....................... 185

Adjusting the steering wheel............ 78
Horn ............................................... 139
Audio system .......................... 289-321
Setting the date / time................ 50, 54
eMyWay satellite
navigation system ................... 235-288
Setting the date / time...................... 56

Manual gearbox ............................. 157
Electronic gearbox .................. 158-160
Automatic gearbox.................. 161-163
Parking brake ................. 150-156, 157
Wiper controls......................... 107-109
Trip computer ............................. 57-60
Rear view mirror .............................. 78
Emergency or
assistance call ......................... 142, 233
Seat belt and front passenger airbag
warning display screen ........... 143-145
Courtesy lamps............................... 110

Interior mood lighting ...................... 111

Hazard warning lamps ................... 139
Central locking ............................ 86-87
Black panel ...................................... 47
Multifunction screens .................. 49-56

Ventilation ................................... 61-62
Manual air conditioning......... 63-64, 69
Digital
air conditioning ..................... 65-68, 69
Demisting / Defrosting
the rear screen ................................ 69
Memorising speeds ....................... 175
Speed limiter........................... 176-177
Cruise control ......................... 178-179

326
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE


Running out of Diesel fuel ............. 186

Checking levels ...................... 189-190


- oil

- brake fl uid

- coolant

- power steering fl uid

- screenwash / headlamp wash fl uid

- additive (Diesel with particle
emissions fi lter)


Changing bulbs....................... 203-208


- front

- rear

Petrol engines......................... 224-225
Diesel engines ........................ 226-229
Dimensions .................................... 230
Identifi cation markings ................... 231

Bonnet ........................................... 185
Petrol underbonnet ........................ 187
Diesel underbonnet ....................... 188
Checking components ............ 191-192


- battery

- air fi lter / passenger compartment
fi lter

- oil fi lter

- particle emissions fi lter (Diesel)

- brake pads / discs


Battery .................................... 213-215
Energy economy mode.................. 216

Engine compartment fuses .... 209, 212

327
ALPHABETICAL INDEX
AABS and EBFD systems............ 140
Accessories ............................... 222
Accessory socket,
12V .................. 114, 115, 118, 122
Adjusting headlamps ................. 104
Adjusting head restraints ............. 72
Adjusting seat belt height ... 143, 144
Adjusting the
steering wheel .......................... 78
Airbags, curtain.................. 148, 149
Airbags, front ..................... 146, 149
Airbags, lateral................... 148, 149
Air conditioning ............................ 26
Air conditioning, digital........... 62, 65
Air conditioning, manual ........ 62, 63
Air fi lter ...................................... 191
Air fl ow ......................................... 61
Air vents....................................... 61
Alarm ........................................... 88
Anti-lock braking system
(ABS) ...................................... 140
Anti-pinch............................... 92, 94
Anti-theft ...................................... 82
Armrest, front ...................... 116, 117
Armrest, rear .............................. 120
Assistance call ........... 142, 233, 234
Audible warning ......................... 139
Audio streaming
(Bluetooth) .............. 275, 303, 305
Audio system ................. 49, 51, 289
Automatic illumination
of headlamps .................... 99, 102
Automatic operation
of hazard warning lamps ........ 139
Automatic rain sensitive
windscreen wipers .......... 107, 108
Auxiliary socket...........114, 276, 302Children .............. 125-138, 145, 147Child seats ........................... 125-137
Child seats, conventional........... 131
CITROËN Localised
Assistance Call ....................... 234
CITROËN Localised
Emergency Call ...................... 234
Clock.......................... 46, 50, 54, 56
Closing the boot..................... 81, 91
Closing the doors................... 81, 90
Cold climate screen ................... 217
Colour screen .............................. 55
Connectors, audio .... 114, 276, 300, 302
Coolant level .............................. 189
Courtesy lamps...................103, 110
Courtesy mirror ........................... 113
Cruise control .................... 175, 178
Cup holder .................................. 115
DAB (Digital Audio
Broadcasting) ................. 270, 296
Date (setting) ............. 46, 50, 54, 56
Daytime running
lamps ........................ 99, 203, 205
Deactivating
the passenger airbag .............. 147
Defrosting .................................... 69
Diesel additive level ................... 190
Dimensions ................................ 230
Dipped beam ............... 98, 203, 205
Dipstick ................................ 43, 189
Directional lighting ............. 105, 106
Direction indicators ........... 101, 139,
203, 204, 206, 207
Doors ........................................... 90
Doors emergency control ............ 87 Capacity, fuel tank ....................... 95
CD ..................................... 272, 297
CD MP3 ............................. 272, 298
Central locking ....................... 81, 86
Centre console ........................... 115
Changing a bulb ................. 203-208
Changing a fuse ................. 209-212
Changing a wheel ............... 198-201
Changing a wiper blade ..... 109, 216
Changing the date ..... 46, 50, 54, 56
Changing the remote control
battery................................. 83, 84
Changing the time ..... 46, 50, 54, 56
Checking levels ................. 189, 190
Checking the engine
oil level.............................. 43, 189
Checking tyre pressures
(using the kit) .......................... 197
Checks................................ 185-192
Child lock ................................... 138 Battery ........................ 191, 213-215
Battery, charging ........................ 215
Battery, remote control ........... 83-85
Black panel .................................. 47
Blind spot sensors ..................... 172
Bluetooth (hands-free) ....... 258, 304
Bluetooth (telephone) ........ 258, 304
Bonnet ....................................... 185
Bonnet stay................................ 185
Boot ............................................. 91
Boot lamp ........................... 111, 123
Brake discs ................................ 192
Brake lamps............................... 207
Brake pads ................................ 192
Braking assistance system ........ 140 B
D C

328
ALPHABETICAL INDEX
Door pockets .............................. 112
Driving economically ................... 26
Driving positions (storing) ............ 74
Dynamic emergency braking ..... 153
EBA (Emergency braking
assistance) ............................. 140
Eco-driving .................................. 26
Economy mode.......................... 216
Electric window controls .............. 92
Electronic brake force distribution
(EBFD) .................................... 140
Electronic engine
immobiliser ......................... 82, 85
Electronic gearbox .... 158, 168, 192
Electronic stability control
(ESC) ...................................... 141
Emergency boot release.............. 91
Emergency braking system ....... 140
Emergency call .......... 142, 233, 234
Emergency starting.................... 213
Emergency warning lamps ........ 139
eMyWay ............................... 55, 235
Energy economy mode.............. 216
Engine compartment ......... 187, 188
Engine compartment
fusebox ................................... 212
Engine, Diesel ..... 96, 186, 188, 226
Engine oil level indicator ...... 43, 189
Engine, petrol .............. 96, 187, 224
Engines.............................. 224, 226
Environment ............. 26, 62, 69, 85,
163, 166, 190
Equipment settings .......... 50, 52, 56
ESC/ASR ................................... 141
ESP ........................................... 141Headlamps,
directional ............... 104, 105, 203
Headlamp wash ......................... 108
Head restraints, front ................... 72
Head restraints, rear .................... 75
Heated seats ............................... 72
Heating .................................. 63, 65
Height and reach adjustment,
steering wheel .......................... 78
Hill start assist ........................... 164
Hooks ........................................ 122 EFilling with fuel ........................ 95-97
Fitting a wheel ........................... 201
Fitting roof bars.......................... 217
Fittings, boot ...................... 121, 124
Fitting speakers ......................... 221
Flashing indicators............ 101, 139,
204, 206, 207
Foglamps, front .... 100, 106, 203, 206
Foglamps, rear .................. 100, 207
Front seats....................... 70, 71, 74
Fuel........................................ 26, 96
Fuel consumption ........................ 26
Fuel fi ller fl ap ......................... 95, 97
Fuel gauge............................. 28, 95
Fuel tank ................................ 95, 97
Fusebox, dashboard .................. 210
Fuses ......................................... 209
Gearbox, automatic ... 161, 192, 215
Gearbox, electronic ... 158, 192, 215
Gearbox, manual ....... 157, 168, 192
Gear effi ciency indicator ............ 165
Gear lever, automatic gearbox .... 161
Gear lever,
electronic gearbox .................. 158
Gear lever, manual gearbox ...... 157
Glove box ................................... 113
G.P.S. ........................................ 241
Grab handles .............................. 112
Guidance ................................... 241
Halogen headlamps................... 203
Hands-free kit .................... 258, 304
Hazard warning lamps ............... 139
Headlamp adjustment................ 104Jack ........................................... 198
JACK socket ...............114, 276, 302 F
G
H
J IIgnition ......................................... 82
Indicator lamps, status............ 32-42
Indicators, direction ........... 139, 204
Infl ating accessories
(using the kit) .......................... 197
Infl ating tyres ....................... 26, 230
Inputs for audio
system .....................114, 276, 302
Installing speakers ..................... 221
Instrument panel
lighting ...................................... 47
Instrument panels ............. 28-30, 48
Instrument panel
screen .......................... 28-30, 165
Intelligent Traction Control ......... 141
Interior fi ttings ..................... 112, 113
Interior mood lighting .................. 111
ISOFIX ....................................... 134
ISOFIX child seats .............. 134-136
ISOFIX mountings ..................... 134
