Page 5 of 340

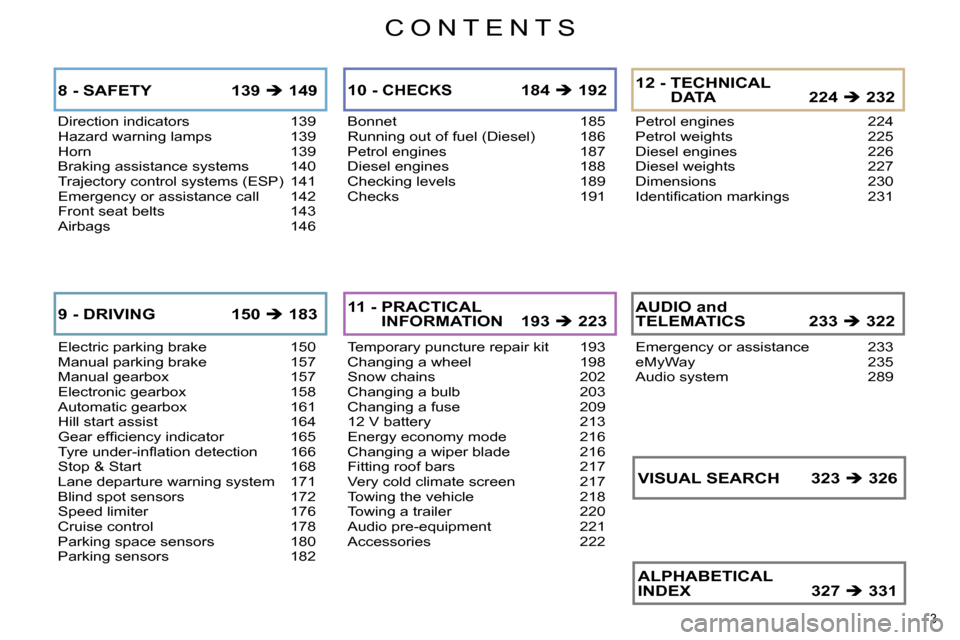

CONTENTS
3
Direction indicators 139
Hazard warning lamps 139
Horn 139
Braking assistance systems 140
Trajectory control systems (ESP) 141
Emergency or assistance call 142
Front seat belts 143
Airbags 146
8 - SAFETY 139 149
Electric parking brake 150
Manual parking brake 157
Manual gearbox 157
Electronic gearbox 158
Automatic gearbox 161
Hill start assist 164
Gear effi ciency indicator 165
Tyre under-infl ation detection 166
Stop & Start 168
Lane departure warning system 171
Blind spot sensors 172
Speed limiter 176
Cruise control 178
Parking space sensors 180
Parking sensors 182
9 - DRIVING 150 183
Bonnet 185
Running out of fuel (Diesel) 186
Petrol engines 187
Diesel engines 188
Checking levels 189
Checks 191
10 - CHECKS 184 192
Temporary puncture repair kit 193
Changing a wheel 198
Snow chains 202
Changing a bulb 203
Changing a fuse 209
12 V battery 213
Energy economy mode 216
Changing a wiper blade 216
Fitting roof bars 217
Very cold climate screen 217
Towing the vehicle 218
Towing a trailer 220
Audio pre-equipment 221
Accessories 222
11 - PRACTICAL
INFORMATION 193 223
Petrol engines 224
Petrol weights 225
Diesel engines 226
Diesel weights 227
Dimensions 230
Identifi cation markings 231
12 - TECHNICAL
DATA 224 232
Emergency or assistance 233
eMyWay 235
Audio system 289
AUDIO and
TELEMATICS 233 322
ALPHABETICAL
INDEX 327 331 VISUAL SEARCH 323 326
Page 6 of 340
4
EXTERIOR
Parking sensors
This system measures the size of a
free parking space between two ve-
hicles or obstacles.
180
Stop & Start system
This system puts the engine temporar-
ily on standby during stops in the traf-
fi c (traffi c lights, traffi c jams, etc...). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system allows reductions of fuel
consumption and exhaust emissions,
as well as noise levels when stationary.
168
Welcome lighting
This additional exterior and interior
lighting, controlled remotely, makes
your approach to the vehicle easier
when the light is poor.
103
Directional lighting
This lighting automatically provides
additional visibility when cornering.
105
Cornering lighting
At low speed, this lighting automati-
cally provides additional visibility
when cornering, at junctions, when
parking... making use of the corre-
sponding front foglamp.
106

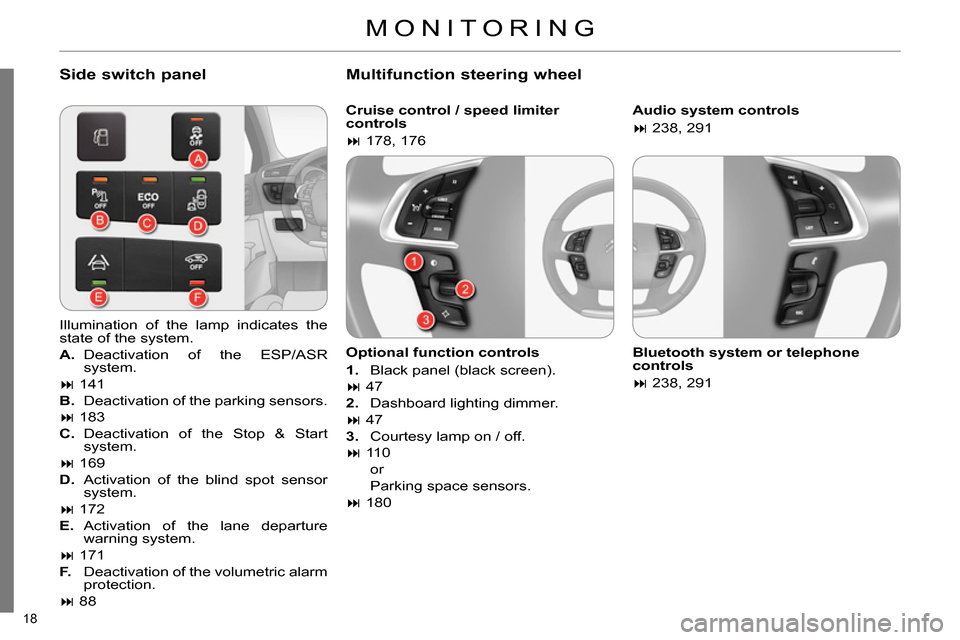

Page 20 of 340
18
MONITORING
Side switch panel
Multifunction steering wheel
Cruise control / speed limiter
controls
178, 176
Optional function controls
1.
Black panel (black screen).
47
2.
Dashboard lighting dimmer.
47
3.
Courtesy lamp on / off.
110
or
Parking space sensors.
180
Audio system controls
238, 291
Bluetooth system or telephone
controls
238, 291
Illumination of the lamp indicates the
state of the system.
A.
Deactivation of the ESP/ASR
system.
141
B.
Deactivation of the parking sensors.
183
C.
Deactivation of the Stop & Start
system.
169
D.
Activation of the blind spot sensor
system.
172
E.
Activation of the lane departure
warning system.
171
F.
Deactivation of the volumetric alarm
protection.
88

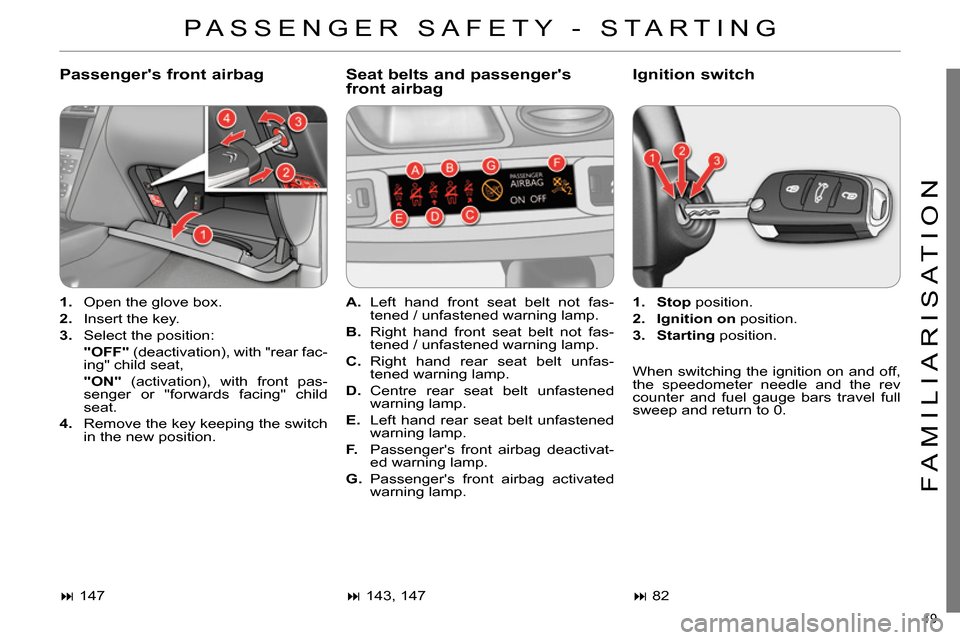

Page 21 of 340
19
FAMILIARISATION
PASSENGER SAFETY - STARTING
Passenger's front airbag
Seat belts and passenger's
front airbag
Ignition switch
1.
Open the glove box.
2.
Insert the key.
3.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front pas-
senger or "forwards facing" child
seat.
4.
Remove the key keeping the switch
in the new position.
147
A.
Left hand front seat belt not fas-
tened / unfastened warning lamp.
B.
Right hand front seat belt not fas-
tened / unfastened warning lamp.
C.
Right hand rear seat belt unfas-
tened warning lamp.
D.
Centre rear seat belt unfastened
warning lamp.
E.
Left hand rear seat belt unfastened
warning lamp.
F.
Passenger's front airbag deactivat-
ed warning lamp.
G.
Passenger's front airbag activated
warning lamp.
143, 147
1.
Stop
position.
2.
Ignition on
position.
3.
Starting
position.
82
When switching the ignition on and off,
the speedometer needle and the rev
counter and fuel gauge bars travel full
sweep and return to 0.

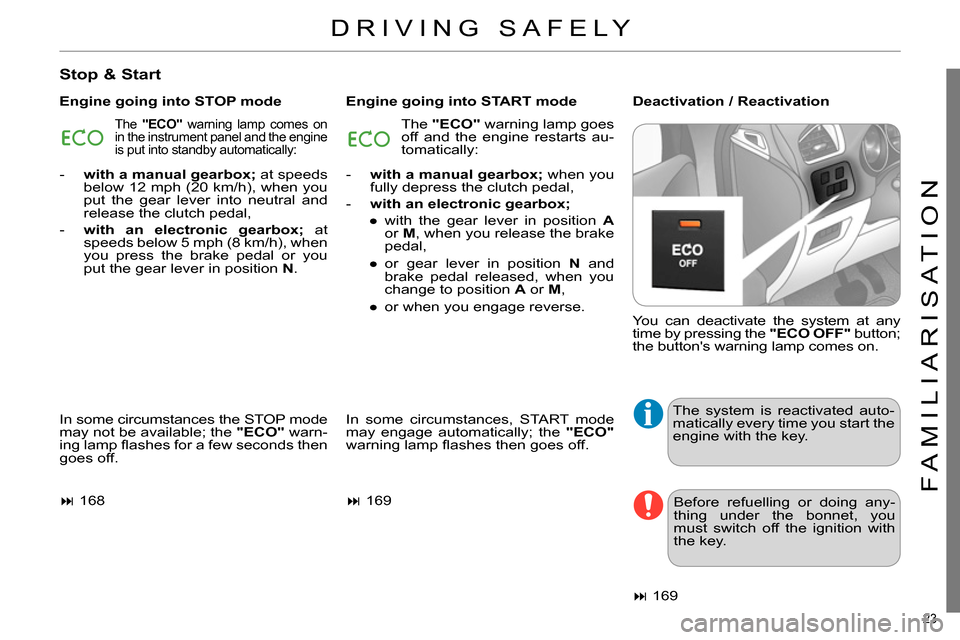

Page 25 of 340
23
FAMILIARISATION
DRIVING SAFELY
Stop & Start
Engine going into STOP mode
Engine going into START mode
Deactivation / Reactivation
In some circumstances the STOP mode
may not be available; the "ECO"
warn-
ing lamp fl ashes for a few seconds then
goes off.
- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal,
- with an electronic gearbox;
at
speeds below 5 mph (8 km/h), when
you press the brake pedal or you
put the gear lever in position N
.
168
- with a manual gearbox;
when you
fully depress the clutch pedal,
- with an electronic gearbox;
●
with the gear lever in position A
or M
, when you release the brake
pedal,
●
or gear lever in position N
and
brake pedal released, when you
change to position A
or M
,
●
or when you engage reverse.
In some circumstances, START mode
may engage automatically; the "ECO"
warning lamp fl ashes then goes off.
169
You can deactivate the system at any
time by pressing the "ECO OFF"
button;
the button's warning lamp comes on.
169
The "ECO"
warning lamp goes
off and the engine restarts au-
tomatically:
The "ECO"
warning lamp comes on
in the instrument panel and the engine
is put into standby automatically:
The system is reactivated auto-
matically every time you start the
engine with the key.
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition with
the key.
Page 34 of 340
1
MONITORING
32
Warning and indicator lamps
Visual indicators which inform the driver of the occurrence of a malfunction (warn-
ing lamp) or of the operation of a system (operation or deactivation indicator lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.
When the engine is started, these warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp
in question.
Associated warnings
The illumination, fi xed or fl ashing, of certain warning lamps may be accompanied
by an audible signal and the display of a message.
Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the fol-
lowing warning lamps indicates a malfunction which requires action on the part of the driver.
The warning comes on in the instrument panel.
If your vehicle has a screen, a
warning lamp coming on is al-
ways accompanied by the dis-
play of an additional message,
to assist you in identifying the
problem.
If you encounter any problems,
do not hesitate to contact a
CITROËN dealer or a qualifi ed
workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fi xed, alone
or associated
with another
warning lamp,
accompanied by
an audible signal
and a message in
the screen. Illumination of this warning
lamp is associated with a
serious fault with the braking
system, power steering,
engine lubrication system or
cooling system. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
Maximum
coolant
temperature
fi xed red. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
CITROËN dealer or qualifi ed workshop.

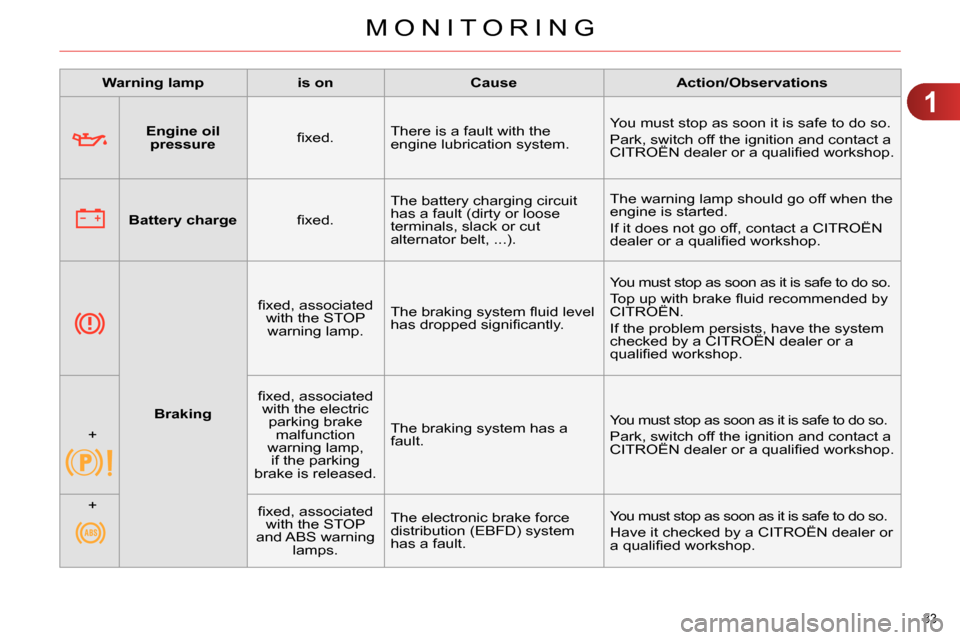

Page 35 of 340
1
MONITORING
33
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
Battery charge
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.
Braking
fi xed, associated
with the STOP
warning lamp. The braking system fl uid level
has dropped signifi cantly. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
CITROËN.
If the problem persists, have the system
checked by a CITROËN dealer or a
qualifi ed workshop.
+
fi xed, associated
with the electric
parking brake
malfunction
warning lamp,
if the parking
brake is released. The braking system has a
fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
+
fi xed, associated
with the STOP
and ABS warning
lamps. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Page 39 of 340
1
MONITORING
37
Warning lamp
is on
Cause
Action/Observations
Foot on the
clutch **
fi xed. In the STOP mode of Stop &
Start, changing to START
mode is refused because the
clutch pedal is not fully down. You must declutch fully to allow the
change to engine START mode.
**
Only on the two-tone instrument panel without audio system.
Dynamic
stability control
(ESP/ASR)
fl ashing. The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of the
vehicle.
fi xed, associated
with illumination of
the indicator lamp
in the " ESP OFF
"
button, accompanied
by an audible signal
and a message.
The ESP/ASR or hill start
assist system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Power steering
fi xed. The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Under-infl ation
fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.
+
fl ashing
then fi xed,
accompanied
by the Service
warning lamp. The tyre pressure monitoring
system has a fault or no
sensor is detected on one of
the wheels. Under-infl ation detection is not assured.
Have the system checked by a CITROËN
dealer or a qualifi ed workshop.
Directional
headlamps
fl ashing. The directional headlamps
system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Page 43 of 340
1

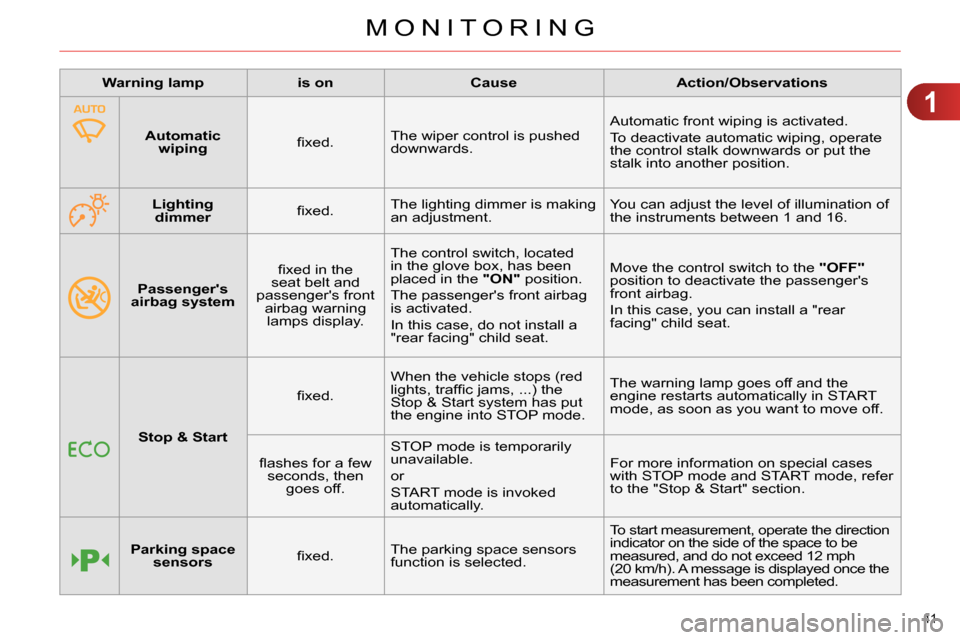

MONITORING
41
Passenger's
airbag system
fi xed in the
seat belt and
passenger's front
airbag warning
lamps display. The control switch, located
in the glove box, has been
placed in the "ON"
position.
The passenger's front airbag
is activated.
In this case, do not install a
"rear facing" child seat. Move the control switch to the "OFF"
position to deactivate the passenger's
front airbag.
In this case, you can install a "rear
facing" child seat.
Warning lamp
is on
Cause
Action/Observations
Stop & Start
fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the
engine restarts automatically in START
mode, as soon as you want to move off.
fl ashes for a few
seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases
with STOP mode and START mode, refer
to the "Stop & Start" section.
Parking space
sensors
fi xed. The parking space sensors
function is selected. To start measurement, operate the direction
indicator on the side of the space to be
measured, and do not exceed 12 mph
(20 km/h). A message is displayed once the
measurement has been completed.
Automatic
wiping
fi xed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate
the control stalk downwards or put the
stalk into another position.
Lighting
dimmer
fi xed. The lighting dimmer is making
an adjustment. You can adjust the level of illumination of
the instruments between 1 and 16.
Page 59 of 340
2
MULTIFUNCTION SCREENS
57
TRIP COMPUTER
Monochrome screen A
Information displays The trip computer provides the follow-
ing information:
- range,
- current fuel consumption,
- Stop & Start time counter,
- distance travelled,
- average fuel consumption,
- average speed.
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession.
System that gives you information on
the journey in progress (range, fuel
consumption…).
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Zero reset
The next press then returns you to
the normal display.
