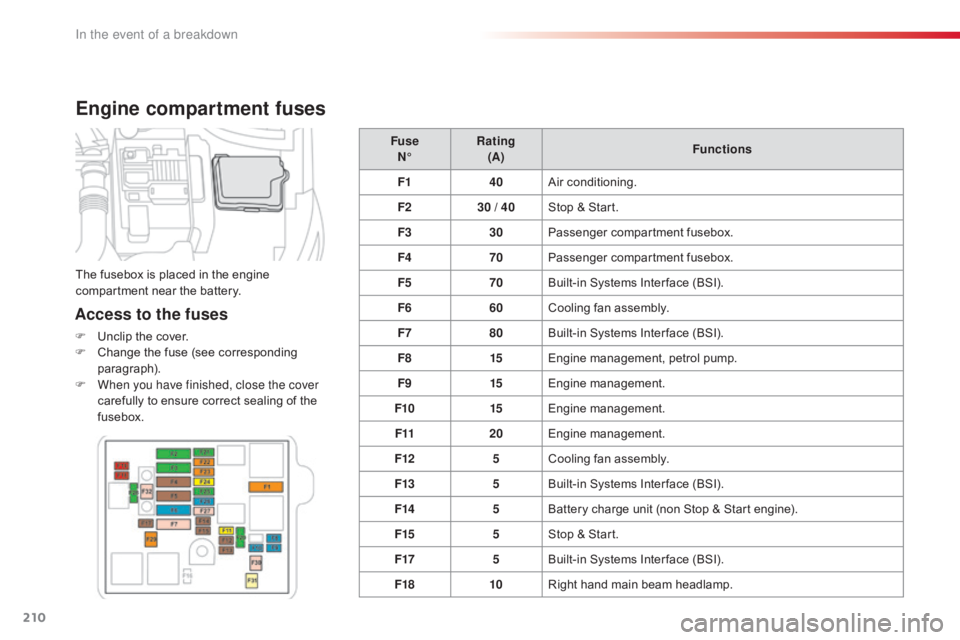

Engine compartment fuses
Access to the fuses
F Unclip  the   cover.
F  C hange   the   fuse   (see   corresponding
par

agraph).
F

W
hen you have finished, close the cover
carefully
  to   ensure   correct   sealing   of   the
f

usebox. Fuse
N° Rating
(A) Functions
F1 40Air
 c
onditioning.
F2 30 / 40Stop   &   Start.
F3 30Passenger
 c
ompartment
 f
usebox.
F4 70Passenger
 c
ompartment
 f
usebox.
F5 70Built-in   Systems   Inter face   (BSI).
F6 60Cooling   fan   assembly.
F7 80Built-in   Systems   Inter face   (BSI).
F8 15Engine
  management,   petrol   pump.
F9 15Engine
 m

anagement.
F10 15Engine
 m

anagement.
F11 20Engine
 m

anagement.
F12 5Cooling
  fan   assembly.
F13 5Built-in
  Systems   Inter face   (BSI).
F14 5Battery
  charge   unit   (non   Stop   &   Start   engine).
F15 5Stop
  &   Start.
F17 5Built-in
  Systems   Inter face   (BSI).
F18 10Right
  hand   main   beam   headlamp.
The
  fusebox   is   placed   in   the   engine
c

ompartment   near   the   battery.
In the event of a breakdown

211
C4-cactus_en_Chap08_En-cas-de-panne_ed01-2016

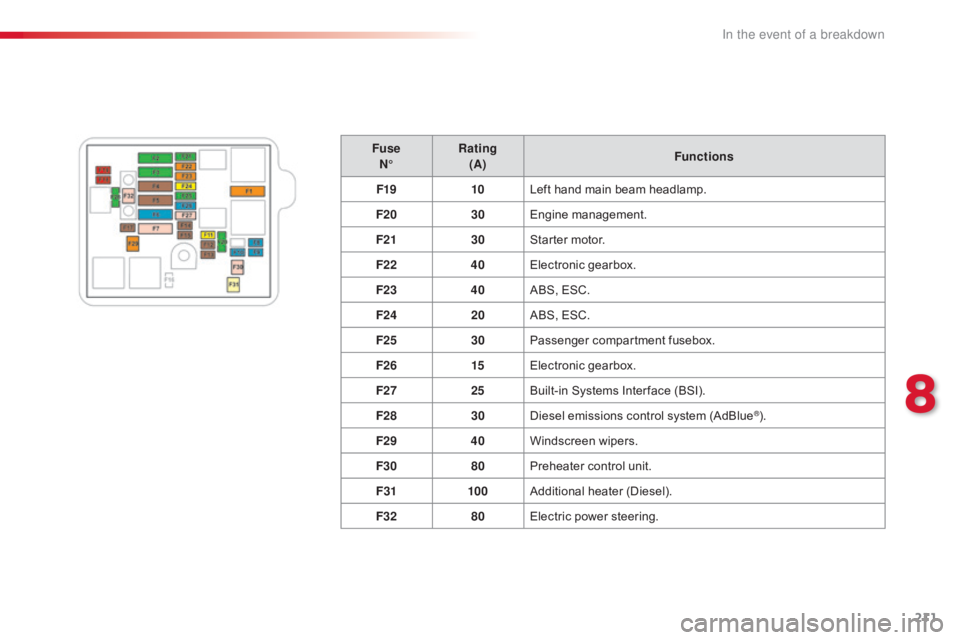

FuseN° Rating
(A) Functions
F19 10Left
  hand   main   beam   headlamp.
F20 30Engine
 m

anagement.
F21 30Starter
  motor.
F22 40Electronic
 g

earbox.
F23 40ABS,
  ESC.
F24 20ABS,
  ESC.
F25 30Passenger
 c

ompartment
 f
usebox.
F26 15Electronic
 g

earbox.
F27 25Built-in
  Systems   Inter face   (BSI).
F28 30Diesel
  emissions   control   system   (AdBlue
®).
F29 40Windscreen
 w

ipers.
F30 80Preheater

control

unit.
F31 100Additional
 hea

ter
 (

Diesel).
F32 80Electric

power

steering.
8
In the event of a breakdown
