jacking points CITROEN C4 2019 Owners Manual

194
C4-cactus_en_Chap08_En-cas-de-panne_ed01-2016

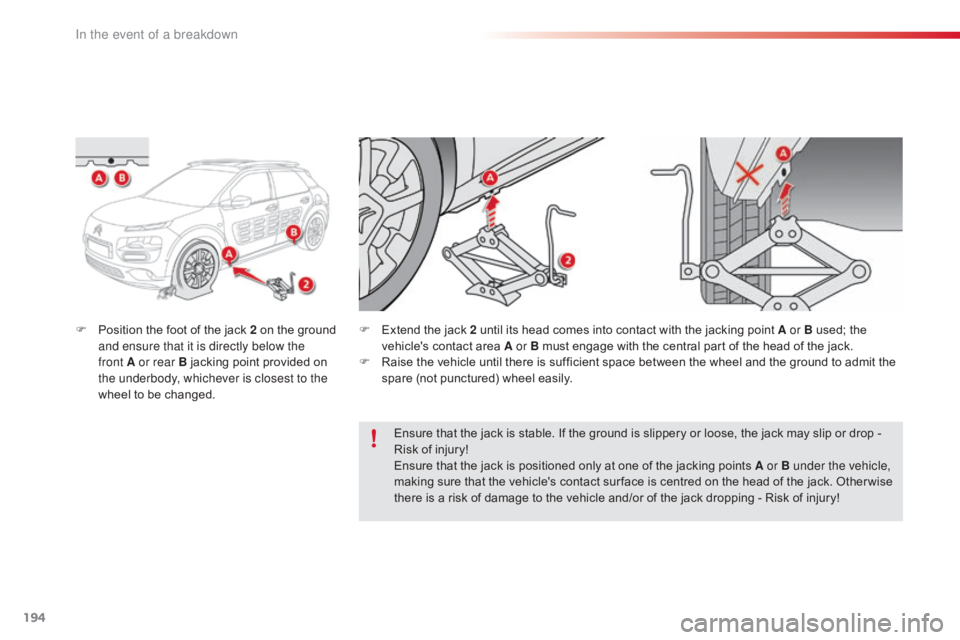

F Position  the   foot   of   the   jack   2   on   the   ground  a
nd ensure that it is directly below the
front
A or rear B   jacking   point   provided   on
t

he underbody, whichever is closest to the
wheel
  to   be   changed. F
 E xtend   the   jack   2   until   its   head   comes   into   contact   with   the   jacking   point   A or B   used;   the  v
ehicle's   contact   area   A or B   must   engage   with   the   central   part   of   the   head   of   the   jack.
F

R
aise   the   vehicle   until   there   is   sufficient   space   between   the   wheel   and   the   ground   to   admit   the
s

pare   (not   punctured)   wheel   easily.
Ensure
  that   the   jack   is   stable.   If   the   ground   is   slippery   or   loose,   the   jack   may   slip   or   drop   -
R

isk   of   injury!
Ensure
  that   the   jack   is   positioned   only   at   one   of   the   jacking   points   A or B under the vehicle,
making
  sure   that   the   vehicle's   contact   sur face   is   centred   on   the   head   of   the   jack.   Other wise
t

here   is   a   risk   of   damage   to   the   vehicle   and/or   of   the   jack   dropping   -   Risk   of   injury!
In the event of a breakdown
