tyre pressure CITROEN C4 2023 User Guide

187
In the event of a breakdown
8After changing a wheel
With a "space-saver" type spare wheel
Deactivate certain driving aid functions
(Active Safety Brake, Adaptive cruise control,
etc.).
Do not exceed the maximum authorised
speed of 50 mph (80 km/h).
Driving with more than one "space-saver"
type spare wheel is prohibited.
Visit a CITROËN dealer or a qualified
workshop.
Have the tightening of the spare wheel's bolts
and its tyre pressure checked.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), misting on the
internal surface of the glass of the headlamps
and rear lamps is normal, and will disappear
after the lamps have been on for a few
minutes.
Never look too closely at the light beam
of LED technology lamps - risk of serious
eye injury!


The headlamps have polycarbonate lenses with a protective coating:
–

Do not clean them with a dry or abrasive
cloth, nor with detergent or solvent
products.
–


Use a sponge and soapy water or a pH
neutral product.
–


When using a high-pressure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.
Changing a bulb must only be done with
the ignition off and after the headlamp /
lamp has been switched off for several
minutes - risk of serious burns!
Do not touch the bulb directly with your
fingers; use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new bulb
of the same type and specification. To avoid
lighting imbalance, replace the bulbs in pairs.
Refitting the lamp units
Perform the operations in the reverse
order to dismantling.
Light-emitting diode (LED)
headlamps and lamps
Depending on version, the affected types of
headlamps/lamps are:
–

LED technology headlamps.
–


Front foglamps.
–


Daytime running lamps/sidelamps.
–


Direction indicator side repeaters.
–


Side spotlamps.
–


Brake lamps.
–


Third brake lamp.
–


Rear sidelamps.
–


Rear direction indicators
–


Number plate lamps.

203
Technical data
9

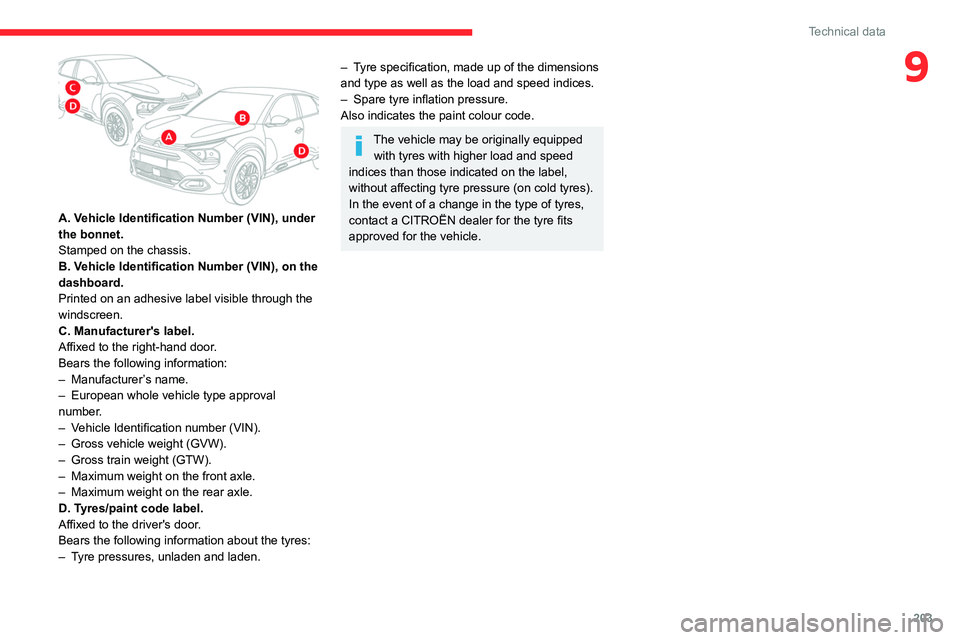

A. Vehicle Identification Number (VIN), under
the bonnet.
Stamped on the chassis.
B. Vehicle Identification Number (VIN), on the
dashboard.
Printed on an adhesive label visible through the
windscreen.
C. Manufacturer's label.
Affixed to the right-hand door.
Bears the following information:
–
Manufacturer
’s name.
–

European whole vehicle type approval
number

.
–

V
ehicle Identification number (VIN).
–

Gross vehicle weight (GVW).
–


Gross train weight (GTW).
–


Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres/paint code label.
Affixed to the driver's door.
Bears the following information about the tyres:
–

T
yre pressures, unladen and laden.
– Tyre specification, made up of the dimensions
and type as well as the load and speed indices.
–
Spare tyre inflation pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).
In the event of a change in the type of tyres,
contact a CITROËN dealer for the tyre fits
approved for the vehicle.

268
Vehicle data recording and privacy
Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.

272
Alphabetical index
Charger, wireless 60
Charging cable
157
Charging cable (Electric)

156
Charging connector (Electric)

155, 160,
162–163
Charging flap (Electric)

155, 160, 162–163
Charging system (Electric)

5, 9, 28, 153, 171
Charging the traction battery
(Electric)

23, 153, 157, 160, 162–163
CHECK

24
Checking the engine oil level

20
Checking the levels

171–172
Checking tyre pressures
(using the kit)

181, 183
Checks

170, 173–175
Checks, routine

173–174
Child lock

92
Children

81, 87–89
Children (safety)

92
Child seats

81, 84–87
Child seats, conventional

87, 90–91
Child seats, i-Size

89–91
Child seats, ISOFIX

87–91
Cleaning (advice)

154, 177–179
Closing the boot

36, 40
Closing the doors

35–36, 39
Collision Risk Alert

132–134
Configuration, vehicle

11, 28–29
Connected applications

239
Connection, Android Auto

221, 239
Connection, Apple CarPlay

221, 238Connection, Bluetooth 208–209, 218–219,
239–240, 244–245, 260–261
Connection, Wi-Fi network

240
Connectivity

238, 265
Consumptions

29–30
Container, AdBlue®

176
Control, emergency boot release

40
Control, emergency door

37
Control, heated seats

47, 50–51
Controls, steering mounted

102–103
Control stalk, lighting

65–66
Control stalk, wipers

70–72
Control unit

156–157
Courtesy lamps

62–63
Cruise control

113–114, 116–118
Cruise control, adaptive

113–114, 118–119
Cruise control by speed limit
recognition

113–114
D
DAB (Digital Audio Broadcasting) -
Digital radio
207, 217, 242
Date (setting)

224, 247, 266
Daytime running lamps

66, 188
Deactivating the passenger airbag

83, 86
Deadlocking

33, 36
Deferred charging

30
Deferred charging (Electric)

28, 30,
155, 160, 163
Deferred charging (Rechargeable hybrid)

30
Defrosting 48, 57
Defrosting, front
57
Defrosting, rear screen

58
Demisting

48, 57
Demisting, front

57
Demisting, rear

58
Diagnosis, vehicle

24
Dials and gauges

10
Digital instrument panel

11
Dimensions

202
Dipstick

20, 171
Direction indicators (turn signals)

66, 188–189
Display, head-up

12
Display screen, instrument panel

10
Domestic charging
(Electric)

157, 162–163, 201
Doors

39
Drive, electric

5, 9, 23, 28, 30,
153, 164, 171, 192, 195, 201
Driver’s attention warning

136–137
Drive selector (Electric)

103, 174
Driving

93–94
Driving aids camera (warnings)

11 0
Driving aid shortcuts

111
Driving aids (recommendations)

109
Driving economically

8
Driving modes

104–105
Dynamic stability control (DSC)

78

275
Alphabetical index
N
Navigation 233–235
Navigation, connected
236–238
O
Obstacle detection 137
Oil change
171
Oil consumption

171
Oil, engine

171
On-board tools

64, 180–181
Opening the bonnet

169–170
Opening the boot

33, 35, 40
Opening the doors

35, 39
P
Pads, brake 174
Paint
178, 202
Paint colour code

202
Park Assist

146
Parking brake

98, 174
Parking brake, electric

99–101, 174
Parking (sensors)

137
Parking sensors, audible and visual

137
Parking sensors, front

138
Parking sensors, rear

137
Parking sensors, side

138
Passenger compartment temperature pre-
conditioning (Electric)
30, 58
Pedestrian horn (Electric)

75, 94
Personalisation

11
Plates, identification

202
Player, Apple®

208, 218, 243
Player, USB

207, 217, 242
Port, USB

60, 207, 217, 220, 238, 242
Post Collision Safety Brake

78
Power

23
Power indicator (Electric)

9, 23
Pressures, tyres

174, 182, 203
Pre-tensioning (seat belts)

81
Priming the fuel system

180
Profiles

247, 253
Protecting children

83–89
Proximity Keyless Entry and Start

34
Public fast charging station

156, 162
Puncture

181–182, 184
R
Radar (warnings) 11 0
Radio
206–207, 215–216, 241, 262–263
Radio, digital (Digital Audio Broadcasting -
DAB)

207, 217, 242
Range, AdBlue®

21, 173
RDS

206, 216, 241
Reading lamps

62–63
Rear bench seat

49
Rear screen (demisting)

58
Rechargeable hybrid engine 30
Rechargeable hybrid system
30
Recharging the battery

191, 193
Recharging the traction battery
(Electric)

153, 157, 160, 162–163
Recirculation, air

57
Recorder, trip distance

25
Reduction of electrical load (mode)

169
Regeneration of the particle filter

173
Regenerative braking (deceleration by
engine braking)

103–104
Reinitialising the remote control

39
Reinitialising the under-inflation detection
system

109
Reminder, key in ignition

96
Reminder, lighting on

65–66
Remote control

32–37
Remotely operable functions
(Electric)

30, 58, 163
Removing a wheel

185–186
Removing the mat

62
Replacing bulbs

187–189
Replacing fuses

191
Replacing the air filter

173
Replacing the oil filter

173
Replacing the passenger compartment
filter

173
Reservoir, screenwash

172
Resetting the trip

26
Retractable support

60
Rev counter

10
Reversing camera

110, 139–141, 143–145
