remote start Citroen C4 AIRCROSS 2014 1.G User Guide

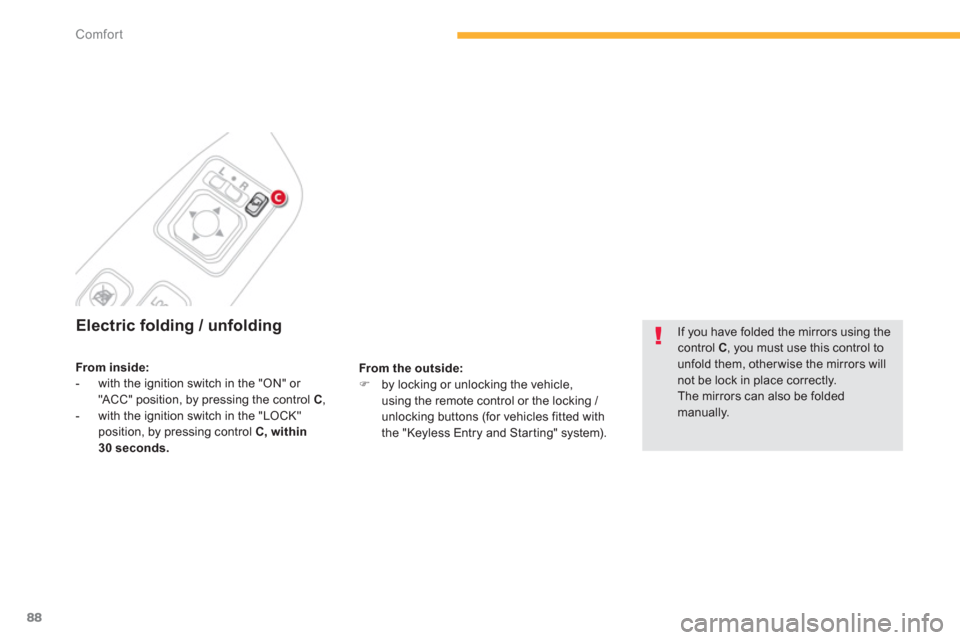

88
Comfort







Electric folding / unfolding


From the outside:



)
by locking or unlocking the vehicle,
using the remote control or the locking /
unlocking buttons (for vehicles fitted with
the "Keyless Entry and Starting" system).

If you have folded the mirrors using the
control C
, you must use this control to
unfold them, other wise the mirrors will
not be lock in place correctly.
The mirrors can also be folded
manually.

From inside:



- with the ignition switch in the "ON" or
"ACC" position, by pressing the control C
,

- with the ignition switch in the "LOCK"
position, by pressing control C, within
30 seconds.

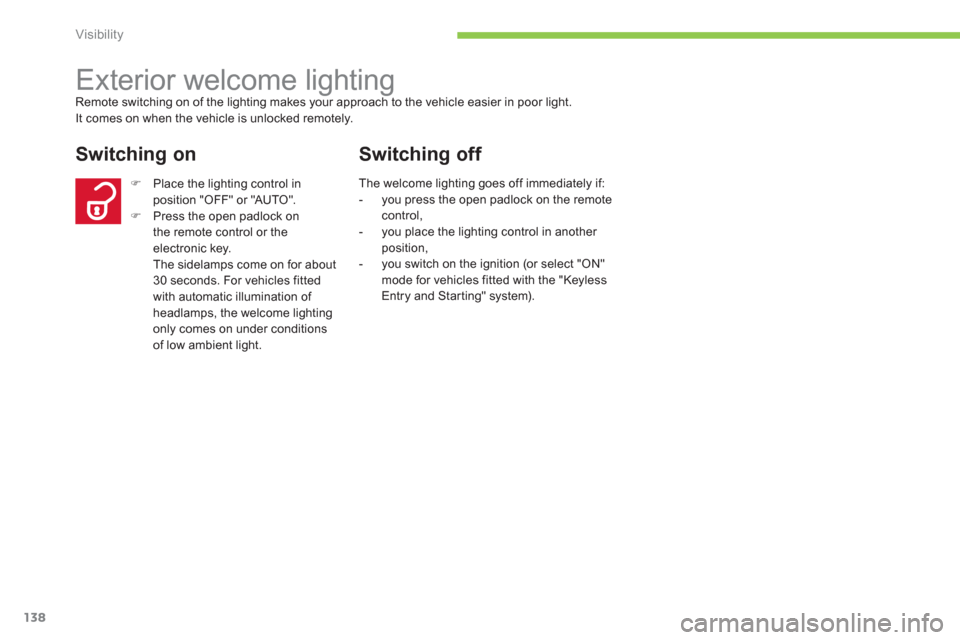

138
Visibility





Exterior welcome lighting
Remote switching on of the lighting makes your approach to the vehicle easier in poor light.
It comes on when the vehicle is unlocked remotely.


Switching on




)
Place the lighting control in
position "OFF" or "AUTO".

)
Press the open padlock on
the remote control or the
electronic key.
The sidelamps come on for about
30 seconds. For vehicles fitted
with automatic illumination of
headlamps, the welcome lighting
only comes on under conditions
of low ambient light.




Switching off


The welcome lighting goes off immediately if:


- you press the open padlock on the remote
control,

- you place the lighting control in another
position,

- you switch on the ignition (or select "ON"
mode for vehicles fitted with the "Keyless
Entry and Starting" system).

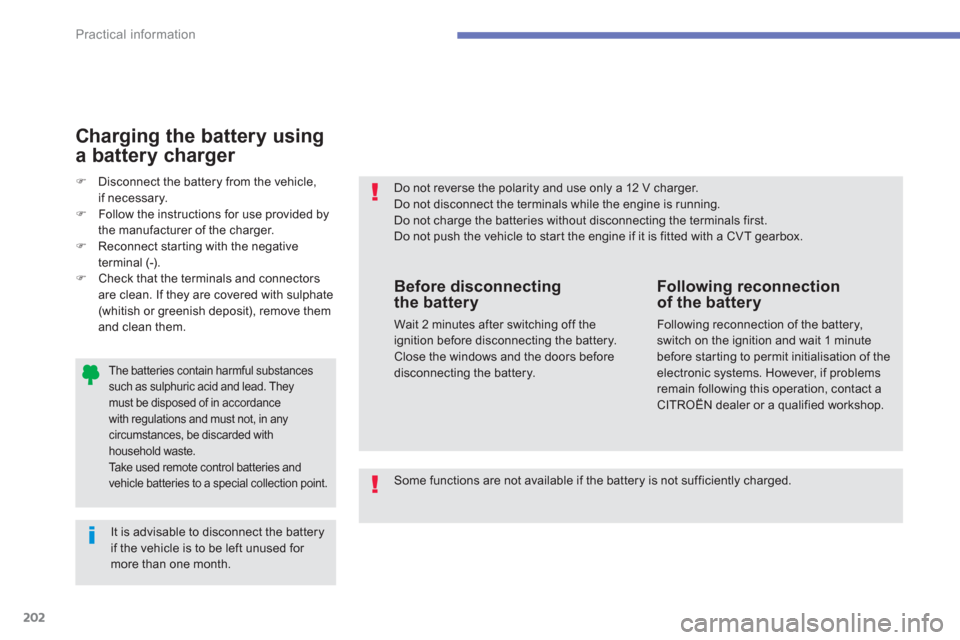

202
Practical information

The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries and
vehicle batteries to a special collection point.


Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to start the engine if it is fitted with a CVT gearbox.

It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.


Before disconnecting
the battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.


Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of the
electronic systems. However, if problems
remain following this operation, contact a
CITROËN dealer or a qualified workshop.


)
Disconnect the battery from the vehicle,
if necessary.

)
Follow the instructions for use provided by
the manufacturer of the charger.

)
Reconnect starting with the negative
terminal (-).

)
Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.


Charging the battery using
a battery charger

Some functions are not available if the battery is not sufficiently charged.

.
339 Alphabetical index
Keeping children safe ............ 155, 157, 161-176
Key ..................................................... 62, 66, 69
Key, electronic .................................................66
Key in ignition warning .................................. 108
Keyless Entry and Starting ............... 66, 71, 109
Key with remote control .................... 62, 64, 112
Labels, identification ..................................... 241
Lamps, front .................................................. 188
Lamps, rear ................................................... 192
Lamps, warning and indicator .................. 25 -30
LED daytime running lamps .................133, 190
Level, brake fluid ...........................................220
Level, headlamp wash .................................. 221
Levels and checks ................................ 214-224
Lighting bulbs
(replac ement) .......................................188 -193
Lighting control stalk ..................................... 133
Lighting dimmer .............................................. 61
Lighting, guide-me home .............................. 137
Lighting, interior ............................................ 144
Lighting on reminder ..................................... 135
Loading ...........................................................22
Long objects, transporting ..............................86
Low fuel level ................................................ 216
Luggage retaining strap ................................106
K
L
Main beam ............................................188, 190
Maintenance ...................................................22
Map (colour screen) ......................................259
Map reading lamps ....................................... 144
Markings,
identification ............................................... 241
Mat ................................................................ 101
Menu .....................................................259, 297
Mirror, rear view ..............................................89
Mirrors, door.................................................... 87
Mountings for ISOFIX
seats ........................................................... 170
MP3 CD ......................................... 281, 307, 325
MP
Navigation ............................................. 260 -272
Number plate lamps .............................. 192, 193
Oil filter ..........................................................222
Oil level.......................................................... 219
Opening the bonnet ...................................... 213
Opening the boot ................................62, 66, 73
Opening the doors ....................................62, 66
Opening the fuel filler flap ............................. 216
Operation indicator lamps ........................ 25 -30
N
O
Pair telephone ....................................... 292, 310
Panoramic glass sunroof ................................80
Parcel shelf, rear ........................................... 107
Parking brake ........................................ 112, 224
Parking sensors,
front ............................................................. 131
Parking sensors,
rear ...................................................... 129, 130
Particle emission filter ..........................221, 223
Passenger compartment
filter .............................................................222
Player, CD MP3 ............................. 281, 307, 325
Port, USB ..................................... 104, 282, 330
Priming the fuel system ................................ 218
Protecting children ..................155, 157, 161-176
Puncture ........................................................ 177
Radio .............................................278, 304, 319
Range ........................................................43, 46
RCA socket ...........................................104, 329
RDS .............................................. 278, 305, 321
Rear foglamp................................. 135, 192, 193
Rear screen (demisting) ..................................99
Recharging the battery .................................200
Recirculation / exterior air intake ..............93, 96
Regeneration of the particle
emissions filter ............................................223
Remote control .................................... 62- 65, 71
Removing a wheel ........................................ 183
Removing the mat ......................................... 101
Repair kit, puncture ....................................... 177
R
