Page 4 of 368
Contents
Instrument panel 24
Warning and indicator lamps 25
Instrument panel screen 31
Tr i p c o m p u t e r 4 3
Distance recorder 43
Trip distance recorder 43
Ser vice indicator 44
Adjusting vehicle settings 48
Audio-CD system screen 54
Touch screen Audio-CD system screen 56
Touch screen Audio-Telematic system
screen 58
Lighting dimmer 61
Monitoring Familiarisation
Remote control key 62
"Keyless Entry and Starting" system 66
Doors 72
Boot 73
Alarm 75
Electric windows 78
Panoramic sunroof 80
Access
Front seats 81
Rear seats 85
Mirrors 87
Steering wheel adjustment 89
Ventilation 9 0
Manual heating / air conditioning 92
Automatic air conditioning 94
Rear screen demist - defrost 99
Interior fi ttings 100
Boot fi ttings 106
Comfort
Starting - stopping the engine with the key 108
Starting - stopping the engine with
the Keyless Entry and Starting system 109
Parking brake 112
Manual gearbox 113
Gear shift indicator 114
CVT gearbox 115
Hill start assist 120
Stop & Start (Auto Stop & Go) function 121
Four wheel drive system 124
Cruise control 126
Parking sensors 129
Reversing camera 132
Driving
Lighting controls 133
Daytime running lamps 136
Automatic illumination of headlamps 136
Manual guide-me-home lighting 137
Welcome lighting 138
Headlamp adjustment 139
Wiper controls 140
Automatic rain sensitive wipers 142
Courtesy lamps 144
Boot lamp 146
Panoramic roof lighting 146
Visibility Eco-driving
Page 6 of 368
4

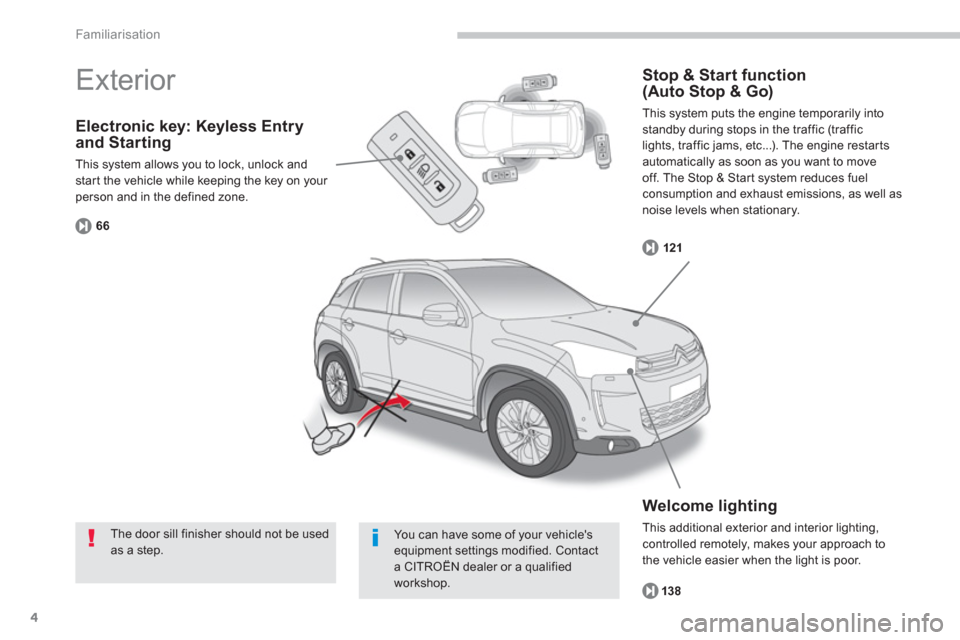

Familiarisation
Electronic key: Keyless Entry
and Starting
This system allows you to lock, unlock and
start the vehicle while keeping the key on your
person and in the defined zone.
66
Welcome lighting
This additional exterior and interior lighting,
controlled remotely, makes your approach to
the vehicle easier when the light is poor.
138
Exterior
Stop & Start function
(Auto Stop & Go)
This system puts the engine temporarily into
standby during stops in the traffic (traffic
lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption and exhaust emissions, as well as
noise levels when stationary.
121
The door sill finisher should not be used
as a step.
You can have some of your vehicle's
equipment settings modified. Contact
a CITROËN dealer or a qualified
workshop.
Page 8 of 368
6
Familiarisation
Opening
A.
Folding/unfolding the key.
B.
Unlocking the vehicle.
C.
Locking the vehicle.
Remote control
67
Unlocking
With the electronic key on your person and in
one of the defined zones A
, press one of the
buttons B
or C
to unlock the vehicle, then pull
on the handle to open the door.
Locking
With the electronic key on your person and in
one of the defined zones A
, press one of the
buttons B
or C
to lock the vehicle.
Keyless Entry and Starting system
62
66
Page 9 of 368
.
7
Familiarisation

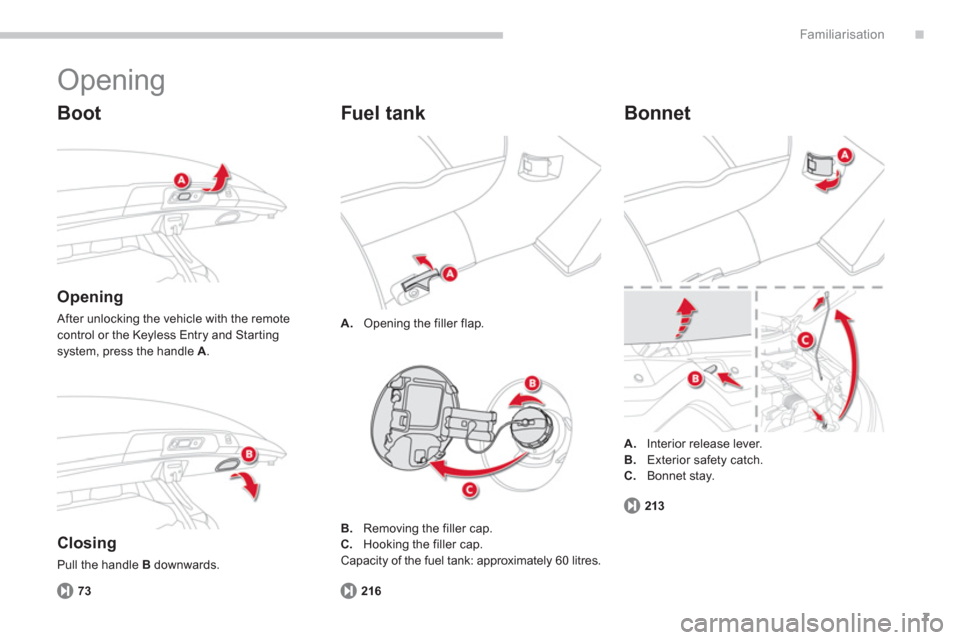

Opening
Boot
Opening
After unlocking the vehicle with the remote
control or the Keyless Entry and Starting
system, press the handle A
.
Closing
Pull the handle B
downwards.
Fuel tank
A.
Opening the filler flap.
73 216
B.
Removing the filler cap.
C.
Hooking the filler cap.
Capacity of the fuel tank: approximately 60 litres.
Bonnet
A.
Interior release lever.
B.
Exterior safety catch.
C.
Bonnet stay.
213
Page 64 of 368
62
Access
System which permits central unlocking or locking of the vehicle using the door lock or remotely. It is also used for the guide-me-home lighting and
starting the engine, as well as providing protection against theft.

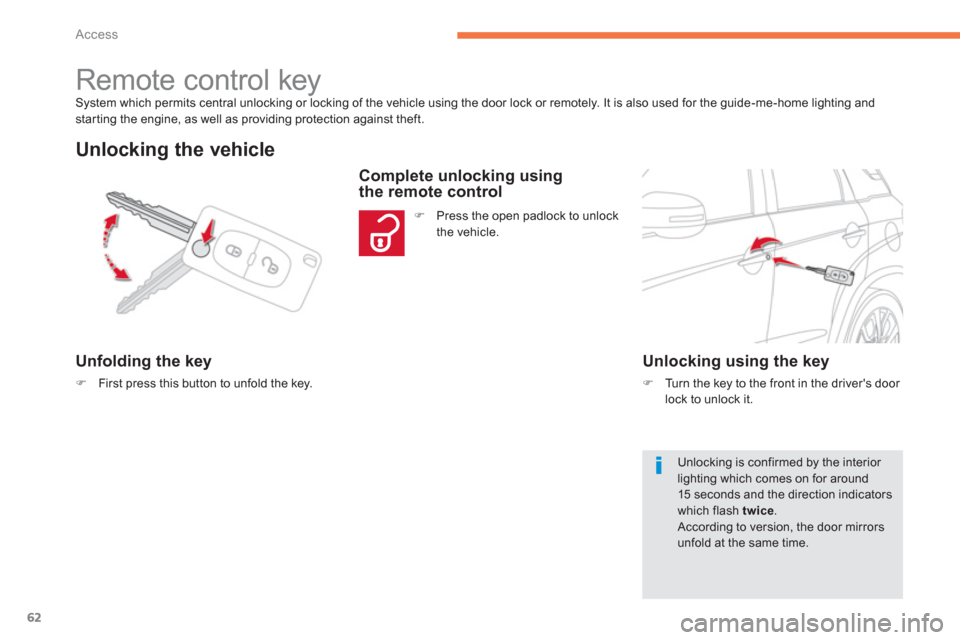

Remote control key
Unfolding the key
)
First press this button to unfold the key.
Unlocking the vehicle
Complete unlocking using
the remote control
)
Press the open padlock to unlock
the vehicle.
Unlocking using the key
)
Turn the key to the front in the driver's door
lock to unlock it.
Unlocking is confirmed by the interior
lighting which comes on for around
15 seconds and the direction indicators
which flash twice
.
According to version, the door mirrors
unfold at the same time.
Page 68 of 368
66
Access

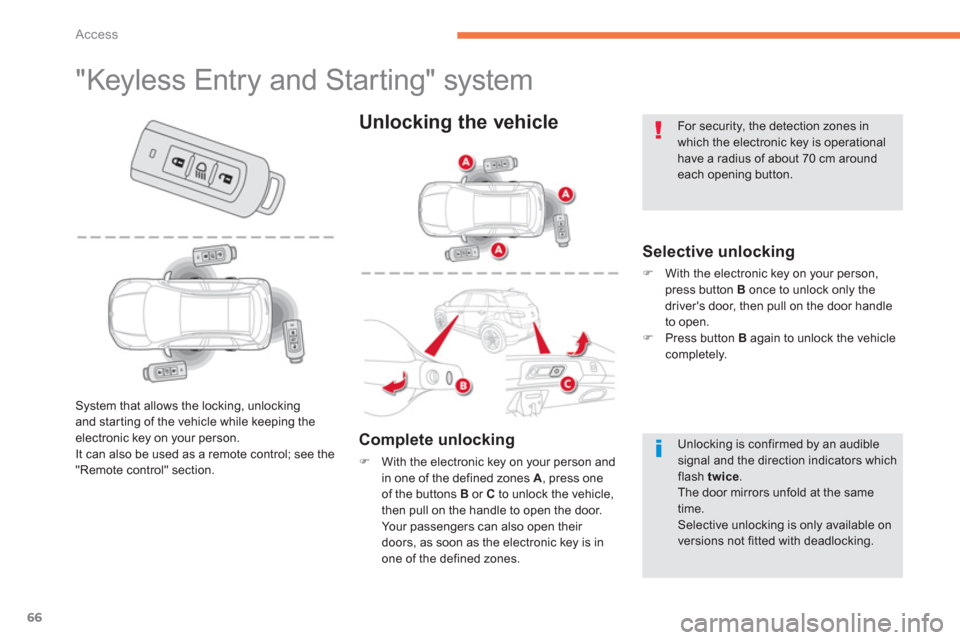

"Keyless Entry and Starting" system
Selective unlocking
)
With the electronic key on your person,
press button B
once to unlock only the
driver's door, then pull on the door handle
to open.
)
Press button B
again to unlock the vehicle
completely.
System that allows the locking, unlocking
and starting of the vehicle while keeping the
electronic key on your person.
It can also be used as a remote control; see the
"Remote control" section.
Unlocking the vehicle
Complete unlocking
)
With the electronic key on your person and
in one of the defined zones A
, press one
of the buttons B
or C
to unlock the vehicle,
then pull on the handle to open the door.
Your passengers can also open their
doors, as soon as the electronic key is in
one of the defined zones.
Unlocking is confirmed by an audible
signal and the direction indicators which
flash twice
.
The door mirrors unfold at the same
time.
Selective unlocking is only available on
versions not fitted with deadlocking.
For security, the detection zones in
which the electronic key is operational
have a radius of about 70 cm around
each opening button.
Page 72 of 368
70
Access
With the Keyless Entry and Starting system,
message appears in the instrument panel when
replacement of the battery is needed.

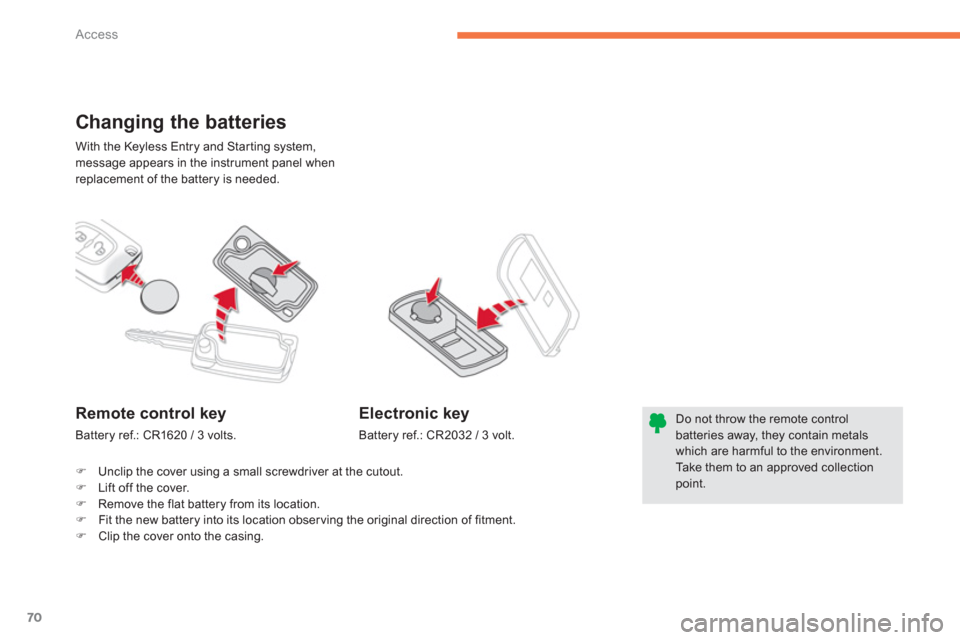

Changing the batteries
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Remote control key
Battery ref.: CR1620 / 3 volts.
Electronic key
Battery ref.: CR2032 / 3 volt.
)
Unclip the cover using a small screwdriver at the cutout.
)
Lift off the cover.
)
Remove the flat battery from its location.
)
Fit the new battery into its location obser ving the original direction of fitment.
)
Clip the cover onto the casing.
Page 73 of 368
71
2
Access

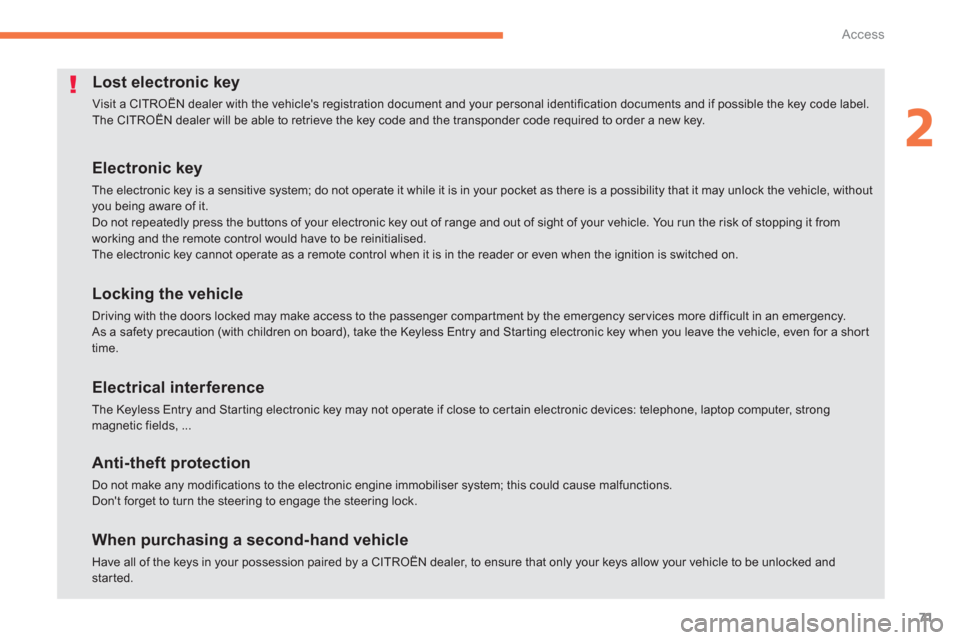

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a short
time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, s t r o n g
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and
started.
Page 77 of 368
75
2
Access
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Alarm *
System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:
- perimeter
The system checks for any opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet....
- volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
ser vice of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.
Locking the vehicle with full
alarm system
Activation
)
Switch off the ignition (OFF mode if your
vehicle has the Keyless Entry and Starting
system).
)
Remove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.
)
Leave the vehicle, and close all the doors
and the bonnet.
)
Press the locking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.
Deactivation
Do one of the the following to deactivate the
alarm:
)
Press the unlocking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.
)
Switch on the ignition (ON mode if your
vehicle has the "Keyless Entry and
Starting" system).
)
Open a door or the boot while the system is
being activated.
The alarm system is deactivated: the indicator
lamp A
goes off.
The alarm is being activated: the indicator
lamp A
flashes rapidly accompanied by
an intermittent audible signal for about
20 seconds.
Once the 20 seconds have expired, the
system is active
. The audible signal stops and
the indicator lamp in the button flashes slowly.
*
According to equipment.
Page 79 of 368
77
2
Access
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
A message then appears in the instrument
panel screen while the siren is operating.
When the ignition is next switched on (ON
mode if your vehicle has the "Keyless Entry
and Starting" system), an audible signal sounds
four times to inform you that the alarm was
triggered during your absence.
Complete deactivation of
the alarm
)
Switch off the ignition (OFF mode if
your vehicle has the "Keyless Entry and
Starting" system).
)
Remove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.
)
Open the driver's door.
)
Place the lighting control stalk in
the " OFF
" position.
)
Pull the wiper control stalk towards you
and hold.
After about ten seconds there is an audible
signal.
)
When the audible signal stops, continue to
hold the wiper stalk pulled towards you and
press the remote control locking button. You can completely deactivate the alarm
system. To do this, proceed as follows:
)
The state of the system is then signalled to
you by the number of beeps:
One beep: the alarm system is completely
deactivated.
Two beeps: the alarm system is activated.
Each new press of the remote control
locking button changes the state of the
system.
