24
Monitoring

















Instrument panel




1.
Rev counter.

2.
Speedometer.
Screen type 2
3.
Instrument panel display screen:


- Warning and status displays.

- Total and trip distance recorders.

- Ser vice indicator.

- Coolant temperature.

- Trip computer information.

- Cruise control setting.

- Gear shift indicator recommendations.

- Settings menu (display, sound...).

- Fuel level.

- Ambient temperature.

- Transmission mode.

Panel grouping together the dials and warning/
indicator lamps. These inform the driver of the
activation/deactivation of a system or of the
occurrence of a fault.
Screen type 1

Management of the display is done using
the INFO
button located on the dashboard
to the left of the instrument panel.

30
Monitoring










Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the screen.



Warning lamp



is on



Cause



Action / Observations



ASC/TCL
fixed. The ASC/ TCL off switch, located at
the bottom of the dashboard (driver's
side) has been pressed.
ASC/ TCL is deactivated.
ASC: active stability control .
TCL: traction control. Press the button to activate the ASC/ TCL.
The ASC/ TCL system is automatically activated on
starting the vehicle.

Stop & Star t
system
(Auto Stop & Go)
fixed. The off switch for the Stop & Start
(AS&G) system, located at the bottom
of the dashboard (driver's side) has
been pressed.
The Stop & Start (AS&G) system is
deaactivated. Press the switch again to activate the Stop & Start
(AS&G) system.

1
31
Monitoring








Instrument panel screen


Each time the engine is started: warning lamps and/or messages come on, applying a checking self test. They go off after a few seconds.


When you want to see the trip computer information, you can choose to ignore the alerts, by pressing the INFO
button on the dashboard.

The messages displayed may vary according to the type of display screen (type 1 or type 2) in the instrument panel.

Cer tain messages are only displayed in the type 2 screen.


When this symbol appears: make a
shor t press
. When this symbol appears: make
a long press
.

Ignition off.

Ignition on
(with a manual gearbox).

Ignition on
(with a CVT gearbox).



Warnings and alerts


When an alert occurs, the displayed information then disappears. the warning lamp and its associated message appear, accompanied if appropriate by
an audible signal.
When there are several alerts, they are displayed in turn and this symbol appears. It remains displayed while there are still alerts.
You will then be able to display the alerts again by pressing the INFO
button several times to cycle through the trip computer information and return to
the alerts.

48
Monitoring
The various menus may change between
the type 1 instrument panel and the type 2
instrument panel.

Adjusting vehicle settings


When the vehicle is
stationary
, it allows the
user to change the following
settings:


- the reinitialisation
mode for average
fuel consumption and
average speed,

)
Press and hold the INFO
button for a few
seconds to display the menu screen.

)
In the menu screen, press the INFO
button
to select a function from the list:

- the fuel consumption units,

- the temperature display unit,

- the display language,

- activation/deactivation of the sound when
pressing the INFO
button,

- the break (rest) reminder display inter val,

- restore the factory settings.
To change the settings, you must stop
the vehicle and switch on the ignition.
Apply the parking brake and place the
gear lever in neutral.
With the ignition on
, press the INFO
button
on the dashboard, to the left of the instrument
panel, several times in succession until the
"SETTINGS MENU" screen is displayed.


Operation


MENU
1/3
:



- 1 - 2, A - M, A - P

* (choice of the type of
reset of average fuel consumption and
average speed),

- AVG UN I T
(choice of the fuel consumption
units),

- choice of the temperature display unit
,

- LANGUAGE
(option of the display
language),


*
According to display language.
For your safety, when the vehicle is
moving
, the function settings are not
displayed when you press the INFO

button.

1
61
Monitoring





Lighting dimmer


System for manual adjustment of the
brightness of the instruments and controls in
relation to the exterior brightness.
There is an audible signal and the
intensity of the lighting increases each
time the button is pressed.
With the lighting on or off, press the button
to change the intensity of the lighting of the
instruments and controls in "day" or "night"
mode.
When the lighting reaches the maximum
setting, press again to change to the minimum
setting.
When the lighting reaches the required
intensity, release the button.

With the vehicle's lighting off, only the
brightness of the instrument panel is modified.
The setting is saved when the ignition switch is
turned to OFF.

Wit the vehicle's lighting on, the brightness of
the entire dashboard (instrument panel, screen,
air conditioning control panel...) is modified.

91
3
Comfort
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:


)
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

)
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.

)
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.

)
Ensure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

)
To ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.

)
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.











Recommendations for ventilation and air conditioning


If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.

When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.

156
Safety

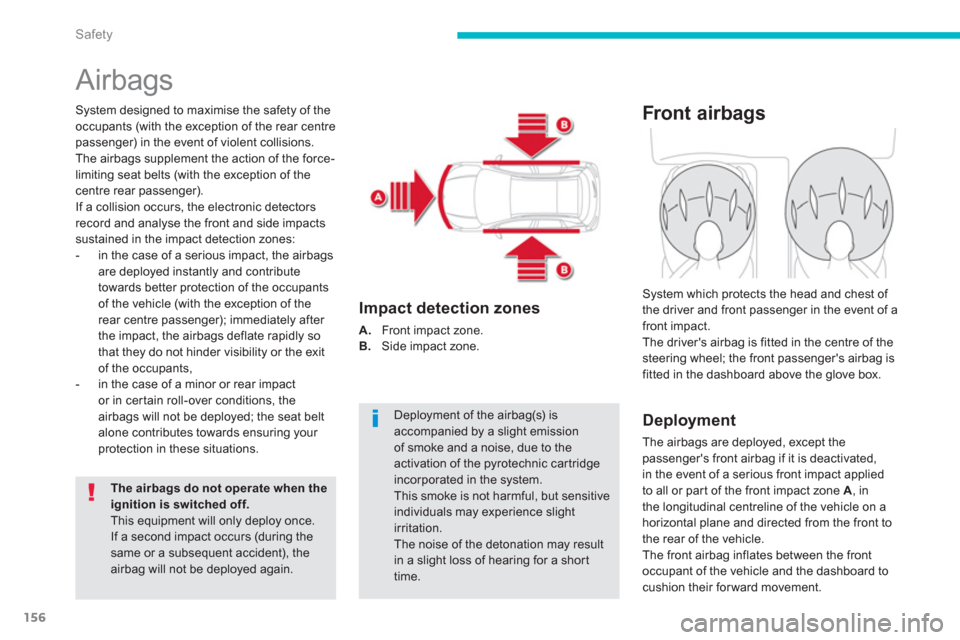

Airbags


System designed to maximise the safety of the
occupants (with the exception of the rear centre
passenger) in the event of violent collisions.
The airbags supplement the action of the force-
limiting seat belts (with the exception of the
centre rear passenger).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:


- in the case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle (with the exception of the
rear centre passenger); immediately after
the impact, the airbags deflate rapidly so
that they do not hinder visibility or the exit
of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the seat belt
alone contributes towards ensuring your
protection in these situations.

The airbags do not operate when the
ignition is switched off.

This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again. Deployment of the airbag(s) is
accompanied by a slight emission
of smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience slight
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.



Impact detection zones



A.
Front impact zone.

B.
Side impact zone.










Front airbags


Deployment

The airbags are deployed, except the
passenger's front airbag if it is deactivated,
in the event of a serious front impact applied
to all or part of the front impact zone A
, in
the longitudinal centreline of the vehicle on a
horizontal plane and directed from the front to
the rear of the vehicle.
The front airbag inflates between the front
occupant of the vehicle and the dashboard to
cushion their for ward movement. System which protects the head and chest of
the driver and front passenger in the event of a
front impact.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.

158
Safety

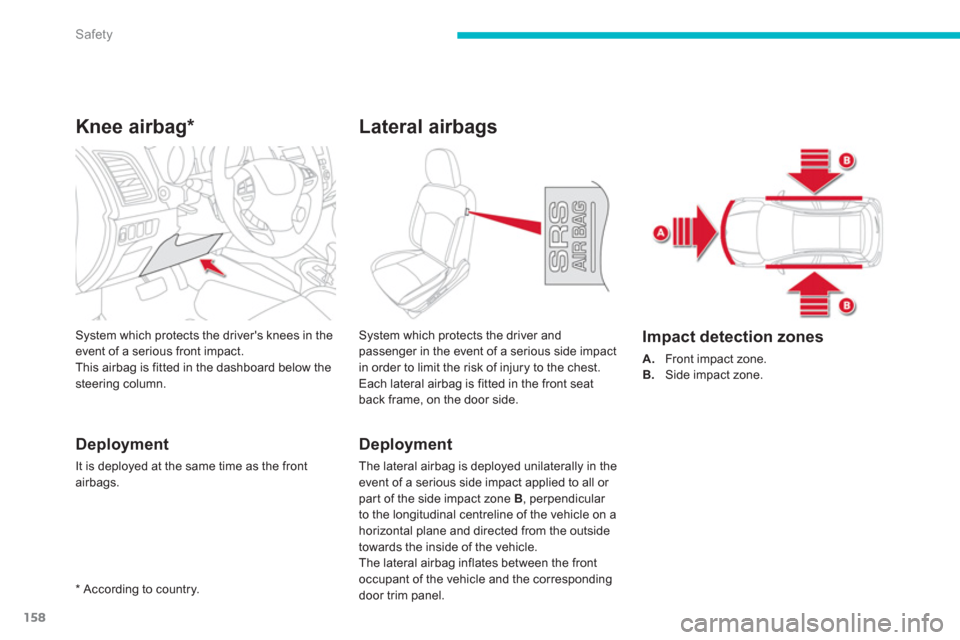

Knee airbag *


Deployment

It is deployed at the same time as the front
airbags.
System which protects the driver's knees in the
event of a serious front impact.
This airbag is fitted in the dashboard below the
steering column. System which protects the driver and
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest.
Each lateral airbag is fitted in the front seat
back frame, on the door side.

Deployment

The lateral airbag is deployed unilaterally in the
event of a serious side impact applied to all or
part of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the front
occupant of the vehicle and the corresponding
door trim panel.


Impact detection zones



A.
Front impact zone.

B.
Side impact zone.



*
According to country.







Lateral airbags

160
Safety

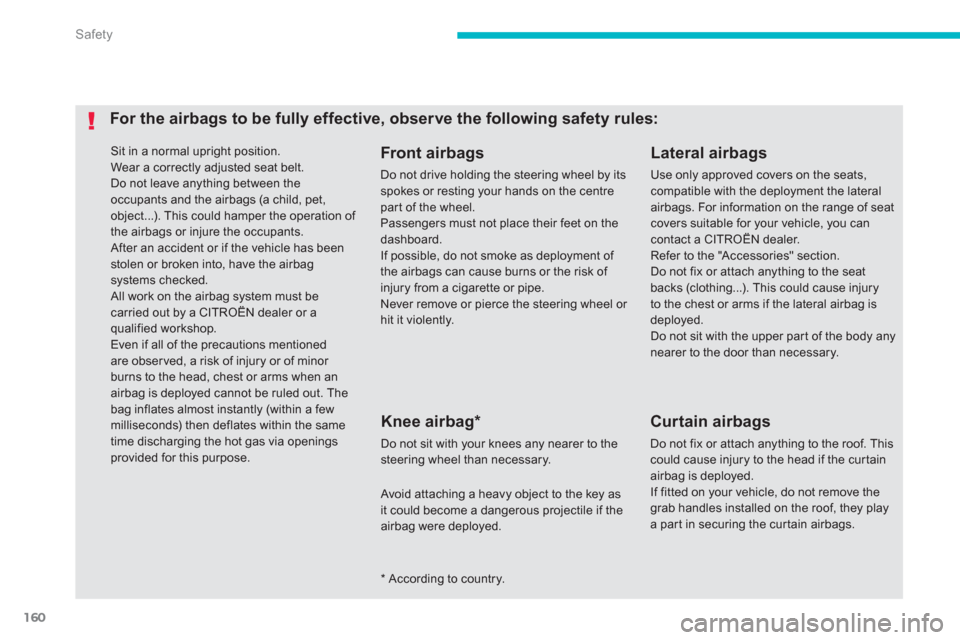

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation of
the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned
are obser ved, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.








Knee airbag *

Do not sit with your knees any nearer to the
steering wheel than necessary.



Front airbags

Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
If possible, do not smoke as deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.















For the airbags to be fully effective, observe the following safety rules:


Lateral airbags

Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer.
Refer to the "Accessories" section.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.


* According to country.



Curtain airbags

Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.


Avoid attaching a heavy object to the key as
it could become a dangerous projectile if the
airbag were deployed.

195
7
Practical information

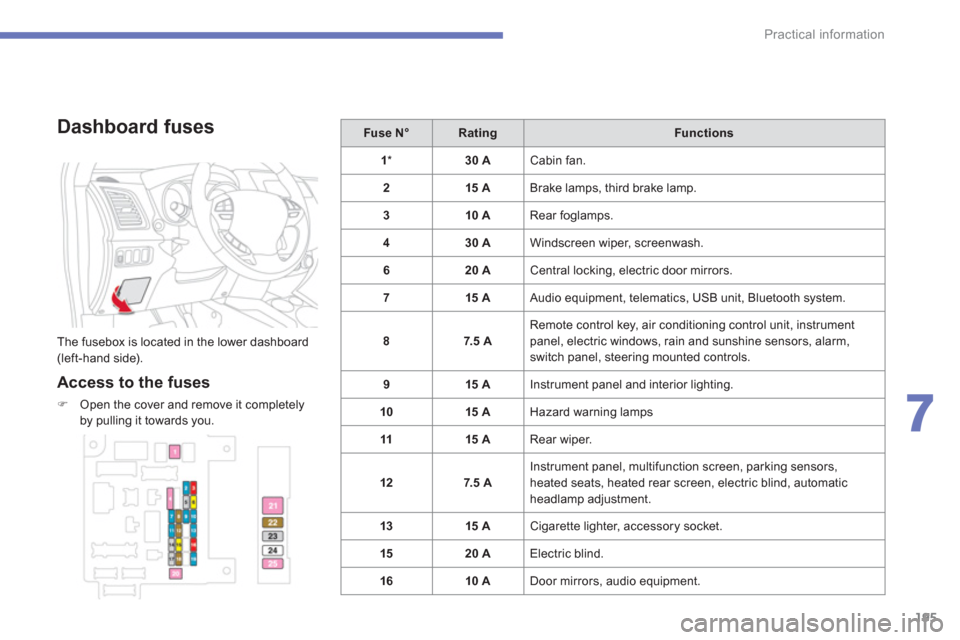

Dashboard fuses

The fusebox is located in the lower dashboard
(left-hand side).

Access to the fuses



)
Open the cover and remove it completely
by pulling it towards you.

Fuse N°



Rating



Functions




1
*

30 A

Cabin fan.


2



15 A

Brake lamps, third brake lamp.


3



10 A

Rear foglamps.


4



30 A

Windscreen wiper, screenwash.


6



20 A

Central locking, electric door mirrors.


7



15 A

Audio equipment, telematics, USB unit, Bluetooth system.


8



7.5 A

Remote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.


9



15 A

Instrument panel and interior lighting.


10



15 A

Hazard warning lamps


11



15 A

Rear wiper.


12



7.5 A

Instrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.


13



15 A

Cigarette lighter, accessory socket.


15



20 A

Electric blind.


16



10 A

Door mirrors, audio equipment.
