Page 163 of 368
161
6
Safety

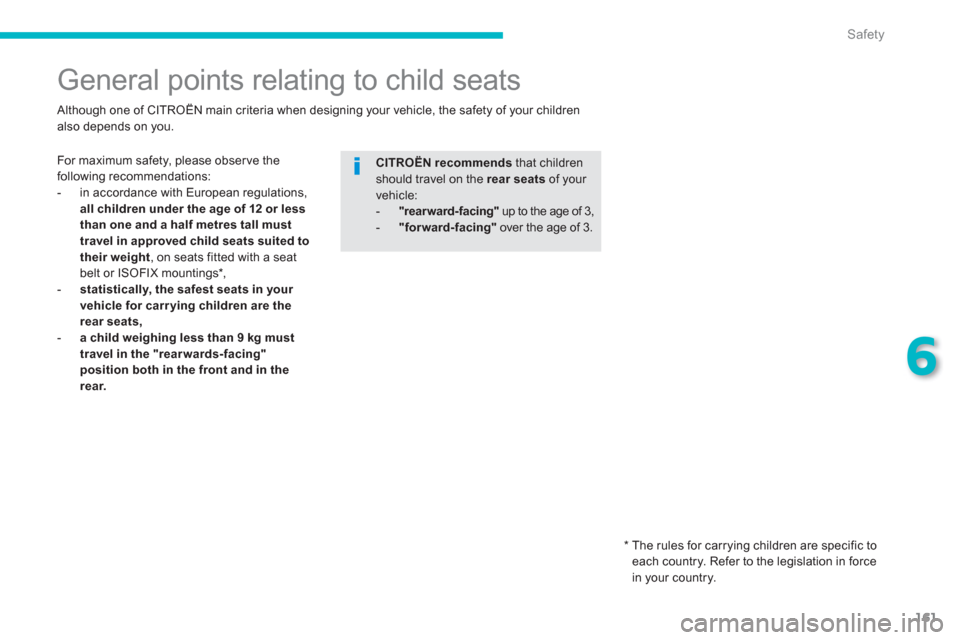

General points relating to child seats
For maximum safety, please obser ve the
following recommendations:
- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight
, on seats fitted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in your
vehicle for carr ying children are the
rear seats,
- a child weighing less than 9 kg must
travel in the "rear wards-facing"
position both in the front and in the
rear.
CITROËN recommends
that children
should travel on the rear seats
of your
vehicle:
- "rearward-facing"
up to the age of 3,
- "forward-facing"
over the age of 3.
Although one of CITROËN main criteria when designing your vehicle, the safety of your children
also depends on you.
*
The rules for carrying children are specific to
each country. Refer to the legislation in force
in your country.
Page 169 of 368
167
6
Safety

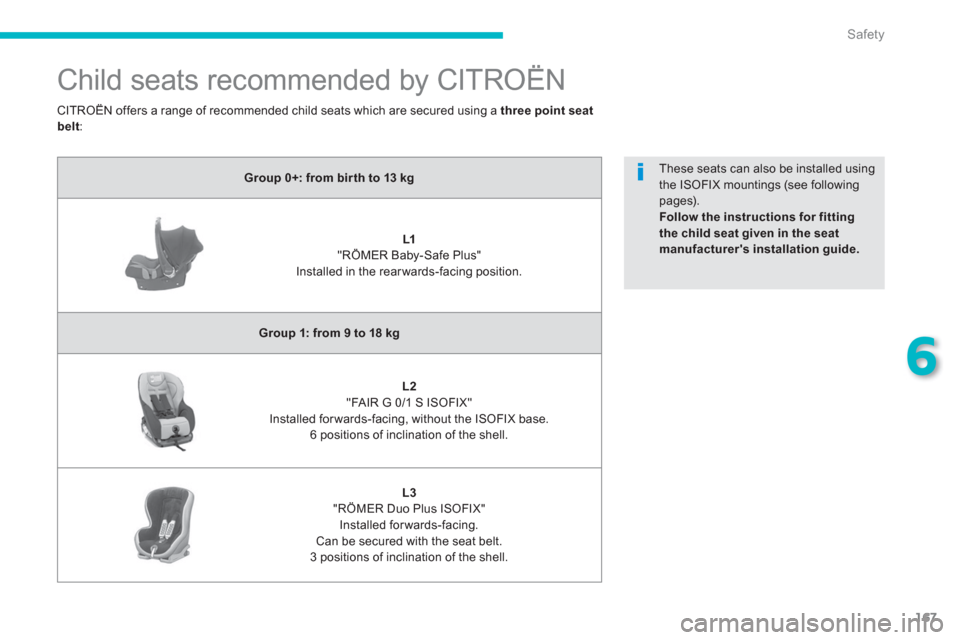

Child seats recommended by CITROËN
Group 0+: from bir th to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rear wards-facing position.
Group 1: from 9 to 18 kg
L2
"FAIR G 0/1 S ISOFIX"
Installed for wards-facing, without the ISOFIX base.
6 positions of inclination of the shell.
L3
"RÖMER Duo Plus ISOFIX"
Installed forwards-facing.
Can be secured with the seat belt.
3 positions of inclination of the shell. CITROËN offers a range of recommended child seats which are secured using a three point seat
belt
:
These seats can also be installed using
the ISOFIX mountings (see following
pages).
Follow the instructions for fitting
the child seat given in the seat
manufacturer's installation guide.
Page 172 of 368
170
Safety

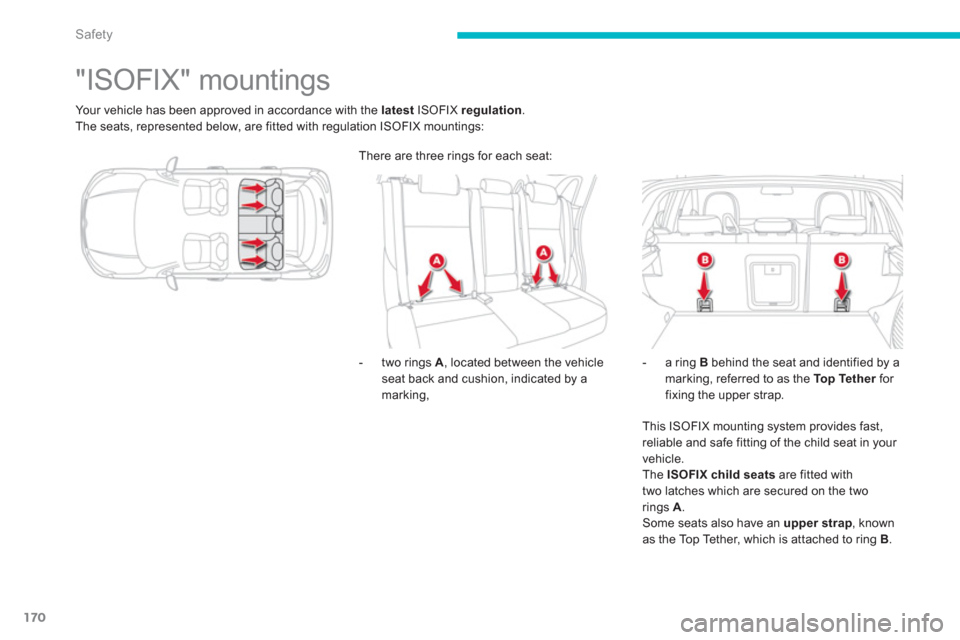

"ISOFIX" mountings
Your vehicle has been approved in accordance with the latest
ISOFIX regulation
.
The seats, represented below, are fitted with regulation ISOFIX mountings:
- two rings A
, located between the vehicle
seat back and cushion, indicated by a
marking,
- a ring B
behind the seat and identified by a
marking, referred to as the To p Te t h e r
for
fixing the upper strap.
This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with
two latches which are secured on the two
rings A
.
Some seats also have an upper strap
, known
as the Top Tether, which is attached to ring B
. There are three rings for each seat:
Page 173 of 368
171
6
Safety
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the summary table. To secure the child seat to the TOP TETHER
:

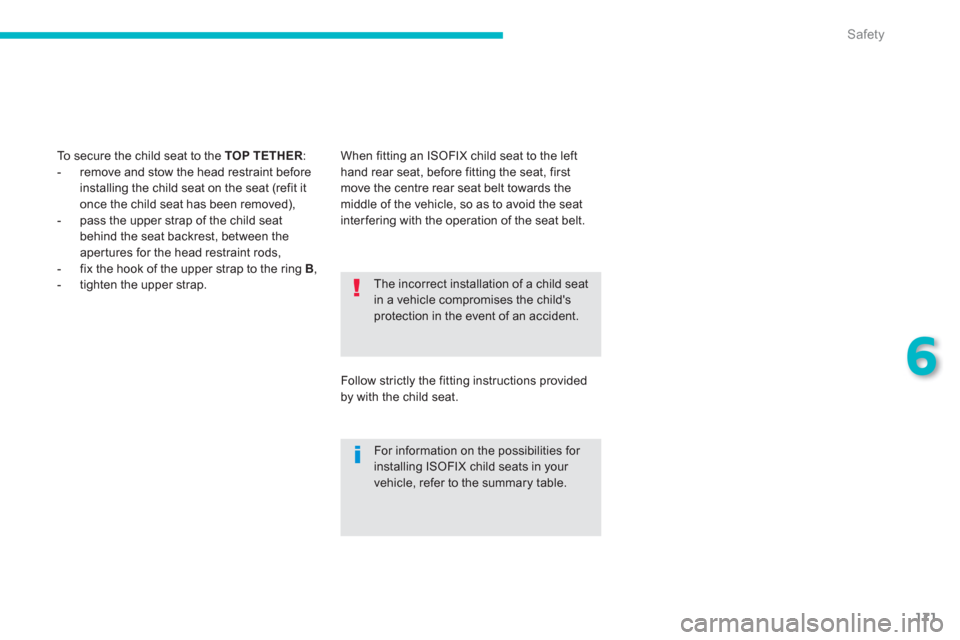

- remove and stow the head restraint before
installing the child seat on the seat (refit it
once the child seat has been removed),
- pass the upper strap of the child seat
behind the seat backrest, between the
apertures for the head restraint rods,
- fix the hook of the upper strap to the ring B
,
- tighten the upper strap. When fitting an ISOFIX child seat to the left
hand rear seat, before fitting the seat, first
move the centre rear seat belt towards the
middle of the vehicle, so as to avoid the seat
inter fering with the operation of the seat belt.
Follow strictly the fitting instructions provided
by with the child seat.
Page 174 of 368
172
Safety

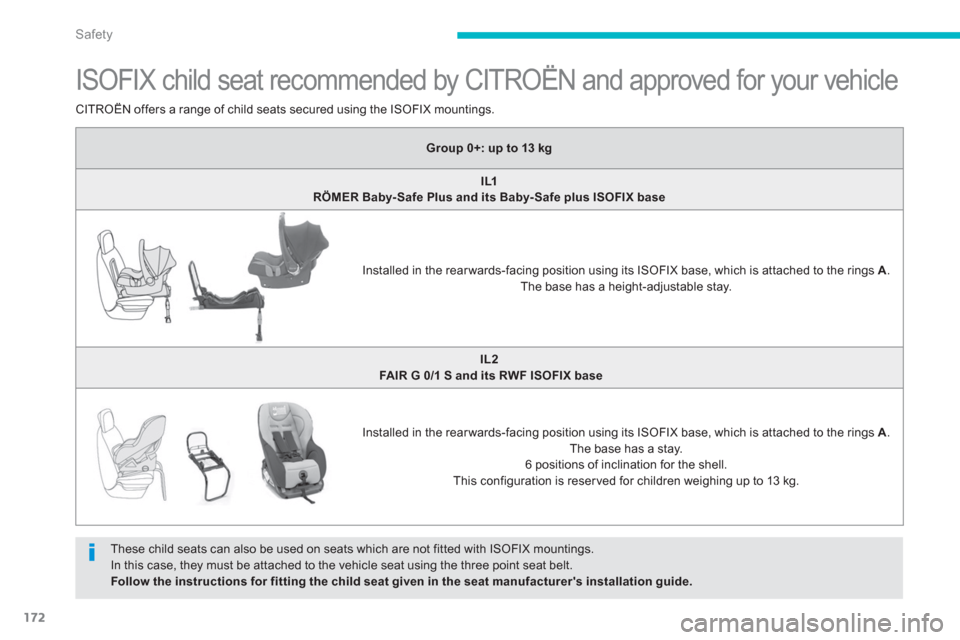

ISOFIX child seat recommended by CITROËN and approved for your vehicle
These child seats can also be used on seats which are not fitted with ISOFIX mountings.
In this case, they must be attached to the vehicle seat using the three point seat belt.
Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
CITROËN offers a range of child seats secured using the ISOFIX mountings.
Group 0+: up to 13 kg
IL1
RÖMER Baby- Safe Plus and its Baby- Safe plus ISOFIX base
Installed in the rear wards-facing position using its ISOFIX base, which is attached to the rings A
.
The base has a height-adjustable stay.
IL2
FAIR G 0/1 S and its RWF ISOFIX base
Installed in the rear wards-facing position using its ISOFIX base, which is attached to the rings A
.
The base has a stay.
6 positions of inclination for the shell.
This configuration is reserved for children weighing up to 13 kg.
Page 175 of 368
173
6
Safety
Group 1: from 9 to 18 kg
IL3
RÖMER Duo Plus ISOFIX
Installed forwards-facing.
Attached to the rings A
, as well as ring B
, known as the TOP TETHER,
using an upper strap.
3 positions of inclination of the shell.
IL4
FAIR G 0/1 S and its FWF ISOFIX
base
Installed in the rear wards-facing position using its ISOFIX base, which is attached to the rings A
.
The base has a stay.
6 positions of inclination of the shell.
This configuration is suitable for children weighing more than 13 kg.
These child seats can also be used on seats which are not fitted with ISOFIX mountings.
In this case, they must be attached to the vehicle seat using the three point seat belt.
Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
Page 176 of 368
174
Safety
Locations for ISOFIX child seats
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter between A
and G
, is indicated on the
child seat next to the ISOFIX logo.
Weight of the child
/ indicative age
Less than 10 kg
(group 0)
Up to approx.
6 months
Less than 10 kg
(group 0)
Less than
13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat
infant car seat
"
rearward
facing"
"
rearward
facing"
"forward facing"
ISOFIX size category
F
G
C
D
E
C
D
A
B
B1
Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seat
s
X
X
IL1
IL2
X
IUF
IUF:
seat suitable for the installation of an I
sofix U
niversal seat, " F
or ward facing" secured using the
"Top Tether" upper strap.
IL-:
only the child seats indicated can be installed using the ISOFIX mountings.
For advice on securing of the "Top Tether" upper strap, refer to the "ISOFIX mountings" section.
X:
seat not suitable for the installation of an ISOFIX seat of the size category indicated.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
Page 340 of 368
338Alphabetical index
EBFD ............................................................. 148
Eco-driving .....................................................22
Electronic brake force distribution
(EBFD) ........................................................ 148
Electronic engine immobiliser................. 71, 112
Emergency boot release ................................. 73
Emergency warning lamps ........................... 147
Engine compartment ............................ 214, 215
Engine compartment
fusebox ....................................................... 197
Engine, Diesel ................ 215, 217, 218, 232-238
Engine oil ...................................................... 219
Engine oil level dipstick ................................. 219
Engine, petrol ......................... 214, 217, 225 -231
Engines .................................................225, 232
Environment ......................................22, 70, 221
Error messages (audio equipment) ..... 334, 335Hazard warning lamps .................................. 147
Headlamp adjustment ................................... 139
Headlamp wash ............................................ 141
Headlamp wash reser voir ............................. 221
Head restraints, front ......................................83
Head restraints, rear .......................................85
Heated seats ...................................................84
Heating ......................................................92, 94
Height and reach adjustment,
steering wheel ..............................................89
Hill start assist ............................................... 120
Jack ............................................................... 181
JACK socket ..........................................104, 329Identification plates ....................................... 241
Indicators, direction .............. 147, 188, 189, 192
Inflating tyres .......................................... 22, 241
Inputs for audio system ........ 104, 282, 329, 330
Instrument panel ............................................. 24Instrument panel screen ................24, 31- 43, 114
Interior fittings ....................................... 100 -105
iPhone .......................................... 283, 308, 330
iPod .............................................. 283, 308, 330
ISOFIX child seats ................................. 172-174
ISOFIX mountings.................................. 170 -171 Gearbox, manual ...................113, 114, 121, 223
Gear shift indicator ....................................... 114
Gear lever, manual gearbox ......................... 113
Glove box .............................................. 100, 101
G.P.S. .................................................... 260 -272
Grab handles ................................................ 105
Guidance ............................................... 260 -272
F
I
G
H
J
Filling with fuel ...................................... 216, 217
Fitting a wheel ............................................... 185
Fittings, boot .................................................106
Fittings, rear .................................................. 105
Fitting the mat ............................................... 101
Flashing indicators ........ 147, 188, 189, 191, 192
Folding/unfolding the door mirrors .................88
Four-wheel drive system ............................... 124
Front foglamps ..............................135, 188, 190
Front seats .......................................... 81, 82, 84
Fuel.................................................. 22, 216, 217
Fuel consumption ............................................22
Fuel filler cap ................................................. 216
Fuel filler flap ................................................. 216
Fuel gauge .................................................... 216
Fuel tank........................................................ 216
Fusebox, dashboard ..................................... 195
Fuses ............................................................. 194
E
Deactivating ASC .......................................... 150
Deactivating the passenger airbag ............... 157
Deactivation of the passenger and
rear window control switches ....................... 78
Deadlocking ..............................................65, 67
Defrosting ..................................................98, 99
Demisting ..................................................98, 99
Dials ................................................................ 24
Diesel additive level ...................................... 221
Dimensions ...................................................239
Dipped beam .........................................188, 190
Dipstick .......................................................... 219
Direction indicators ............... 147, 188, 189, 192
Doors ............................................................... 72
Driving economically.......................................22
Dynamic stability control (ASC) .................... 150
Page 341 of 368
.
339 Alphabetical index
Keeping children safe ............ 155, 157, 161-176
Key ..................................................... 62, 66, 69
Key, electronic .................................................66
Key in ignition warning .................................. 108
Keyless Entry and Starting ............... 66, 71, 109
Key with remote control .................... 62, 64, 112
Labels, identification ..................................... 241
Lamps, front .................................................. 188
Lamps, rear ................................................... 192
Lamps, warning and indicator .................. 25 -30
LED daytime running lamps .................133, 190
Level, brake fluid ...........................................220
Level, headlamp wash .................................. 221
Levels and checks ................................ 214-224
Lighting bulbs
(replac ement) .......................................188 -193
Lighting control stalk ..................................... 133
Lighting dimmer .............................................. 61
Lighting, guide-me home .............................. 137
Lighting, interior ............................................ 144
Lighting on reminder ..................................... 135
Loading ...........................................................22
Long objects, transporting ..............................86
Low fuel level ................................................ 216
Luggage retaining strap ................................106
K
L
Main beam ............................................188, 190
Maintenance ...................................................22
Map (colour screen) ......................................259
Map reading lamps ....................................... 144
Markings,
identification ............................................... 241
Mat ................................................................ 101
Menu .....................................................259, 297
Mirror, rear view ..............................................89
Mirrors, door.................................................... 87
Mountings for ISOFIX
seats ........................................................... 170
MP3 CD ......................................... 281, 307, 325
MP
Navigation ............................................. 260 -272
Number plate lamps .............................. 192, 193
Oil filter ..........................................................222
Oil level.......................................................... 219
Opening the bonnet ...................................... 213
Opening the boot ................................62, 66, 73
Opening the doors ....................................62, 66
Opening the fuel filler flap ............................. 216
Operation indicator lamps ........................ 25 -30
N
O
Pair telephone ....................................... 292, 310
Panoramic glass sunroof ................................80
Parcel shelf, rear ........................................... 107
Parking brake ........................................ 112, 224
Parking sensors,
front ............................................................. 131
Parking sensors,
rear ...................................................... 129, 130
Particle emission filter ..........................221, 223
Passenger compartment
filter .............................................................222
Player, CD MP3 ............................. 281, 307, 325
Port, USB ..................................... 104, 282, 330
Priming the fuel system ................................ 218
Protecting children ..................155, 157, 161-176
Puncture ........................................................ 177
Radio .............................................278, 304, 319
Range ........................................................43, 46
RCA socket ...........................................104, 329
RDS .............................................. 278, 305, 321
Rear foglamp................................. 135, 192, 193
Rear screen (demisting) ..................................99
Recharging the battery .................................200
Recirculation / exterior air intake ..............93, 96
Regeneration of the particle
emissions filter ............................................223
Remote control .................................... 62- 65, 71
Removing a wheel ........................................ 183
Removing the mat ......................................... 101
Repair kit, puncture ....................................... 177
R
