11
Familiarisation
Centre console




A.
Rear view mirror, manual or automatic.

B.
Courtesy lamp / Map reading lamps.

C.
Microphone for Audio- CD or touch screen
Audio- CD or touch screen Audio-telematic
system.

D.
Control for panoramic sunroof blind.

E.
Sunshine/rain sensor.




1.
Central adjustable air vents.

2.
Screen for the Audio- CD system or colour
screen for the Audio-telematic system.

3.
Ignition switch.
START/STOP
button (with "Keyless Entry
and Starting" system).

4.
Audio- CD system or touch screen Audio-
CD or touch screen Audio-telematic
system.

5.
Central switch panel.

6.
Temperature sensor.

7.
Manual or digital heating / air conditioning
controls.

8.
Gear lever, manual or CVT gearbox.

9.
Cigarette lighter / 12 V accessory socket.

10.
Portable ashtray.

11.
Control for 4 wheel drive system.

12 .
Cup holder.

13.
Front armrest.

18
Familiarisation
Monitoring



A.
Manual headlamp adjustment.


Side switch panel



1.
Open the glove box.

2.
Insert the key.

3.
Select the position:
"OFF"
(deactivation), with "rear facing" child seat,
"ON"
(activation), with front passenger or
"for wards facing" child seat.

4.
Remove the key keeping the switch in the
new position.



Passenger's front airbag


B.
Deactivation of the ASC/ TCL system.

C.
Deactivation of the parking sensors.

Passenger safety


D.
Deactivation of the Stop & Start
(Auto Stop & Go) function.


Starting



- Position 1: LOCK


- Position 2: ACC


- Position 3: ON


- Position 4: START

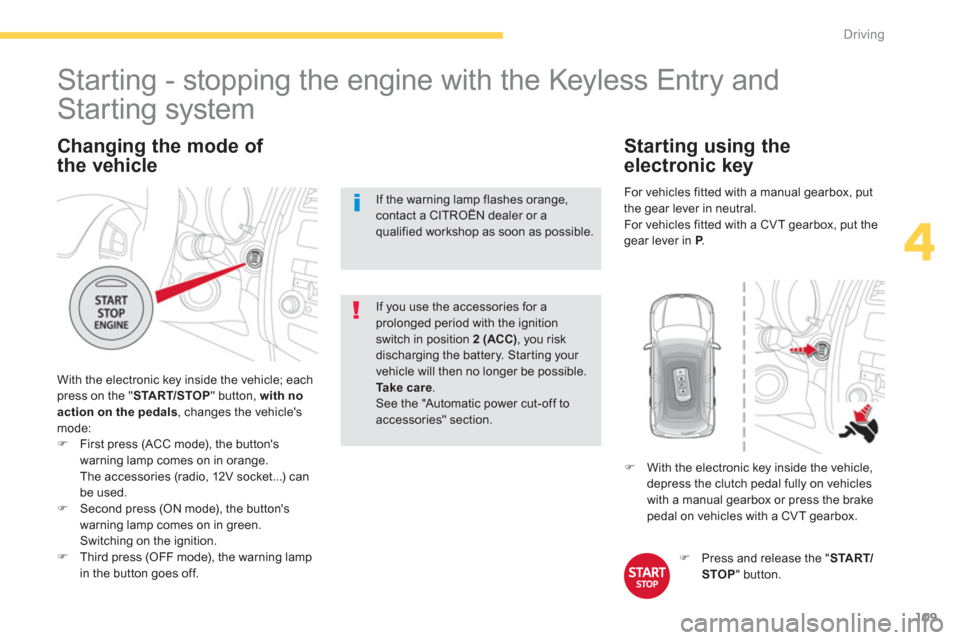

Each press on the START/STOP
button,
without action on the pedals, changes the
mode of the vehicle.


- First press: ACC mode


- Second press: ON
mode


- Third press: OFF mode





Ignition switch

START/STOP button
139
15 0
131
122157108
109

20
Familiarisation
Driving


Stop & Start
(Auto Stop & Go) function

Engine going into STOP mode

The "AS &G"
warning lamp comes on in
the instrument panel or the instrument
panel screen and the engine is put into
standby after a few seconds:

Engine going into START mode

Deactivation / Reactivation

You can deactivate the system at any time
by pressing the "AS &G O FF "
button; the
corresponding warning lamp comes on in the
instrument panel or the instrument panel screen.
The system is reactivated automatically
every time you start the engine with the
key or with the START/STOP button.
The "AS &G"
warning lamp goes off
and the engine restarts automatically:


- with a manual gearbox;
when you fully

depress the clutch pedal.


- with a manual gearbox;
with the vehicle
stationary and your foot on the brake
pedal, when you put the gear lever into
neutral and release the clutch pedal. In certain condition, START mode may engage
automatically; the "AS &G"
warning lamp
flashes then goes off.
In certain circumstances the STOP mode may
not be available; the "AS &G"
warning lamp
flashes for a few seconds then goes off.
121122
122

1
29
Monitoring


Warning lamp



is on



Cause



Action / Observations






Cruise control


fixed This comes on when the cruise
control has been activated. Press the "ON/OFF" button to activate/deactivate the
cruise control.

Active stability
control and
traction control
(ASC/TCL)
flashing. Operation of the ASC/ TCL systems. The systems optimise traction and improve the
directional stability of the vehicle.
Adapt your driving and moderate your speed.
fixed. Fault in the ASC/ TCL systems. Have it checked by a CITROËN dealer or a qualified
workshop.



Stop & Star t
(Auto Stop & Go)
function

fixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
(AS&G) function has put the engine
into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. See "Stop & Start (AS&G) function" for special cases
with STOP mode and START mode.



Diesel engine
pre-heating


fixed. The engine is cold and:


- the ignition switch is at the ON

position (ignition on), or

- the START/STOP
starting button
has been pressed (ignition on). With key starting, wait until the warning lamp has gone
off before starting.
With the Keyless Entry and Starting system, the engine
will only start after the warning lamp has gone off.
The duration for which the warning lamp is on is
determined by the climatic conditions (up to 30 seconds
in severe weather).
If the engine does not start, switch the ignition off and
then on again and wait again until the warning lamp
goes off, then start the engine.

30
Monitoring

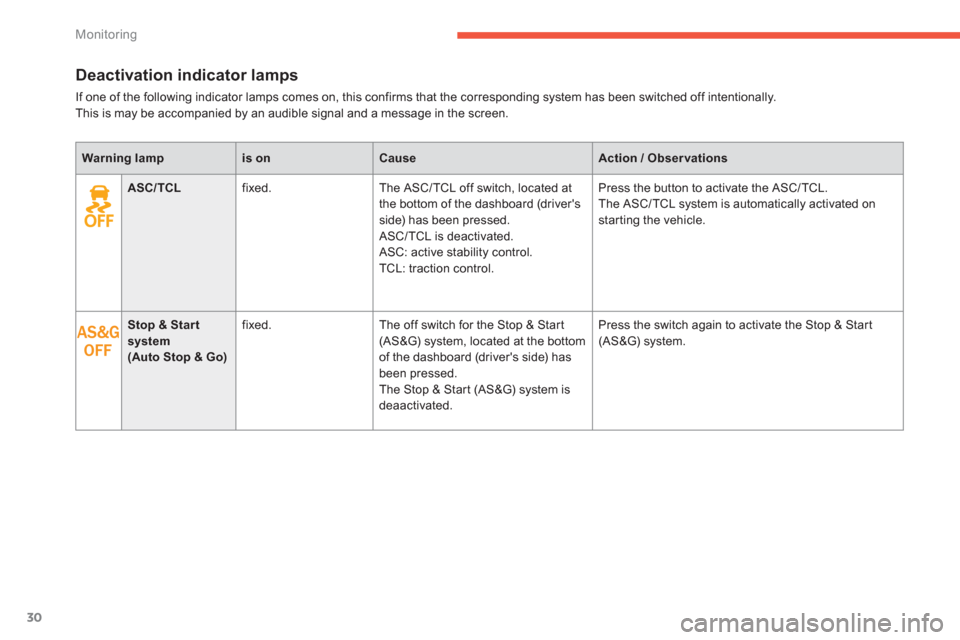

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the screen.



Warning lamp



is on



Cause



Action / Observations



ASC/TCL
fixed. The ASC/ TCL off switch, located at
the bottom of the dashboard (driver's
side) has been pressed.
ASC/ TCL is deactivated.
ASC: active stability control .
TCL: traction control. Press the button to activate the ASC/ TCL.
The ASC/ TCL system is automatically activated on
starting the vehicle.

Stop & Star t
system
(Auto Stop & Go)
fixed. The off switch for the Stop & Start
(AS&G) system, located at the bottom
of the dashboard (driver's side) has
been pressed.
The Stop & Start (AS&G) system is
deaactivated. Press the switch again to activate the Stop & Start
(AS&G) system.

67
2
Access


















Locking the vehicle


Locking



)
With the key in one of the defined zones A
,
press one of the buttons B
or C
.









Deadlocking


Locking is confirmed by an audible
signal and the direction indicators,
which flash once
.
The door mirrors fold at the same time.


)
With the electronic key in one of the
defined zones A
, press button B
or C
to
lock the vehicle.

)
Within five seconds, press button B
or C

again to deadlock the vehicle.
Locking is confirmed by two audible
signals and by the direction indicators
which flash three times
.
The door mirrors unfold at the same
time. Always ensure that you have the
electronic key on your person
before locking the vehicle: in some
circumstances, it is possible to lock
the vehicle without the presence of the
electronic key having been detected
inside the vehicle.
The operating mode must be "OFF".
With Stop & Start, if the engine is in
Stop mode, the vehicle cannot be
locked.

71
2
Access



















Lost electronic key

Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.


Electronic key

The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a short
time.


Electrical interference

The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, s t r o n g
magnetic fields, ...


Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.


When purchasing a second-hand vehicle

Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and
started.

75
2
Access
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.






Alarm *
System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:




- perimeter

The system checks for any opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet....


- volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.




- tilt

The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.




Self-protection function

The system checks for the putting out of
ser vice of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.


Locking the vehicle with full
alarm system

Activation



)
Switch off the ignition (OFF mode if your
vehicle has the Keyless Entry and Starting
system).

)
Remove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.

)
Leave the vehicle, and close all the doors
and the bonnet.

)
Press the locking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.


Deactivation

Do one of the the following to deactivate the
alarm:


)
Press the unlocking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.

)
Switch on the ignition (ON mode if your
vehicle has the "Keyless Entry and
Starting" system).

)
Open a door or the boot while the system is
being activated.
The alarm system is deactivated: the indicator
lamp A
goes off.
The alarm is being activated: the indicator
lamp A
flashes rapidly accompanied by
an intermittent audible signal for about
20 seconds.
Once the 20 seconds have expired, the
system is active
. The audible signal stops and
the indicator lamp in the button flashes slowly.

*
According to equipment.

77
2
Access

Triggering of the alarm


This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
A message then appears in the instrument
panel screen while the siren is operating.
When the ignition is next switched on (ON
mode if your vehicle has the "Keyless Entry
and Starting" system), an audible signal sounds
four times to inform you that the alarm was
triggered during your absence.



Complete deactivation of
the alarm



)
Switch off the ignition (OFF mode if
your vehicle has the "Keyless Entry and
Starting" system).

)
Remove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.

)
Open the driver's door.

)
Place the lighting control stalk in
the " OFF
" position.

)
Pull the wiper control stalk towards you
and hold.
After about ten seconds there is an audible
signal.

)
When the audible signal stops, continue to
hold the wiper stalk pulled towards you and
press the remote control locking button. You can completely deactivate the alarm
system. To do this, proceed as follows:

)
The state of the system is then signalled to
you by the number of beeps:
One beep: the alarm system is completely
deactivated.
Two beeps: the alarm system is activated.
Each new press of the remote control
locking button changes the state of the
system.

109
4
Driving

Changing the mode of
the vehicle
With the electronic key inside the vehicle; each
press on the " START/STOP
" button, with no
action on the pedals, changes the vehicle's
mode:


)
First press (ACC mode), the button's
warning lamp comes on in orange.
The accessories (radio, 12V socket...) can
be used.

)
Second press (ON mode), the button's
warning lamp comes on in green.
Switching on the ignition.

)
Third press (OFF mode), the warning lamp
in the button goes off.
If you use the accessories for a
prolonged period with the ignition
switch in position 2 (ACC)
, you risk
discharging the battery. Starting your
vehicle will then no longer be possible.
Ta k e c a r e
.
See the "Automatic power cut-off to
accessories" section.













Starting - stopping the engine with the Keyless Entry and
Starting system

If the warning lamp flashes orange,
contact a CITROËN dealer or a
qualified workshop as soon as possible.

)
Press and release the " START/
STOP
" button.

)
With the electronic key inside the vehicle,
depress the clutch pedal fully on vehicles
with a manual gearbox or press the brake
pedal on vehicles with a CVT gearbox.

Starting using the
electronic key
For vehicles fitted with a manual gearbox , put
the gear lever in neutral.
For vehicles fitted with a CVT gearbox , put the
gear lever in P
.
