Contents
Instrument panel 24
Warning and indicator lamps 25
Instrument panel screen 31
Tr i p c o m p u t e r 4 3
Distance recorder 43
Trip distance recorder 43
Ser vice indicator 44
Adjusting vehicle settings 48
Audio-CD system screen 54
Touch screen Audio-CD system screen 56
Touch screen Audio-Telematic system
screen 58
Lighting dimmer 61
Monitoring Familiarisation
Remote control key 62
"Keyless Entry and Starting" system 66
Doors 72
Boot 73
Alarm 75
Electric windows 78
Panoramic sunroof 80
Access
Front seats 81
Rear seats 85
Mirrors 87
Steering wheel adjustment 89
Ventilation 9 0
Manual heating / air conditioning 92
Automatic air conditioning 94
Rear screen demist - defrost 99
Interior fi ttings 100
Boot fi ttings 106
Comfort
Starting - stopping the engine with the key 108
Starting - stopping the engine with
the Keyless Entry and Starting system 109
Parking brake 112
Manual gearbox 113
Gear shift indicator 114
CVT gearbox 115
Hill start assist 120
Stop & Start (Auto Stop & Go) function 121
Four wheel drive system 124
Cruise control 126
Parking sensors 129
Reversing camera 132
Driving
Lighting controls 133
Daytime running lamps 136
Automatic illumination of headlamps 136
Manual guide-me-home lighting 137
Welcome lighting 138
Headlamp adjustment 139
Wiper controls 140
Automatic rain sensitive wipers 142
Courtesy lamps 144
Boot lamp 146
Panoramic roof lighting 146
Visibility Eco-driving
Page 19 of 368
.
17
Familiarisation
Monitoring
A.
Speedometer dial.
B.
Instrument panel screen.
C.
Rev counter dial.
D.
Lighting dimmer.
E.
INFO button.
Used to cycle through the different
information in the instrument panel screen.

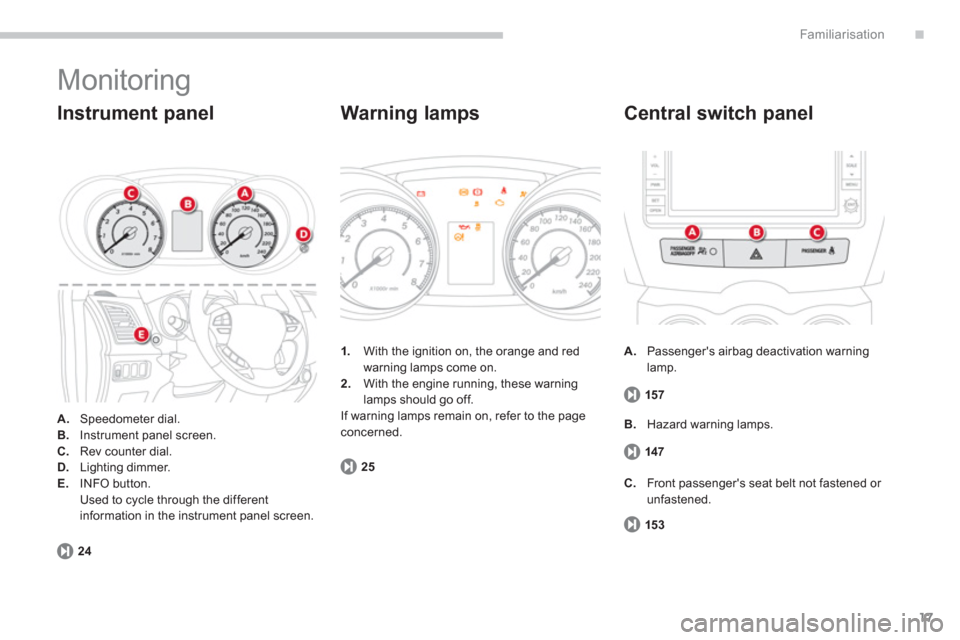

Instrument panel
A.
Passenger's airbag deactivation warning
lamp.
Central switch panel
1.
With the ignition on, the orange and red
warning lamps come on.
2.
With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the page
concerned.
Warning lamps
B.
Hazard warning lamps.
C.
Front passenger's seat belt not fastened or
unfastened.
2425157
147
15 3
Page 30 of 368
28
Monitoring
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the instrument panel screen.
Warning lamp
is on
Cause
Action / Observations
Left-hand
direction
indicator
flashing with audible
warning. The lighting stalk has been pressed
downwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualified workshop.
Right-hand
direction
indicator
flashing with audible
warning. The lighting stalk has been pushed
upwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualified workshop.
Sidelamps
or
dipped beam
headlamps
fixed. The sidelamps or dipped beam
headlamps are on.
Main beam
headlamps
fixed. The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglamps
fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglamp
fixed. The rear foglamp is switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamp.
Page 31 of 368
1
29
Monitoring

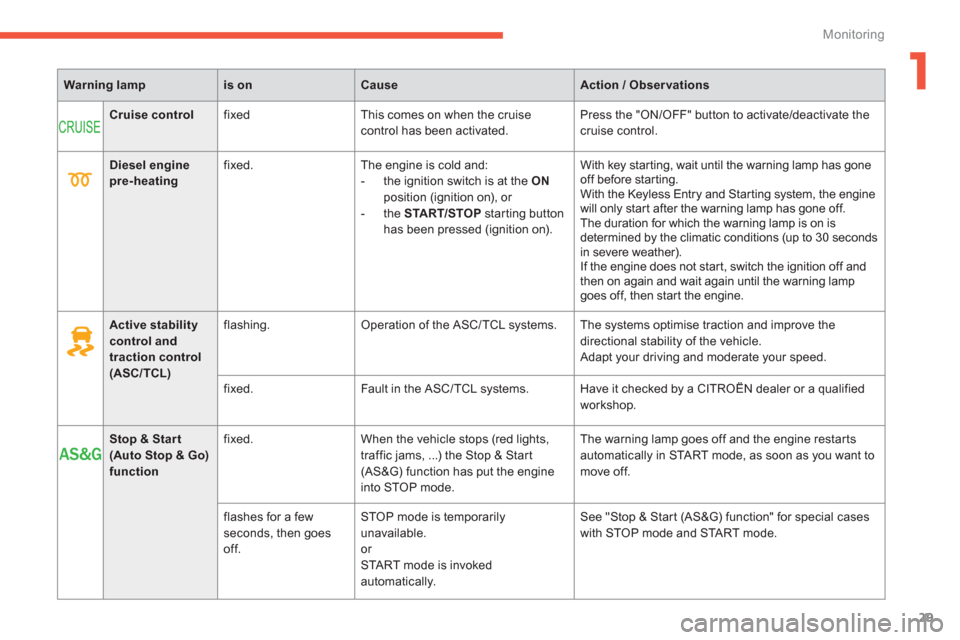

Warning lamp
is on
Cause
Action / Observations
Cruise control
fixed This comes on when the cruise
control has been activated. Press the "ON/OFF" button to activate/deactivate the
cruise control.
Active stability
control and
traction control
(ASC/TCL)
flashing. Operation of the ASC/ TCL systems. The systems optimise traction and improve the
directional stability of the vehicle.
Adapt your driving and moderate your speed.
fixed. Fault in the ASC/ TCL systems. Have it checked by a CITROËN dealer or a qualified
workshop.
Stop & Star t
(Auto Stop & Go)
function
fixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
(AS&G) function has put the engine
into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. See "Stop & Start (AS&G) function" for special cases
with STOP mode and START mode.
Diesel engine
pre-heating
fixed. The engine is cold and:
- the ignition switch is at the ON
position (ignition on), or
- the START/STOP
starting button
has been pressed (ignition on). With key starting, wait until the warning lamp has gone
off before starting.
With the Keyless Entry and Starting system, the engine
will only start after the warning lamp has gone off.
The duration for which the warning lamp is on is
determined by the climatic conditions (up to 30 seconds
in severe weather).
If the engine does not start, switch the ignition off and
then on again and wait again until the warning lamp
goes off, then start the engine.
Page 34 of 368
32

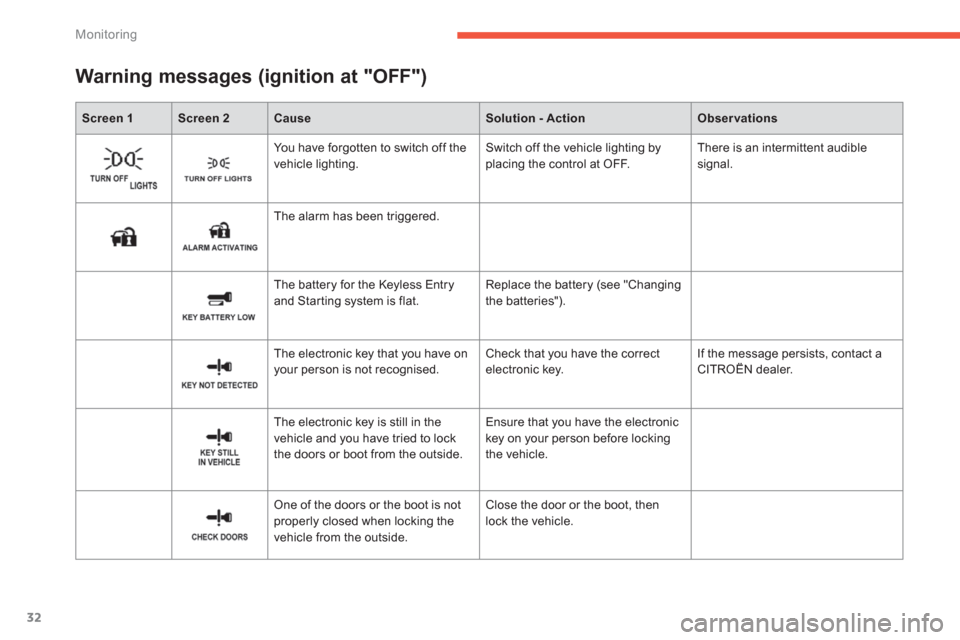

Monitoring
Screen 1
Screen 2
Cause
Solution - Action
Observations
Warning messages (ignition at "OFF")
You have forgotten to switch off the
vehicle lighting. Switch off the vehicle lighting by
placing the control at OFF. There is an intermittent audible
signal.
The alarm has been triggered.
The battery for the Keyless Entry
and Starting system is flat. Replace the battery (see "Changing
the batteries").
The electronic key that you have on
your person is not recognised. Check that you have the correct
electronic key. If the message persists, contact a
CITROËN dealer.
The electronic key is still in the
vehicle and you have tried to lock
the doors or boot from the outside. Ensure that you have the electronic
key on your person before locking
the vehicle.
One of the doors or the boot is not
properly closed when locking the
vehicle from the outside. Close the door or the boot, then
lock the vehicle.
Page 110 of 368
108
Driving

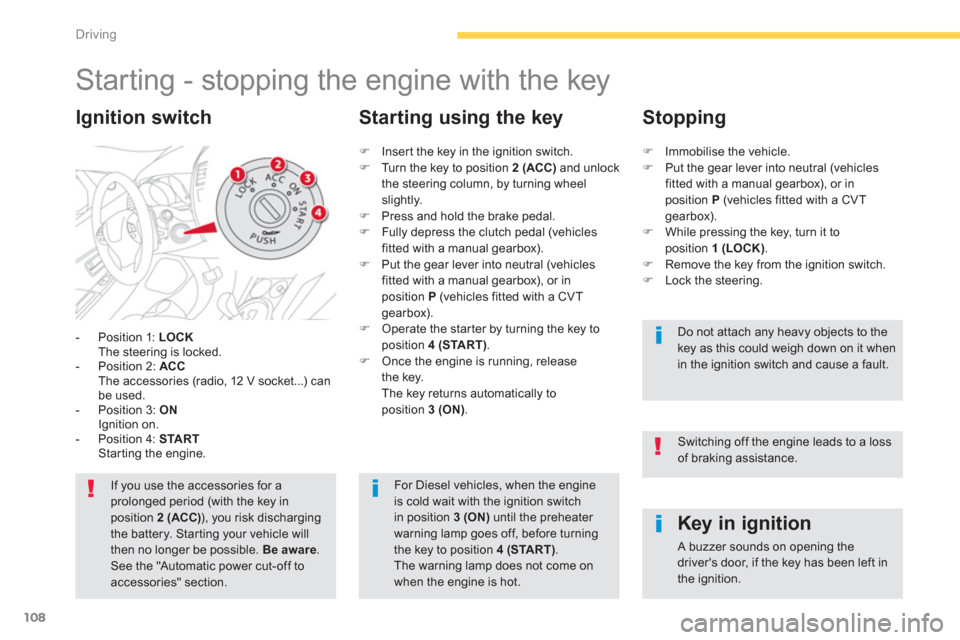

Starting - stopping the engine with the key
- Position 1: LOCK
The steering is locked.
- Position 2: ACC
The accessories (radio, 12 V socket...) can
be used.
- Position 3: ON
Ignition on.
- Position 4: START
Starting the engine.
Ignition switch
If you use the accessories for a
prolonged period (with the key in
position 2 (ACC)
), you risk discharging
the battery. Starting your vehicle will
then no longer be possible. Be aware
.
See the "Automatic power cut-off to
accessories" section.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been left in
the ignition.
)
Insert the key in the ignition switch.
)
Turn the key to position 2 (ACC)
and unlock
the steering column, by turning wheel
slightly.
)
Press and hold the brake pedal.
)
Fully depress the clutch pedal (vehicles
fitted with a manual gearbox).
)
Put the gear lever into neutral (vehicles
fitted with a manual gearbox), or in
position P
(vehicles fitted with a CVT
gearbox).
)
Operate the starter by turning the key to
position 4 (START)
.
)
Once the engine is running, release
the key.
The key returns automatically to
position 3 (ON)
.
Starting using the key
Stopping
)
Immobilise the vehicle.
)
Put the gear lever into neutral (vehicles
fitted with a manual gearbox), or in
position P
(vehicles fitted with a CVT
gearbox).
)
While pressing the key, turn it to
position 1 (LOCK)
.
)
Remove the key from the ignition switch.
)
Lock the steering.
Do not attach any heavy objects to the
key as this could weigh down on it when
in the ignition switch and cause a fault.
For Diesel vehicles, when the engine
is cold wait with the ignition switch
in position 3 (ON)
until the preheater
warning lamp goes off, before turning
the key to position 4 (START)
.
The warning lamp does not come on
when the engine is hot.
Switching off the engine leads to a loss
of braking assistance.
Page 112 of 368
110
Driving
For Diesel vehicles, when
the engine is cold starting
does not take place until the
pre-heater warning lamp has
gone off.
If one of the starting conditions is not
met, a reminder message appears in
the instrument panel screen. In some
circumstances, it is necessary to
turn the steering wheel slightly while
pressing the " START/STOP
" button
to assist unlocking of the steering;
a message warns you when this is
needed.
The presence of the electronic key
in the defined zone is essential. For
reasons of safety, do not leave this area
when the engine is running.
Switching off using the
electronic key
If the vehicle is not immobilised, the
engine will not stop.
This message is displayed
when the driver's door is
opened and the vehicle is not
in "OFF" mode.
)
Press the " START/STOP
" button again to
change to "OFF" mode.
)
Immobilise the vehicle.
)
Place the gear lever in neutral for vehicles
fitted with a manual gearbox , or on P
for
vehicles fitted with a CVT gearbox .
)
With the electronic key inside the vehicle,
press the " START/STOP
" button.
The engine stops.
The steering locks when a door is opened or on
locking the vehicle.
Each attempt at starting takes around
15 seconds. If the engine does not start, press
the " START/STOP
" button once more to try
again.
The presence of the electronic key in
the vehicle is essential for switching
on the ignition and starting only. Once
the engine has started, make sure
that the electronic key remains with
the vehicle until the end of the journey:
other wise you would not be able to lock
the vehicle.
Switching off the engine leads to a loss
of braking assistance.
Page 123 of 368
121
4
Driving
Stop & Start (Auto Stop & Go) function
Operation
Going into engine STOP mode
The "AS &G"
warning lamp comes on in
the instrument panel or the instrument
panel screen and the engine goes into
standby after a few seconds:
- with a manual gearbox
, with the vehicle
stationary and your foot on the brake, when
you put the gear lever into neutral and
release the clutch pedal.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key or the START/STOP
button.
When the engine is stopped
automatically, the operation of certain
vehicle systems, such as for example,
braking, power steering... are modified.
Ta k e c a r e
.
Special cases: STOP mode not
available
STOP mode is not invoked when:
- the driver's seat belt is not fastened,
- the bonnet is open,
- the vehicle has not exceeded 3 mph
(5 km/h) since the last engine start,
- the vehicle has restarted less than
10 seconds ago,
- the engine is needed to maintain a
comfortable temperature in the passenger
compartment,
- demisting is active,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
- the "AS &G"
warning lamp is
flashing in the instrument panel.
This operation is per fectly normal.
The Stop & Start (Auto Stop & Go) function puts the engine temporarily into standby during stops in the traffic (red lights, traffic jams, or other...).
The engine restarts automatically as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start (Auto Stop & Go) function reduces fuel consumption and exhaust emissions as well as the noise level when
stationary.

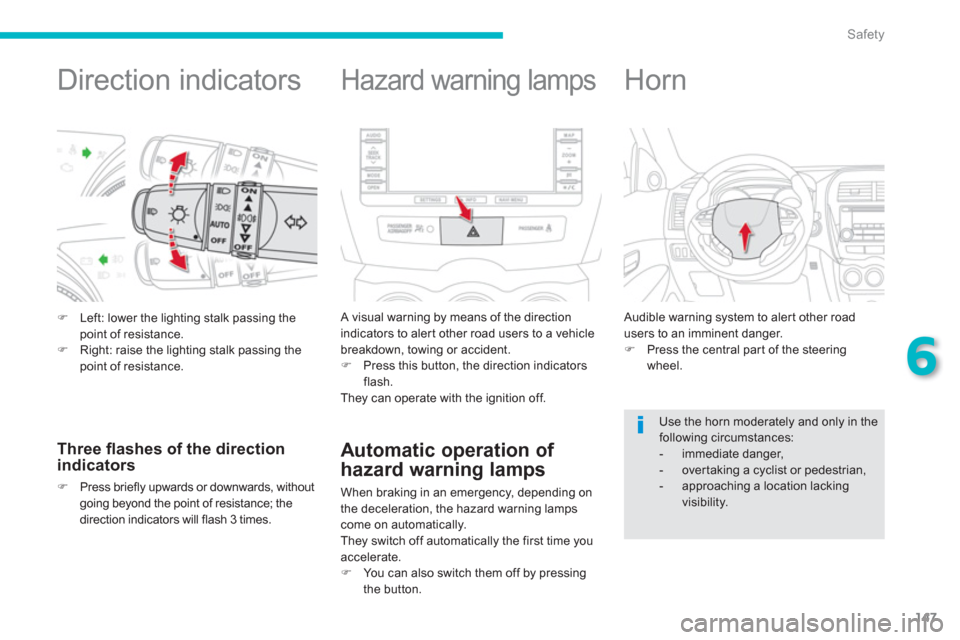

Page 149 of 368
147
6
Safety
Direction indicators
)
Left: lower the lighting stalk passing the
point of resistance.
)
Right: raise the lighting stalk passing the
point of resistance.
Three fl ashes of the direction
indicators
)
Press briefly upwards or downwards, without
going beyond the point of resistance; the
direction indicators will flash 3 times.
Hazard warning lamps
A visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident.
)
Press this button, the direction indicators
flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
)
You can also switch them off by pressing
the button.
Horn
Audible warning system to alert other road
users to an imminent danger.
)
Press the central part of the steering
wheel.
Use the horn moderately and only in the
following circumstances:
- immediate danger,
- overtaking a cyclist or pedestrian,
- approaching a location lacking
visibility.

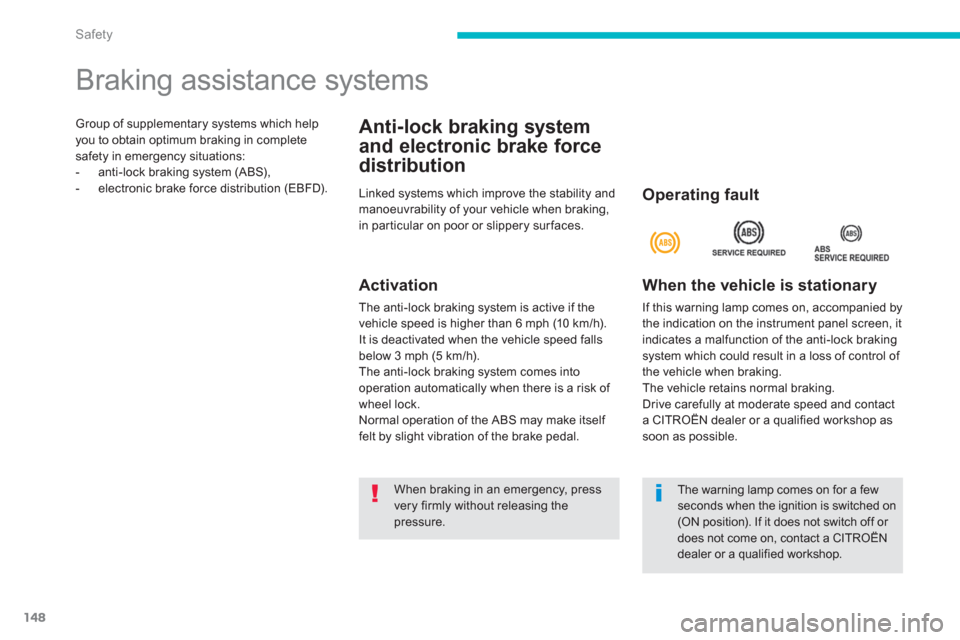

Page 150 of 368
148
Safety
Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD).
Braking assistance systems
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in particular on poor or slippery sur faces.
Activation
The anti-lock braking system is active if the
vehicle speed is higher than 6 mph (10 km/h).
It is deactivated when the vehicle speed falls
below 3 mph (5 km/h).
The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.
Operating fault
When the vehicle is stationary
If this warning lamp comes on, accompanied by
the indication on the instrument panel screen, it
indicates a malfunction of the anti-lock braking
system which could result in a loss of control of
the vehicle when braking.
The vehicle retains normal braking.
Drive carefully at moderate speed and contact
a CITROËN dealer or a qualified workshop as
soon as possible.
When braking in an emergency, press
very firmly without releasing the
pressure. The warning lamp comes on for a few
seconds when the ignition is switched on
(ON position). If it does not switch off or
does not come on, contact a CITROËN
dealer or a qualified workshop.
