The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.
Diesel engines
1. Screenwash and headlamp wash fluid reservoir.
2.
C

oolant reservoir.
3.
B

rake fluid reservoir.
4.
B

attery.
5.
F

usebox.
6.
A

ir filter.
7.
E

ngine oil dipstick.
8.
E

ngine oil filler cap.
9.
P

riming pump*. 1.6
HDi 115 S&S
1.8 HDi 140
* According to engine.
Practical information

185
C4-Aircross_en_Chap07_info-pratiques_ed01-2016
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used products
To p p i n g u p
The reservoir must be topped up without delay
by a CITROËN dealer or a qualified workshop.
Additive level (1.6 HDi
115 Diesel versions with
particle filter)
The additive reservoir low level is indicated by
the display of this message.
Fluid specification
For optimum cleaning, this fluid must not be
topped up with or replaced with plain water.
Screenwash and headlamp
wash fluid
To check or top up the fluid, stop the
vehicle, apply the parking brake and
switch off the engine.
F

O

pen the bonnet and secure it with the
st ay.
F

O

pen the filler cap for the screenwash
reservoir.
F

C

heck the level using the gauge, then top
up if necessary.
F

R

efit the cap on the reservoir and close
the

bonnet. In wintry conditions, the use of fluid with
an ethyl alcohol or methanol base is
recommended.
7
Practical information

199
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
Changing a bulb
For bulbs that have alignment lugs
(H1, H7...) ensure that they are
fitted correctly for the best lighting
performance.
The headlamps have polycarbonate
lenses with a protective coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
F

D

o not touch the bulb directly with
your fingers, use lint-free cloths.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
It is imperative to use only
anti-ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Risk of electrocution
Replacement of the xenon bulbs
(D1S-35W) must be carried out by
a CITROËN dealer or a qualified
workshop.
Front lamps
1. Direction indicators ( W Y21W-21W ).
2. M ain beam headlamps (H1-55W).
3.
D

ipped beam headlamps (H11-55W)


or
X

enon bulb (D1S-35W).
4.
S

idelamps (W5W-5W).
5.
D

aytime running lamps (P13W-13W).
6.
D

aytime running lamps / sidelamps
(light emitting diodes-LEDs).
7.
F

ront foglamps (H11-55W).
8
In the event of a breakdown

201
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

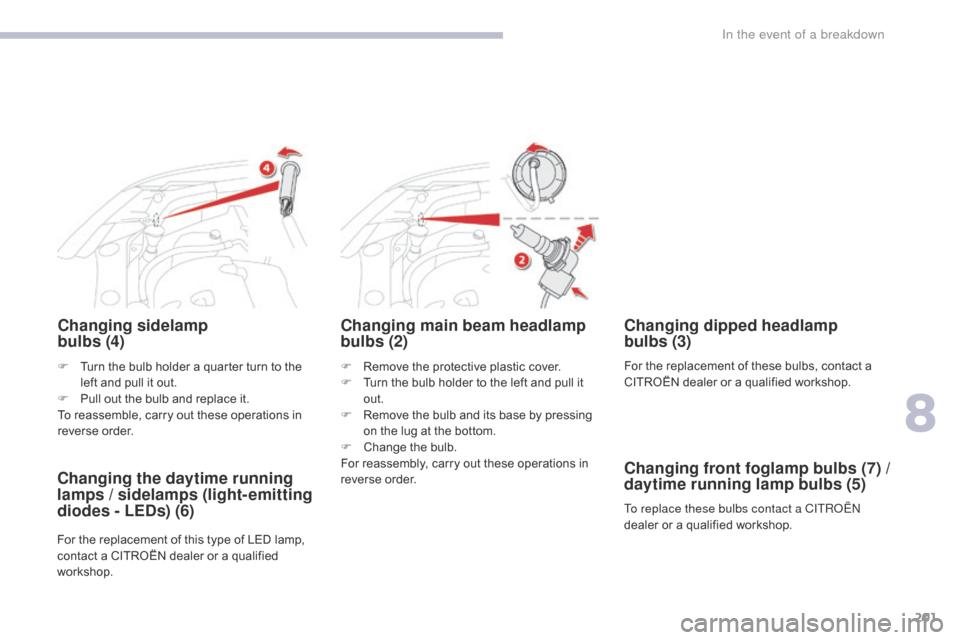

Changing sidelamp
bulbs (4)
F Remove the protective plastic cover.
F T urn the bulb holder to the left and pull it
out.
F

R
emove the bulb and its base by pressing
on the lug at the bottom.
F

C
hange the bulb.
For reassembly, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs (2)
F Turn the bulb holder a quarter turn to the left and pull it out.
F

P
ull out the bulb and replace it.
To reassemble, carry out these operations in
reverse order.
Changing the daytime running
lamps / sidelamps (light- emitting
diodes - LEDs) (6)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
Changing dipped headlamp
bulbs (3)
For the replacement of these bulbs, contact a
CITROËN dealer or a qualified workshop.
To replace these bulbs contact a CITROËN
dealer or a qualified workshop.
Changing front foglamp bulbs (7) /
d aytime running lamp bulbs (5)
8
In the event of a breakdown

206
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
Dashboard fuses
The fusebox is located in the lower dashboard
(left-hand side).
Access to the fuses
F Unclip the cover and remove it completely by pulling it towards you. Fuse N°
Rating Functions
1 * 30 ACabin fan.
2 15 ABrake lamps, third brake lamp.
3 10 ARear foglamps.
4 30 AWindscreen wiper, screenwash.
6 20 ACentral locking, electric door mirrors.
7 15 AAudio equipment, telematics, USB unit, hands-free system.
8 7. 5 ARemote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
9 15 AInstrument panel and interior lighting.
10 15 AHazard warning lamps.
11 15 ARear wiper.
12 7. 5 AInstrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.
13 15 ACigarette lighter, accessory socket.
15 20 AElectric blind.
16 10 ADoor mirrors, audio equipment.
In the event of a breakdown

208
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
Engine compartment
fuses
Access to the fuses
F Unclip the cover and remove it completely.Fuse N°
Rating Functions
1 15 AFront foglamps.
4 10 AHorn.
5 7. 5 AAlternator.
6 20 AHeadlamp wash.
7 10 AAir conditioning.
9 20 AAlarm.
10 15 ADemisting, wipers.
11 -Not used.
12 -Not used.
The fusebox is placed in the engine
compartment (left-hand side).
In the event of a breakdown

209
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
Fuse N°Rating Functions
13 10 ADaytime running lamps.
14 10 ALeft-hand main beam headlamp.
15 10 ARight-hand main beam headlamp.
16 20 ALeft-hand dipped beam headlamp (xenon).
17 20 ARight-hand dipped beam headlamp (xenon).
18 10 ALeft-hand dipped beam headlamp (halogen), manual and
automatic headlamp adjustment.
19 10 ARight-hand dipped beam headlamp (halogen).
31 30 AAudio amplifier.
The maxi-fuses provide additional
protection for the electrical systems. All
work on the maxi-fuses must be carried
out by a CITROËN dealer or a qualified
workshop.
Carefully close the cover after replacing
a fuse so as to ensure the correct
sealing of the fusebox.
8
In the event of a breakdown

337
