ESP Citroen C4 AIRCROSS 2017 1.G Owner's Manual

15
C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016
Warning/indicator lampis on Cause Action / Observations
Anti-lock
Braking System
(ABS) fixed.
The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a CITROËN
dealer or a qualified workshop without delay.
Front seat belt
not fastened /
unfastened
fixed, then flashing,
accompanied by an
audible signal.The driver has not fastened or has
unfastened their seat belt.
Pull the strap, then insert the tongue in the buckle.
Airbags and
pretensioners temporarily.
When you switch on the ignition, this
warning lamp comes on for a few
seconds, then goes off. If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed. Fault with one of the airbag or seat
belt pretensioner systems. Have it checked by a CITROËN dealer or a qualified
workshop.
Under-inflation fixed,
accompanied by
a messageThe tyre pressure for one or more
wheels is too low.
Check the tyre pressures as soon as possible.
This check should preferably be done with the tyres cold.
You must reinitialise the system after every adjustment of
one or more tyre pressures and after replacing one or more
wheels.
For more information on Under-inflation detection
, refer to
the corresponding section.
flashing
then fixed,
accompanied by
a message. The system has a fault and/or one
or more wheels does not have a
detected sensor.
The tyre pressures are no longer monitored.
Have the system checked by a C
ITROËN
d
ealer or a
qualified workshop.
1
Instruments

16
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the instrument panel screen.Warning /indicator lampis on Cause Action / Observations
Left-hand
direction
indicator flashing with audible
warning.
The lighting stalk has been pressed
downwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualified workshop.
Right-hand
direction
indicator flashing with audible
warning.
The lighting stalk has been pushed
upwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualified workshop.
Sidelamps or
dipped beam
headlamps fixed.
The sidelamps or dipped beam
headlamps are on.
Main beam
headlamps fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
once to switch off the front foglamps.
Rear foglamp sfixed. The rear foglamps are switched on. Turn the ring on the stalk rear ward to switch off the
rear foglamps.
Instruments

17
C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016
Warning/indicator lampis on Cause Action / Observations
Cruise control fixed. This comes on when the cruise
control has been activated. Press the "ON/OFF" button to activate/deactivate the
cruise control.
Active stability
control and
traction control
(ASC/TCL) flashing.
Operation of the ASC/ TCL systems. The systems optimise traction and improve the
directional stability of the vehicle.
Adapt your driving and moderate your speed.
fixed. Fault in the ASC/ TCL systems. Have it checked by a CITROËN dealer or a qualified
workshop.
Stop & Star t
(Auto Stop & Go)
system fixed.
When the vehicle stops (red lights,
traffic jams, etc.), the Stop & Start
(AS&G) system has put the engine
into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashing for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable.
For more information on the Stop & Star t (Auto
Stop
& Go) system and in particular the special
cases with STOP mode and START mode, refer to the
corresponding section.
Diesel engine
pre-heating
fixed.
The engine is cold and:
-

t
he ignition switch is at the
ON


position, or
-
the START/STOP starting button
has been pressed (ignition on). With key starting, wait until the warning lamp has gone
off before starting.
With the Keyless Entry and Starting system, the engine
will only start after the warning lamp has gone off.
The duration for which the warning lamp is on is
determined by the climatic conditions (up to 30 seconds
in severe weather).
If the engine does not start, switch the ignition off and
then on again and wait again until the warning lamp
goes off, then start the engine.
1
Instruments

18
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This may be accompanied by an audible signal and a message in the screen.Warning /indicator lampis on Cause Action / Observations
ASC/TCL fixed. The ASC/ TCL off switch, located at
the bottom of the dashboard (driver's
side) has been pressed.
ASC/ TCL is deactivated.
ASC: active stability control.
TCL: traction control. Press the button to activate the ASC/ TCL.
The ASC/ TCL system is automatically activated on
starting the vehicle.
Stop & Star t
(Auto Stop & Go)
system fixed.
The off switch for the Stop & Start
(AS&G) system, located at the bottom
of the dashboard (driver's side) has
been pressed.
The Stop & Start (AS&G) system is
deactivated. Press the switch again to activate the Stop & Start
(AS&G) system.
flashing. Fault with the Stop & Start system. Have it checked by a CITROËN dealer or a qualified
workshop.
Instruments

23
C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016
Screen 1 Screen 2Cause Solution - ActionObservations
Warning messages (ignition at "ON")
Fault with the electric power
steering.Stop the vehicle, wait few moments
then start the engine again.If the message remains after
restarting, contact a CITROËN
dealer or a qualified workshop.
The battery for the "Keyless Entry
and Starting" system is flat. Replace the battery.
For more information on the
Emergency
procedure with
the Keyless Entr y and Star ting
system and changing the
batteries in particular, refer to the
corresponding section.
The electronic key that you have on
your person is not recognised. Check that you have the correct
electronic key.If the message persists, contact a
CITROËN dealer.
The electronic key is still in the
vehicle and you have tried to lock
the doors or boot from the outside. Ensure that you have the electronic
key on your person before locking
the vehicle.
One of the doors or the boot is not
properly closed when locking the
vehicle from the outside. Close the door or the boot, then
lock the vehicle.
Fault with the "Keyless Entry and
Starting" system. Contact a CITROËN dealer.
1
Instruments

24
Screen 1 Screen 2Cause Solution - ActionObservations
The brake fluid level is too low. Top up using a brake fluid listed by
CITROËN.If the problem persists, contact
a CITROËN dealer or a qualified
workshop.
Fault with the braking system. You must stop as soon as it is safe to do so.Have the system checked by a
CITROËN dealer or a qualified
workshop.
Fault with the anti-lock braking
system (ABS). Contact a CITROËN dealer or a
qualified workshop.The vehicle retains conventional
braking without assistance but you
are advised to stop.
The tyre pressure is too low in one
or more tyres. Check the tyre pressures as soon
as possible.
This check should preferably
be done with the tyres cold.
You must reinitialise the system
after adjusting one or more tyre
pressures or after changing one or
more wheels.
For more information on the Under-
inflation detection system
, refer
to the corresponding section. If the problem persists, contact
a C
ITROËN
d
ealer or a qualified
workshop.
There is a fault with the under-
inflation detection system and/or
at least one wheel does not have a
detected sensor. The tyre pressures are no longer
monitored.
Have the system checked by a
CITROËN dealer or a qualified
workshop.
Instruments

37
C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016
Adjusting vehicle settings
When the vehicle is
stationary, this menu allows
the user to change the
following settings:
-
T

he reinitialisation
mode for average
fuel consumption and
average speed. F

P
ress and hold the INFO
button for a few
seconds to display the menu screen.
F
I
n the menu screen, press the INFO button
to select a function from the list:
-

T

he fuel consumption units.
-

T

he temperature display unit.
-
T

he display language.
-

T

he activation/deactivation of the sound
when pressing the INFO button.
-

T

he break (rest) reminder display interval.
-

T

he reinitialisation of the under-inflation
alert threshold.
For more information on Under-inflation
detection , refer to the corresponding section.
-

C

hoose a set of tyres.
For more information on Under-inflation
detection , refer to the corresponding section.
-

R

estore the factory settings. To change the settings, you must stop
the vehicle and the ignition must be on.
Apply the parking brake and place the
gear lever in neutral.
With the ignition on
, press the INFO button,
located on the dashboard to the left of the
instrument panel several times until the
"SETTING MENU" screen is displayed.
Operation
MENU 1/3:
- 1 - 2 , A - M, A - P * (choice of the resetting
of average fuel consumption and average
speed),
-

UN
IT (choice of the fuel consumption
un i t s),
-

c
hoice of the temperature display unit ,
-

L
ANGUAGE (choice of the display
language).
* Depending on display language.
There are some differences in the
content of the menus of the type 1 and
type 2 display screens.
For your
safety, when the vehicle is
moving , the function settings are not
displayed when you press the INFO
button.
1
Instruments

40
If you select the "- - -" setting, no
message will be displayed in message
display situations.
If the battery is disconnected, the
settings memory is cleared and the
default language (ENGLISH) is restored
automatically.
F

p

ress the INFO
button to scroll the
languages (Japonais, English, Deutsch,
Français, Espanol, Italiano, Russe "- - -" and
RETURN) in succession,
F

p

ress and hold the INFO
button for a few
seconds to confirm your selection.

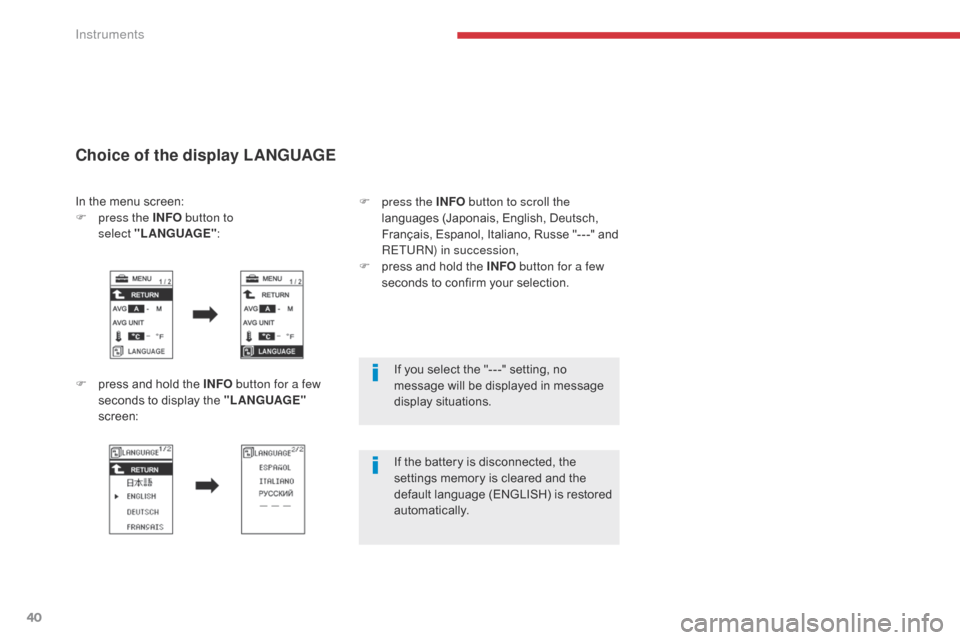

Choice of the display LANGUAGE
In the menu screen:
F p ress the INFO button to
select


"LANGUAGE" :
F

p
ress and hold the INFO button for a few
seconds to display the "LANGUAGE"
screen:
Instruments

44
Audio-CD system screen
Associated with the Audio- CD system, this
screen displays the following information:
-
t
he time,
-

a
udio system information.
For more information on the Audio and
telematics , refer to the corresponding section.
Setting the time
Selecting the adjustment mode
The digital clock can be set in automatic
mode or in manual mode . Manual mode
This mode permits manual setting of the time
using the audio system buttons.
It can also be used when the "Automatic mode"
displays an inaccurate time, when the local
RDS stations are broadcasting from a different
time zone. Automatic mode
This mode permits automatic setting of the
local time using the signal from RDS stations.
The symbol "CT"
appears in the screen.
Instruments

46
Audio-CD system touch screen
Associated with the touch screen Audio- CD
system, this screen can display:
-
t
he time,
-

i
nformation related to the audio system.
For more information on the Audio and
telematics , refer to the corresponding section.
For safety reasons, the driver should
only carry out operations that require
close attention with the vehicle
stationary. Do not use pointed objects on the touch
screen.
Do not touch the screen with wet hands.
Use a clean soft cloth to clean the
screen.
Use the buttons arranged on the screen to
operate the system.
F

P
ress the MENU button to display the main
menu.
F

P
ress "Setting ".
F

P
ress "System Setting ".
F

P
ress "Time Setting ".Setting the time
General operation
1. CD eject.
2. S
ystem On / Off.
V

olume adjustment.
3.
A

ccess to the different menus in the
system.
Instruments
