Cruise control
System which automatically maintains the vehicle speed at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control is switched on manually:
the vehicle speed must be at least 25 mph
(40 km/h) and second gear or higher must be
engaged in the case of a manual gearbox.
The cruise control is switched off manually, by
an action on the brake or clutch pedal or if the
ASC system is triggered.
The programmed speed can be exceeded
temporarily by pressing the accelerator pedal.
The cruise control cannot, in any
circumstances, take the place of the
need to comply with speed limits or of the
vigilance and responsibility of the driver. The controls of this system are grouped
together on the steering wheel.
1.
"

ON/OFF" button: activation / deactivation
of the cruise control mode.
2.
"

COAST SET" button: store a driving
speed and decrease the cruising speed.
3.
"A

CC R ES" button: increase the cruising
speed and recall the stored speed.
4.
"C

ANCEL" button: stop control of the
vehicle's speed.
Steering mounted controls
When you press button 1 , the "CRUISE"
indicator comes on in the instrument panel.
Display in the instrument panel
Programming
F Press button 1 .
F S et the programmed speed by
accelerating
to the required speed, then
press button 2 "COAST SET" .
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
driving

125
Visual assistance
Front parking sensors
Deactivation / Activation of the
front and rear parking sensors
The function is deactivated by pressing this
button. The indicator lamp in the button
goes off.
Pressing this button again reactivates the
function. The indicator lamp in the button
comes on.
Operating fault
The front parking sensors are triggered when
an obstacle is detected in front, a gear is
engaged (position D for vehicles with a CVT
gearbox) and the speed of the vehicle remains
below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than five seconds
in for ward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h). Remember to deactivate the system if
towing a trailer or caravan.In bad weather or in winter, ensure that
the sensors are not covered with mud,
ice or snow.
When the vehicle is moving at a speed
below 6 mph (10 km/h), certain sound
sources (motorcycle, lorry, pneumatic
drill, etc.) may trigger the audible
signals of the parking sensor system.
In the event of an problem, when reverse gear
is engaged this lamp in the button flashes,
accompanied by an audible signal.
This supplements the audible
signal by displaying bars in the
screen, in front of or behind
the vehicle.
If one of the sensors is faulty, it
flashes in the instrument panel
screen.
Contact a CITROËN dealer or a qualified
workshop.
These bars flash at the start of the manoeuvre
then become fixed from a certain distance
between the vehicle and the obstacle.
4
Driving

172

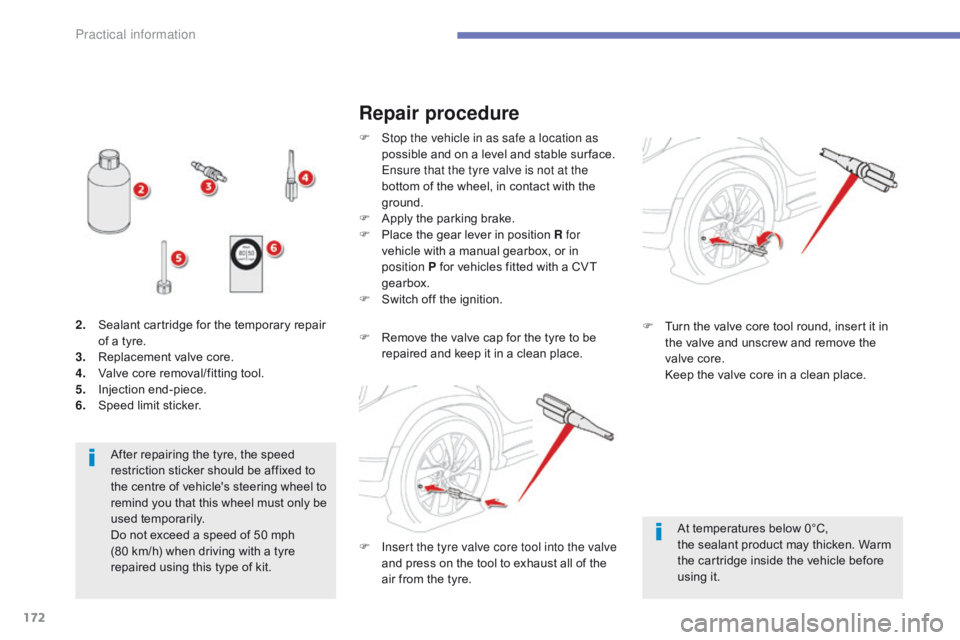

After repairing the tyre, the speed
restriction sticker should be affixed to
the centre of vehicle's steering wheel to
remind you that this wheel must only be
used temporarily.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
Repair procedure
F Stop the vehicle in as safe a location as possible and on a level and stable sur face.
E

nsure that the tyre valve is not at the
bottom of the wheel, in contact with the
ground.
F

A
pply the parking brake.
F

P
lace the gear lever in position R for
vehicle with a manual gearbox, or in
position P for vehicles fitted with a CVT
gearbox.
F

S
witch off the ignition.
2.
S

ealant cartridge for the temporary repair
of a tyre.
3.
R

eplacement valve core.
4.
V

alve core removal/fitting tool.
5.
I

njection end-piece.
6.
S

peed limit sticker. F

R
emove the valve cap for the tyre to be
repaired and keep it in a clean place.
At temperatures below 0°C,
the
sealant product may thicken. Warm
the
cartridge inside the vehicle before
using it.
F

T
urn the valve core tool round, insert it in
the valve and unscrew and remove the
valve core.
K

eep the valve core in a clean place.
F

I
nsert the tyre valve core tool into the valve
and press on the tool to exhaust all of the
air from the tyre.
Practical information

196
The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household
w
aste.
Take used remote control batteries and
vehicle batteries to a special collection point.
Do not reverse the polarity and use only a 12 V charger.
D o not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to start the engine if it is fitted with a CVT gearbox.
It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.
Before disconnecting
the battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of the
electronic systems. However, if problems
remain following this operation, contact a
CITROËN dealer or a qualified workshop.
F

D

isconnect the battery from the vehicle,
if

necessary.
F

F

ollow the instructions for use provided by
the manufacturer of the charger.
F

R

econnect starting with the negative
terminal (-).
F

C

heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
Charging the battery using
a battery charger
Some functions are not available if the battery is not sufficiently charged.
Practical information

198
Recovering the vehicle
Recovery of your vehicle
2 wheel drive (2WD) versions: towing
with the wheels on the ground
F Put the gear lever into neutral (position N
for the CVT gearbox).
F

U
nlock the steering by by turning the
ignition switch to the " ON" position (or
to " ON " mode for vehicle fitted with the
"Keyless Entry and Starting" system).
F

R
elease the parking brake.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and travel slowly for a short
distance only.
General recommendations
Observe the legislation in force in your
c o unt r y.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
-

v
ehicle broken down on a motor way
or fast road,
-

4 w
heel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towing
bar available... Towing with the wheels on the ground
is only possible on 2 wheel drive (2WD)
versions.
F

F
it the towing bar to the towing eye on the
chassis, located under the front bumper.
Practical information

217
Manual gearbox
Refer to the maintenance and
warranty guide for servicing of the
gearbox.
"CVT" gearbox
Refer to the maintenance and
warranty guide for servicing of the
"CVT" gearbox.
Particle filter (Diesel)
The start of saturation of the particle filter is
indicated by the temporary illumination of this
warning lamp accompanied by a message in
the instrument panel screen.As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 25 mph (40 km/h) for
about 20 minutes (with the 1.6 litre HDi
engine the minimum speed is 36 mph
(60 km/h)).
If the warning lamp stays on, this
indicates a low additive level.
on a n

ew vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
8
Checks

219
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines and gearboxes
.../S: model fitted with the Stop & Start (AS&G) function.
PETROL ENGINES
1.6 litre 1152.0 litre 150
Model codes : BU... NKZ7

NK Z 7/S
NKZ0
NKZ0/S AFYR

AFZ7 AFYV
AFZM AFYT
AFZH AFYW
AFZP
Transmission mode 2WD2WD 4WD2WD 4WD
Cubic capacity (cc) 1 5901 998
Bore x stroke (mm) 75 x 9086 x 86
Max power*: EU standard (kW) 86113
Max power engine speed (rpm) 6 0006 000
Max torque: EU standard (Nm) 15 419 9
Max torque engine speed (rpm) 4 0004 200
Fuel UnleadedUnleaded
Catalytic converter Ye sYe s
GEARBOXES Manual
(5-speed) Manual
(5-speed) CVT
(6-speed)
OIL CAPACITY (in litres)
Engine (with filter replacement) 4.24.3
9
Technical data

221
PETROL ENGINES1.6 litre 115
Gearboxes Manual (5-speed)
Model codes: BU... NKZ0

NKZ0/S
Transmission mode 2WD
-

U
nladen weight 1 310
-

K
erb weight 1 385
-

G
ross vehicle weight (GV W) 1 870
-

G
ross vehicle weight (GV W) when towing 1 925
-

G
ross train weight (GTW)
o

n a 12% gradient 3 025
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 100
-

U
nbraked trailer 685
-

R
ecommended nose weight 55
For zones: Europe, Turkey, French overseas dominions and territories.
9
Technical data

222
For: Russia, Ukraine, Morocco, Argentina, Chile, French overseas dominions and territories (2.0 litre 150 engine).
PETROL ENGINES1.6 litre 1152.0 litre 150
Gearboxes Manual
(5 - speed) Manual (5-speed)
CVT (6- speed)
Model codes: BU... NKZ7AFZ7AFZM AFZHAFZP
Transmission mode 2WD2WD 4WD2WD 4WD
-

U
nladen weight 1 3151 355 1 4201 385 1 450
-

K
erb weight 1 3901 4301 4951 460 1 525
-

G
ross vehicle weight (GV W) 1 8701 9701 9701 9701 970
-

G
ross vehicle weight (GV W) when towing 1 9252 035 2 0352 0352 035
-

G
ross train weight (GTW)
o

n a 12% gradient 3 025
3 335 3 3353 3353 335
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 100
1 300 1 3001 3001 300
-

U
nbraked trailer 68571574 5725 750
-

R
ecommended nose weight 5565656565
Technical data

223
For: Australia, New-Zealand.
PETROL ENGINES2.0 litre 150
Gearboxes Manual (5-speed)CVT (6- speed)
Model codes: BU... AFZ7AFZM AFZHAFZP
Transmission mode 2WD4WD2WD 4WD
-

U
nladen weight 1 3501 4151 380 1 445
-

K
erb weight 1 4251 490 1 455 1 520
-

G
ross vehicle weight (GV W) 1 9701 9701 9701 970
-

G
ross vehicle weight (GV W) when towing 2 0352 0352 0352 035
-

G
ross train weight (GTW)
o

n a 12% gradient 3 020
3 0203 0203 020
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 050
1 0501 0501 050
-

U
nbraked trailer 750750750750
-

R
ecommended nose weight 65656565
9
Technical data
