199
7
Practical information

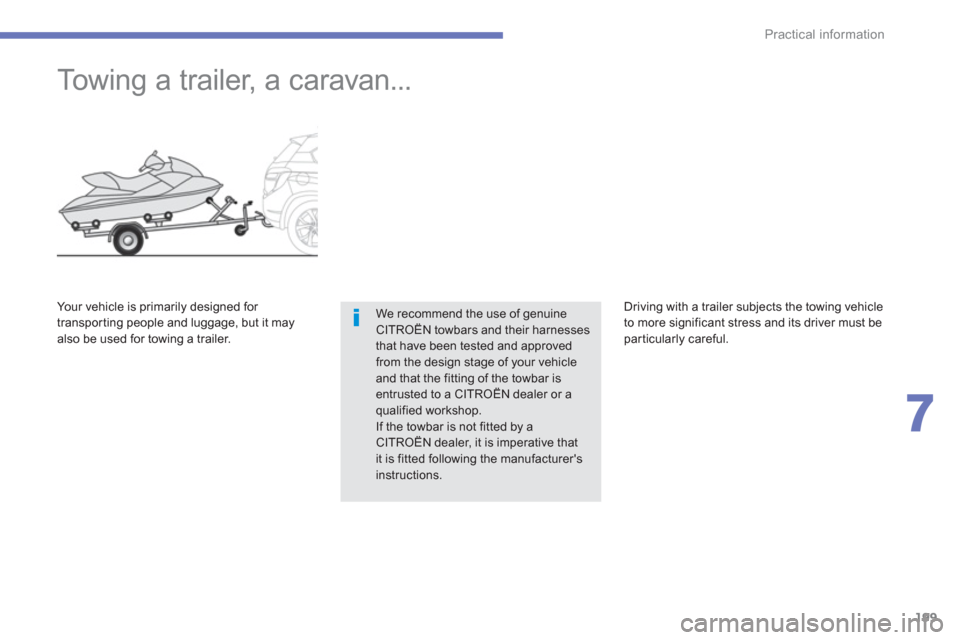

Towing a trailer, a caravan...
We recommend the use of genuineCITROËN towbars and their harnesses that have been tested and approved from the design stage of your vehicleand that the fitting of the towbar is entrusted to a CITROËN dealer or a qualified workshop.If the towbar is not fitted by a CITROËN dealer, it is imperative thatit is fitted following the manufacturer'sinstructions.
Your vehicle is primaril
y designed for
transporting people and luggage, but it mayalso be used for towing a trailer. Drivin
g with a trailer subjects the towing vehicle
to more significant stress and its driver must be
particularly careful.

200
Practical information

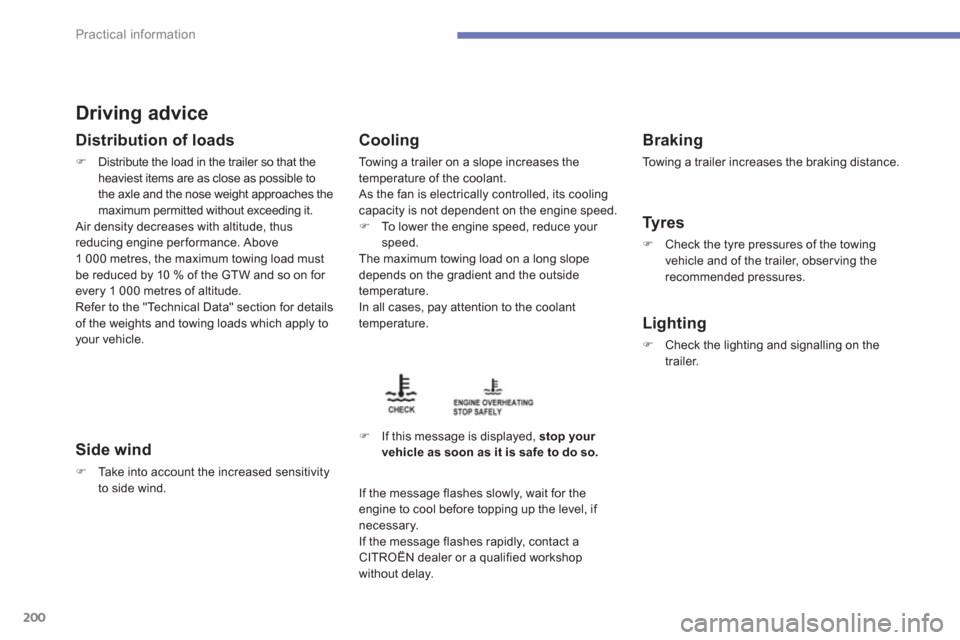

Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches the maximum permitted without exceeding it.
Air density decreases with altitude, thus reducing engine performance. Above
1 000 metres, the maximum towing load must
be reduced by 10 % of the GTW and so on for every 1 000 metres of altitude.
Refer to the "Technical Data" section for details
of the weights and towing loads which apply to your vehicle.
Side wind
)Take into account the increased sensitivity
to side wind.

Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed.)
To lower the engine speed, reduce your speed.
The maximum towing load on a long slope
depends on the gradient and the outside
tem
perature.
In all cases, pay attention to the coolant
temperature.
) If this message is displayed, stop your vehicle as soon as it is safe to do so.


Braking

To w i ng a trailer increases the braking distance.


Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the lighting and signalling on the
trailer.
I
f the message flashes slowly, wait for the engine to cool before topping up the level, if necessary.
If the messa
ge flashes rapidly, contact a CITROËN dealer or a qualified workshop
without delay.

201
7
Practical information

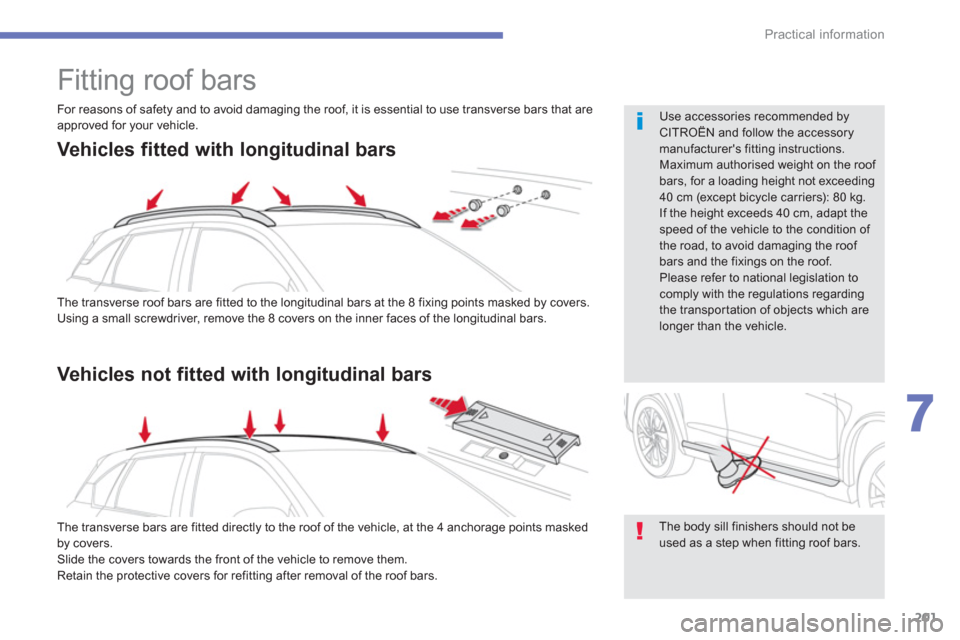

Fitting roof bars


The body sill finishers should not be used as a step when fitting roof bars.

Use accessories recommended byCITROËN and follow the accessorymanufacturer's fitting instructions.

Maximum authorised weight on the roof bars, for a loading height not exceeding40 cm (except bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt the speed of the vehicle to the condition of the road, to avoid damaging the roof bars and the fixings on the roof.
Please refer to national legislation tocomply with the regulations regardingthe transpor tation of objects which arelonger than the vehicle. The transverse roof bars are fitted to the lon
gitudinal bars at the 8 fixing points masked by covers.
Using a small screwdriver, remove the 8 covers on the inner faces of the longitudinal bars.
The transverse bars are fitted directl
y to the roof of the vehicle, at the 4 anchorage points masked
by covers.
Slide the covers towards the front of the vehicle to remove them.
Retain the protective covers for refitting after removal of the roof bars.

Vehicles fitted with longitudinal bars

Vehicles not fitted with longitudinal bars


For reasons of safety and to avoid damaging the roof, it is essential to use transverse bars that are
approved for your vehicle.

202
Practical information

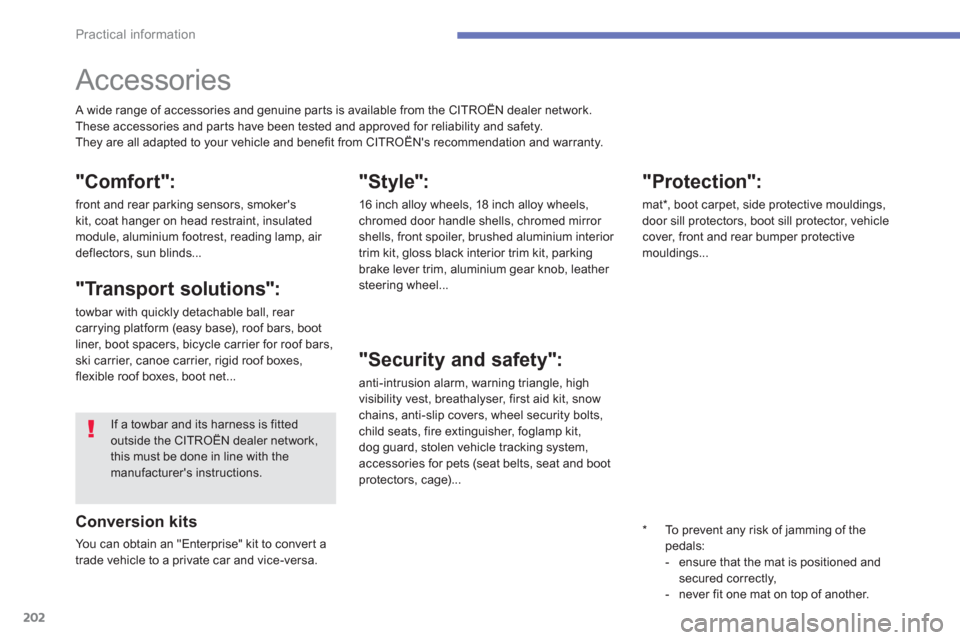

Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
front and rear parking sensors, smoker'skit, coat hanger on head restraint, insulatedmodule, aluminium footrest, reading lamp, air
deflectors, sun blinds...
"Transport solutions":
towbar with quickly detachable ball, rear carrying platform (easy base), roof bars, boot
liner, boot spacers, bicycle carrier for roof bars, ski carrier, canoe carrier, rigid roof boxes, flexible roof boxes, boot net...

"Style":

16 inch alloy wheels, 18 inch alloy wheels, chromed door handle shells, chromed mirror
shells, front spoiler, brushed aluminium interior
trim kit, gloss black interior trim kit, parkingbrake lever trim, aluminium gear knob, leather
steering wheel...

"Security and safety":

anti-intrusion alarm, warning triangle, high
visibility vest, breathalyser, first aid kit, snowchains, anti-slip covers, wheel security bolts, child seats, fire extinguisher, foglamp kit, dog guard, stolen vehicle tracking system,
accessories for pets (seat belts, seat and boot
protectors, cage)...

"Protection":

mat *
, boot carpet, side protective mouldings, door sill protectors, boot sill protector, vehiclecover, front and rear bumper protectivemouldings...
Conversion kits
You can obtain an "Enterprise" kit to conver t a
trade vehicle to a private car and vice-versa.



If a towbar and its harness is fitted outside the CITROËN dealer network, this must be done in line with themanufacturer's instructions.

*

To prevent any risk of jamming of thepedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.

203
7
Practical information

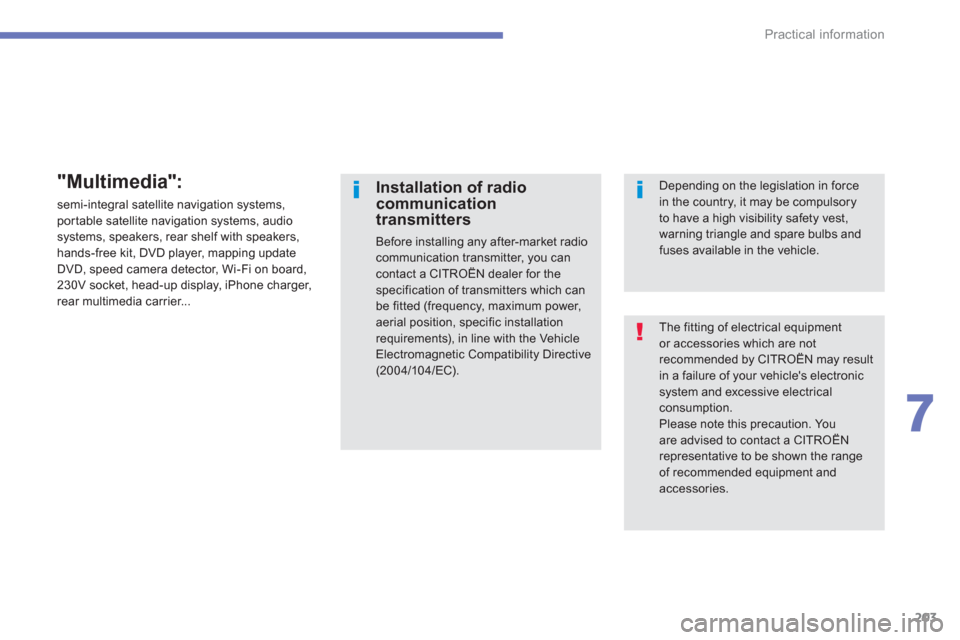

The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption.
Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radiocommunication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which can be fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).


Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle.

"Multimedia":

semi-integral satellite navigation systems, portable satellite navigation systems, audiosystems, speakers, rear shelf with speakers, hands-free kit, DVD player, mapping update
DVD, speed camera detector, Wi-Fi on board,
230V socket, head-up display, iPhone charger,
rear multimedia carrier...

204
Checks
TOTAL & CITROËN

205
8
Checks

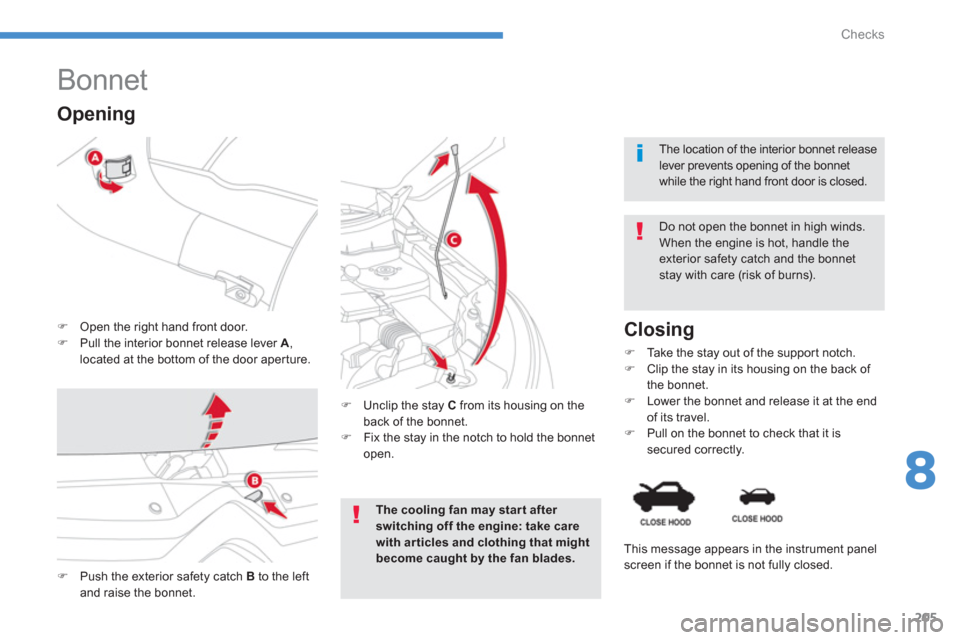

Bonnet
)Open the right hand front door. )Pull the interior bonnet release lever A ,
located at the bottom of the door aper ture.
Do not open the bonnet in high winds. When the engine is hot, handle theexterior safety catch and the bonnetstay with care (risk of burns).
)
Unclip the stay C
from its housing on the back of the bonnet. )
Fix the stay in the notch to hold the bonnet open.


Closing
)
Take the stay out of the support notch. )
Clip the stay in its housing on the back of
the bonnet.) Lower the bonnet and release it at the endof its travel. )
Pull on the bonnet to check that it is secured correctly.


The location of the interior bonnet releaselever prevents opening of the bonnet while the right hand front door is closed.


Opening
)Push the exterior safety catch B
to the left and raise the bonnet.
This messa
ge appears in the instrument panelscreen if the bonnet is not fully closed.
The cooling fan may star t after switching off the engine: take carewith ar ticles and clothing that mightbecome caught by the fan blades.

206
Checks
fluids and the replacement of cer taincomponents.

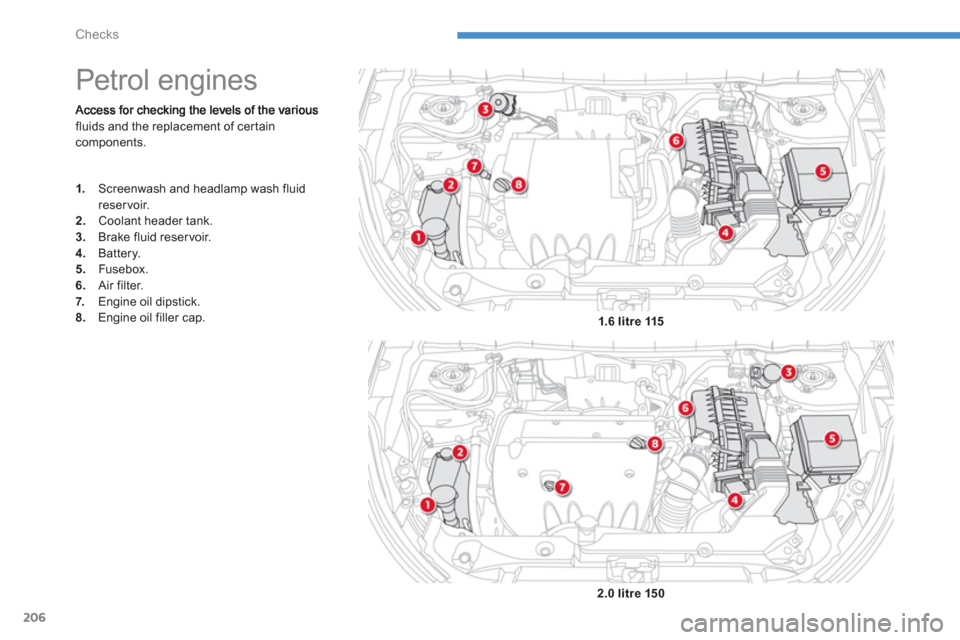

Petrol engines
1.
Screenwash and headlamp wash fluidreservoir.2.
Coolant header tank.3.
Brake fluid reservoir.4.
Battery. 5.
Fusebox.
6.Air filter.
7. Engine oil dipstick. 8.Engine oil filler cap.
1.6 litre 115
2.0 litre 150

207
8
Checks
checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.

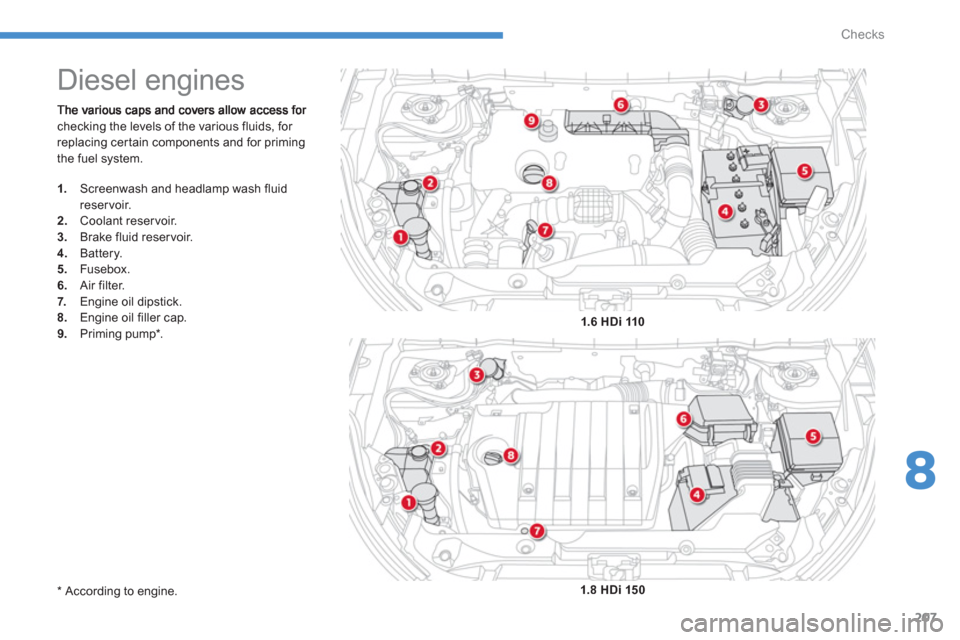

Diesel engines
1.
Screenwash and headlamp wash fluidreservoir.2.Coolant reservoir.3.Brake fluid reservoir.4.
Battery.
5. Fusebox.
6.Air filter.
7. Engine oil dipstick.8.Engine oil filler cap.9.
Priming pump * . 1.6HDi 110
1.8 HDi 150
*

According to engine.

208
Checks
When the symbol begins to flashrapidly(approximately twice per second), there is not much fuelremaining in your tank (approximately5 litres).
You must fill the tank to avoid runningout of fuel.

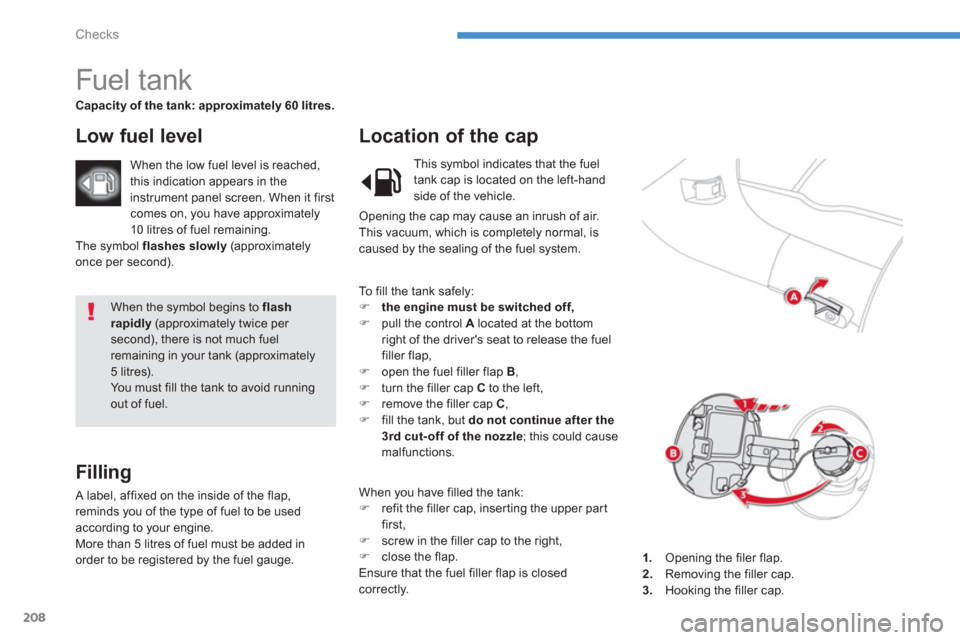

Fuel tank
Capacity of the tank: approximately 60 litres.
Low fuel level
Filling
A label, affixed on the inside of the flap, reminds you of the type of fuel to be usedaccording to your engine.
More than 5 litres of fuel must be added in
order to be re
gistered by the fuel gauge.

Location of the cap

When the low fuel level is reached,
this indication appears in the
instrument panel screen. When it firstcomes on, you have approximately
10 litres o
f fuel remaining.
The symbol flashes slowly(approximately
once per second).
1. Opening the filer flap.2.Removing the filler cap.
3.Hooking the filler cap.
To
fill the tank safely: )the engine must be switched off,)
pull the control A
located at the bottom
right of the driver's seat to release the fuel filler flap, ) open the fuel filler flap B , )
turn the filler cap C
to the left, )
remove the filler cap C,)
fill the tank, but do not continue after the
3rd cut- off of the nozzle; this could cause
malfunctions.
When
you have filled the tank: )
refit the filler cap, inser ting the upper par t first,
)
screw in the filler cap to the right,)
close the flap.
Ensure that the fuel filler flap is closed correctly.This symbol indicates that the
fuel
tank cap is located on the left-handside of the vehicle.
Openin
g the cap may cause an inrush of air.
This vacuum, which is completely normal, is caused by the sealing of the fuel system.
