Citroen C4 AIRCROSS RHD 2012 1.G Owner's Manual

259
05SETTINGS

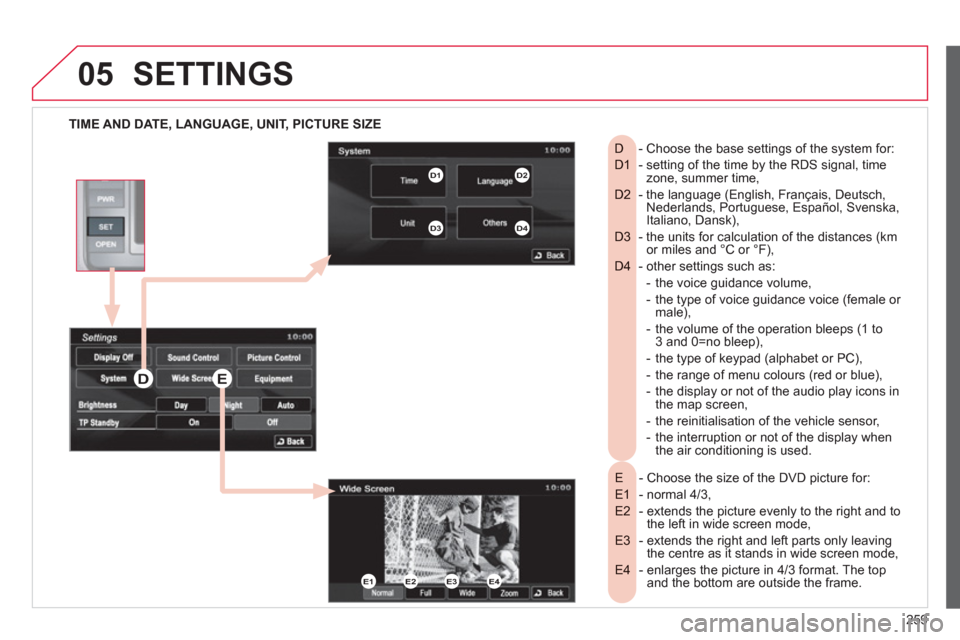

TIME AND DATE, LANGUAGE, UNIT, PICTURE SIZE
- Choose the size of the DVD picture for:E
- normal 4/3,E1
- extends the picture evenly to the right and toE2 the left in wide screen mode,
- extends the right and left parts only leaving E3 the centre as it stands in wide screen mode,
- enlarges the picture in 4/3 format. The top E4 and the bottom are outside the frame.
- Choose the base settings of the system for:

D
- setting of the time by the RDS signal, time
D1 zone, summer time,
- the language (English, Français, Deutsch,
D2 Nederlands, Portuguese, Español, Svenska, Italiano, Dansk),
- the units for calculation of the distances (km
D3 or miles and °C or °F),
- other settings such as:
D4



- the voice guidance volume,

- the t
ype of voice guidance voice (female or male),

- the volume of the operation bleeps
(1 to
3 and 0=no bleep),

- the t
ype of keypad (alphabet or PC),

- the ran
ge of menu colours (red or blue),

- the displa
y or not of the audio play icons in
the map screen,

- the reinitialisation of the vehicle sensor,

- the interruption or not of the displa
y when
the air conditioning is used.
E1E2E3E4
D1D2
D3D4
DE

260
05

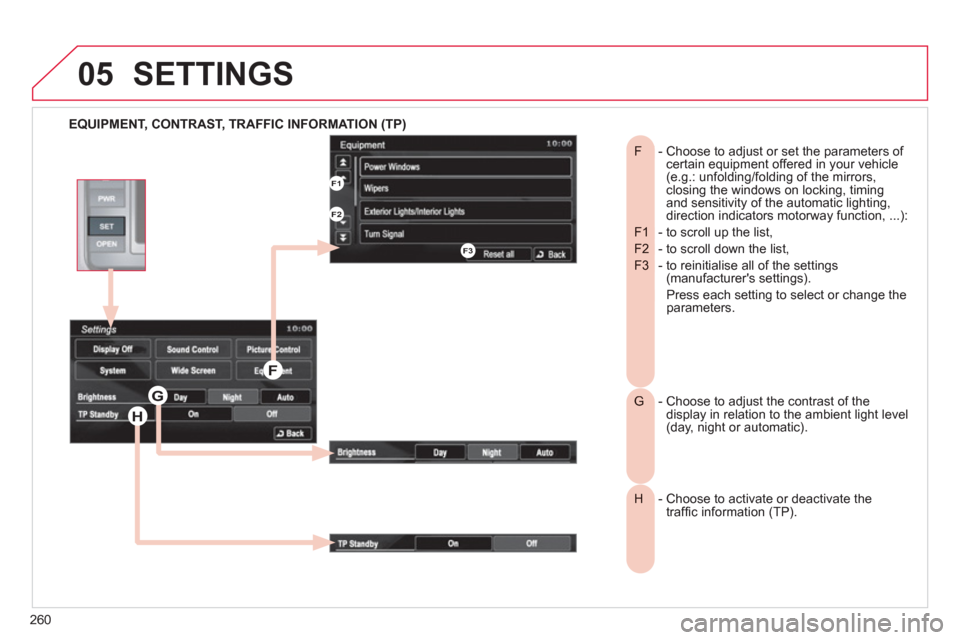

EQUIPMENT, CONTRAST, TRAFFIC INFORMATION (TP)
SETTINGS
- Choose to adjust or set the parameters of F certain equipment offered in your vehicle(e.g.: unfolding/folding of the mirrors,closing the windows on locking, timingand sensitivity of the automatic lighting,
direction indicators motorway function, ...):
- to scroll up the list, F1
- to scroll down the list, F2
- to reinitialise all of the settings F3 (manufacturer's settings).
Press each setting to select or change the parameters.
- Choose to adjust the contrast of the G display in relation to the ambient light level(day, night or automatic).
- Choose to activate or deactivate the H traffi c information (TP).

HG
F
F1
F2
F3

261

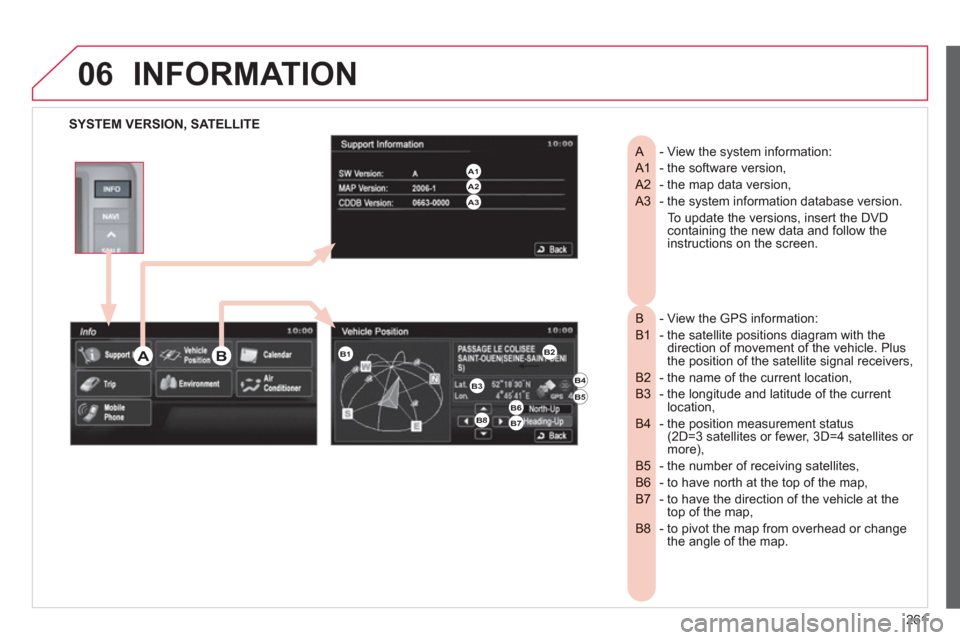

06INFORMATION
SYSTEM VERSION, SATELLITE
- View the system information:
A
- the software version, A1
- the map data version, A2
- the system information database version. A3
To update the versions, insert the DVD containing the new data and follow the instructions on the screen.
- View the GPS information: B
- the satellite positions diagram with the B1 direction of movement of the vehicle. Plusthe position of the satellite signal receivers,
- the name of the current location, B2
- the longitude and latitude of the current B3 location,
- the position measurement status B4 (2D=3 satellites or fewer, 3D=4 satellites or
more),
- the number of receiving satellites, B5
- to have north at the top of the map, B6
- to have the direction of the vehicle at theB7 top of the map,
- to pivot the map from overhead or change B8 the angle of the map.
A2A1
A3
B1B2
B3B4
B5B6B7B8
AB

262
06

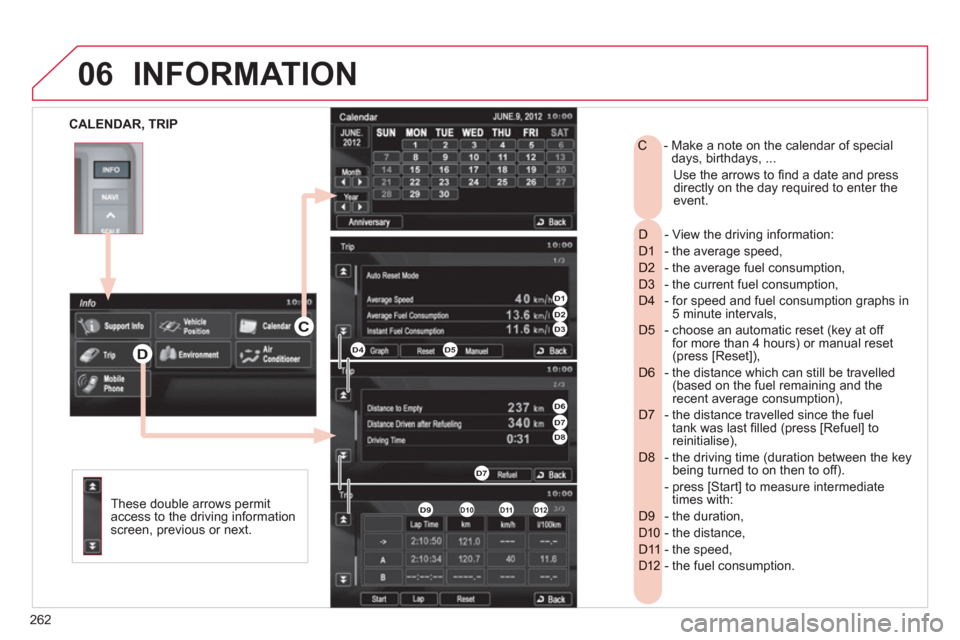

CALENDAR, TRIP
INFORMATION


These double arrows permit
access to the driving informationscreen, previous or next.
- View the driving information: D
- the average speed, D1
- the average fuel consumption, D2
- the current fuel consumption, D3
- for speed and fuel consumption graphs in D4 5 minute intervals,
- choose an automatic reset (key at off D5 for more than 4 hours) or manual reset(press [Reset]),
- the distance which can still be travelled D6 (based on the fuel remaining and therecent average consumption),
- the distance travelled since the fuel D7 tank was last fi lled (press [Refuel] toreinitialise),
- the driving time (duration between the key D8 being turned to on then to off).
- press [Start] to measure intermediate times with:
- the duration,
D9

D10- the distance,
- the speed, D11
D12- the fuel consumption.
- Make a note on the calendar of special

C days, birthdays, ...

Use the arrows to fi nd a date and pressdirectly on the day required to enter the event.
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12
DC

263
06

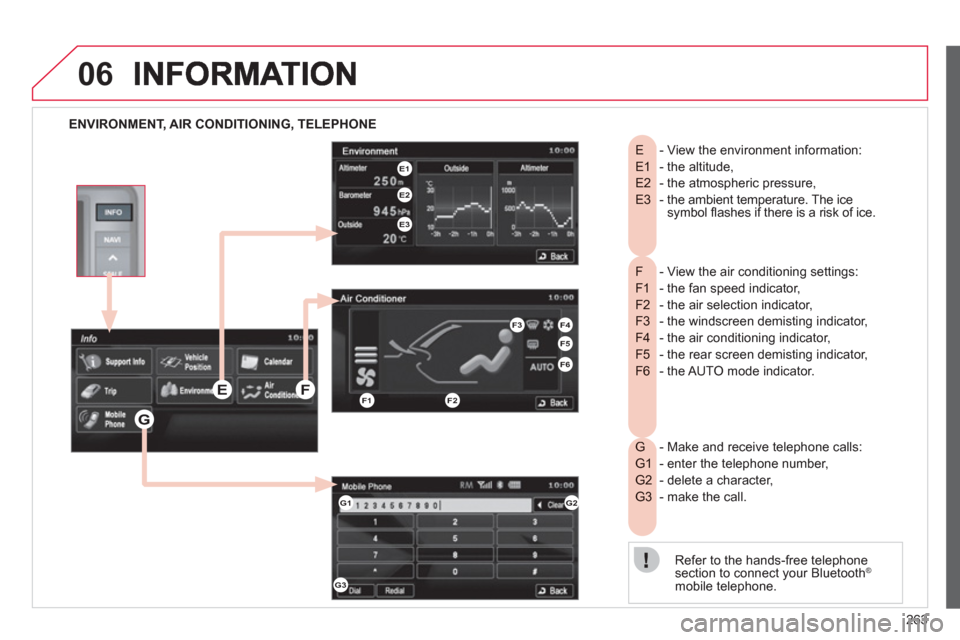

ENVIRONMENT, AIR CONDITIONING, TELEPHONE
- View the air conditioning settings:F
- the fan speed indicator,F1
- the air selection indicator, F2
- the windscreen demisting indicator,F3
- the air conditioning indicator, F4
- the rear screen demisting indicator, F5
- the AUTO mode indicator.F6
- View the environment information:E
- the altitude,E1
- the atmospheric pressure, E2
- the ambient temperature. The iceE3 symbol fl ashes if there is a risk of ice.
- Make and receive telephone calls: G
- enter the telephone number, G1
- delete a character, G2
- make the call.G3


Refer to the hands-free telephone section to connect your Bluetooth®
mobile telephone.
F1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
G
EF

264
07
1
2
USB PLAYER

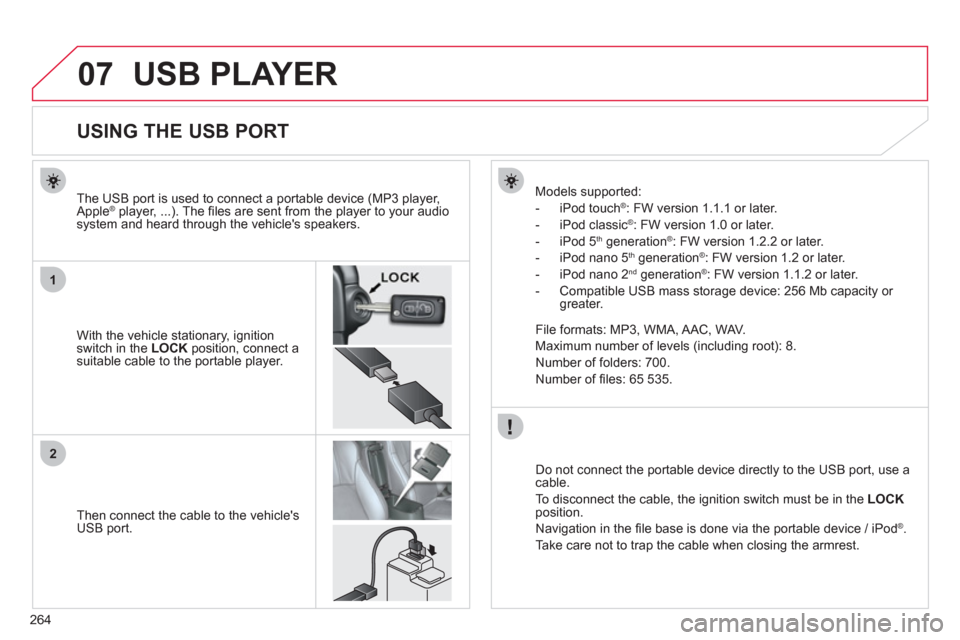

USING THE USB PORT


With the vehicle stationary, ignition switch in the LOCK
position, connect a suitable cable to the portable player.
The USB port is used to connect a portable device
(MP3 player,Apple ®
player, ...). The fi les are sent from the player to your audio ®
system and heard through the vehicle's speakers.

Th
en connect the cable to the vehicle's
USB port. Models supported:
- iP
od touch® : FW version 1.1.1 or later. ®
- iPod classic ®: FW version 1.0 or later.
- iPod
5th generation ®: FW version 1.2.2 or later.
-
iPod nano 5th generation®
: FW version 1.2 or later. ®
- iPod nano 2 nd generation ®: FW version 1.1.2 or later.
-
Compatible USB mass storage device: 256 Mb capacity or greater.
File
formats: MP3, WMA, AAC, WAV.
Maximum number of levels (including root): 8.
Number of folders: 700.
Number of fi les: 65 535.
Do not connect the portable device directly to the U
SB port, use a cable.
To disconnect the cable, the i
gnition switch must be in the LOCKposition.
Navigation in the fi le base is done via the portable device / iPod®.
Take care not to trap the cable when closing the armrest.

265
07USB PLAYER
The number and the name of the track


A. currently being played are displayed.
The name of the album/folder is displayedB. for the track currently being played.
The name of the artist is displayed for theC. track currently being played.
The playing time of the current track is D. displayed.
To display the list of folders of higher E. levels.
To display in list mode. F.
To scroll up or down through the tracks.G.
Press and hold for fast backwards or forwards playing of a track.
To scroll up or down through the folders. H.
To display the secondary menu.I.
Move the cursor to the track being played.J.
Display the format of the current fi le: MP3, K. WMA, AAC, WAV.
Displays the type of medium: USB or iPod.

L.

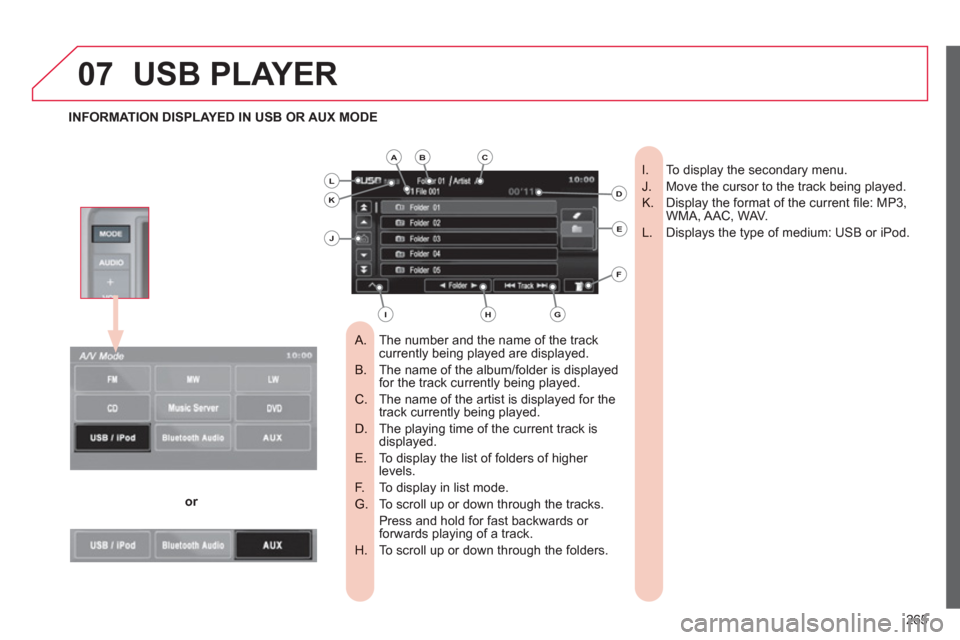

INFORMATION DISPLAYED IN USB OR AUX MODE
or
ABC
D
E
GI
J
K
F
L
H

266
07USB PLAYER
The number and the name of the track


A. currently being played are displayed.
The name of the album/folder is displayedB. for the track currently being played.
The name of the artist is displayed for theC. track currently being played.
The playing time of the current track is D. displayed.
To display/sort each category:E.
The item currently selected and beingF. played is highlighted.
To scroll up or down through the tracks.G.
Press and hold for fast backwards or forwards playing of a track.
To display the secondary menu.H.
Move the cursor onto the track currentlyI. being played.
Displays the type of medium: USB or iPod.

J.

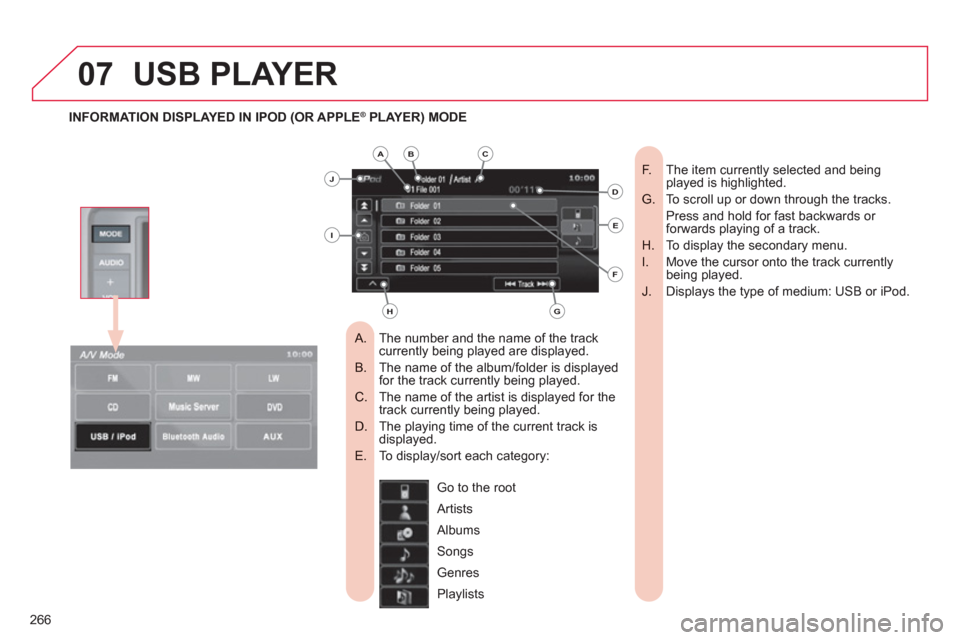

INFORMATION DISPLAYED IN IPOD (OR APPLE® PLAYER) MODE ®
Go to the root
Artists
Albums
Songs
Genres

Pla
ylists
ABC
D
E
GH
I
J
F

267
07

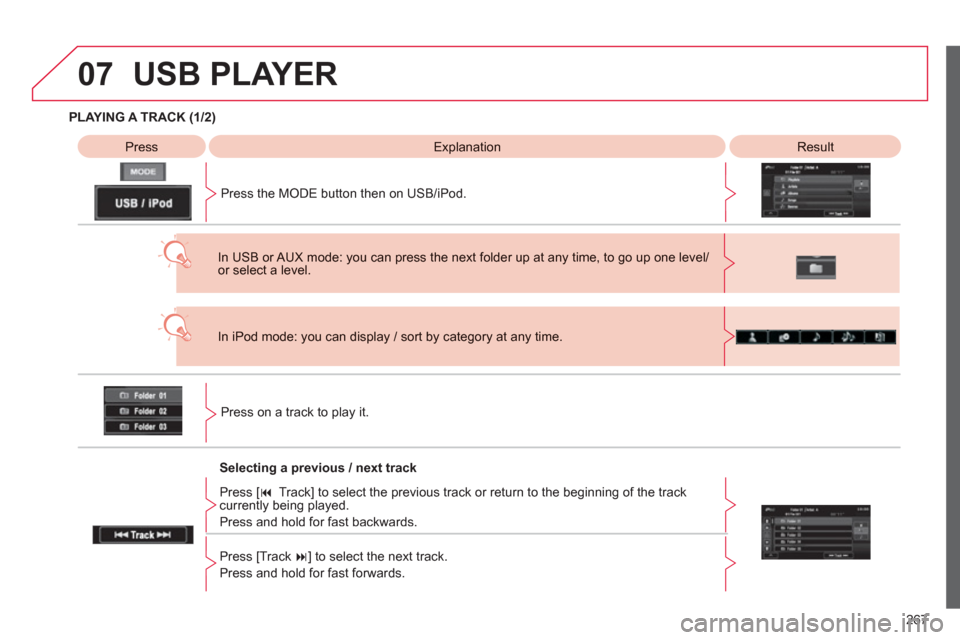

PLAYING A TRACK (1/2)
Press


Explanation

Result
Pr
ess the MODE button then on USB/iPod.
USB PLAYER
Press on a track to play it.
In iPod mode: you can display / sort by category at any time.
In USB or AUX mode: you can press the next folder up at any time, to go up one level/or select a level.
Press [

Track] to select the previous track or return to the beginning of the track currently being played.
Pr
ess and hold for fast backwards. Selectin
g a previous / next track
Press
[Track] to select the next track.
Pr
ess and hold for fast forwards.

268
07

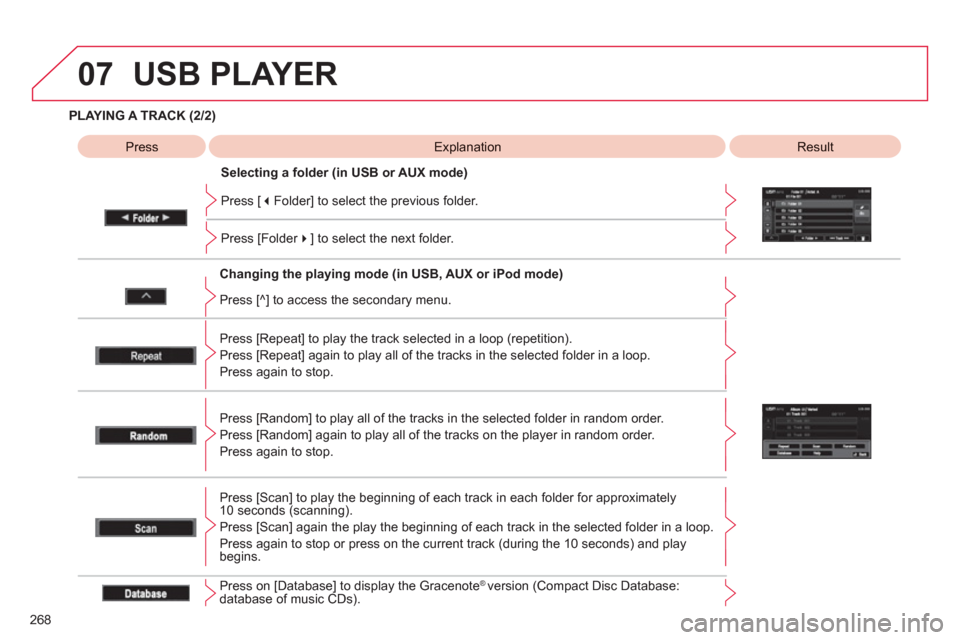

PLAYING A TRACK (2/2)

Chan
ging the playing mode (in USB, AUX or iPod mode)


Press [Repeat] to play the track selected in a loop (repetition).
Press [Repeat] a
gain to play all of the tracks in the selected folder in a loop.
Press a
gain to stop.

Press [
Scan] to play the beginning of each track in each folder for approximately
10 seconds (scanning).
Press [
Scan] again the play the beginning of each track in the selected folder in a loop.
Press a
gain to stop or press on the current track (during the 10 seconds) and play
begins.
Press [Random] to pla
y all of the tracks in the selected folder in random order.
Press [Random] a
gain to play all of the tracks on the player in random order.

Press again to stop.
Press [
^] to access the secondary menu.

Press
Explanation
Result
USB PLAYER


Selecting a folder (in USB or AUX mode)

Press [
Folder] to select the previous folder.

Press
[Folder ] to select the next folder.


Press on [Database] to display the Gracenote®
version (Compact Disc Database:
database of music CDs).
