Citroen C4 AIRCROSS RHD 2013.5 1.G Owner's Manual

289

Level 1


Level 2


Level 3


Comments



Calendar Make a note on the calendar of special days, birthdays, ...
Use the arrows to fi nd a date and press directly on the day required to
enter the event.
User SD Check the capacity of the SD card and the free space.
Voice Control Help Make a telephone call
Verify the use of voice commands. Busy tone
Manage the directory
Pairing
GPS Information Country View GPS information:


- the satellite position chart with the direction and movement of the
vehicle,

- the name of the current location,

- the longitude and latitude of the current location,

- the status of location measurement (2D = 3 satellites or less,
3D = 4 satellites or more),

- the number of satellites visible.

290

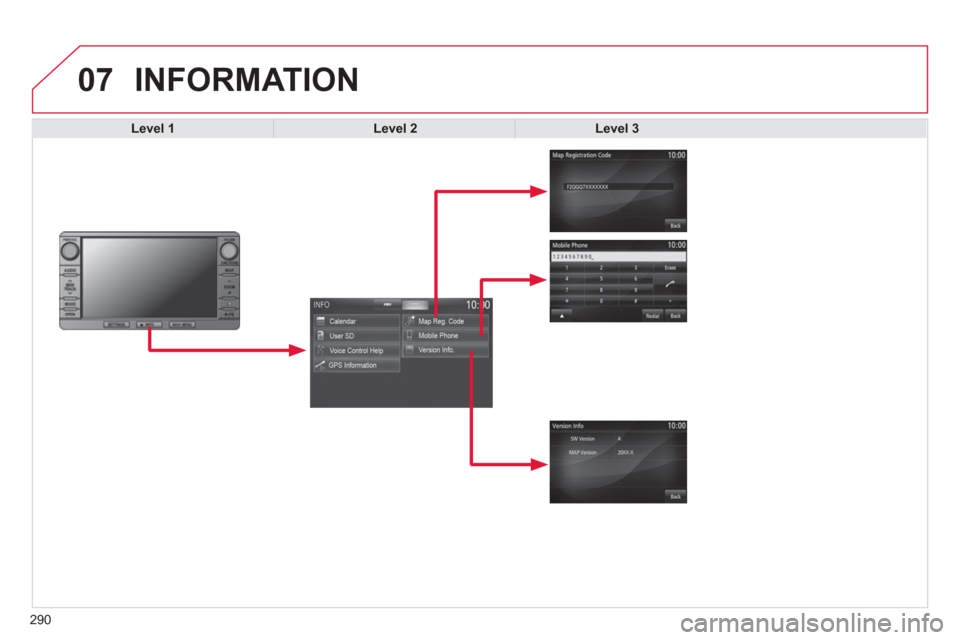

07 INFORMATION


Level 1


Level 2


Level 3

291

Level 1


Level 2


Level 3


Comments



Map Reg. Code Display the registration code for the navigation system.
Mobile Phone Make and receive telephone calls.
Version Info. View the software version and mapping data version.

292
08

Press the MODE
button then " Bluetooth Audio
" to
start Bluetooth mode.










Pairing a telephone


In the Bluetooth menu on your telephone, select the
system name in the list of devices detected.
Enter the code " 1212
" in the telephone and confi rm.
Select the telephone to connect then press this
button.

Press " Select Device to Connect
".
Wait until the telephone detected is displayed.
Press SETTINGS
.
Press " Edit
" to connect the telephone.

Press " System
" then " Pairing
".
You can register or delete a device in the list.


BLUETOOTH ®
STREAMING - TELEPHONE

293





Touch screen AUDIO-CD
system


The system is protected in such a way that it will only
operate in your vehicle.

01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

03 General operation
02 Steering mounted controls

04 Radio

05 CDs

06 USB / iPod
®


07 Bluetooth
®
telephone p.
p. p.
p.
p.
p.
p. 294
295
297
304
307
308
310

294
01 FIRST STEPS


MENU: chose the audio source from the
main menu.

Use the buttons offered on the screen.
PWR: audio system on/off.
Off: mute (with black screen).
VOL: adjust volume.













EJECT: eject the CD.

Move a fi nger over the screen to operate
the system.


For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary.

295
02 STEERING MOUNTED CONTROLS








Increase / reduce audio volume.

Search for a higher / lower radio frequency.
Next / previous CD track.
CD fast forward / back.

Long press: audio system on / off.
Short press: selection of the source in the
following order (in a loop):
CD, USB, iPod, Bluetooth, AUX, FM, MW, LW.

296

297
03 GENERAL OPERATION













Description of controls - Menus



Setting
:


- switch off the screen,

- adjust the touch beep,

- adjust the time or display it continuously,

- select the guidance voice,

- select the picture quality for the screen and reversing
camera,

- select RDS.


FM
/ MW
/ LW
: select a radio
station from:


- frequency modulation (FM),

- medium wave (MW),

- long wave (LW).


BT Audio
: connect a Bluetooth
(2.0) telephone then play the
music fi les by streaming.

AUX
: connect a portable player
to the Jack auxiliary socket then
play the music fi les.


Phone
: make or receive
telephone calls.

Change from one screen
to the other.

Voice
: use the voice
commands.


USB
/ iPod
®
: connect a
portable player by USB or an
iPod
® , then play the music fi les.

CD
: play the music fi les
through the CD player
(WAV, MP3, WMA, AAC).

298

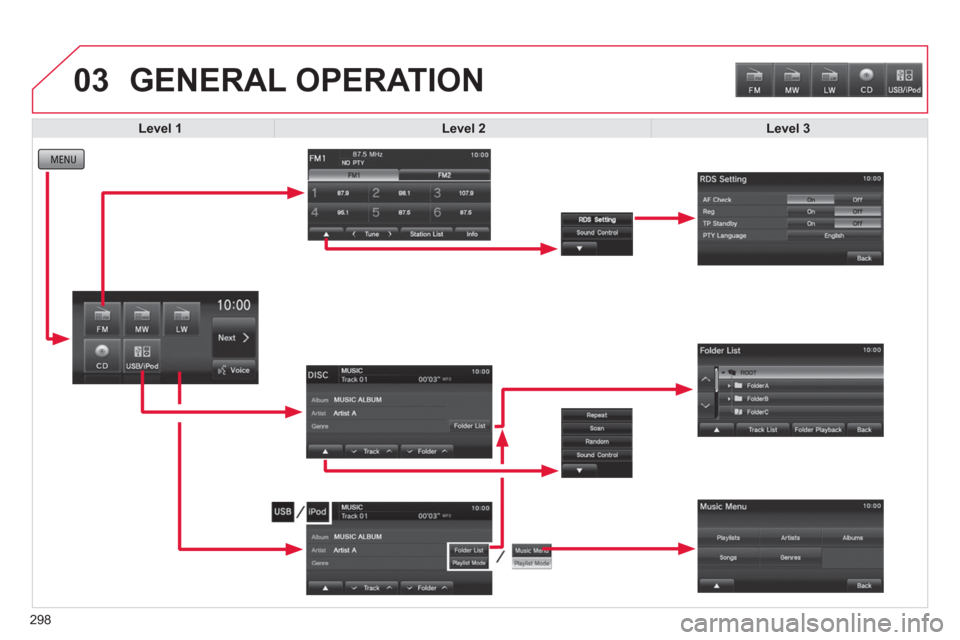

03 GENERAL OPERATION


















Level 1



Level 2



Level 3
