Page 191 of 368
189
7
Practical information

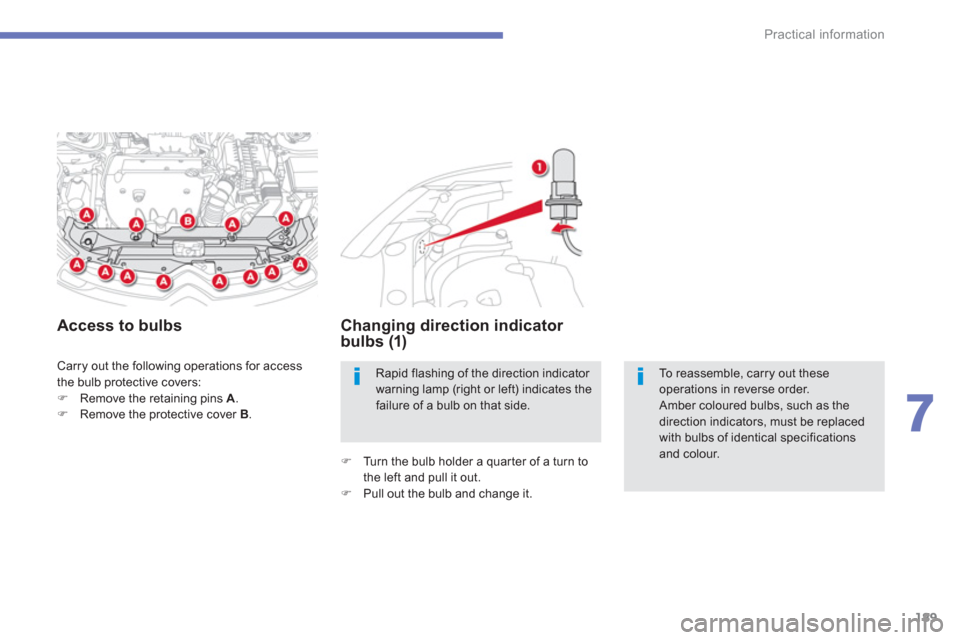

Carry out the following operations for access
the bulb protective covers:
)
Remove the retaining pins A
.
)
Remove the protective cover B
.
Access to bulbs
Changing direction indicator
bulbs (1)
)
Turn the bulb holder a quarter of a turn to
the left and pull it out.
)
Pull out the bulb and change it. Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side. To reassemble, carry out these
operations in reverse order.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
Page 192 of 368
190
Practical information
Changing sidelamp bulbs (4)
)
Remove the protective plastic cover.
)
Turn the bulb holder to the left and pull it
out.
)
Remove the bulb and its base by pressing
on the lug at the bottom.
)
Change the bulb.
For reassembly, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs (2)
)
Turn the bulb holder a quarter turn to the
left and pull it out.
)
Pull out the bulb and replace it.
To reassemble, carry out these operations in
reverse order.
Changing the daytime running
lamps / sidelamps (light- emitting
diodes - LEDs) (6)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
Changing dipped headlamp
bulbs (3)
For the replacement of these bulbs, contact a
CITROËN dealer or a qualified workshop.
To replace these bulbs contact a CITROËN
dealer or a qualified workshop.
Changing front foglamp
bulbs (7) / daytime running
lamp bulbs (5)
Page 193 of 368
191
7
Practical information
)

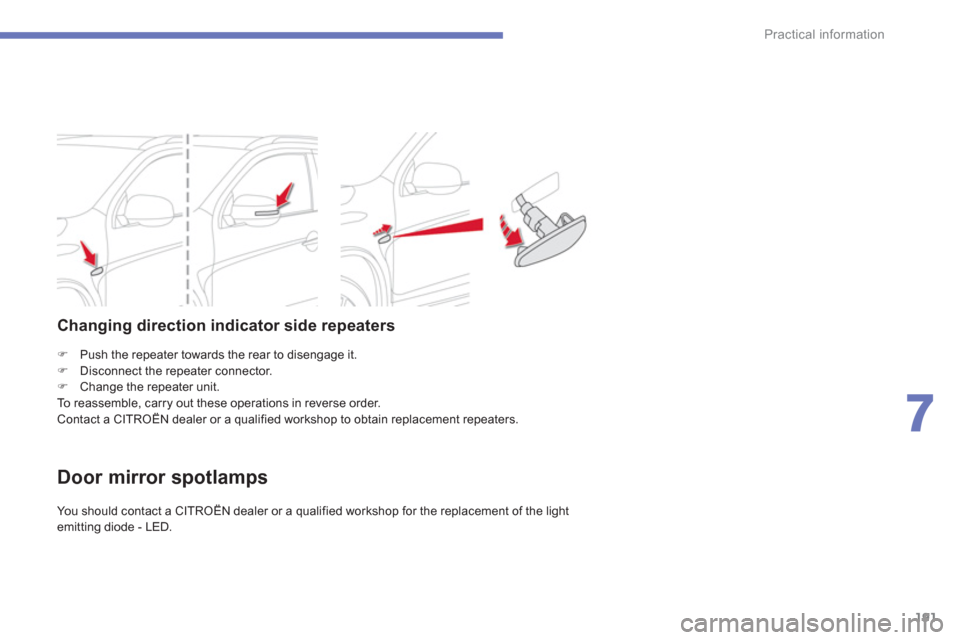

Push the repeater towards the rear to disengage it.
)
Disconnect the repeater connector.
)
Change the repeater unit.
To reassemble, carry out these operations in reverse order.
Contact a CITROËN dealer or a qualified workshop to obtain replacement repeaters.
Changing direction indicator side repeaters
Door mirror spotlamps
You should contact a CITROËN dealer or a qualified workshop for the replacement of the light
emitting diode - LED.
Page 194 of 368
192
Practical information

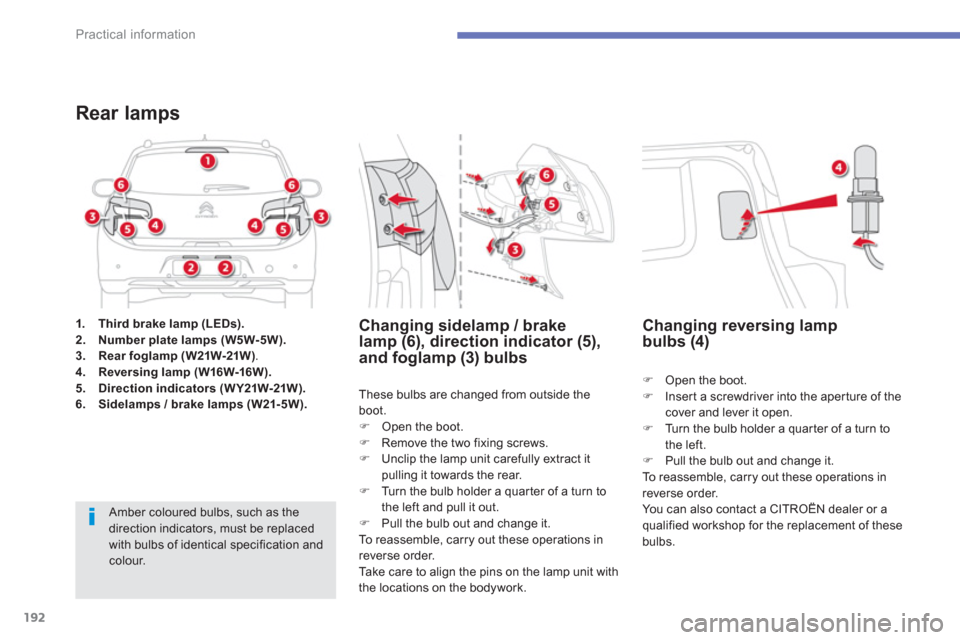

1.
Third brake lamp (LEDs).
2.
Number plate lamps (W5W- 5W).
3.
Rear foglamp (W21W-21W)
.
4.
Reversing lamp ( W16W-16W ).
5.
Direction indicators ( W Y21W-21W ).
6.
Sidelamps / brake lamps (W21- 5W).
Rear lamps
These bulbs are changed from outside the
boot.
)
Open the boot.
)
Remove the two fixing screws.
)
Unclip the lamp unit carefully extract it
pulling it towards the rear.
)
Turn the bulb holder a quarter of a turn to
the left and pull it out.
)
Pull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Take care to align the pins on the lamp unit with
the locations on the bodywork.
Changing sidelamp / brake
lamp (6), direction indicator (5),
and foglamp (3) bulbs
)
Open the boot.
)
Insert a screwdriver into the aperture of the
cover and lever it open.
)
Turn the bulb holder a quarter of a turn to
the left.
)
Pull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Changing reversing lamp
bulbs (4)
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
colour.
Page 195 of 368
193
7
Practical information

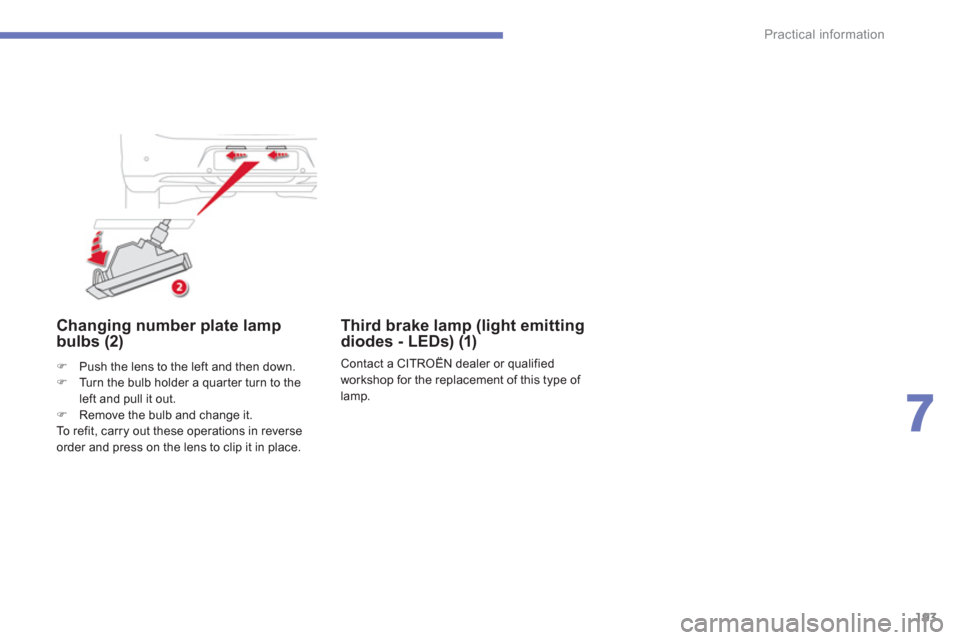

Changing number plate lamp
bulbs (2)
)
Push the lens to the left and then down.
)
Turn the bulb holder a quarter turn to the
left and pull it out.
)
Remove the bulb and change it.
To refit, carry out these operations in reverse
order and press on the lens to clip it in place.
Third brake lamp (light emitting
diodes - LEDs) (1)
Contact a CITROËN dealer or qualified
workshop for the replacement of this type of
lamp.
Page 196 of 368
194
Practical information

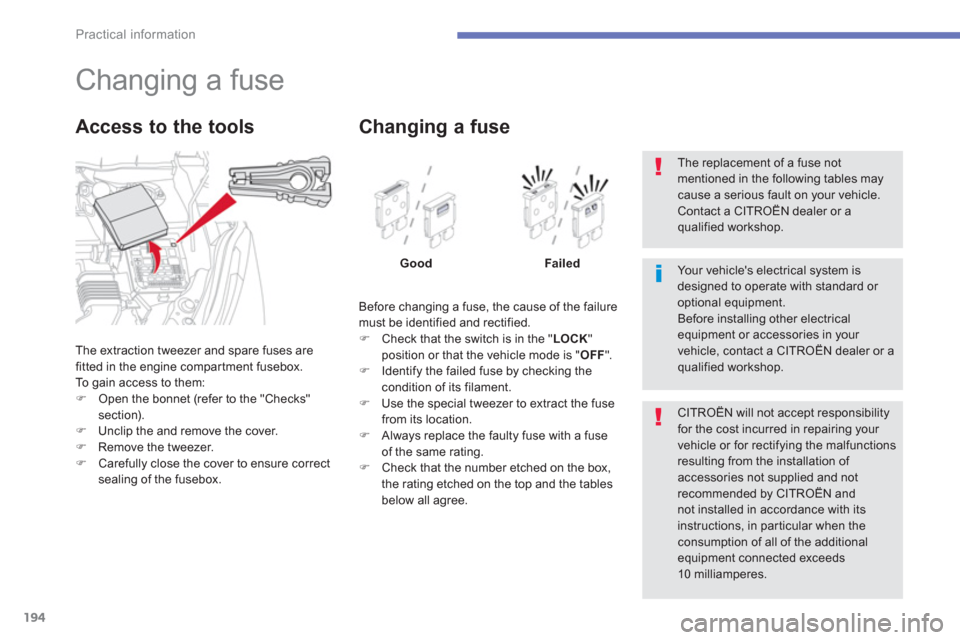

Changing a fuse
The extraction tweezer and spare fuses are
fitted in the engine compartment fusebox.
To gain access to them:
)
Open the bonnet (refer to the "Checks"
section).
)
Unclip the and remove the cover.
)
Remove the tweezer.
)
Carefully close the cover to ensure correct
sealing of the fusebox.
Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified.
)
Check that the switch is in the " LOCK
"
position or that the vehicle mode is " OFF
".
)
Identify the failed fuse by checking the
condition of its filament.
)
Use the special tweezer to extract the fuse
from its location.
)
Always replace the faulty fuse with a fuse
of the same rating.
)
Check that the number etched on the box,
the rating etched on the top and the tables
below all agree.
Changing a fuse
Good
Failed
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
consumption of all of the additional
equipment connected exceeds
10 milliamperes.
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a CITROËN dealer or a
qualified workshop.
The replacement of a fuse not
mentioned in the following tables may
cause a serious fault on your vehicle.
Contact a CITROËN dealer or a
qualified workshop.
Page 197 of 368
195
7
Practical information
Dashboard fuses
The fuses are located in the lower dashboard
behind the glove box.
Access to the fuses
)
Open the glove box.
)
Push the two opening guides towards the
middle to by-pass the first catch.
)
Hold the glove box lid and tilt it downwards.
Fuse N°
Rating
Functions
1*
30 A
Cabin fan.
2
15 A
Brake lamps, third brake lamp.
3
10 A
Rear foglamps.
4
30 A
Windscreen wiper, screenwash.
6
20 A
Central locking, electric door mirrors.
7
15 A
Audio equipment, telematics, USB unit, Bluetooth system.
8
7.5 A
Remote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
9
15 A
Instrument panel and cabin lighting.
10
15 A
Hazard warning lamps
11
15 A
Rear wiper.
12
7.5 A
Instrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.
13
15 A
Cigarette lighter, accessory socket.
15
20 A
Electric blind.
16
10 A
Door mirrors, audio equipment.
Page 198 of 368
196
Practical information

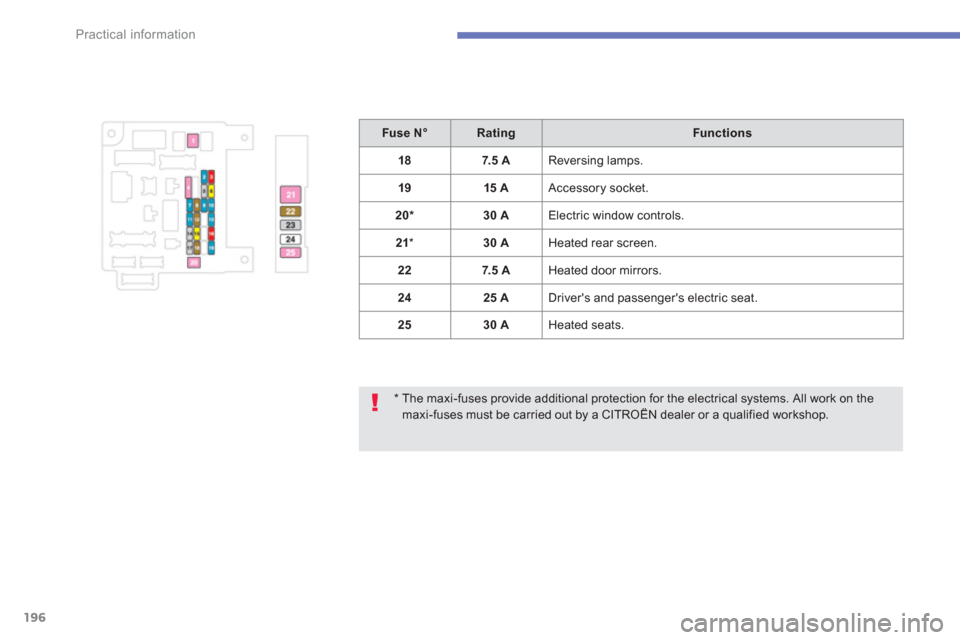

* The maxi-fuses provide additional protection for the electrical systems. All work on the
maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.
Fuse N°
Rating
Functions
18
7.5 A
Reversing lamps.
19
15 A
Accessory socket.
20*
30 A
Electric window controls.
21
*
30 A
Heated rear screen.
22
7.5 A
Heated door mirrors.
24
25 A
Driver's and passenger's electric seat.
25
30 A
Heated seats.
Page 199 of 368
197
7
Practical information
Engine compartment fuses
Access to the fuses
)
Unclip the cover and remove it completely.
Fuse N°
Rating
Functions
1
15 A
Front foglamps.
4
10 A
Horn.
5
7.5 A
Alternator.
6
20 A
Headlamp wash.
7
10 A
Air conditioning.
9
20 A
Alarm.
10
15 A
Demisting, wipers.
11
-
Not used.
12
-
Not used. The fusebox is placed in the engine
compartment (left-hand side).
Page 200 of 368
198
Practical information
Fuse N°
Rating
Functions
13
10 A
Daytime running lamps.
14
10 A
Left-hand main beam headlamp.
15
10 A
Right-hand main beam headlamp.
16
20 A
Left-hand dipped beam headlamp (xenon).
17
20 A
Right-hand dipped beam headlamp (xenon).
18
10 A
Left-hand dipped beam headlamp (halogen), manual and
automatic headlamp adjustment.
19
10 A
Right-hand dipped beam headlamp (halogen).
31
30 A
Audio amplifier. The maxi-fuses provide additional
protection for the electrical systems. All
work on the maxi-fuses must be carried
out by a CITROËN dealer or a qualified
workshop.
Carefully close the cover after replacing
a fuse so as to ensure the correct
sealing of the fusebox.
