Citroen C4 AIRCROSS RHD 2017 1.G Owner's Manual

05
309

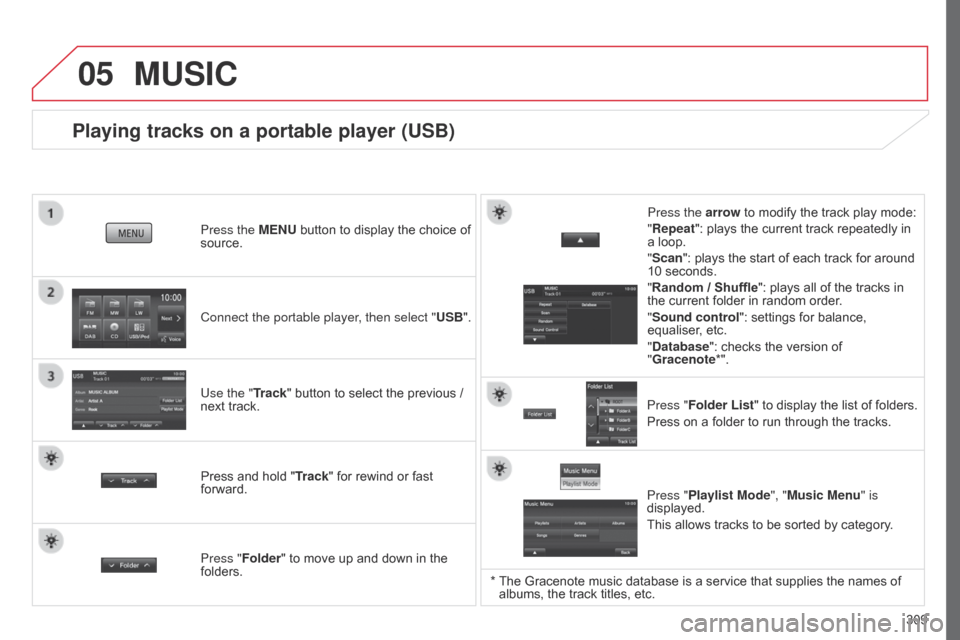

Playing tracks on a portable player (USB)
Connect the portable player, then select "USB". Press the MENU button to display the choice of
source.
Use the "Track" button to select the previous /
next track.
MUSIC
Press and hold "Track" for rewind or fast
forward. Press the arrow to modify the track play mode:
"Repeat": plays the current track repeatedly in
a loop.
"Scan": plays the start of each track for around
10 seconds.
"Random / Shuffle
": plays all of the tracks in
the current folder in random order.
"Sound control ": settings for balance,
equaliser, etc.
"Database ": checks the version of
"Gracenote*".
Press "Folder List " to display the list of folders.
Press on a folder to run through the tracks.
Press "Folder" to move up and down in the
folders. Press "Playlist Mode", "Music Menu" is
displayed.
This allows tracks to be sorted by category.
* The Gracenote music database is a service that supplies the names of
albums, the track titles, etc.

06
310

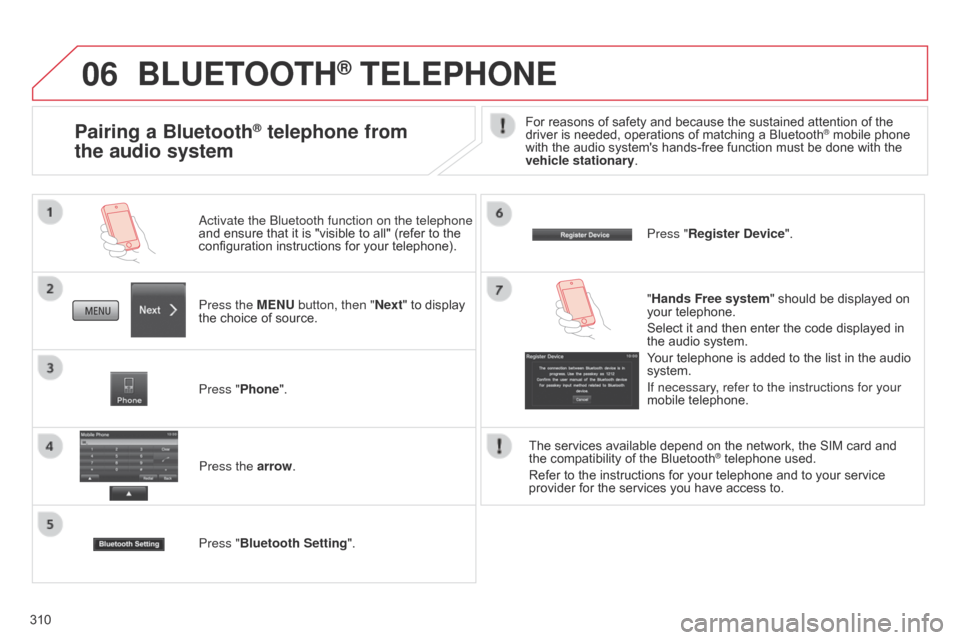

BLUETOOTH® TELEPHONE
Press the MENU button, then "Next" to display
the choice of source. Activate the Bluetooth function on the telephone
and ensure that it is "visible to all" (refer to the
configuration instructions for your telephone).
Press "Phone".Press the arrow.
Press "Bluetooth Setting ". Press "Register Device
".
Pairing a Bluetooth® telephone from
the audio systemFor reasons of safety and because the sustained attention of the
driver is needed, operations of matching a Bluetooth® mobile phone
with the audio system's hands-free function must be done with the
vehicle stationary.
"Hands Free system " should be displayed on
your telephone.
Select it and then enter the code displayed in
the audio system.
Your telephone is added to the list in the audio
system.
If necessary, refer to the instructions for your
mobile telephone.
The services available depend on the network, the SIM card and
the

compatibility of the Bluetooth
® telephone used.
Refer to the instructions for your telephone and to your service
provider for the services you have access to.

06
3 11
Making a call
BLUETOOTH® TELEPHONE
Press the "MENU" button, then "Next" to
display the choice of source
Press "Phone".
Enter the number then press the telephone.
Managing paired telephones
Press the MENU button, then "Next" to display
the choice of source.
Press "Phone".
Press the arrow then press "Bluetooth
Setting".
Use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls. Select or change a telephone already paired.
Pair/register a new telephone
Delete a paired telephone

312

313
AUDIO-CD system
The system is protected in such a way that it will only
operate in your vehicle.01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

Steering mounted
controls
03

General
operation
04
Radio
05

Music media players
06


USB player
07

BLUETOOTH
® streaming
Error messages p.
p.
p.
p.
p.
p.
p.
p. 314
316
317
319
326
331
333
335

01

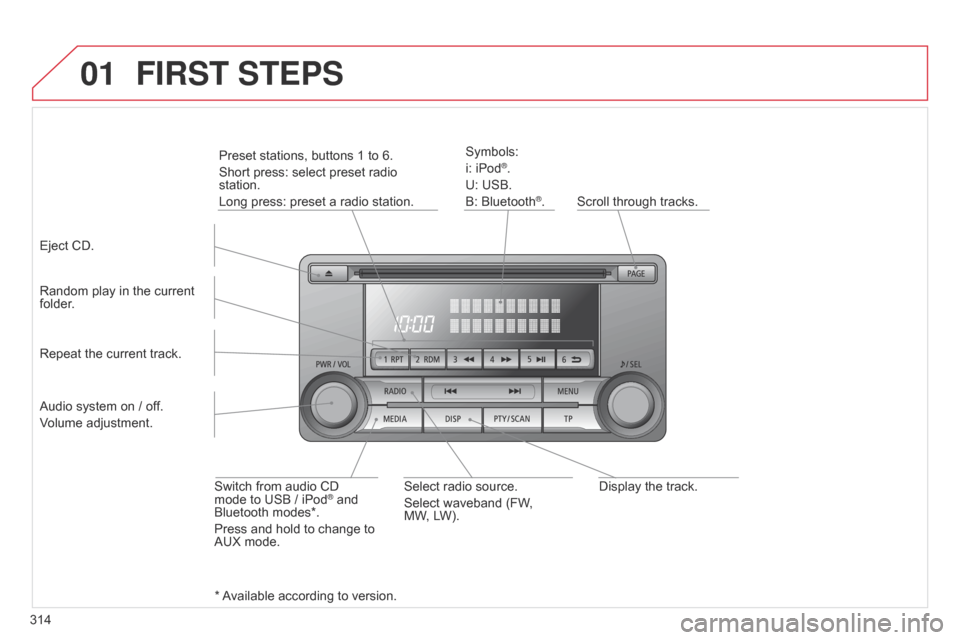

314Display the track.
Scroll through tracks.
Symbols:
i: iPod
®.
U: USB.
B: Bluetooth
®.
Random play in the current
folder.
Switch from audio CD
mode to USB

/ iPod
® and
Bluetooth modes*.
Press and hold to change to
AUX mode.
Repeat the current track.
FIRST STEPS
Audio system on / off.
V olume adjustment.
Select radio source.
Select waveband (FW,
MW,
LW).
* Available according to version.
Eject CD.
Preset stations, buttons 1 to 6.
Short press: select preset radio
station.
Long press: preset a radio station.

01
315

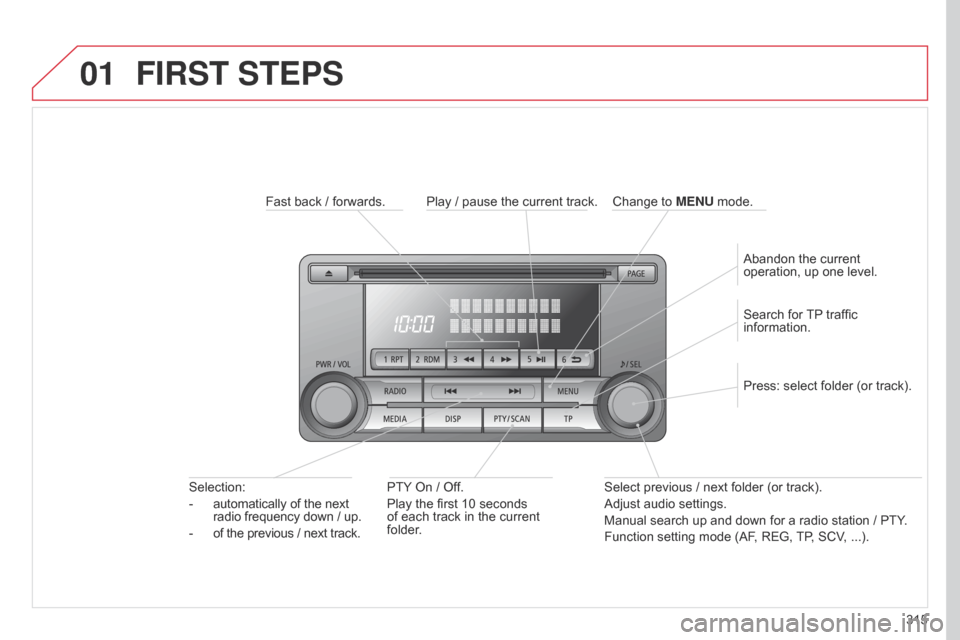

FIRST STEPS
Fast back / forwards.PTY On / Off.
Play the first 10 seconds
of each track in the current
folder.
Selection:
-
automatically of the next


radio frequency down
/ up.
-
of the previous

/ next track. Select previous
/ next folder (or track).
Adjust audio settings.
Manual search up and down for a radio station
/ PTY.
Function setting mode (AF, REG, TP, SCV,
...).
Press: select folder (or track). Search for TP traffic
information.
Play
/ pause the current track.
Abandon the current
operation, up one level.
Change to
MENU mode.

02
316

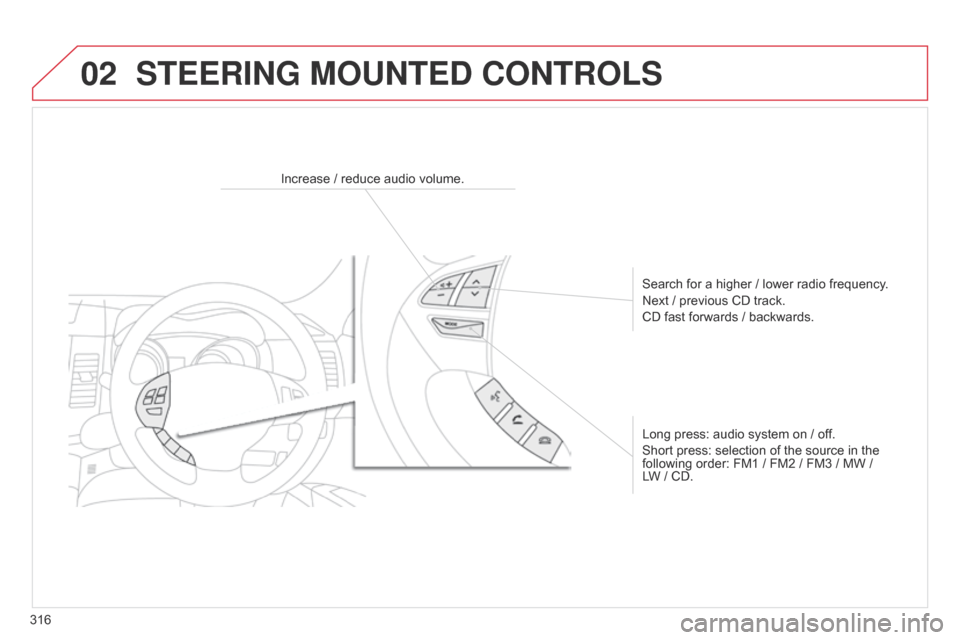

STEERING MOUNTED CONTROLS
Increase / reduce audio volume.Search for a higher / lower radio frequency.
Next
/ previous CD track.
CD fast forwards
/ backwards.
Long press: audio system on
/ off.
Short press: selection of the source in the
following order: FM1
/ FM2 / FM3 / MW /
LW
/ CD.

03
317

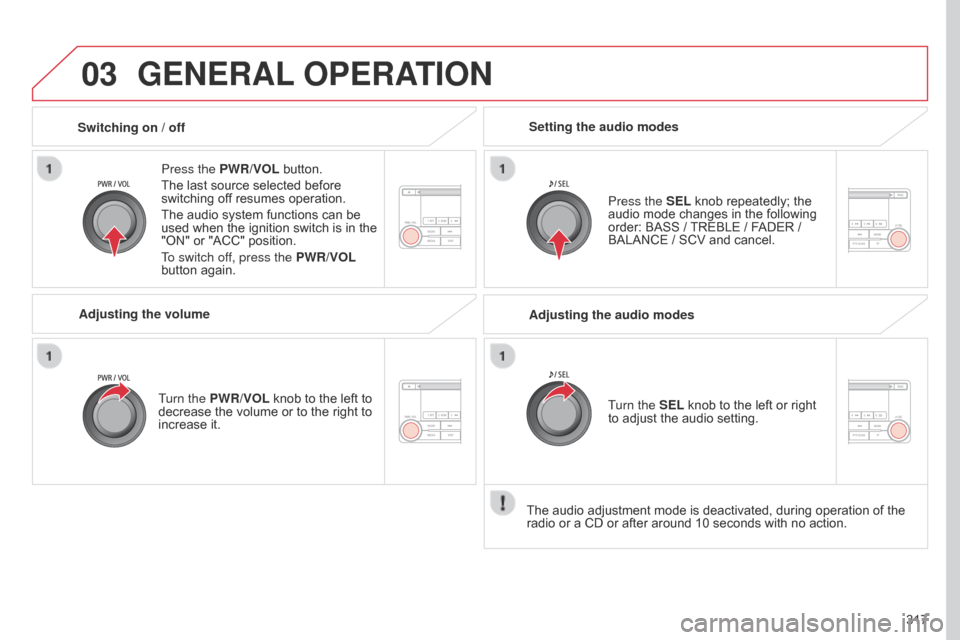

GENERAL OPERATION
Press the PWR/VOL button.
The last source selected before
switching off resumes operation.
The audio system functions can be
used when the ignition switch is in the
"ON" or "ACC" position.
To switch off, press the PWR/VOL
button again.
Adjusting the volume
Turn the PWR/VOL knob to the left to
decrease the volume or to the right to
increase it. Press the SEL knob repeatedly; the
audio mode changes in the following
order: BASS / TREBLE / FADER /
BALANCE / SCV and cancel.
Setting the audio modes
Switching on
/ off
The audio adjustment mode is deactivated, during operation of the
radio or a CD or after around 10 seconds with no action.Adjusting the audio modes
Turn the SEL knob to the left or right
to adjust the audio setting.

03

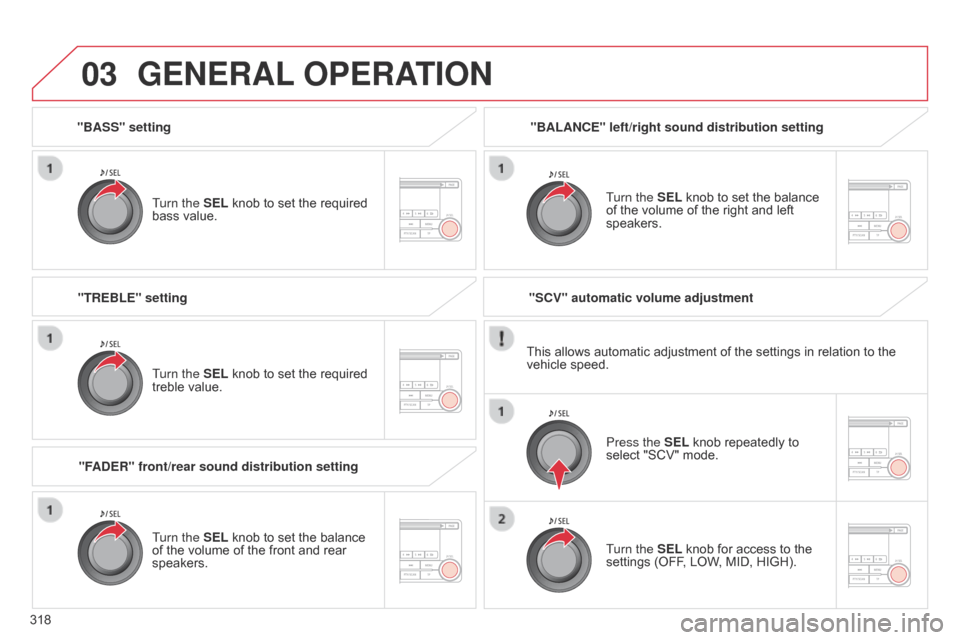

318"BASS" setting
Turn the SEL knob to set the required
bass value.
GENERAL OPERATION
Turn the SEL knob to set the required
treble value.
"FADER" front/rear sound distribution setting "BALANCE" left/right sound distribution setting
Turn the SEL knob to set the balance
of the volume of the right and left
speakers.
Turn the SEL knob to set the balance
of the volume of the front and rear
speakers. "SCV" automatic volume adjustment
"TREBLE" setting
This allows automatic adjustment of the settings in relation to the
vehicle speed.
Turn the SEL knob for access to the
settings (OFF, LOW, MID, HIGH). Press the SEL knob repeatedly to
select "SCV" mode.
