Citroen C4 CACTUS 2014 1.G Owner's Manual

119
E3_en_Chap06_visibilite_ed01-2014
Parking lamps
Switching on
F W ith the ignition off, "flash" the headlamps
using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time. The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F

W

ithin one minute of switching off the
ignition, operate the lighting control stalk
up or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position.
Guide-me-home lighting
Automatic
When the automatic illumination of headlamps
is activated, if the ambient light level is low,
dipped beam comes on automatically when
switching off the ignition.
Activation or deactivation of the system, as well
as the period for the guide-me-home lighting
are set in the touch screen tablet.
F

Sel
ect the "Driving assistance "
menu.
F

I
n the secondary page, press
" Vehicle settings ".
Manual
6
Visibility

120
E3_en_Chap06_visibilite_ed01-2014
Headlamp adjustment
To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.The initial setting is position "0" .
Travelling abroad
The design of the dipped beam
headlamps allows, without modification,
driving in a country that drives on the
other side of the road to the country in
which your vehicle was sold.
0.

D

river only
o

r driver + front passenger.
-.

D

river + front passenger + rear
passengers.
1.
D

river + front passenger + rear passengers
+ load in the boot.
-.

D

river + front passenger + rear passengers
+ load in the boot.
2.
D

river only + maximum authorised load in
the boot.
This position is sufficient to avoid causing dazzle.
Higher settings may limit the spread of light
from the headlamps.
Visibility

121
E3_en_Chap06_visibilite_ed01-2014

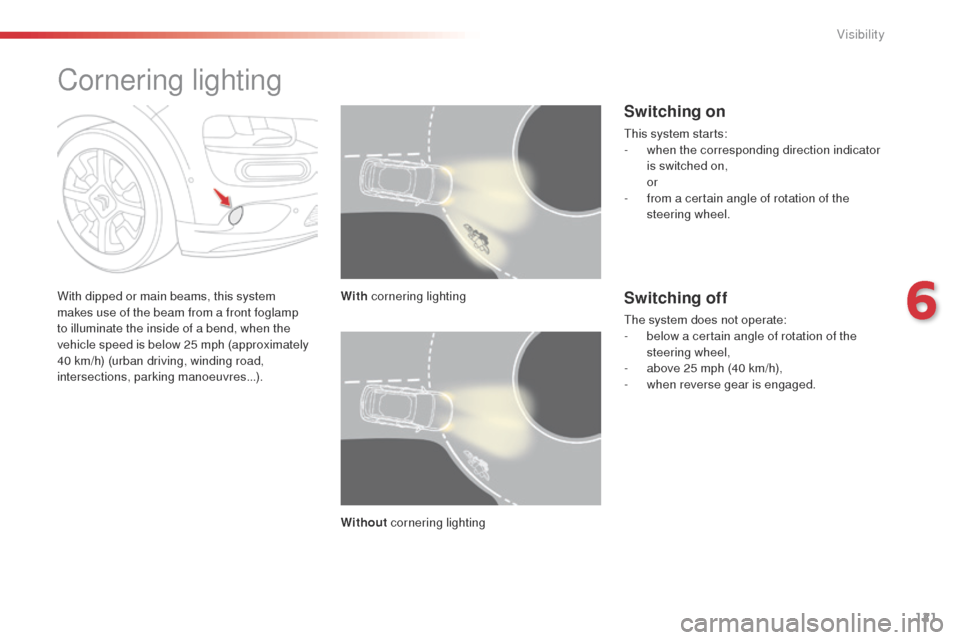

Cornering lighting
With dipped or main beams, this system
makes use of the beam from a front foglamp
to illuminate the inside of a bend, when the
vehicle speed is below 25 mph (approximately
40 km/h) (urban driving, winding road,
intersections, parking manoeuvres...).With cornering lighting
Without cornering lighting
Switching on
This system starts:
-
w hen the corresponding direction indicator
is switched on,


or
-

f
rom a certain angle of rotation of the
steering wheel.
Switching off
The system does not operate:
- b elow a certain angle of rotation of the
steering wheel,
-

a
bove 25 mph (40 km/h),
-
w

hen reverse gear is engaged.
6
Visibility

122
E3_en_Chap06_visibilite_ed01-2014
Wiper control stalk
Manual controls
The wipers are controlled directly by the driver.
Model with AUTO wiping Model with manual wipingWindscreen wipers
Wiping speed control stalk: raise or lower the
stalk to the desired position.
Fast wipe (heavy rain).
Normal wipe (moderate rain).
Intermittent wipe (proportional to the
speed of the vehicle).
Park.
Single wipe (press downwards or pull
the stalk briefly towards you, then
release).
or Automatic wiping (press down,
then release) or single wipe (pull
the stalk briefly towards you).
Do not operate the wipers on a dry
windscreen. Under extremely hot or
cold conditions, ensure that the wiper
blades are not stuck to the windscreen,
before operating the wipers. In wintry conditions, remove snow, ice
or frost present on the windscreen,
around the wiper arms and blades and
the windscreen seal, before operating
the wipers.
Visibility

123
E3_en_Chap06_visibilite_ed01-2014

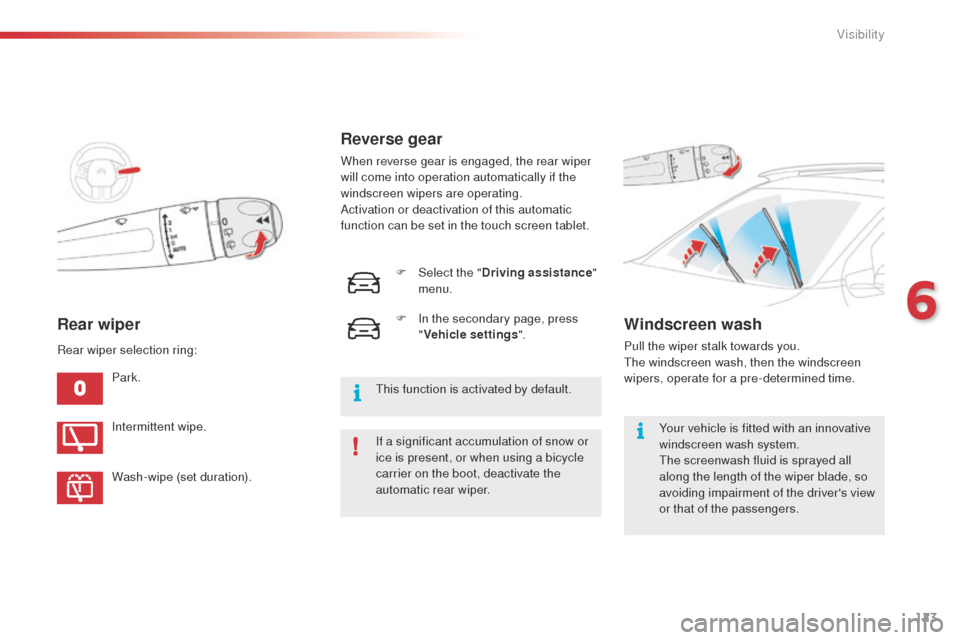

Rear wiper
Park.If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, deactivate the
automatic rear wiper.
Intermittent wipe.
Wash-wipe (set duration).
Rear wiper selection ring:
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are operating.
Activation or deactivation of this automatic
function can be set in the touch screen tablet.
Windscreen wash
Pull the wiper stalk towards you.
The
windscreen wash, then the windscreen
wipers, operate for a pre-determined time.
Your vehicle is fitted with an innovative
windscreen wash system.
The screenwash fluid is sprayed all
along the length of the wiper blade, so
avoiding impairment of the driver's view
or that of the passengers.
F

Sel

ect the "
Driving assistance "
menu.
F

I

n the secondary page, press
" Vehicle settings ".
This function is activated by default.
6
Visibility

124
E3_en_Chap06_visibilite_ed01-2014
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Switching onSwitching offThe automatic rain sensitive windscreen
wipers must be reactivated by pushing
the control stalk downwards, if the
ignition has been off for more than
one


minute.
Briefly push the control stalk
downwards.
A wiping cycle confirms that the
instruction has been accepted.
This warning lamp comes on in the
instrument panel and a message is
displayed. Briefly push the control stalk
downwards again, or place the
control stalk in another position (Int,
1 or 2).
Automatic rain sensitive
windscreen wipers
This warning lamp goes off in the instrument
panel and a message is displayed.
Visibility

125
E3_en_Chap06_visibilite_ed01-2014

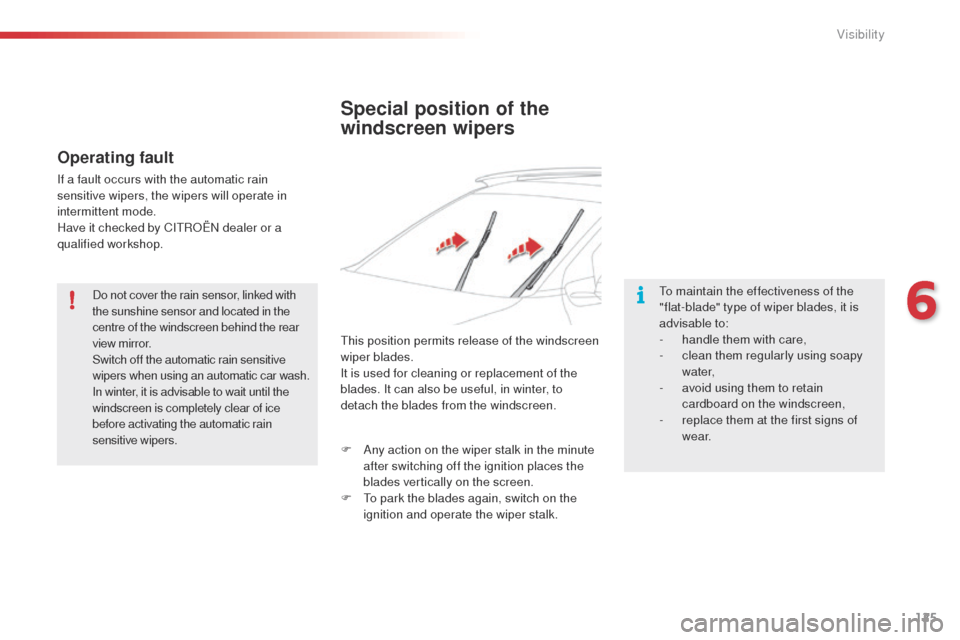

Special position of the
windscreen wipers
To maintain the effectiveness of the
"flat-blade" type of wiper blades, it is
advisable to:
-
h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have it checked by CITROËN dealer or a
qualified workshop.
F

A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk.
6
Visibility

126
E3_en_Chap06_visibilite_ed01-2014
Panoramic sunroof
This glazed roof provides increased visibility
and light in the passenger compartment, while
maintaining normal temperatures thanks to its
"high thermal protection" coating.
Advice on care
In order to preserve the properties of the
glazed roof, we recommend that you wipe or
clean the inner glass using a clean, soft and
dry cloth.
For stubborn stains, the glass should be
cleaned using screenwash fluid, rinsed with
clean water, then dried with a clean, soft cloth.
Do not use soapy water, abrasive
products, detergents (particularly those
with an ammonia base), solvents,
solutions with a high concentration of
alcohol, petrol, ...
Visibility

127
E3_en_Chap06_visibilite_ed01-2014
Courtesy lamp
1. Courtesy lamp
2. Map reading lamps F

W
ith the ignition on, press the
corresponding switch.
Map reading lamps
With the "permanent lighting" mode,
the lighting time varies according to the
circumstances:
-

with the ignition off, approximately ten minutes,- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
In this position, the courtesy lamp
comes on gradually:
Permanently off.
Permanent lighting.
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-
w

hen opening a door,
-

w

hen the remote control locking button is
pressed, in order to locate your vehicle. Take care to avoid leaving anything in
contact with the courtesy lamp.
Courtesy lamp
It switches off gradually:
-
w hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.
6
Visibility

128
E3_en_Chap06_visibilite_ed01-2014
This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.
Different lighting times are provided:
-
w
hen the ignition is off, approximately
ten


minutes,
-

i
n energy economy mode, approximately
thirty seconds,
-

w
hen the engine is running, no limit.
Boot lamp

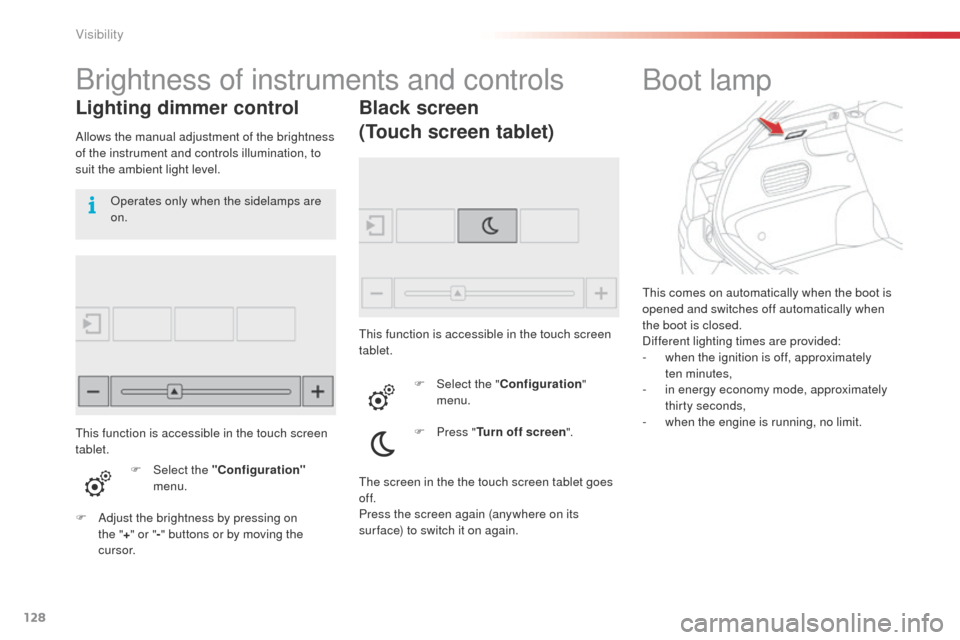

Brightness of instruments and controls
Lighting dimmer control
Allows the manual adjustment of the brightness
of the instrument and controls illumination, to
suit the ambient light level.
F

Sel
ect the "Configuration"
menu.
F

A
djust the brightness by pressing on
the
"+ " or " -" buttons or by moving the
c u r s o r. Operates only when the sidelamps are
on.
Black screen
(Touch screen tablet)
This function is accessible in the touch screen
tablet.
F

Sel
ect the "Configuration "
menu.
F

P
ress "Turn off screen ".
This function is accessible in the touch screen
tablet.
The screen in the the touch screen tablet goes
of f.
Press the screen again (anywhere on its
sur face) to switch it on again.
Visibility
