Citroen C4 CACTUS 2014 1.G Owner's Manual

99
E3_en_Chap05_conduite_ed01-2014

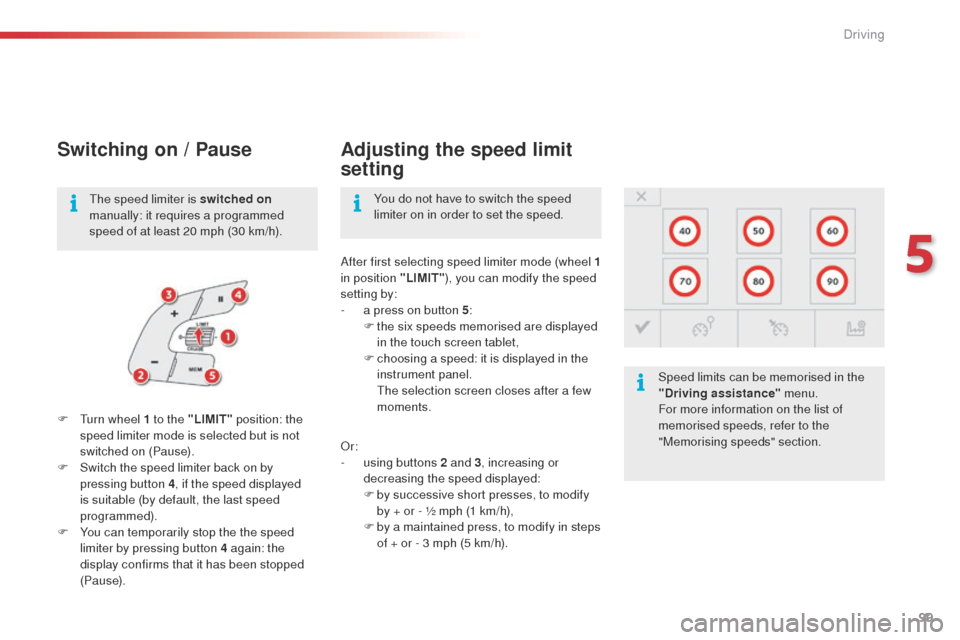

Switching on / Pause
F Turn wheel 1 to the "LIMIT" position: the
speed limiter mode is selected but is not
switched on (Pause).
F

S
witch the speed limiter back on by
pressing button 4 , if the speed displayed
is suitable (by default, the last speed
programmed).
F

Y
ou can temporarily stop the the speed
limiter by pressing button 4 again: the
display confirms that it has been stopped
(Pause). After first selecting speed limiter mode (wheel 1
in position "LIMIT"), you can modify the speed
setting by:
-

a p
ress on button 5
:
F
t
he six speeds memorised are displayed
in the touch screen tablet,
F
c
hoosing a speed: it is displayed in the
instrument panel.
T
he selection screen closes after a few
moments. Speed limits can be memorised in the
"Driving assistance"
menu.
For more information on the list of
memorised speeds, refer to the
"Memorising speeds" section.
You do not have to switch the speed
limiter on in order to set the speed.
The speed limiter is switched on

manually: it requires a programmed
speed of at least 20 mph (30 km/h).
Adjusting the speed limit
setting
Or:
- u sing buttons 2 and 3 , increasing or
decreasing the speed displayed:
F

b
y successive short presses, to modify
by + or - ½ mph (1 km/h),
F

b
y a maintained press, to modify in steps
of + or - 3 mph (5 km/h).
5
Driving

100
E3_en_Chap05_conduite_ed01-2014
On sharp acceleration, as when
descending a steep hill, the speed
limiter will not be able to prevent
the vehicle from exceeding the
programmed speed.
The limiter is temporarily deactivated
and the displayed programmed speed
flashes.
An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver.
The use of mats not approved by
CITROËN may inter fere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
-
e
nsure that the mat is secured
c o r r e c t l y,
-

d
o not fit one mat on top of another.
Flashing of the dashes indicates a fault with the
speed limiter.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating fault
Switching off
F Turn wheel 1 to the "0" position. T
he display of information related to the
speed limiter disappears.
F
Press
firmly on the accelerator pedal,
going beyond the point of resistance,

to
exceed the programmed speed limit.
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes.

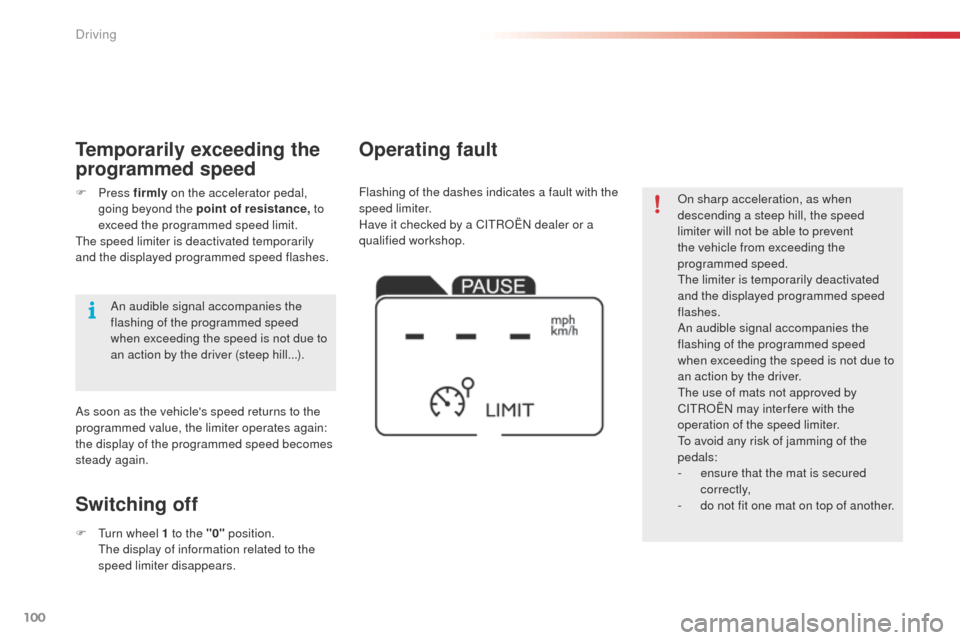

Temporarily exceeding the
programmed speed
As soon as the vehicle's speed returns to the
programmed value, the limiter operates again:
the display of the programmed speed becomes
steady again. An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver (steep hill...).
Driving

101
E3_en_Chap05_conduite_ed01-2014

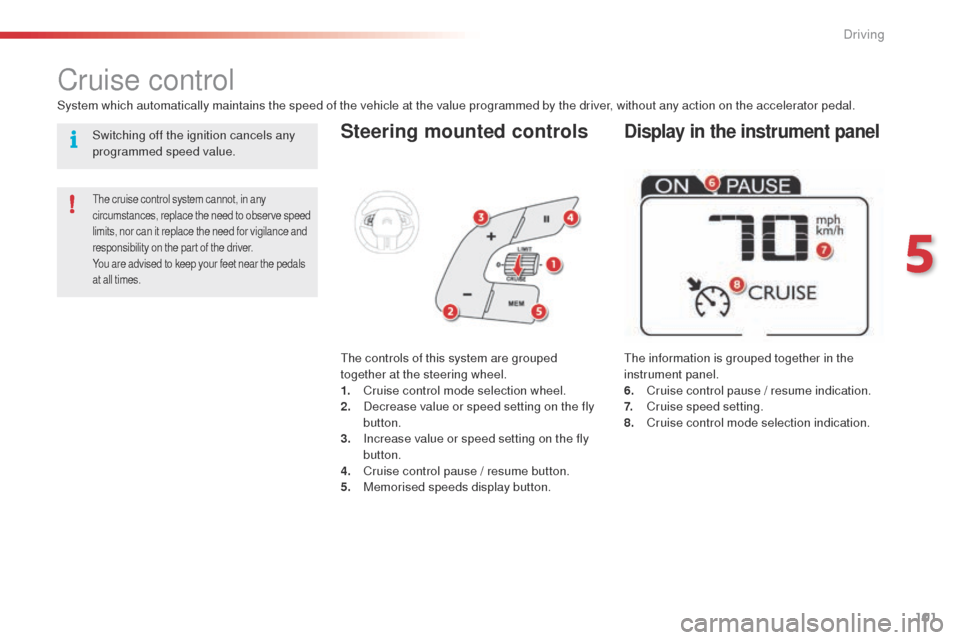

Steering mounted controls
The information is grouped together in the
instrument panel.
6.
C
ruise control pause / resume indication.
7.
C

ruise speed setting.
8.
C

ruise control mode selection indication.
Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control system cannot, in any
circumstances, replace the need to observe speed
limits, nor can it replace the need for vigilance and
responsibility on the part of the driver.
You are advised to keep your feet near the pedals
at all times.
The controls of this system are grouped
together at the steering wheel.
1.
C
ruise control mode selection wheel.
2.
D

ecrease value or speed setting on the fly
button.
3.
I

ncrease value or speed setting on the fly
button.
4.
C

ruise control pause / resume button.
5.
M

emorised speeds display button.
Display in the instrument panelSwitching off the ignition cancels any
programmed speed value.
5
Driving

102
E3_en_Chap05_conduite_ed01-2014

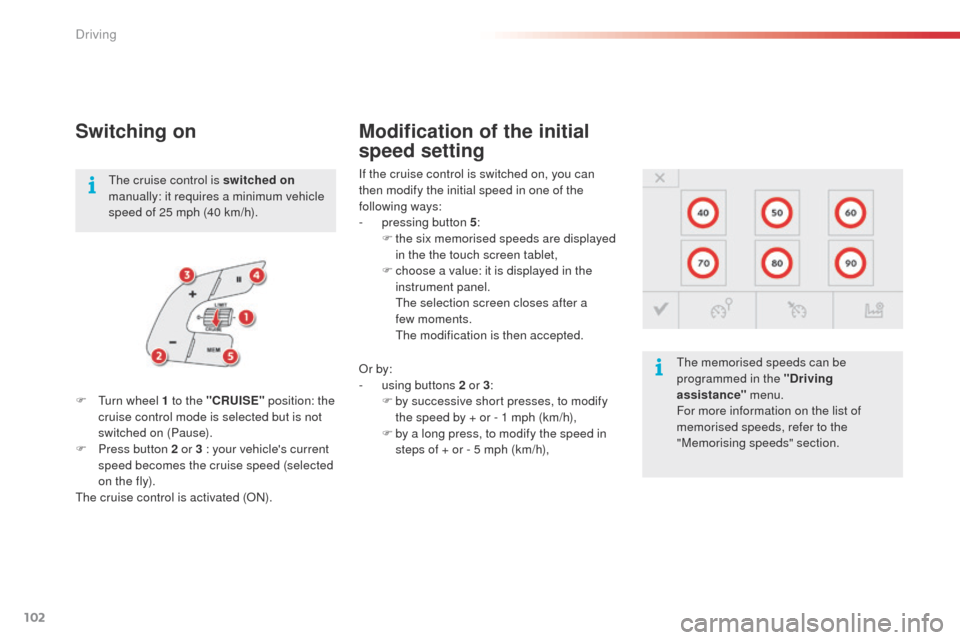

Switching on
If the cruise control is switched on, you can
then modify the initial speed in one of the
following ways:
-
p
ressing button 5 :
F

t
he six memorised speeds are displayed
in the the touch screen tablet,
F

c
hoose a value: it is displayed in the
instrument panel.
T

he selection screen closes after a
few
moments.
T

he modification is then accepted.
F

T

urn wheel 1 to the "CRUISE" position: the
cruise control mode is selected but is not
switched on (Pause).
F

P

ress button 2 or 3

: your vehicle's current
speed becomes the cruise speed (selected
on the fly).
The cruise control is activated (ON).
Modification of the initial
speed setting
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h).
The memorised speeds can be
programmed in the "Driving
assistance" menu.
For more information on the list of
memorised speeds, refer to the
"Memorising speeds" section.
Or by:
-

u
sing buttons 2 or 3:
F

b
y successive short presses, to modify
the speed by + or - 1 mph (km/h),
F

b
y a long press, to modify the speed in
steps of + or - 5 mph (km/h),
Driving

103
E3_en_Chap05_conduite_ed01-2014
Flashing of the dashes indicates a fault with the
cruise control.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating fault Switching off
F Turn wheel 1 to the "0" position. T
he display of information related to the
cruise control disappears. When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
On steep climbs or when towing, the
programmed speed may not be reached
or maintained.
The use of mats not approved by
CITROËN may inter fere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

n
ever fit one mat on top of another.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal until the
programmed cruise speed is reached again.
Exceeding the programmed
speed

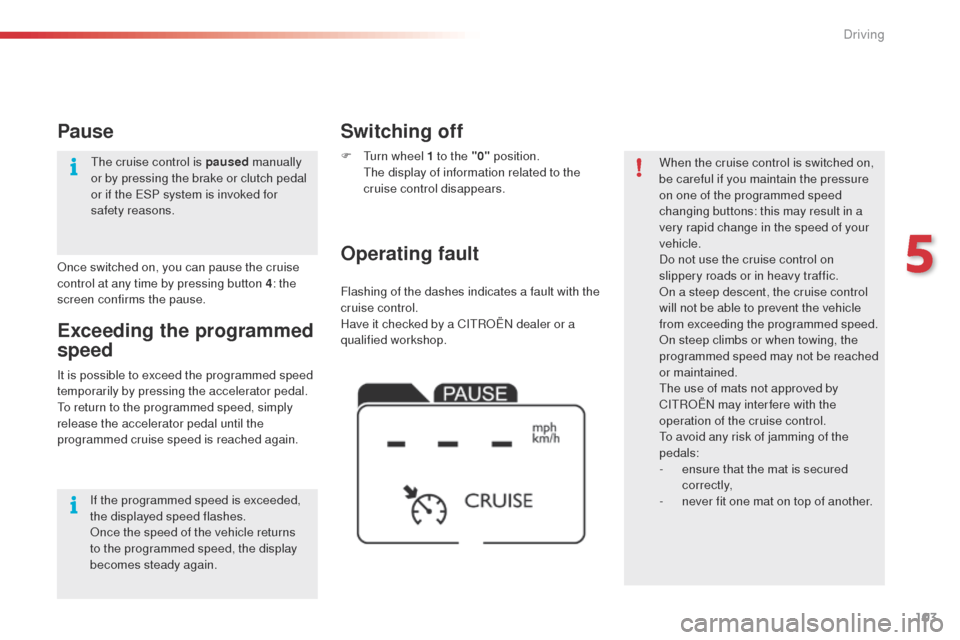

Once switched on, you can pause the cruise
control at any time by pressing button 4: the
screen confirms the pause.
Pause
If the programmed speed is exceeded,
the displayed speed flashes.
Once the speed of the vehicle returns
to the programmed speed, the display
becomes steady again. The cruise control is paused
manually
or by pressing the brake or clutch pedal
or if the ESP system is invoked for
safety reasons.
5
Driving

104
E3_en_Chap05_conduite_ed01-2014
Memorising speeds
Memorisation
This function allows speeds to be saved, which can then be offered to set the two systems: the speed limiter (to limit the speed of the vehicle) or the
cruise control (for a vehicle cruising speed).
You can memorise up to six speed settings for each of the two systems. By default, some speeds are already memorised.F

I
n the secondary page, press
" Speed settings ".
For safety reasons, the driver must
carry out these operations when
stationary.
F

S
elect the system for which you want to
memorise speeds:
F

Sel
ect the "Driving assistance "
menu.
F

E
nter the new value using the numerical
keypad and confirm.
F

C
onfirm to save the modification and quit
the menu.
●

s
peed limiter or
●

c
ruise control.
F

C
hoose the speed setting you want to
m o di f y. This button restores the factory
settings.
This function is accessible in the touch screen
tablet.
Driving

105
E3_en_Chap05_conduite_ed01-2014
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre due to
the presence of blind spots.
Parking sensors
This function cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The system is switched off when you come out
of reverse gear.
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or
left) indicates the side on which the obstacle is
located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Rear parking sensors
Visual assistance
This supplements the audible signal by
displaying bars in the screen or the instrument
panel which move progressively nearer to
the vehicle. When the obstacle is near, the
"Danger" symbol is displayed.
5
Driving

106
E3_en_Chap05_conduite_ed01-2014
Front parking sensors
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.The system will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fitted on
a towbar (vehicle fitted with a towbar
installed in line with the manufacturer's
recommendations).In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Deactivation / Activation of the
front and rear parking sensors
Operating fault
In the event of a malfunction of
the system, when reverse gear is
engaged this warning lamp is displayed in the
instrument panel and/or a message appears,
accompanied by an audible signal (short beep).
Contact a CITROËN dealer or a qualified
workshop.
F

P

ress on " Parking sensors ".
T

he indicator lamp in the button
comes on.
F

Sel

ect the " Driving assistance "
menu.
High pressure jet wash
When washing your vehicle, do not direct the
lance within 30 cm of the sensors.
Pressing this button again reactivates the
system. The indicator lamp goes off. The parking sensors can be deactivated in the
touch screen tablet. The parking sensors are deactivated
while the Park Assist system is
measuring a space.
See the "Park Assist" section.
Driving

107
E3_en_Chap05_conduite_ed01-2014
Reversing camera
Clean the reversing camera regularly
using a soft, dry cloth.
The reversing camera is activated automatically
when reverse gear is engaged.
The image is displayed in the touch screen tablet.
The space between the blue lines represents
the width of your vehicle except for the door
mirrors.
The blue lines represent the general direction
of the vehicle.
The red lines represent a distance of about
30 cm beyond the edge of your vehicle's
rear bumper. The audible signal becomes
continuous from this limit.
The green lines represent distances of about 1
and 2 metres beyond the edge of your vehicle's
rear bumper.
The turquoise blue curves represent the
maximum turning circle.
The reversing camera cannot in any
circumstances be a substitute for the
vigilance and responsibility of the driver. Opening the tailgate causes the display
to disappear.
The reversing camera function may be
completed with parking sensors. High pressure jet washing
When washing your vehicle, do not direct the
lance within 30 cm of the camera lens.
5
Driving

108
E3_en_Chap05_conduite_ed01-2014
Park Assist
This system provides active assistance with parking, detecting a parking space then controlling the steering to park in the space.
It controls the steering while the driver manages the accelerator, brakes, gears and clutch (manual gearbox). During phases of entry into and exit from
a parking space, the system provides visual and audible information to the driver in order to make the manoeuvre safe. It may be necessary to move
forwards and backwards more than once.The Park Assist system cannot in any
circumstances replace the care and
responsibility of the driver.
The driver must remain in control of
their vehicle ensuring that the space
remains clear during the manoeuvre.
In some circumstances, the sensors
may not detect small obstacles located
in their blind spots. Changing tyre sizes (out-size tyres,
winter tyres, ...) can inter fere with
the correct operation of the parking
assistance system.
During a manoeuvre the steering wheel
turns quickly: do not hold the steering
wheel, do not place your hand between
the spokes of the steering wheel and
take care with loose and bulky clothing,
scarves, handbags... There is a risk of
injury. For entry into a parking space (parallel
parking) the system does not detect
spaces which are clearly much smaller
or larger than the size of the vehicle.
This "parking assistance" system
is activated automatically during
manoeuvres; it is therefore possible
that a symbol comes on in the screen,
accompanied by an audible signal,
without affecting the manoeuvre.
The selection of the type of manoeuvre
(entering or exiting a parallel parking
space) prevents a change to STOP
mode of Stop & Start.
In STOP mode, this selection restarts
the engine.
The driver can take control at any time by gripping the steering wheel.
The system provides assistance in entering and
exiting a parking space when parallel parking.
Driving
