Citroen C4 CACTUS 2014 1.G Owner's Manual

05
269
E3_en_Chap12b_SMEGplus_ed01-2014
Towards points of interest (POI)Points of Interest (POI) show all of the locations of services nearby \
(hotels,
retail outlet, airports, ...).
Select "Search for a point of interest ".
Select "All POIs" or "Garage" or "Dining/
hotels" or "Personal" or "By name".
Select a category from the list offered.
Select "Search". Select a point of interest from the list offered.
Select "Navigate to".
Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE
An annual mapping update allows new points of interest to be
presented to you.
You can also update the Risk areas / Danger areas every month.
The detailed procedure is available on:
http://citroen.navigation.com.

05
270
E3_en_Chap12b_SMEGplus_ed01-2014

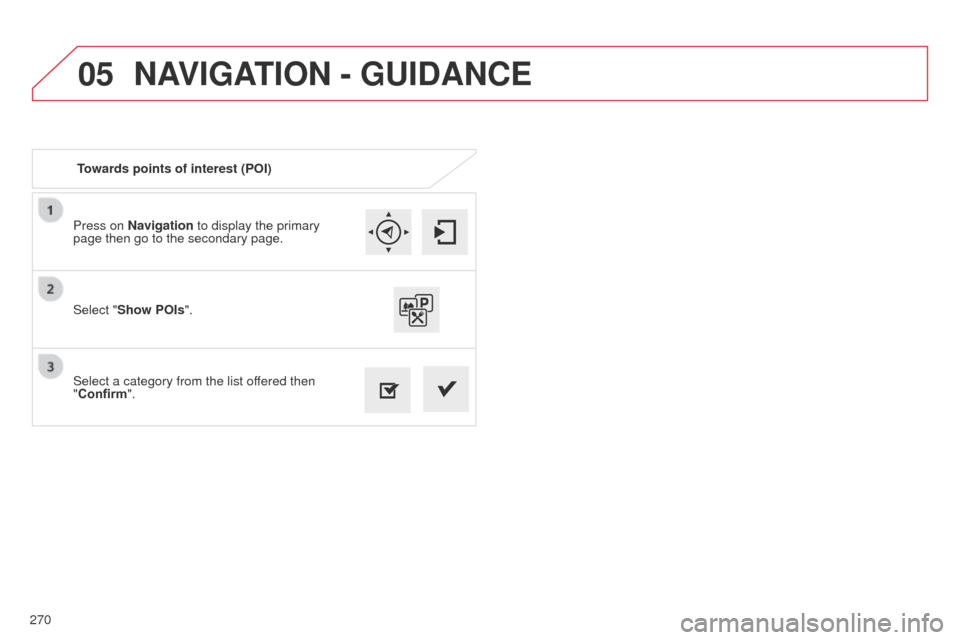

Press on Navigation to display the primary
page then go to the secondary page.
Select a category from the list offered then
"Confirm". Select "Show POIs".
Towards points of interest (POI)
NAVIGATION - GUIDANCE

05
271271
E3_en_Chap12b_SMEGplus_ed01-2014
These functions are only available if Risk Areas have been
downloaded and installed on the system.
Select "Settings".
Select "Alert config.".
Risk area / Danger zone alert settings
It is then possible to activate Risk Areas alerts then:
-

"Audible warning"
-


"Alert only when navigating"
-


"Alert only for overspeed"
-


"Display speed limits"
-


T
iming:
the choice of timing allows the time before giving a Risk
Area alert to be defined. Select "

Confirm".
Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE

05
272
E3_en_Chap12b_SMEGplus_ed01-2014

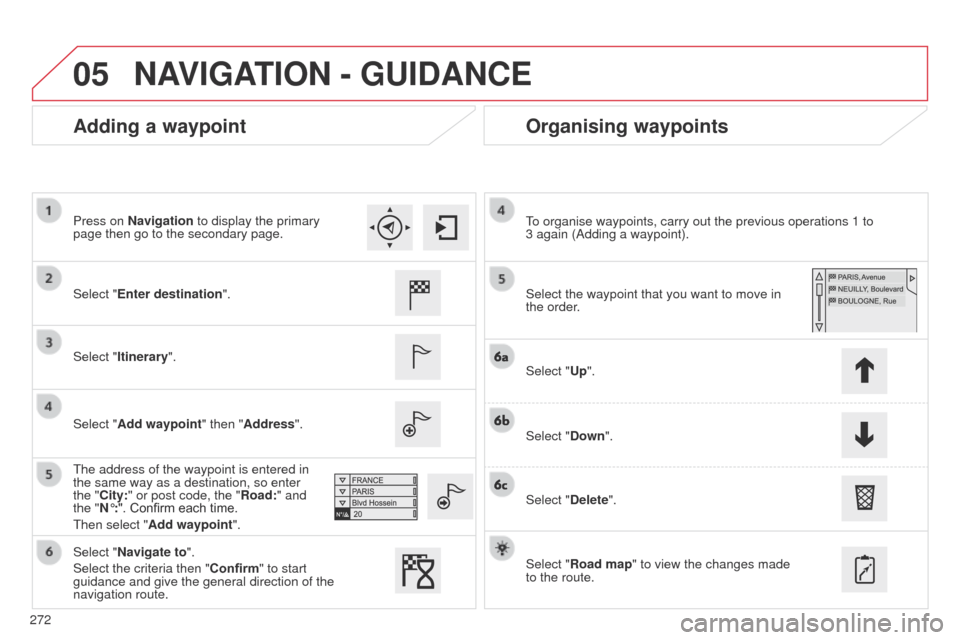

Adding a waypointOrganising waypoints
Select "Enter destination".
Select "Itinerary".
Select "Add waypoint" then "Address".
The address of the waypoint is entered in
the same way as a destination, so enter
the "City:" or post code, the "Road:" and
the "N°:". Confirm each time.
Then select "Add waypoint ". Select the waypoint that you want to move in
the order. To organise waypoints, carry out the previous operations 1 to
3
again (Adding a waypoint).
Select "Up".
Select "Down".
Select "Delete".
Select "Road map" to view the changes made
to the route.
Select "Navigate to".
Select the criteria then "Confirm" to start
guidance and give the general direction of the
navigation route. Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE

05
273
E3_en_Chap12b_SMEGplus_ed01-2014

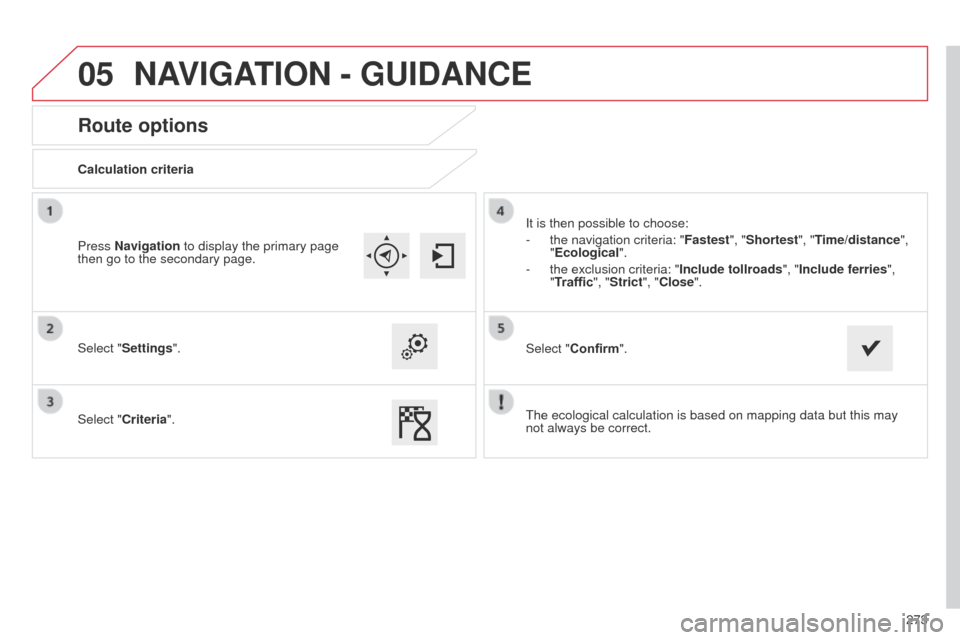

Route options
Calculation criteria
Select "Settings".
Select "Criteria".It is then possible to choose:
-

the navigation criteria: "Fastest

", "Shortest", "Time/distance",
"Ecological ".
-

the exclusion criteria: "Include tollroads", "

Include ferries",
"Traffic", "Strict", "Close".
Select "Confirm".
Press Navigation to display the primary page
then go to the secondary page.
NAVIGATION - GUIDANCE
The ecological calculation is based on mapping data but this may
not always be correct.

05
274
E3_en_Chap12b_SMEGplus_ed01-2014

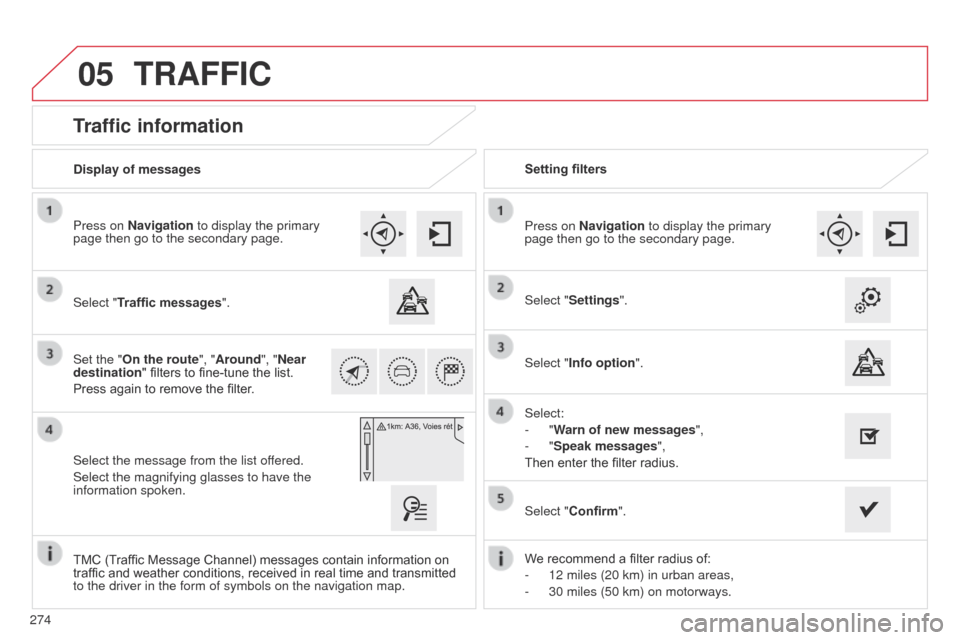

Traffic information
Select "Traffic messages".
Press on Navigation to display the primary
page then go to the secondary page.
Select the message from the list offered.
Select the magnifying glasses to have the
information spoken. Set the "On the route
", "Around", "Near
destination " filters to fine-tune the list.
Press again to remove the filter. Select "Settings".
Select:
-
"Warn of new messages",
-
"Speak messages",
Then enter the filter radius. Press on Navigation to display the primary
page then go to the secondary page.
Display of messages
Setting filters
We recommend a filter radius of:
-

12 miles (20 km) in urban areas,
-


30 miles (50 km) on motorways.
TMC (T

raffic Message Channel) messages contain information on
traffic and weather conditions, received in real time and transmitted
to the driver in the form of symbols on the navigation map. Select "Confirm".
TRAFFIC
Select "Info option
".

05
275
E3_en_Chap12b_SMEGplus_ed01-2014

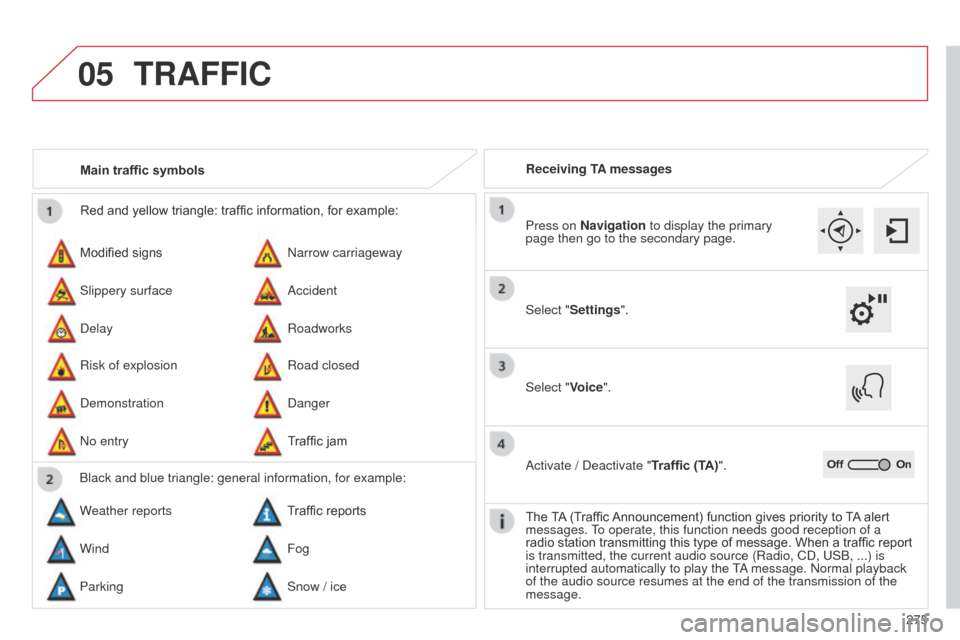

Red and yellow triangle: traffic information, for example:
Modified signs
Risk of explosion Narrow carriageway
Road closed
Slippery surface
Demonstration Accident
Danger
Delay
No entry Roadworks
Traffic jam
Main traffic symbols
Black and blue triangle: general information, for example:
Weather reports Traffic reports
Wind Fog
Parking Snow / ice Receiving TA messages
TRAFFIC
Select "Settings". Press on Navigation to display the primary
page then go to the secondary page.
Select "Voice".
Activate / Deactivate "Traffic (TA)".
The TA (Traffic Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffic report
is transmitted, the current audio source (Radio, CD, USB, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of the
message.

05
E3_en_Chap12b_SMEGplus_ed01-2014

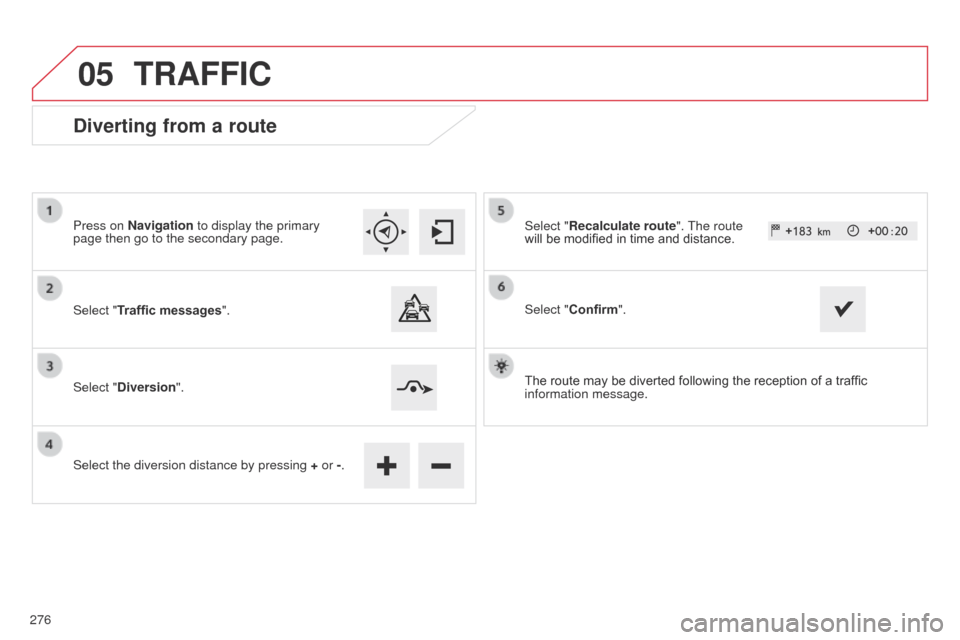

Diverting from a route
Press on Navigation to display the primary
page then go to the secondary page.
Select "Traffic messages".
Select "Diversion".
Select the diversion distance by pressing + or -.Select "Recalculate route". The route
will be modified in time and distance.
Select "Confirm".
The route may be diverted following the reception of a traffic
information message.
TRAFFIC
276

05
277
E3_en_Chap12b_SMEGplus_ed01-2014

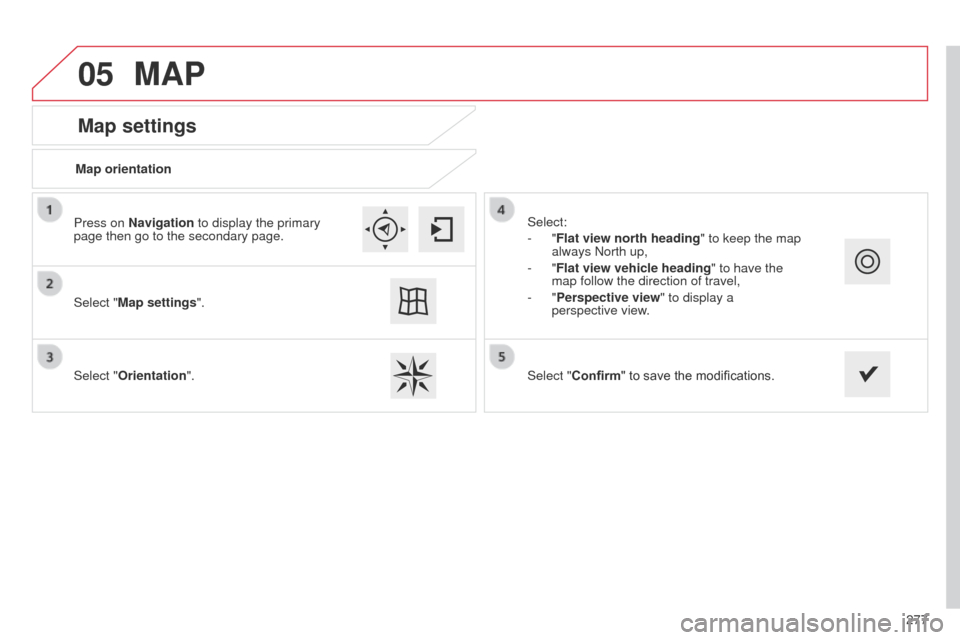

Map settings
MAP
Map orientation
Select "Map settings".
Select "Orientation". Select:
-
"Flat view north heading" to keep the map
always North up,
-
"Flat view vehicle heading" to have the
map follow the direction of travel,
-
"Perspective view" to display a
perspective view.
Press on Navigation to display the primary
page then go to the secondary page.
Select "Confirm" to save the modifications.

05
E3_en_Chap12b_SMEGplus_ed01-2014

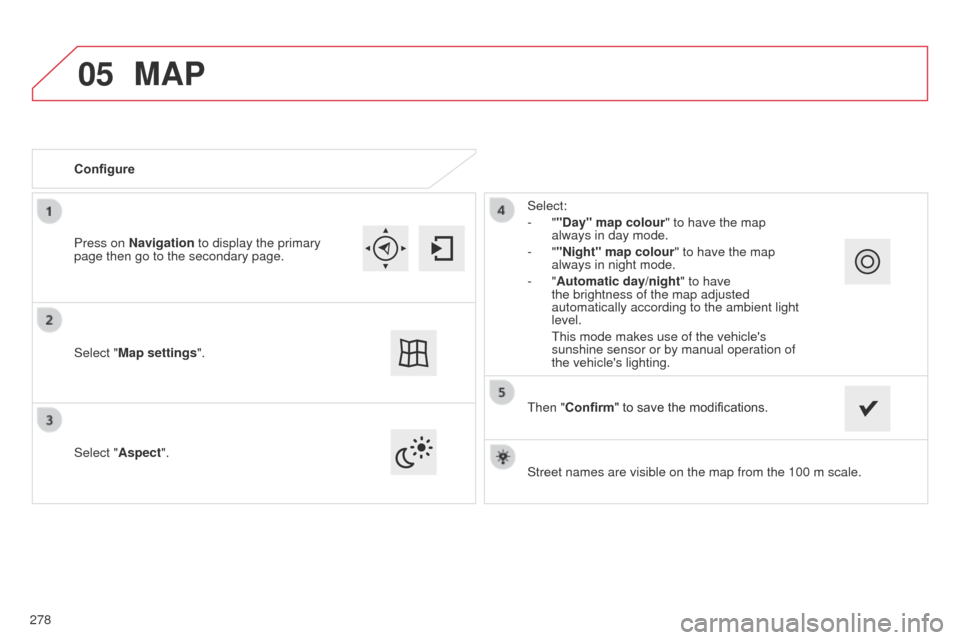

Street names are visible on the map from the 100 m scale.
Configure
Select "Aspect".
Select:
- ""Day" map colour" to have the map
always in day mode.
- ""Night" map colour
" to have the map
always in night mode.
- "Automatic day/night
" to have
the brightness of the map adjusted
automatically according to the ambient light
level.
This mode makes use of the vehicle's
sunshine sensor or by manual operation of
the vehicle's lighting.
Select "

Map settings".
Press on Navigation to display the primary
page then go to the secondary page.
MAP
Then "Confirm" to save the modifications.
278
