Exterior
Automatic illumination of
headlamps
117
Cornering lightingStop & Start
121 95
131
Under-inflation detection
This system monitors the pressures in the tyres
and alerts you in the event of an under-inflated
tyre. At low speed, this additional lighting increases
the driver's field of vision in corners,
junctions, when parking... by switching on the
corresponding front foglamp.This system puts the engine temporarily into
standby during stops in the traffic (traffic
lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption and exhaust emissions, as well as
noise levels when stationary.
The number plate lamps, sidelamps and dipped
beam headlamps come on automatically
without any action by the driver when a low
level of ambient light is detected.
Familiarisation

22
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the screen.
Left-hand
direction indicatorflashing with buzzer.The lighting stalk is pushed down.
Right-hand
direction indicatorflashing with buzzer.The lighting stalk is pushed up.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps fixed.
The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front
foglamps fixed.
The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
For more information on the lighting controls, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Monitoring

25
E3_en_Chap01_controle-de-marche_ed01-2014
Passenger's
front airbag fixed.
The control switch, located in the
glove box, is set to the OFF position.
The passenger's front airbag is
deactivated.
You can install the child seat
"rear ward facing", unless there is an
airbag fault (Airbag warning lamp on). Set the control to the "ON"
position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the "rear ward
facing" position.
Dynamic
stability control
(DSC/ASR) fixed.
The button is pressed and the
indicator lamp comes on.
The DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation. Press the button to activate the DSC/ASR. Its
indicator lamp goes off.
The DSC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information on DSC/ASR, refer to the
corresponding section.
Warning / indicator lamp
StateCause Action / Observations

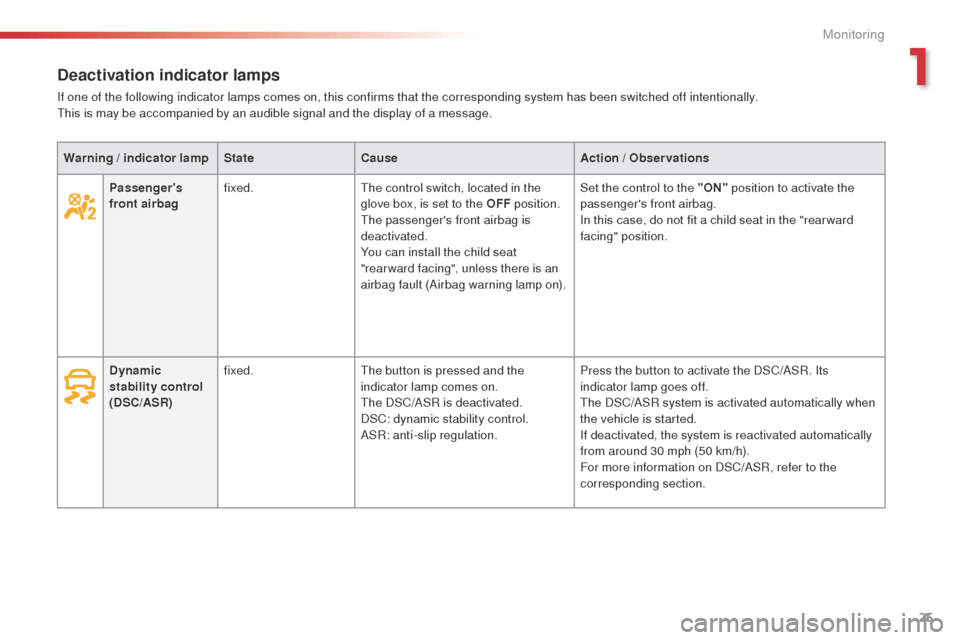

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and the display of a message.
1
Monitoring

28
Warning / indicator lampStateCause Action / Observations
AdBlue
® additive
(Blue HDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the AdBlue® additive topped up as soon as
possible: go to a dealer CITROËN or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
+ flashing associated with
the SERVICE warning
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.The remaining driving range is
between 0 and 375 miles (600 km).
You must top-up the AdBlue
® additive tank to avoid
a breakdown : go to a dealer CITROËN or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up the
AdBlue® additive tank: go to a dealer CITROËN or a
qualified workshop, or carry out this operation yourself
by referring to the corresponding section.
It is essential to add at least 3.8 litres of AdBlue
® to
the tank.
Monitoring

37
E3_en_Chap01_controle-de-marche_ed01-2014
7-inch touch screen tablet
The touch screen tablet gives access to:
- the heating/air conditioning controls,
-

t
he trip computer for settings for certain
vehicle functions,
-

a
udio system and telephone controls,
-
i

nteractive help, sound settings and the
brightness of instruments and controls,
and, depending on equipment:
-

t
he controls for the navigation system and
connected services.
For reasons of safety, the driver
should only carr y out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when driving.General operation
Recommendations
It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
The tablet does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the tablet screen with wet hands.
Uses a soft clean cloth to clean the tablet touch
screen. Use this button to go to the
secondary page.
Use this button to return to the
primary page.
Use this button for access to
additional information and to the
settings for certain functions.
Use this button to confirm and save
the changes.
Use this button to quit.
Principles
Use the buttons on either side of the screen
for access to the menus, then press the virtual
buttons in the touch screen.
Each menu is displayed over one or two pages
(primary page and secondary page).
After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
In very hot conditions, the system may
go into standby (display and sound off)
for a minimum period of 5 minutes.
State of indicator lamps
Some buttons contain an indicator lamp that
gives the state of the corresponding function.
Green indicator: you have switched on the
corresponding function.
Orange indicator: you have switched off the
corresponding function.
1
Monitoring

39
E3_en_Chap01_controle-de-marche_ed01-2014
"Driving assistance" menu
The functions with settings that can be adjusted are detailed in the following table.Button Corresponding function Comments
Stop & Star t Deactivation of the function.
Parking sensors Deactivation of the function.
Speed settings Memorisation of speeds for use with the speed limiter or cruise control.
Under-inflation initialisation Reinitialisation of the under-inflation detection system.
Park Assist Activation / Deactivation of the Park Assist function.
1
Monitoring

40
ButtonCorresponding function Comments
Diagnostic List of current alerts, servicing information.
Vehicle settings Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
-
"Driving assistance "
●

"
Automatic rear wiper in reverse": activation/deactivation of rear wiper linked to reverse
gear (see the "Visibility" section).
-
"Lighting "
●

"
Guide-me-home lighting": activation/deactivation and duration of the automatic
guide-me-home lighting (see the "Visibility" section).
-
"Vehicle access "
●

"
Unlock boot only": activation/deactivation of selective boot unlocking (see the
"Access" section).
Monitoring

41
E3_en_Chap01_controle-de-marche_ed01-2014
The functions available through this menu are detailed in the table below.
"Configuration" menu
ButtonCorresponding function Comments
Audio settings Adjustment of volume, balance...
Turn off screen Turns off the screen display in the touch screen tablet (black screen). Pressing the black
screen restores the display.
Interactive help Access to the interactive handbook.
Brightness Adjustment of the brightness of the instruments and controls.
1
Monitoring

42
ButtonCorresponding function Comments
Configuration Choice of units:
-
t

emperature (°Celsius or °Fahrenheit)
-

d
istance and fuel consumption (l/100 km, mpg or km/l).
Time/Date Setting the date and time.
Languages Choice of language used by the touch screen tablet: French, English, Italian, Spanish,
German, Dutch, Portuguese, Polish, Turkish, Russian, Croatian, Hungarian, Czech, Brazilian.
Screen settings Adjustment of the display settings (scrolling of text, animations...)
Calculator Display the calculator.
Calendar Display the calendar.
Monitoring

48
E3_en_Chap02_ouvertures_ed01-2014
If one of the doors or the boot is still
open, the central locking does not
take place; the vehicle locks then
immediately unlocks, identifiable by the
sound of the locks rebounding.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
again automatically after thirty seconds
unless a door or the boot is open.
Locking using the remote control
F Press the closed padlock to lock the vehicle.
Locking the vehicle
Locking is confirmed by the fixed illumination
of the direction indicators for approximately
two seconds.
Locking using the key
F Turn the key in the driver's door lock, towards the rear of the vehicle to lock it. This function allows you to identify your vehicle
from a distance, especially when the light is
poor. Your vehicle must be locked.
Locating your vehicle
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
F

P

ress the closed padlock on the
remote control.
This will bring on the courtesy lamps and
flashing of the direction indicators for a
few seconds.
Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle. In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Check that the doors and boot are fully
closed.
