Citroen C4 CACTUS 2015 1.G Owner's Manual

129
C4-cactus_en_Chap07_securite_ed02-2014
Electronic Stability Control (ESC) incorporating the   following   systems:
-

a
nti-lock   braking   system   (ABS)   and   the
e

lectronic   brake   force   distribution   (EBFD),
-

e
mergency   braking   assistance   (EBA),
-

w
heel   anti-slip   regulation   (ASR)   or   traction
c

ontrol,
-

d
ynamic   stability   control   (DSC).
Electronic stability control (ESC)
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
This system improves the stability and manoeuvrability   of   your   vehicle   when   braking
a

nd   contributes   towards   improved   control   in
c

orners, in particular on poor or slippery road
surfaces.
The
  ABS   prevents   wheel   lock   in   the   event   of
em

ergency
 b
raking.
The
  electronic   brake   force   distribution   system
m

anages   the   braking   pressure   wheel   by   wheel.
Emergency braking assistance
(EBA)
In an emergency, this system enables you to reach   the   optimum   braking   pressure   more
q

uickly   and   therefore   reduce   the   stopping
di

stance.
It
  is   triggered   according   to   the   speed   at   which
t

he   brake   pedal   is   pressed.   This   is   felt   by   a
r

eduction in the resistance of the pedal and an
increase
  in   the   effectiveness   of   the   braking.
Anti-slip regulation (ASR)
The ASR system (also known as Traction Control)   optimises   traction   in   order   to   limit
w

heel   slip   by   acting   on   the   brakes   of   the   driving
w

heels   and   on   the   engine.   It   also   improves
t

he directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed   by   the   vehicle   and   that   required   by
t

he   driver,   the   DSC   monitors   each   wheel   and
a

utomatically   acts   on   the   brake   of   one   or   more
w

heels   and   on   the   engine   to   return   the   vehicle
t

o   the   required   path,   within   the   limits   of   the   laws
o

f   physics.
7
Safety

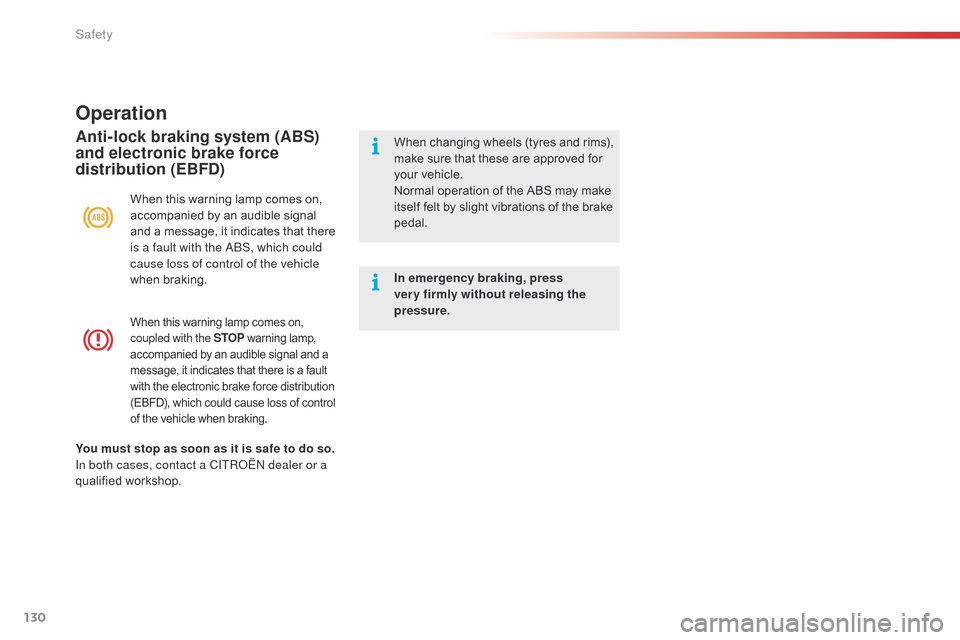

130
C4-cactus_en_Chap07_securite_ed02-2014
When this warning lamp comes on, coupled with the STOP w arning lam p, a

ccompanied   by   an   audible   signal   and   a
 m

essage,   it   indicates   that   there   is   a   fault
 w

ith   the   electronic   brake   force   distribution
 (

EBFD),   which   could   cause   loss   of   control
 o

f   the   vehicle   when   braking.
Operation
When this warning lamp comes on, accompanied   by   an   audible   signal
a

nd   a   message,   it   indicates   that   there
i

s a fault with the ab
S
, which could
cause loss of control of the vehicle
when
 b

raking.
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)When changing  w heels  ( tyres  a nd  r ims),  m
ake   sure   that   these   are   approved   for
y

our   vehicle.
Normal
  operation   of   the   ABS   may   make
i

tself   felt   by   slight   vibrations   of   the   brake
ped

al.
In emergency braking, press
very firmly without releasing the
pressure.
You must stop as soon as it is safe to do so.
In both cases, contact a CITR
oËn

dealer or a
qualified
 w

orkshop.
Safety

131
C4-cactus_en_Chap07_securite_ed02-2014
Dynamic stability control (DSC)
and anti-slip regulation (ASR)The DSC system offers exceptional safety   in   normal   driving,   but   this   should
n

ot   encourage   the   driver   to   take   extra
r

isks   or   drive   at   high   speed.
The
  correct   operation   of   the   system
d

epends on observation of the
manufacturer's
 r

ecommendations
 r

egarding   the   wheels   (tyres   and   rims),
t

he   braking   components,   the   electronic
c

omponents   and   the   assembly   and
r

epair procedures used by CITR
oËn

dealers.
After
  an   impact,   have   the   system
c

hecked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Activation
These systems are activated automatically each   time   the   vehicle   is   started.
As
  soon   as   they   detect   a   problem   of   grip   or
t

rajectory,   these   systems   act   on   the   operation   if
t

he   engine   and   brakes.
Deactivation
In exceptional conditions (starting a vehicle which   is   bogged   down,   stuck   in   snow,   on   soft
g

round...),   it   may   be   advisable   to   deactivate
t

he   DSC   system,   so   that   the   wheels   can   move
f

reely   and   regain   grip.
This

is

indicated

by

flashing

of

this

w

arning

lamp

in

the

instrument

panel.
Operating fault
But it is recommended that the system be r eactivated   as   soon   as   possible.
F

P
ress   the   button.
This warning lamp and the indicator lamp in   the   button   come   on:   the   DSC   system   no l

onger   acts   on   the   operation   of   the   engine.
Reactivation
The system is reactivated automatically each time   the   ignition   is   switched   back   on   or   from
3

0 mph   (50   km/h).
F

P
ress   the   button   again   to
r

eactivate   it   manually. If
  this   warning   lamp   comes   on,
a

ccompanied   by   an   audible   signal
a

nd   a   message,   this   indicates   a   fault
w

ith   the   system.
Contact   a   CITROËN   dealer   or   a   qualified
w

orkshop   to   have   the   system   checked.
7
Safety

132
C4-cactus_en_Chap07_securite_ed02-2014
Seat belts
Front seat belts
The front seat belts are fitted with a
pretensioning  and   force   limiting   system.
This
  system   improves   safety   in   the   front
s

eats   in   the   event   of   a   front   or   side   impact.
D

epending   on   the   severity   of   the   impact,   the
p

retensioning   system   instantly   tightens   the   seat
b

elts   against   the   body   of   the   occupants.
The
  pretensioning   seat   belts   are   active   when
t

he   ignition   is   on.
The
  force   limiter   reduces   the   pressure   of   the
s

eat belt on the chest of the occupant, so
improving
  their   protection.Fastening
F Pull  the   strap,   then   insert   the   tongue   in   the  buc
kle.
F

C
heck   that   the   seat   belt   is   fastened
c

orrectly   by   pulling   the   strap.
Unfastening
F Press  the   red   button   on   the   buckle.
F  G uide   the   seat   belt   as   it   reels   in.
Rear seat belts
The rear seats are each fitted with a three-point
seat  belt.
Safety

133
C4-cactus_en_Chap07_securite_ed02-2014
From approximately 12 mph (20 km/h),   the   warning   lamp(s)
f

lash   for   two   minutes   accompanied
b

y   an   audible   signal.   Once   these
t

wo minutes   have   elapsed,   the
w

arning   lamp(s)   remain   on   until   the
d

river   or   front   passenger   fastens   their
s

eat   belt.
Seat belt not fastened /
unfastened warning lamps Front seat belt warning lamps
On switching on the ignition, warning lam
p 1   comes   on   in   the   instrument
p

anel   and   the   corresponding   warning
l

amp   (2 and 3 )
  comes   on   in   red   in
t

he   passenger's   seat   belt   and   front
a

irbag   warning   lamp   display   if   the
d

river's   seat   belt   or   front   passenger's
s

eat belt is not fastened or is
unfastened.
1.
 F

ront

seat

belts

not

fastened

/

unfastened

w

arning

lamp

in

the

instrument

panel.
2.
 F

ront

left

seat

belt

warning

lamp.
3.
 F

ront

right

seat

belt

warning

lamp.
4.
 R

ear

right

seat

belt

warning

lamp.
5.
 R

ear

centre

seat

belt

warning

lamp.
6.
 R

ear

left

seat

belt

warning

lamp.
Rear seat belt warning lamps
The corresponding warning
l amp   (4 to 6 )
  comes   on   in   red   in   the
s

eat   belt   and   front   airbag   warning
l

amp   display   if   one   or   more   rear
p

assengers
 u
nfasten
 t
heir
 sea
t
 b
elt.
7
Safety

134
C4-cactus_en_Chap07_securite_ed02-2014
The driver must ensure that passengers use the seat belts correctly and that they are all
restrained
  securely   before   setting   off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do
  not   interchange   the   seat   belt   buckles   as
t

hey   will   not   fulfil   their   role   fully.
The seat belts are fitted with an inertia reel
permitting
  automatic   adjustment   of   the
l

ength   of   the   strap   to   your   size.   The   seat   belt
i

s   stowed   automatically   when   not   in   use.
be

fore and after use, ensure that the seat
belt
  is   reeled   in   correctly.
The
  lower   part   of   the   strap   must   be
p

ositioned   as   low   as   possible   on   the   pelvis.
The
  upper   part   must   be   positioned   in   the
h

ollow   of   the   shoulder.
The
  inertia   reels   are   fitted   with   an   automatic
l

ocking   device   which   comes   into   operation   in
t

he   event   of   a   collision,   emergency   braking
o

r   if   the   vehicle   rolls   over.   You   can   release
t

he   device   by   pulling   the   strap   firmly   and
t

hen   releasing   it   so   that   it   reels   in   slightly.Recommendations for children
Use a suitable child seat if the passenger is less than 12 years old or shorter than one
and
  a   half   metres.
Never
  use   the   same   seat   belt   to   secure   more
t

han   one   person.
Never
  allow   a   child   to   travel   on   your   lap.
For
  more   information,   refer   to   the   "Child
sea

ts"
 se
ction.
In

order

to

be

effective,

a

seat

belt

must:
-
 b
e

tightened

as

close

to

the

body

as
 p
ossible,
-

b

e

pulled

in

front

of

you

with

a

smooth

m

ovement,

checking

that

it

does

not

t

wist,
-

b

e used to restrain only one person,
-

n

ot

bear

any

trace

of

cuts

or

fraying,
-

n

ot

be

converted

or

modified

to

avoid

a

ffecting
 it

s
 p

erformance.
In the event of an impact
Depending on the nature and
seriousness of the impact , the
pretensioning
  device   may   be   deployed
b

efore   and   independently   of   the   airbags.
D

eployment   of   the   pretensioners   is
a

ccompanied   by   a   slight   discharge   of
h

armless   smoke   and   a   noise,   due   to   the
a

ctivation   of   the   pyrotechnic   cartridge
i

ncorporated   in   the   system.
In
  all   cases,   the   airbag   warning   lamp   comes   on.
Following
  an   impact,   have   the   seat   belts
s

ystem   checked,   and   if   necessary   replaced,
b

y   a   CITROËN   dealer   or   a   qualified
w

orkshop.
In accordance with current safety
regulations,

for

all

repairs

on

your

vehicle's

s

eat

belts,

go

to

a

qualified

workshop

with
 t
he

skills

and

equipment

needed,

which

a
 C
ITROËN

dealer

is

able

to

provide.
Have

your

seat

belts

checked

regularly

by

a


CITROËN

dealer

or

a

qualified

workshop,

p

articularly

if

the

straps

show

signs

of

d

amage.
Clean the seat belt straps with soapy
water

or

a

textile

cleaning

product,

sold

by

C

ITROËN

dealers.
After

folding

or

moving

a

seat

or

rear

bench

s

eat, ensure that the seat belt is positioned
and

reeled

in

correctly.
Safety

135
C4-cactus_en_Chap07_securite_ed02-2014
Airbags
System designed to contribute towards improving   the   safety   of   the   occupants   (with
t

he   exception   of   the   rear   centre   passenger)
i

n   the   event   of   violent   collisions.   The   airbags
s

upplement   the   action   of   the   force-limiting
s

eat   belts   (with   the   exception   of   the   centre   rear
p

assenger).
If a collision occurs, the electronic detectors
record
  and   analyse   the   front   and   side   impacts
s

ustained   in   the   impact   detection   zones:
-

i
n   the   case   of   a   serious   impact,   the   airbags
a

re deployed instantly and contribute
towards better protection of the occupants
of
  the   vehicle   (with   the   exception   of   the
r

ear   centre   passenger);   immediately   after
t

he   impact,   the   airbags   deflate   rapidly   so
t

hat   they   do   not   hinder   visibility   or   the   exit
o

f the occupants,
-

i
n   the   case   of   a   minor   or   rear   impact   or   in
c

ertain   roll-over   conditions,   the   airbags
m

ay   not   be   deployed;   the   seat   belt
a

lone   contributes   towards   ensuring   your
p

rotection   in   these   situations.
The airbags do not operate when the
ignition is switched off.
This
  equipment   will   only   deploy   once.
I

f   a   second   impact   occurs   (during   the
s

ame   or   a   subsequent   accident),   the
a

irbag   will   not   be   deployed   again. Deployment
  of   one   or   more   of   the
a

irbags   is   accompanied   by   a   slight
e

mission   of   smoke   and   a   noise,   due
t

o the activation of the pyrotechnic
cartridge
  incorporated   in   the   system.
This
  smoke   is   not   harmful,   but   sensitive
i

ndividuals   may   experience   slight
ir

ritation.
The noise of detonation related to the
deployment
  of   one   or   more   airbags   may
r

esult   in   a   slight   loss   of   hearing   for   a
s

hort   time.
Impact detection zones
A. Front  impact   zone.
B. S ide   impact   zone.
7
Safety

136
C4-cactus_en_Chap07_securite_ed02-2014
Deactivating the passenger's
front airbag
Only the passenger's front airbag can be deactivated.
F

W
ith the ignition off ,
  insert   the   key   in   the
p

assenger   airbag   deactivation   switch.
F

T
urn it to the "OFF"
 p
osition.
F

R
emove   the   key   keeping   the   switch   in   the
n

ew   position.When
  the   ignition   is   on,   this   warning
l

amp   comes   in   the   seat   belt   warning
l

amps   display   screen.   It   stays   on
w

hile   the   airbag   is   deactivated. To assure the safety of your child,
the
  passenger's   front   airbag   must   be
d

eactivated when you install a rear ward
facing   child   seat   on   the   front   passenger
sea

t.
Other wise,   the   child   would   risk   being
s

eriously   injured   or   killed   if   the   airbag
w

ere   deployed.
Reactivating the passenger's
front airbag
When you remove a rearward facing
c hild
seat, with the ignition off , turn the switch to
the "ON"


position   to   reactivate   the   airbag   and
s

o   assure   the   safety   of   your   front   passenger   in
t

he   event   of   an   impact.
Front airbags
Deployment
The airbags are deployed, except the passenger's front   airbag   if   it   is   deactivated,   in   the   event   of   a s

erious   front   impact   to   all   or   part   of   the   front   impact
 z

one A,
  in   the   longitudinal   centreline   of   the   vehicle
 o

n   a   horizontal   plane   and   directed   from   the   front   to
 t

he   rear   of   the   vehicle.
The
  front   airbag   inflates   between   the   thorax
a

nd head of the front occupant of the vehicle
and
  the   steering   wheel,   driver's   side,   and   the
d

ashboard,   passenger's   side   to   cushion   their
f

or ward   movement.
System
  which   protects   the   driver   and   front
p

assenger   in   the   event   of   a   serious   front   impact
i

n   order   to   limit   the   risk   of   injury   to   the   head   and
t

horax.
The   driver's   airbag   is   fitted   in   the   centre   of   the
s

teering   wheel;   the   front   passenger's   airbag
i

s   fitted   in   the   roof   to   allow   more   space   in   the
g

love   box.
When   the   ignition   is   switched   on,   this
w

arning   lamp   comes   on   in   the   seat
b

elt   warning   lamps   display   screen   for
a

pproximately   one   minute   to   signal
t

hat   the   front   airbag   is   activated.
Safety

137
C4-cactus_en_Chap07_securite_ed02-2014
If this warning lamp flashes, contact a  CITROËN   dealer   or   a   qualified
w

orkshop.   The   passenger's   front
a

irbag   may   no   longer   be   deployed   in
t

he   event   of   a   serious   impact.

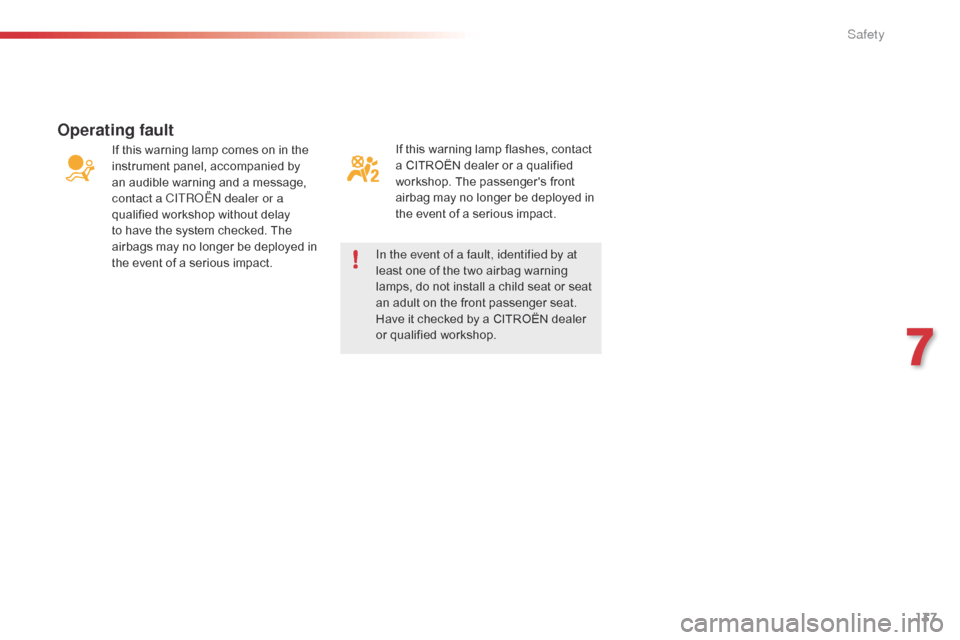

Operating fault
If this warning lamp comes on in the instrument   panel,   accompanied   by
a

n   audible   warning   and   a   message,
c

ontact a CITR
oËn
dealer or a
qualified
  workshop   without   delay
t

o   have   the   system   checked.   The
a

irbags   may   no   longer   be   deployed   in
t

he   event   of   a   serious   impact. In the event of a fault, identified by at
least
  one   of   the   two   airbag   warning
l

amps,   do   not   install   a   child   seat   or   seat
a

n   adult   on   the   front   passenger   seat.
Have
  it   checked   by   a   CITROËN   dealer
o

r   qualified   workshop.
7
Safety

138
C4-cactus_en_Chap07_securite_ed02-2014
Lateral airbags
Deployment
A lateral airbag is deployed unilaterally in the event   of   a   serious   side   impact   applied   to   all   or
p

art   of   the   side   impact   zone   B, perpendicular
to
  the   longitudinal   centreline   of   the   vehicle   on   a
h

orizontal   plane   and   directed   from   the   outside
t

owards   the   inside   of   the   vehicle.
The
  lateral   airbag   inflates   between   the   hip   and
s

houlder of the front occupant of the vehicle
and
  the   corresponding   door   trim   panel.
System
  which   protects   the   driver   and   front
p

assenger   in   the   event   of   a   serious   side   impact
i

n   order   to   limit   the   risk   of   injury   to   the   chest,
b

etween   the   hip   and   the   shoulder.
Each   lateral   airbag   is   fitted   in   the   seat   backrest
f

rame,   door   side.
Impact detection zones
A. Front
  impact   zone.
B. S ide   impact   zone.
Safety
