key Citroen C4 CACTUS RHD 2014 1.G Owner's Manual

We draw your attention to the following...
Keysafety warning
additional information
contributes to the protection of the environment
refer to the page indicated
The "Familiarisation" section at the start of this
document is intended as a quick way of getting
to know your vehicle. Reading the detailed
sections is essential to make the most of your
vehicle, in complete safety.
The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic system. Please note this
specific warning and contact a CITROËN
dealer for information on the recommended
equipment and accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Happy motoring!
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
Your vehicle is fitted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifications for the country in which it is sold.

.
.
Lighting control 113
Automatic illumination of headlamps
1
17
Daytime running lamps / Sidelamps (LEDs)

1
18
Headlamp adjustment
1

20
Cornering lighting
1

21
Wiper control stalk

1
22
Automatic rain sensitive wipers
1

24
Panoramic sunroof
1

26
Courtesy lamp

1
27
Brightness of instruments and controls

1
28
Boot lamp

1
28
Visibility
Instrument panel 2 0
Indicator and warning lamps
2
1
Indicators
33
7

-inch touch screen tablet
3
7
Trip computer

4
3
Distance recorders

4
5
Setting the date and time

4
6
Monitoring
Familiarisation
Remote control key 4
7
Central locking
5
2
Doors
53
Boot


55
Front electric window controls

5
6
Rear door windows
5

7
Access
Front seats 58
Rear seats
6
0
Mirrors
62
Steering wheel adjustment
6

4
Ventilation


65
Heating


67
Manual air conditioning
6

9
Automatic air conditioning

7
1
Front Demist - Defrost

7
5
Rear screen demist - defrost

7
6
Comfort
Interior fittings 77
Boot fittings
8
3
Fittings
Starting - Stopping the engine 86
Parking brake
87
5

-speed manual gearbox
8
8
Gear ef ficiency indicator

8
9
Electronic gearbox
9

0
Hill start assist

9
4
Stop & Start

9
5
Speed limiter
9

8
Cruise control

1
01
Memorising speeds
1

04
Parking sensors
1

05
Reversing camera
1

07
Park Assist

1
08
Driving
Eco-driving
Contents

6
Access
A. Unfolding / Folding the key.
Remote control key
47161
Locking the vehicle
(direction indicators on fixed).
Unlocking the boot.
Unlocking the vehicle
(rapid flashing of the direction
i n di c ato r s).
220
1.
O
pening the filler flap.
2.
R
emoving the filler cap.
A.
I
nterior release lever.
B.
E
xterior safety catch.
C.
B
o n n et st ay.
Fuel tank
Bonnet
3. Hooking the filler cap.
Petrol: approximately 50 litres, Diesel:
approximately 45 or 50 litres (depending version).
Familiarisation

14

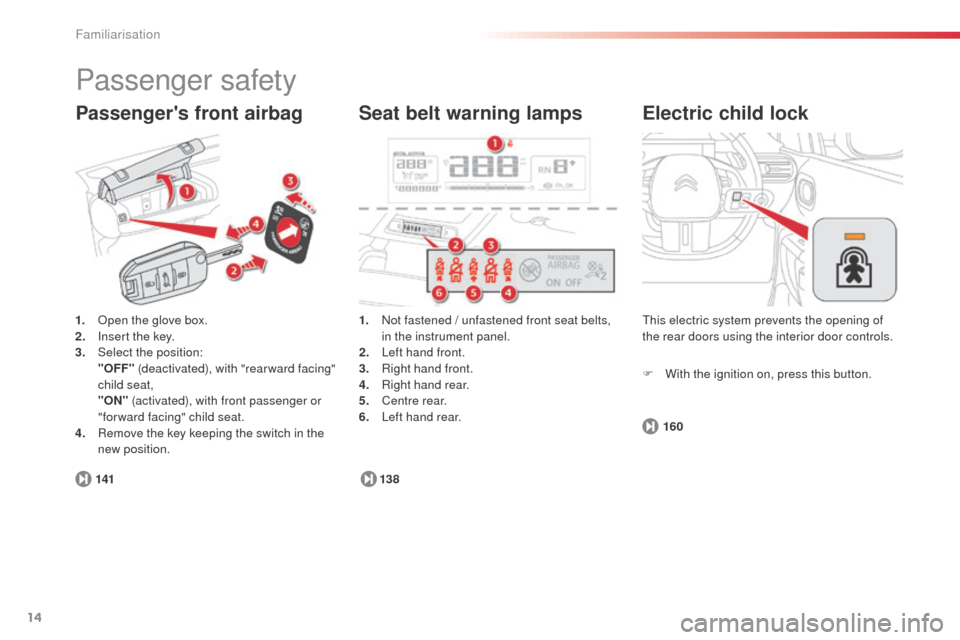

Passenger's front airbag
Passenger safety
160
141 1.
N

ot fastened / unfastened front seat belts,
in the instrument panel.
2.
L

eft hand front.
3.
R

ight hand front.
4.
R

ight hand rear.
5.
C

entre rear.
6. L
eft hand rear.
138
Seat belt warning lamps
This electric system prevents the opening of
the rear doors using the interior door controls.
Electric child lock
1. Open the glove box.
2. I nsert the key.
3.
Sel

ect the position:
"

OFF" (deactivated), with "rear ward facing"
child seat,


"ON" (activated), with front passenger or
"for ward facing" child seat.
4.
R

emove the key keeping the switch in the
new position. F

W
ith the ignition on, press this button.
Familiarisation

16
Stop & Start
Going into engine STOP mode
95The "
ECO" warning lamp comes on in
the instrument panel and the engine
automatically goes into standby:
Going into engine START mode Deactivation / Reactivation
96
97
The "
ECO" warning lamp goes off and
the engine restarts automatically:
-

w
ith a manual gearbox
, when you fully
depress the clutch pedal,
-

w
ith an electronic gearbox
:
●
c
ontrol on
D, when you release the brake
pedal,
●
c
ontrol on N and brake pedal released,
when you press control D ,
●
w
hen you engage reverse.
-

w

ith a manual gearbox
, vehicle
stationary, when you put the gearbox into
neutral and release the clutch pedal,
-

w

ith an electronic gearbox
, vehicle
stationary or at speeds below 5 mph
(8


km/h) (depending on version), when you
put the gearbox into neutral (control on N )
or when you press the brake pedal.
In certain special circumstances, START
mode may be invoked automatically; the " ECO"
warning lamp flashes for few seconds, then
goes off.
In some circumstances, STOP mode may not
be available; the "
ECO" warning lamp flashes
for few seconds, then goes off.
Driving safely
F Select the " Driving assistance "
menu.
F

P
ress on " Stop & Star t ".
Pressing this button again reactivates
Stop & Start.
Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key. The system is reactivated automatically
at every new start using the key.
The Stop & Start system can be deactivated in
the the touch screen tablet.
Familiarisation

23
Rear foglampfixed. The rear foglamp is switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamp.
Diesel engine
pre-heating fixed.
The key is at position 2 (ignition on) in
the ignition switch. Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Parking brake fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer to
the "Parking brake" section.
Warning / indicator lamp
StateCause Action / Observations
1
Monitoring

38
* Depending on equipment.
"
Air conditioning "
allows control of the settings for
temperature and air flow.
" Driving assistance "
allows access to the trip computer
and certain vehicle functions to be
activated, deactivated and adjusted.
" Media "
allows selection of a radio station,
the various music sources and the
display of photographs.
" Navigation "*
allows settings for navigation and the
choice of a destination. "
Configuration "
allows sound settings and the
brightness of instruments and
controls to be adjusted and gives
access to the interactive help for the
main vehicle systems and warning
lamps.
" Connected services "*
allows connection to an applications
portal to facilitate, make safe and
personalise journeys by means
of a connection key available on
subscription from a CITROËN dealer.
" Telephone "
allows the connection of a mobile
telephone via Bluetooth.
Touch screen tablet menus
For the Air conditioning menu, refer to
the "Comfort" section. For the Media
, Navigation, Connected
Services and Telephone menus, refer
to the "Audio and telematics" section.
Monitoring

46
Setting the date and time
F Select "Adjust time " or "Adjust date"
and modify the settings using the number
keypad, then confirm.
F

I

n the secondary page, press on
" Time/Date ".
F

Sel

ect the " Configuration "
menu. F
P ress "Confirm " to quit.
This function is accessible in the touch screen
tablet.
Monitoring

47
System which permits central unlocking or locking of the vehicle using the door lock or from a distance.
It is also used to locate and start the vehicle, as well as providing protection against theft.
Remote control key
Unfolding / folding the key Unlocking the vehicle
Unlocking using the key
F Turn the key in the driver's door lock towards the front of the vehicle to unlock.
Unlocking using the remote
control
F Press the open padlock to unlock the vehicle.
Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
F

P

ress this button to unfold or fold the key.
Selective unlocking of the boot
F Press the central button on the remote control to unlock the
boot. The doors remain locked.
If selective unlocking of the boot is
deactivated, pressing this button also
unlocks the doors.
Don't forget to lock the boot again by
pressing the closed padlock button.
The activation or deactivation of selective boot
unlocking is set in the touch screen tablet.
Selective unlocking of the boot is
activated by default.F

Sel
ect the " Driving assistance "
menu.
F

I
n the secondary page, press on
" Vehicle settings ".
2
Access

48
If one of the doors or the boot is still
open, the central locking does not
take place; the vehicle locks then
immediately unlocks, identifiable by the
sound of the locks rebounding.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
again automatically after thirty seconds
unless a door or the boot is open.
Locking using the remote control
F Press the closed padlock to lock the vehicle.
Locking the vehicle
Locking is confirmed by the fixed illumination
of the direction indicators for approximately
two seconds.
Locking using the key
F Turn the key in the driver's door lock, towards the rear of the vehicle to lock it. This function allows you to identify your vehicle
from a distance, especially when the light is
poor. Your vehicle must be locked.
Locating your vehicle
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
F

P

ress the closed padlock on the
remote control.
This will bring on the courtesy lamps and
flashing of the direction indicators for a few
seconds.
Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle. In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Check that the doors and boot are fully
closed.
Access
