Citroen C4 CACTUS RHD 2014.5 1.G Owner's Manual

10-14

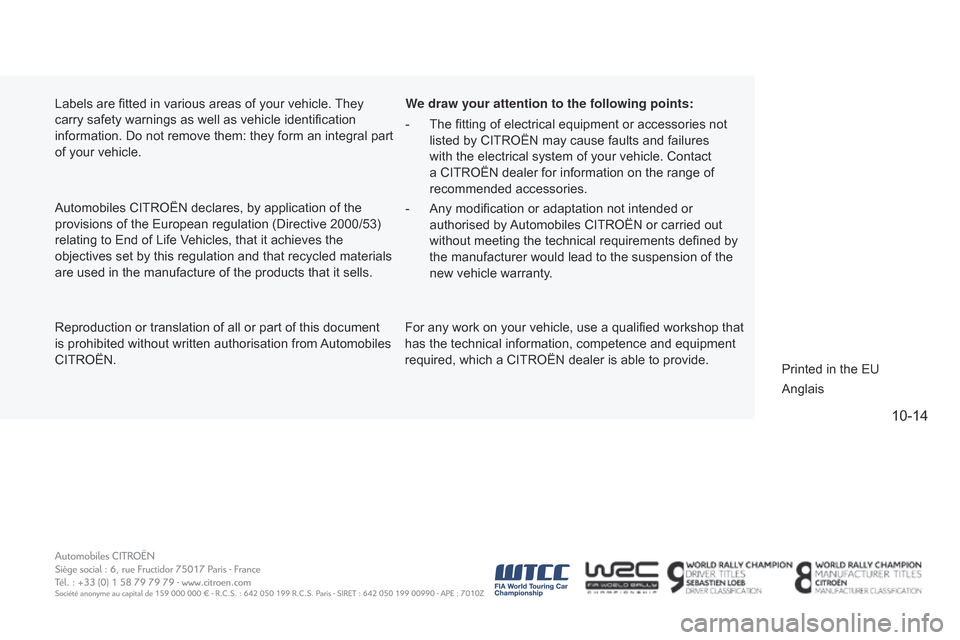

Labels are fitted in various areas of your vehicle. They carry
  safety   warnings   as   well   as   vehicle   identification
information.


Do

not

remove

them:

they

form

an

integral

part

of

  your   vehicle.
Automobiles
  CITROËN   declares,   by   application   of   the
provisions

  of   the   European   regulation   (Directive   2000/53)
relating

  to   End   of   Life   Vehicles,   that   it   achieves   the
objectives

  set   by   this   regulation   and   that   recycled   materials
are

  used   in   the   manufacture   of   the   products   that   it   sells.
Reproduction
  or   translation   of   all   or   part   of   this   document
is

  prohibited   without   written   authorisation   from
Automobiles

CITROËN. W

e draw your attention to the following points:
-
The
  fitting   of   electrical   equipment   or   accessories   not
listed

  by   CITROËN may   cause   faults   and   failures
with

  the   electrical   system   of   your   vehicle.   Contact
a

  CITROËN   dealer   for   information   on   the   range   of
recommended

  accessories.
-

Any
  modification   or   adaptation   not   intended   or
authorised

  by
Automobiles
  CITROËN   or   carried   out
without

  meeting   the   technical   requirements   defined   by
the

  manufacturer   would   lead   to   the   suspension   of   the
new

  vehicle   warranty.Printed
  in   the   EU
Anglais
For

any

work

on

your

vehicle,

use

a

qualified

workshop

that

has

  the   technical   information,   competence   and   equipment
required,

  which   a CITROËN   dealer   is   able   to   provide.

CRÉATIVE TECHNOLOGIE
2014 – DOCUMENTATION DE BORD4Dconcept
Diadeis
Interak
14C4C.0031
Anglais

52

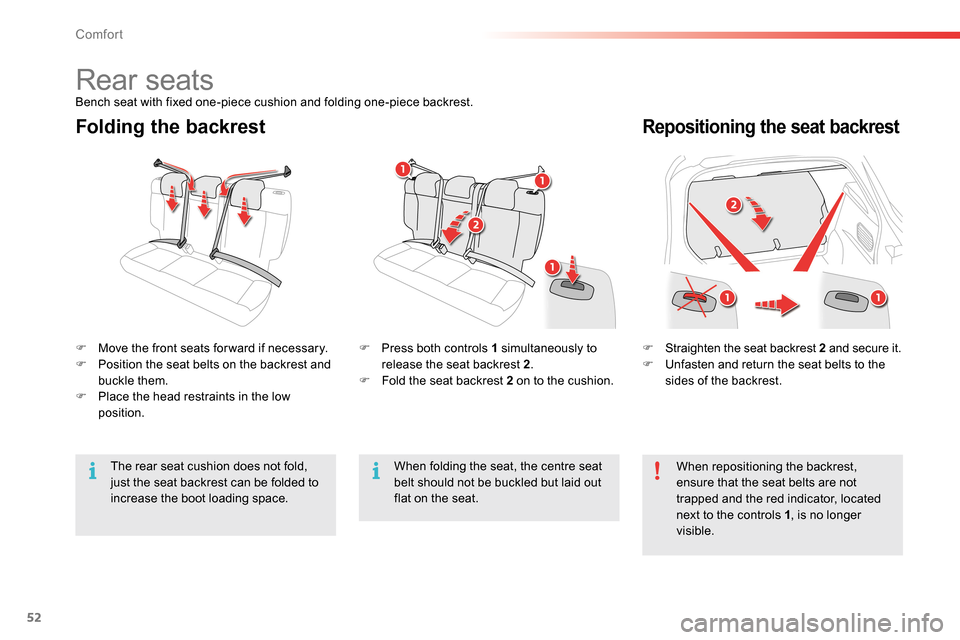

Comfort

Folding the backrest

Repositioning the seat backrest




)
Straighten the seat backrest 2
and secure it.

)
Unfasten and return the seat belts to the
sides of the backrest.



)
Move the front seats for ward if necessary.

)
Position the seat belts on the backrest and
buckle them.

)
Place the head restraints in the low
position.



)
Press both controls 1
simultaneously to
release the seat backrest 2
.

)
Fold the seat backrest 2
on to the cushion.


When repositioning the backrest,
ensure that the seat belts are not
trapped and the red indicator, located
next to the controls 1
, is no longer
visible.






Rear seats
Bench seat with fixed one-piece cushion and folding one-piece backrest.

When folding the seat, the centre seat
belt should not be buckled but laid out
flat on the seat.






The rear seat cushion does not fold,
just the seat backrest can be folded to
increase the boot loading space.

112
Safety

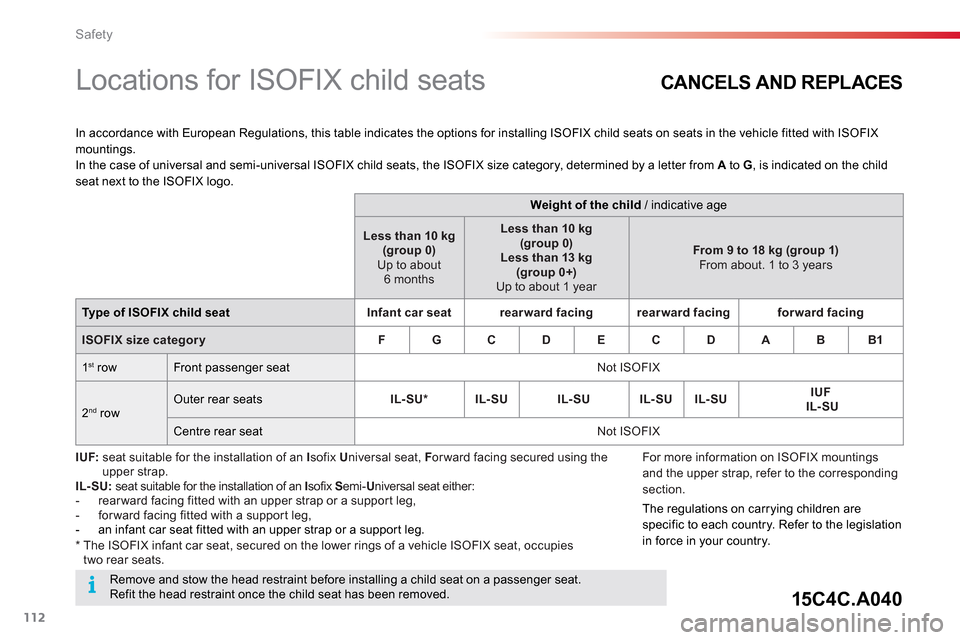

Locations for ISOFIX child seats


In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
, is indicated on the child
seat next to the ISOFIX logo.






IUF:
seat suitable for the installation of an I
sofix U
niversal seat, F
or ward facing secured using the
upper strap.

IL-SU:
seat suitable for the installation of an I
sofix S
emi- U
niversal seat either:


- rear ward facing fitted with an upper strap or a support leg,

- for ward facing fitted with a support leg,


- an infant car seat fitted with an upper strap or a support leg.







Weight of the child
/ indicative age


Less than 10 kg
(group 0)
Up to about
6 months



Less than 10 kg

(group 0)
Less than 13 kg
(group 0+)




Up to about 1 year


From 9 to 18 kg (group 1)

From about. 1 to 3 years


Type of ISOFIX child seat



Infant car seat



rearward facing



rearward facing



forward facing




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




1 st
row
Front passenger seat

Not ISOFIX


2
nd
row
Outer rear seats


IL-SU*



IL-SU



IL-SU



IL-SU



IL-SU



IUF

IL-SU




Centre rear seat

Not ISOFIX


Remove and stow the head restraint before installing a child seat on a passenger seat.
Refit the head restraint once the child seat has been removed.


For more information on ISOFIX mountings
and the upper strap, refer to the corresponding
section.
The regulations on carrying children are
specific to each country. Refer to the legislation
in force in your country.
15C 4 C. A0 4 0 CANCELS AND REPLACES
* The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies
two rear seats.
