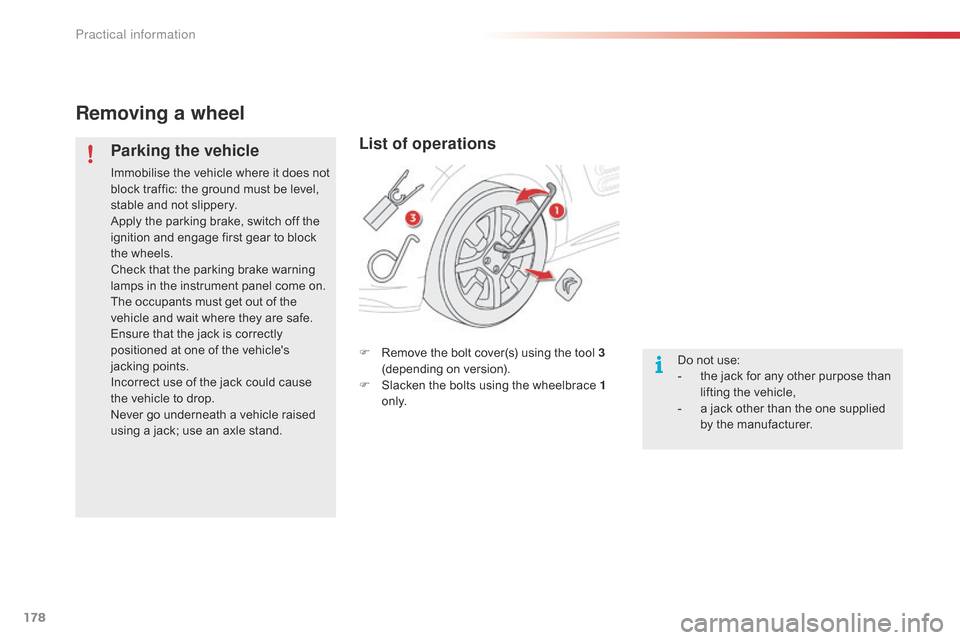

Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not block   traffic:   the   ground   must   be   level,
s

table   and   not   slippery.
Apply
  the   parking   brake,   switch   off   the
i

gnition   and   engage   first   gear   to   block
t

he   wheels.
Check
  that   the   parking   brake   warning
l

amps   in   the   instrument   panel   come   on.
The
  occupants   must   get   out   of   the
v

ehicle   and   wait   where   they   are   safe.
Ensure
  that   the   jack   is   correctly
p

ositioned   at   one   of   the   vehicle's
j

acking   points.
Incorrect
  use   of   the   jack   could   cause
t

he   vehicle   to   drop.
Never
  go   underneath   a   vehicle   raised
u

sing   a   jack;   use   an   axle   stand.
List of operations
F Remove  the   bolt   cover(s)   using   the   tool   3
(depending o n v ersion).
F

S
lacken   the   bolts   using   the   wheelbrace   1
o n l y. Do
  not   use:
-

t
he   jack   for   any   other   purpose   than
l

ifting   the   vehicle,
-

a
  jack   other   than   the   one   supplied
b

y   the   manufacturer.
Practical information

179

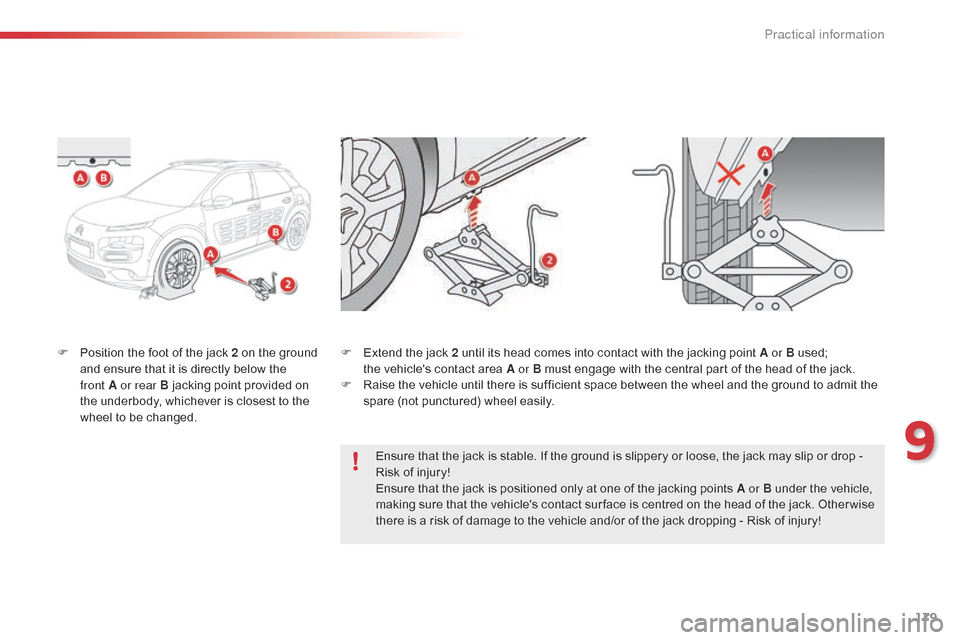

F Position  the   foot   of   the   jack   2   on   the   ground  a
nd   ensure   that   it   is   directly   below   the
f

ront A or rear B   jacking   point   provided   on
t

he   underbody,   whichever   is   closest   to   the
w

heel   to   be   changed. F
 E xtend   the   jack   2   until   its   head   comes   into   contact   with   the   jacking   point   A or B   used;  t
he vehicle's   contact   area   A or B   must   engage   with   the   central   part   of   the   head   of   the   jack.
F

R
aise   the   vehicle   until   there   is   sufficient   space   between   the   wheel   and   the   ground   to   admit   the
s

pare   (not   punctured)   wheel   easily.
Ensure
  that   the   jack   is   stable.   If   the   ground   is   slippery   or   loose,   the   jack   may   slip   or   drop   -
R

isk   of   injury!
Ensure
  that   the   jack   is   positioned   only   at   one   of   the   jacking   points   A or B   under   the   vehicle,
m

aking   sure   that   the   vehicle's   contact   sur face   is   centred   on   the   head   of   the   jack.   Other wise
t

here   is   a   risk   of   damage   to   the   vehicle   and/or   of   the   jack   dropping   -   Risk   of   injury!
