06-15

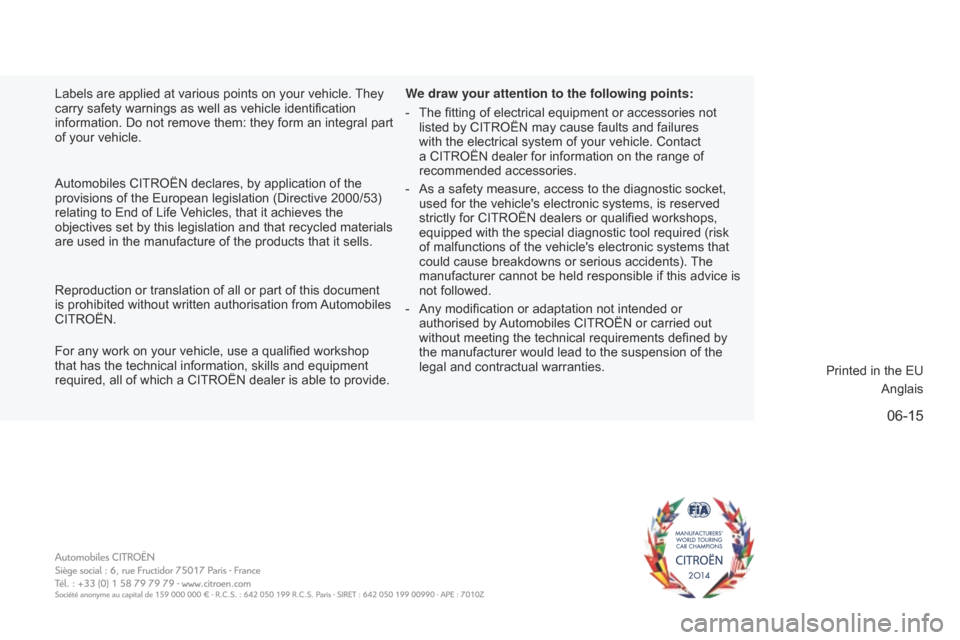

Labels are applied at various points on your vehicle. They carry safety warnings as well as vehicle identification information. Do not remove them: they form an integral part of your vehicle.
Automobiles
 CITROËN declares, by application of the provisions of the European legislation (Directive 2000/53) relating to End of Life V

ehicles,
 that it achieves the objectives set by this legislation and that recycled materials are used in the manufacture of the products that it sells.
Reproduction
 or translation of all or part of this document is prohibited without written authorisation from Automobiles CITROËN. We draw your attention to the following points:
-
 The fitting of electrical equipment or accessories not listed by CITROËN may cause faults and failures with the electrical system of your vehicle. Contact a CITROËN dealer for information on the range of recommended accessories.
-
 As a safety measure, access to the diagnostic socket, used for the vehicle's electronic systems, is reserved strictly for CITROËN dealers or qualified workshops, equipped with the special diagnostic tool required (risk of malfunctions of the vehicle's electronic systems that could cause breakdowns or serious accidents). The manufacturer cannot be held responsible if this advice is not followed.
-
 Any modification or adaptation not intended or authorised by Automobiles CITROËN or carried out without meeting the technical requirements defined by the manufacturer would lead to the suspension of the legal and contractual warranties. Printed in the EU
Anglais
For
 any work on your vehicle, use a qualified workshop that has the technical information, skills and equipment required, all of which a CITROËN dealer is able to provide.

112
Safety










Locations for ISOFIX child seats


In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
, is indicated on the child
seat next to the ISOFIX logo.






IUF:
seat suitable for the installation of an I
sofix U
niversal seat, F
or ward facing secured using the
upper strap.

IL-SU:
seat suitable for the installation of an I
sofix S
emi- U
niversal seat either:


- rear ward facing fitted with an upper strap or a support leg,

- for ward facing fitted with a support leg,


- an infant car seat fitted with an upper strap or a support leg.







Weight of the child
/ indicative age


Less than 10 kg
(group 0)
Up to about
6 months



Less than 10 kg

(group 0)
Less than 13 kg
(group 0+)




Up to about 1 year


From 9 to 18 kg (group 1)

From about. 1 to 3 years


Type of ISOFIX child seat



Infant car seat



rearward facing



rearward facing



forward facing




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




1 st
row
Front passenger seat

Not ISOFIX


2
nd
row
Outer rear seats


IL-SU*



IL-SU



IL-SU



IL-SU



IL-SU



IUF

IL-SU




Centre rear seat

Not ISOFIX


Remove and stow the head restraint before installing a child seat on a passenger seat.
Refit the head restraint once the child seat has been removed.


For more information on ISOFIX mountings
and the upper strap, refer to the corresponding
section.
The regulations on carrying children are
specific to each country. Refer to the legislation
in force in your country.
15C 4 C. A0 4 0 CANCELS AND REPLACES
* The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies
two rear seats.
