Citroen C4 DAG 2008 1.G Owner's Manual

101
IX
D R I V I N G

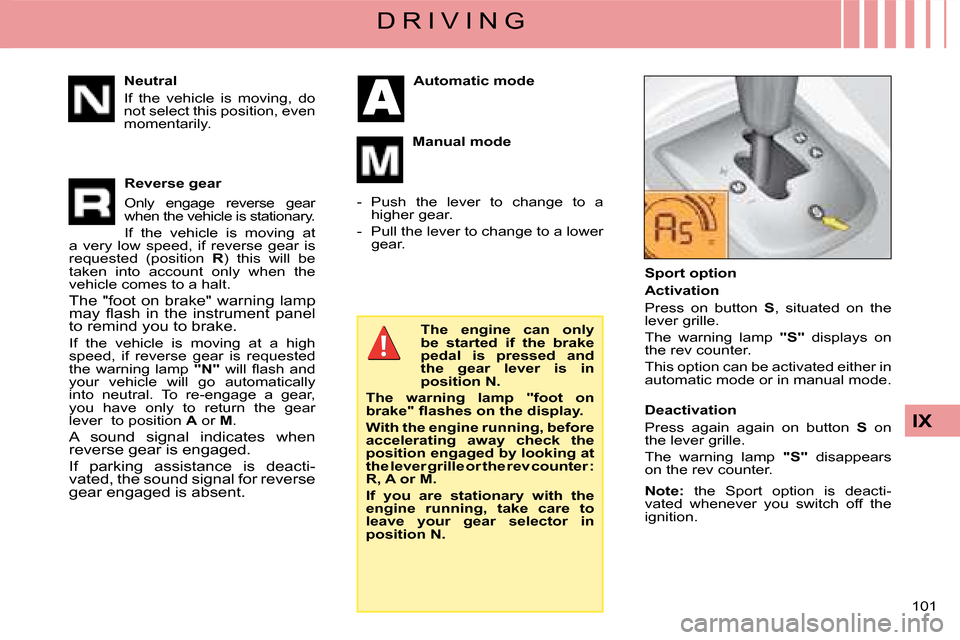

Neutral
If the vehicle is moving, do not select this position, even momentarily.
Reverse gear
Only engage reverse gear when the vehicle is stationary.
If the vehicle is moving at a very low speed, if reverse gear is requested (position R) this will be taken into account only when the vehicle comes to a halt.
The "foot on brake" warning lamp may fl ash in the instrument panel to remind you to brake.
If the vehicle is moving at a high speed, if reverse gear is requested the warning lamp "N" will fl ash and your vehicle will go automatically into neutral. To re-engage a gear, you have only to return the gear lever to position A or M.
A sound signal indicates when reverse gear is engaged.
If parking assistance is deacti-vated, the sound signal for reverse gear engaged is absent.
The engine can only be started if the brake pedal is pressed and the gear lever is in position N.
The warning lamp "foot on brake" fl ashes on the display.
With the engine running, before accelerating away check the position engaged by looking at the lever grille or the rev counter : R, A or M.
If you are stationary with the engine running, take care to leave your gear selector in position N.
Sport option
Activation
Press on button S, situated on the lever grille.
The warning lamp "S" displays on the rev counter.
This option can be activated either in automatic mode or in manual mode.
Deactivation
Press again again on button S on the lever grille.
The warning lamp "S" disappears on the rev counter.
Note: the Sport option is deacti-vated whenever you switch off the ignition.
Automatic mode
Manual mode
- Push the lever to change to a higher gear.
- Pull the lever to change to a lower gear.

102
IX
D R I V I N G

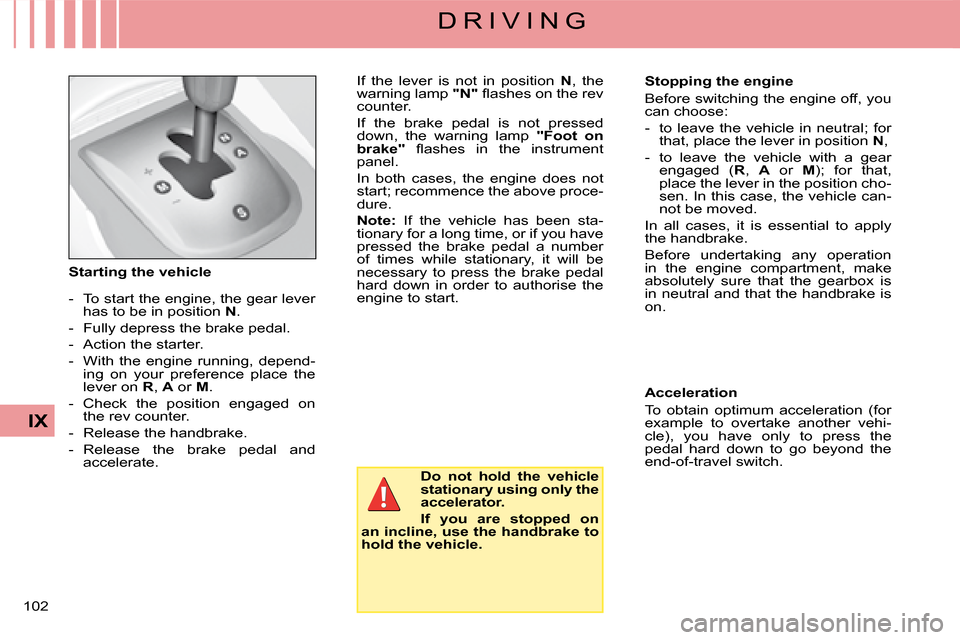

Starting the vehicle
- To start the engine, the gear lever has to be in position N.
- Fully depress the brake pedal.
- Action the starter.
- With the engine running, depend-ing on your preference place the lever on R, A or M.
- Check the position engaged on the rev counter.
- Release the handbrake.
- Release the brake pedal and accelerate.
If the lever is not in position N, the warning lamp "N" fl ashes on the rev counter.
If the brake pedal is not pressed down, the warning lamp "Foot on brake" fl ashes in the instrument panel.
In both cases, the engine does not start; recommence the above proce-dure.
Note: If the vehicle has been sta-tionary for a long time, or if you have pressed the brake pedal a number of times while stationary, it will be necessary to press the brake pedal hard down in order to authorise the engine to start.
Stopping the engine
Before switching the engine off, you can choose:
- to leave the vehicle in neutral; for that, place the lever in position N,
- to leave the vehicle with a gear engaged (R, A or M); for that, place the lever in the position cho-sen. In this case, the vehicle can-not be moved.
In all cases, it is essential to apply the handbrake.
Before undertaking any operation in the engine compartment, make absolutely sure that the gearbox is in neutral and that the handbrake is on.
Do not hold the vehicle stationary using only the accelerator.
If you are stopped on an incline, use the handbrake to hold the vehicle.
Acceleration
To obtain optimum acceleration (for example to overtake another vehi-cle), you have only to press the pedal hard down to go beyond the end-of-travel switch.

103
IX
D R I V I N G

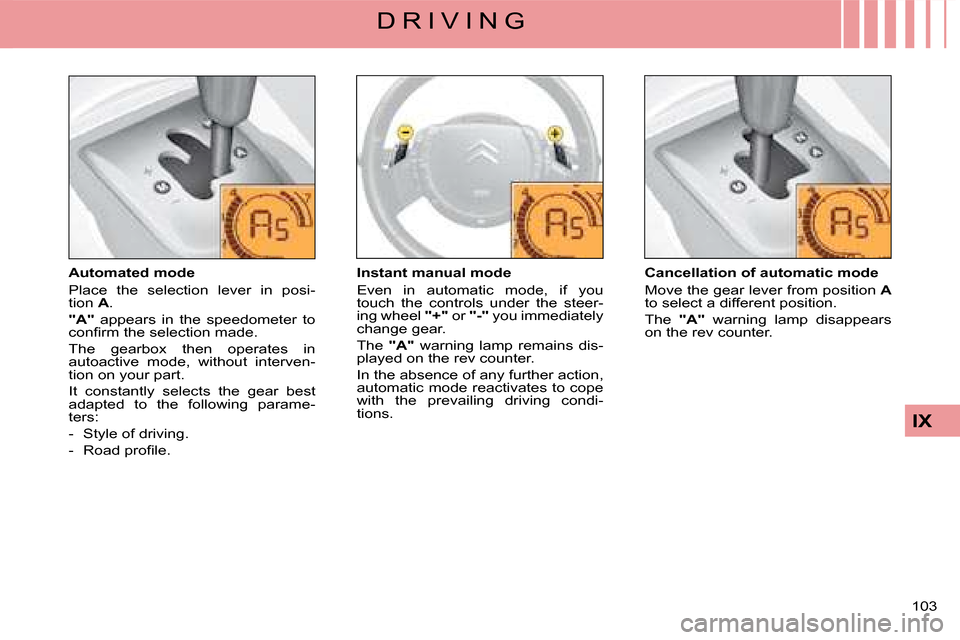

Automated mode
Place the selection lever in posi-tion A.
"A" appears in the speedometer to confi rm the selection made.
The gearbox then operates in autoactive mode, without interven-tion on your part.
It constantly selects the gear best adapted to the following parame-ters:
- Style of driving.
- Road profi le.
Cancellation of automatic mode
Move the gear lever from position Ato select a different position.
The "A" warning lamp disappears on the rev counter.
Instant manual mode
Even in automatic mode, if you touch the controls under the steer-ing wheel "+" or "-" you immediately change gear.
The "A" warning lamp remains dis-played on the rev counter.
In the absence of any further action, automatic mode reactivates to cope with the prevailing driving condi-tions.

IX
D R I V I N G

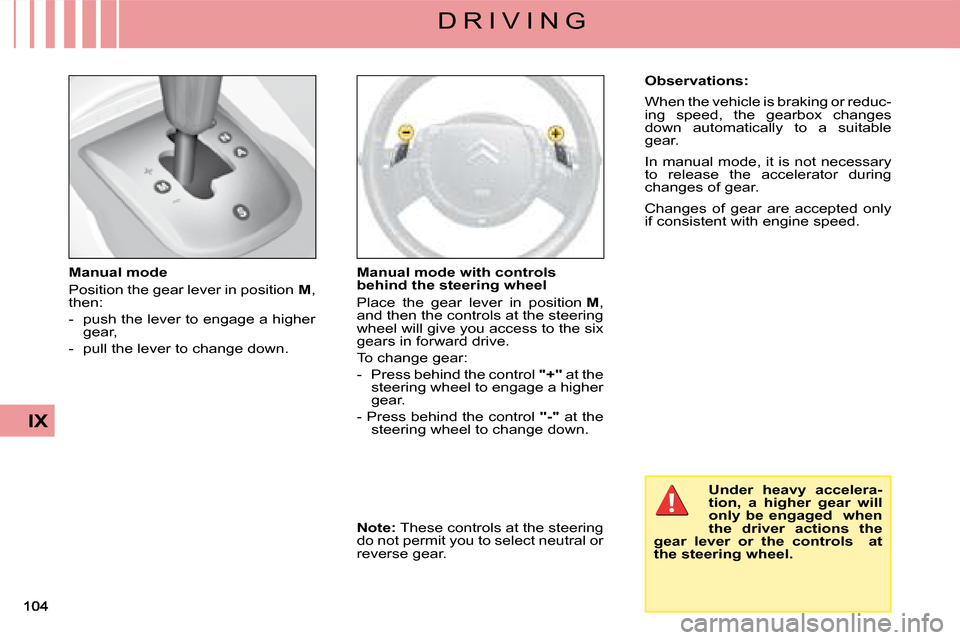

Manual mode
Position the gear lever in position M, then:
- push the lever to engage a higher gear,
- pull the lever to change down.
Manual mode with controls behind the steering wheel
Place the gear lever in position M, and then the controls at the steering wheel will give you access to the six gears in forward drive.
To change gear:
- Press behind the control "+" at the steering wheel to engage a higher gear.
- Press behind the control "-" at the steering wheel to change down.
Observations:
When the vehicle is braking or reduc-ing speed, the gearbox changes down automatically to a suitable gear.
In manual mode, it is not necessary to release the accelerator during changes of gear.
Changes of gear are accepted only if consistent with engine speed.
Under heavy accelera-tion, a higher gear will only be engaged when the driver actions the gear lever or the controls at the steering wheel.
Note: These controls at the steering do not permit you to select neutral or reverse gear.

IX
D R I V I N G

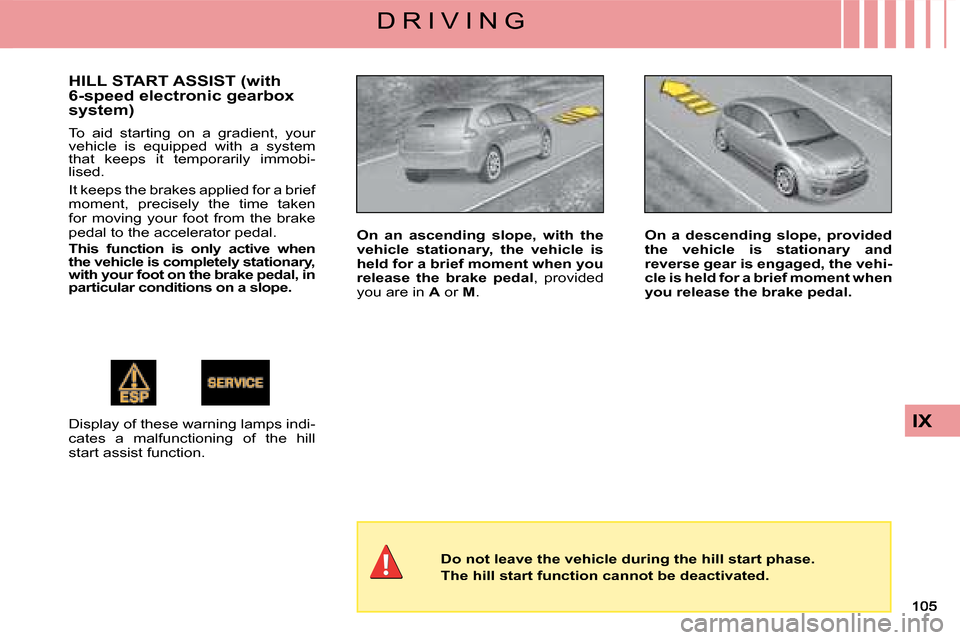

HILL START ASSIST (with 6-speed electronic gearbox system)
To aid starting on a gradient, your vehicle is equipped with a system that keeps it temporarily immobi-lised.
It keeps the brakes applied for a brief moment, precisely the time taken for moving your foot from the brake pedal to the accelerator pedal.
This function is only active when the vehicle is completely stationary, with your foot on the brake pedal, in particular conditions on a slope.
On a descending slope, provided the vehicle is stationary and reverse gear is engaged, the vehi-cle is held for a brief moment when you release the brake pedal.
Do not leave the vehicle during the hill start phase.
The hill start function cannot be deactivated.
On an ascending slope, with the vehicle stationary, the vehicle is held for a brief moment when you release the brake pedal, provided you are in A or M.
Display of these warning lamps indi-cates a malfunctioning of the hill start assist function.

IX
D R I V I N G
HILL START ASSIST (with 6-speed electronic gearbox system)
To aid starting on a gradient, your vehicle is equipped with a system that keeps it temporarily immobi-lised.
It keeps the brakes applied for a brief moment, precisely the time taken for moving your foot from the brake pedal to the accelerator pedal.
This function is only active when the vehicle is completely stationary, with your foot on the brake pedal, in particular conditions on a slope.
On a descending slope, provided the vehicle is stationary and reverse gear is engaged, the vehi-cle is held for a brief moment when you release the brake pedal.
Do not leave the vehicle during the hill start phase.
The hill start function cannot be deactivated.
On an ascending slope, with the vehicle stationary, the vehicle is held for a brief moment when you release the brake pedal, provided you are in A or M.
Display of these warning lamps indi-cates a malfunctioning of the hill start assist function.

106
IX
D R I V I N G

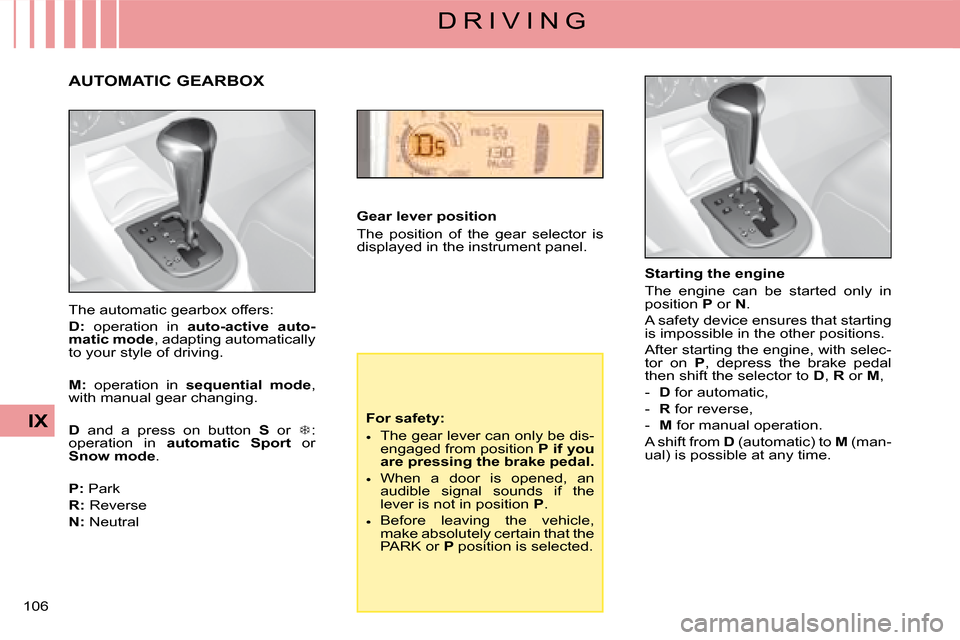

Gear lever position
The position of the gear selector is displayed in the instrument panel.
For safety:

107
IX
D R I V I N G

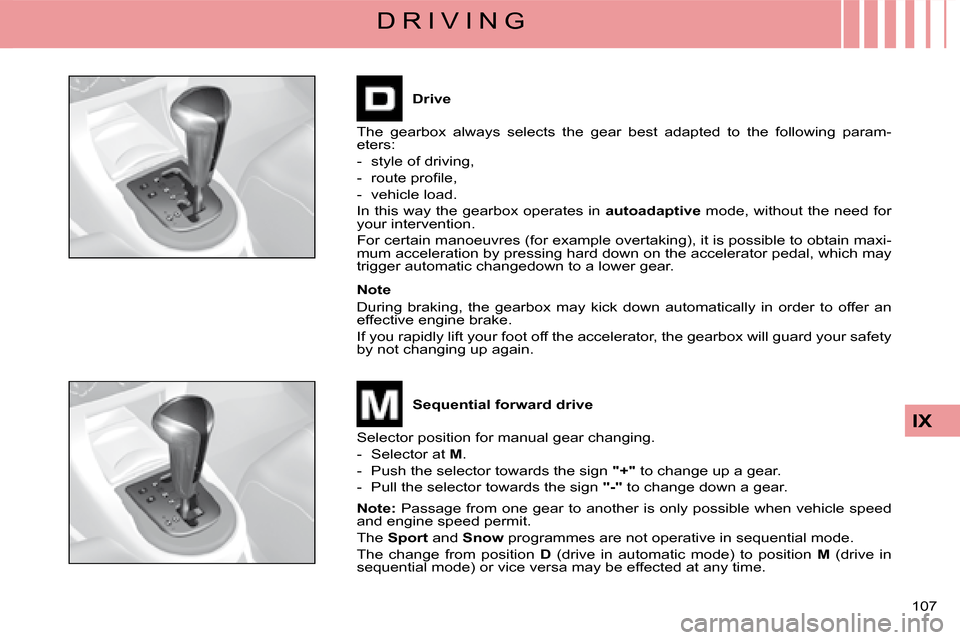

Drive
The gearbox always selects the gear best adapted to the following param-eters:
- style of driving,
- route profi le,
- vehicle load.
In this way the gearbox operates in autoadaptive mode, without the need for your intervention.
For certain manoeuvres (for example overtaking), it is possible to ob tain maxi-mum acceleration by pressing hard down on the accelerator pedal, which may trigger automatic changedown to a lower gear.
Note
During braking, the gearbox may kick down automatically in order t o offer an effective engine brake.
If you rapidly lift your foot off the accelerator, the gearbox will guard your safety by not changing up again.
Sequential forward drive
Selector position for manual gear changing.
- Selector at M.
- Push the selector towards the sign "+" to change up a gear.
- Pull the selector towards the sign "-" to change down a gear.
Note: Passage from one gear to another is only possible when vehicle speed and engine speed permit.
The Sport and Snow programmes are not operative in sequential mode.
The change from position D (drive in automatic mode) to position M (drive in sequential mode) or vice versa may be effected at any time.

108
IX
D R I V I N G
Operation in Sport or Snow automatic mode
Select the driving mode:
- Normal, for regular use, the warning lamps S and  are not illuminated.
-Sport, for more responsive driving, to provide maximum performance and acceleration.
- Snow, for smooth driving in wintry conditions.

109
IX
D R I V I N G

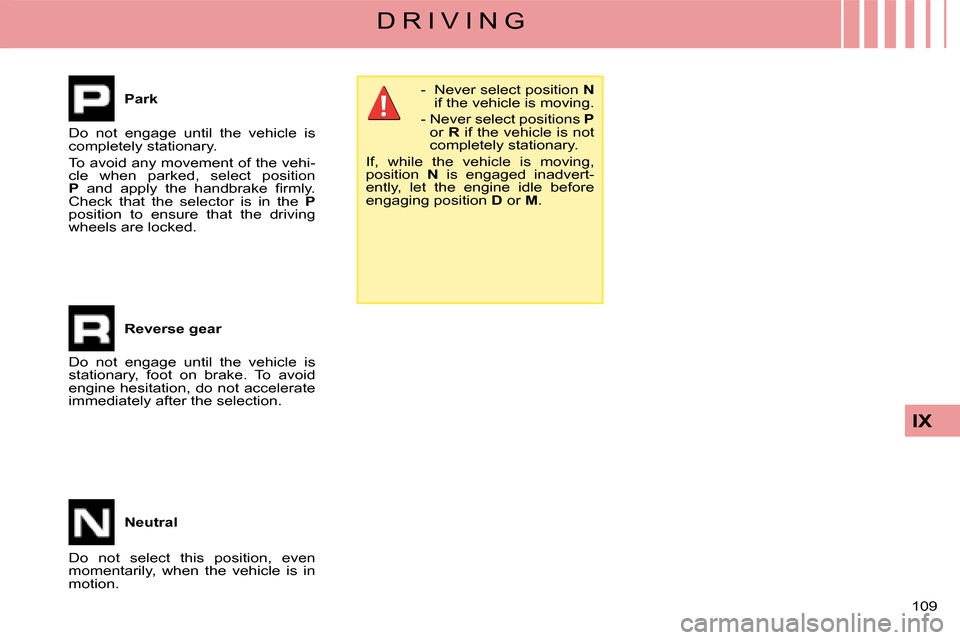

Park- Never select position Nif the vehicle is moving.
- Never select positions Por Ror if the vehicle is not completely stationary.
If, while the vehicle is moving, position N is engaged inadvert-ently, let the engine idle before engaging position D or M or.
Do not engage until the vehicle is completely stationary.
To avoid any movement of the vehi-cle when parked, select positionP and apply the handbrake fi rmly. Check that the selector is in the Pposition to ensure that the driving wheels are locked.
Reverse gear
Do not engage until the vehicle is stationary, foot on brake. To avoid engine hesitation, do not accelerate immediately after the selection.
Neutral
Do not select this position, even momentarily, when the vehicle is in motion.
