Citroen C4 DAG 2008 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2008, Model line: C4 DAG, Model: Citroen C4 DAG 2008 1.GPages: 257, PDF Size: 8.06 MB
Page 101 of 257

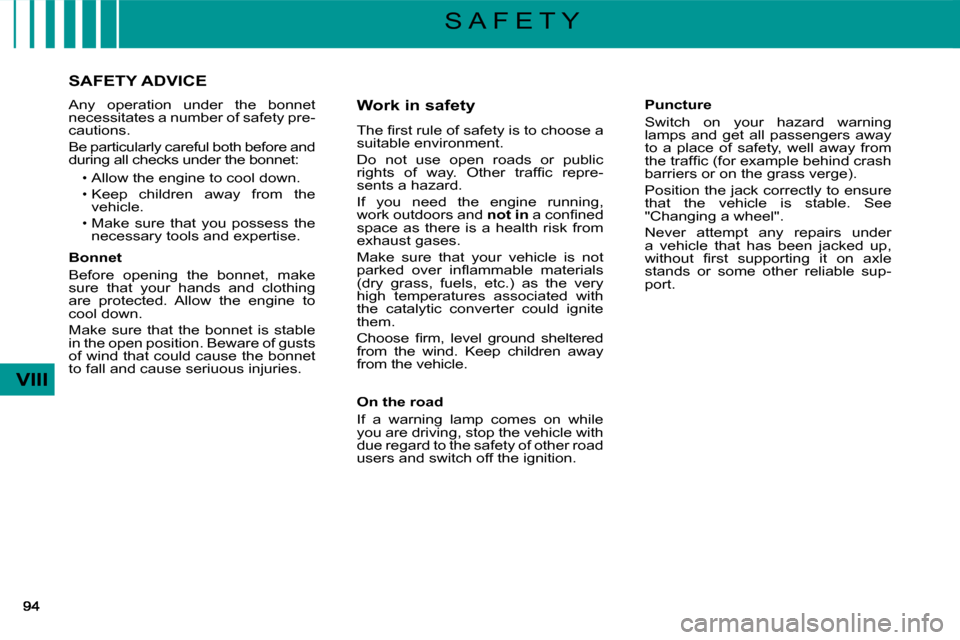

VIII
S A F E T Y
A n y o p e r a t i o n u n d e r t h e b o n n e t n e c e s s i t a t e s a n u m b e r o f s a f e t y p r e - c a u t i o n s .
B e p a r t i c u l a r l y c a r e f u l b o t h b e f o r e a n d during all checks under the bonnet:
A l l o w t h e e n g i n e t o c o o l d o w n . K e e p c h i l d r e n a w a y f r o m t h e v e h i c l e .
M a k e s u r e t h a t y o u p o s s e s s t h e n e c e s s a r y t o o l s a n d e x p e r t i s e .
Bonnet
B e f o r e o p e n i n g t h e b o n n e t , m a k e sure that your hands and clothing a r e p r o t e c t e d . A l l o w t h e e n g i n e t o c o o l d o w n .
Make sure that the bonnet is stable i n t h e o p e n p o s i t i o n . B e w a r e o f g u s t s of wind that could cause the bonnet t o f a l l a n d c a u s e s e r i u o u s i n j u r i e s .
Page 102 of 257
95
VIII
S A F E T Y

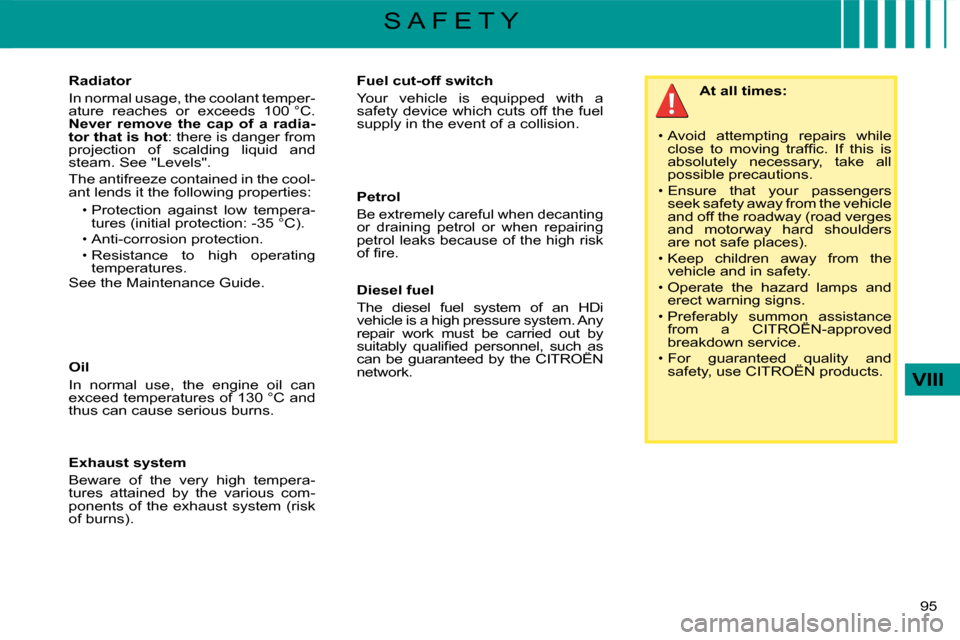

R a d i a t o r
I n n o r m a l u s a g e , t h e c o o l a n t t e m p e r - a t u r e r e a c h e s o r e x c e e d s 1 0 0 ° C . N e v e r r e m o v e t h e c a p o f a r a d i a -tor that is hot: there is danger from p r o j e c t i o n o f s c a l d i n g l i q u i d a n d s t e a m . S e e " L e v e l s " .
T h e a n t i f r e e z e c o n t a i n e d i n t h e c o o l - a n t l e n d s i t t h e f o l l o w i n g p r o p e r t i e s :
P r o t e c t i o n a g a i n s t l o w t e m p e r a - t u r e s ( i n i t i a l p r o t e c t i o n : - 3 5 ° C ) .
A n t i - c o r r o s i o n p r o t e c t i o n .
R e s i s t a n c e t o h i g h o p e r a t i n g t e m p e r a t u r e s . S e e t h e M a i n t e n a n c e G u i d e .
Page 103 of 257
96
VIII
S A F E T Y

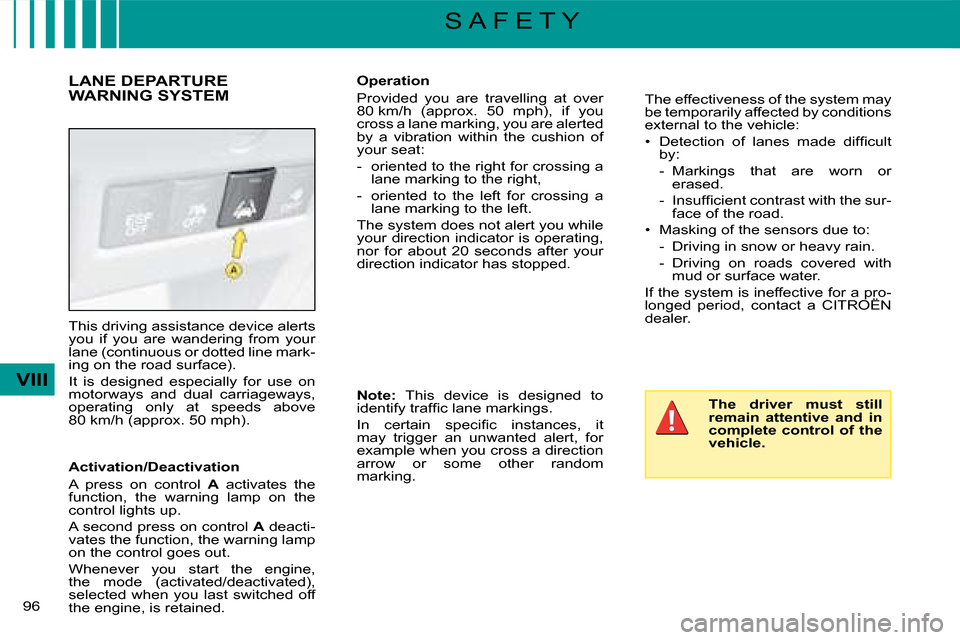

This driving assistance device alerts you if you are wandering from your l a n e ( c o n t i n u o u s o r d o t t e d l i n e m a r k - i n g o n t h e r o a d s u r f a c e ) .
I t i s d e s i g n e d e s p e c i a l l y f o r u s e o n m o t o r w a y s a n d d u a l c a r r i a g e w a y s , o p e r a t i n g o n l y a t s p e e d s a b o v e 8 0 k m / h ( a p p r o x . 5 0 m p h ) . T h e d r i v e r m u s t s t i l l r e m a i n a t t e n t i v e a n d i n c o m p l e t e c o n t r o l o f t h e v e h i c l e .
O p e r a t i o n
P r o v i d e d y o u a r e t r a v e l l i n g a t o v e r 8 0 k m / h ( a p p r o x . 5 0 m p h ) , i f y o u c r o s s a l a n e m a r k i n g , y o u a r e a l e r t e d by a vibration within the cushion of your seat:
- o r i e n t e d t o t h e r i g h t f o r c r o s s i n g a l a n e m a r k i n g t o t h e r i g h t ,
- o r i e n t e d t o t h e l e f t f o r c r o s s i n g a l a n e m a r k i n g t o t h e l e f t .
The system does not alert you while y o u r d i r e c t i o n i n d i c a t o r i s o p e r a t i n g , n o r f o r a b o u t 2 0 s e c o n d s a f t e r y o u r d i r e c t i o n i n d i c a t o r h a s s t o p p e d .
A c t i v a t i o n / D e a c t i v a t i o n
A p r e s s o n c o n t r o l A activates the f u n c t i o n , t h e w a r n i n g l a m p o n t h e c o n t r o l l i g h t s u p .
A s e c o n d p r e s s o n c o n t r o l A d e a c t i - v a t e s t h e f u n c t i o n , t h e w a r n i n g l a m p o n t h e c o n t r o l g o e s o u t .
W h e n e v e r y o u s t a r t t h e e n g i n e , t h e m o d e ( a c t i v a t e d / d e a c t i v a t e d ) , selected when you last switched off t h e e n g i n e , i s r e t a i n e d .
L A N E D E P A R T U R E W A R N I N G S Y S T E MThe effectiveness of the system may b e t e m p o r a r i l y a f f e c t e d b y c o n d i t i o n s external to the vehicle:
• D e t e c t i o n o f l a n e s m a d e d i f fi c u l t by:
- M a r k i n g s t h a t a r e w o r n o r e r a s e d .
- I n s u f fi c i e n t c o n t r a s t w i t h t h e s u r - f a c e o f t h e r o a d .
Page 104 of 257
97
IX
D R I V I N G

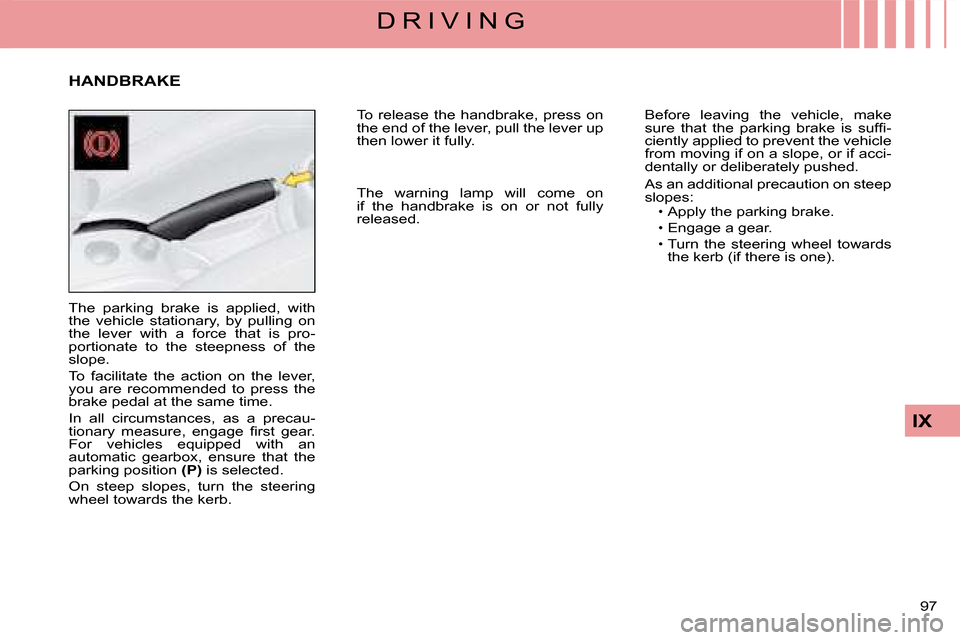

The parking brake is applied, with the vehicle stationary, by pulling on the lever with a force that is pro-portionate to the steepness of the slope.
To facilitate the action on the lever, you are recommended to press the brake pedal at the same time.
In all circumstances, as a precau- t i o n a r y m e a s u r e , e n g a g e fi r s t g e a r . For vehicles equipped with an automatic gearbox, ensure that the parking position (P) is selected.
On steep slopes, turn the steering wheel towards the kerb.
To release the handbrake, press on the end of the lever, pull the lever up then lower it fully.
HANDBRAKE
Before leaving the vehicle, make s u r e t h a t t h e p a r k i n g b r a k e i s s u f fi -ciently applied to prevent the vehicle from moving if on a slope, or if acci-dentally or deliberately pushed.
As an additional precaution on steep slopes:Apply the parking brake.
Engage a gear.Turn the steering wheel towards the kerb (if there is one).
Page 105 of 257
98
IX
D R I V I N G

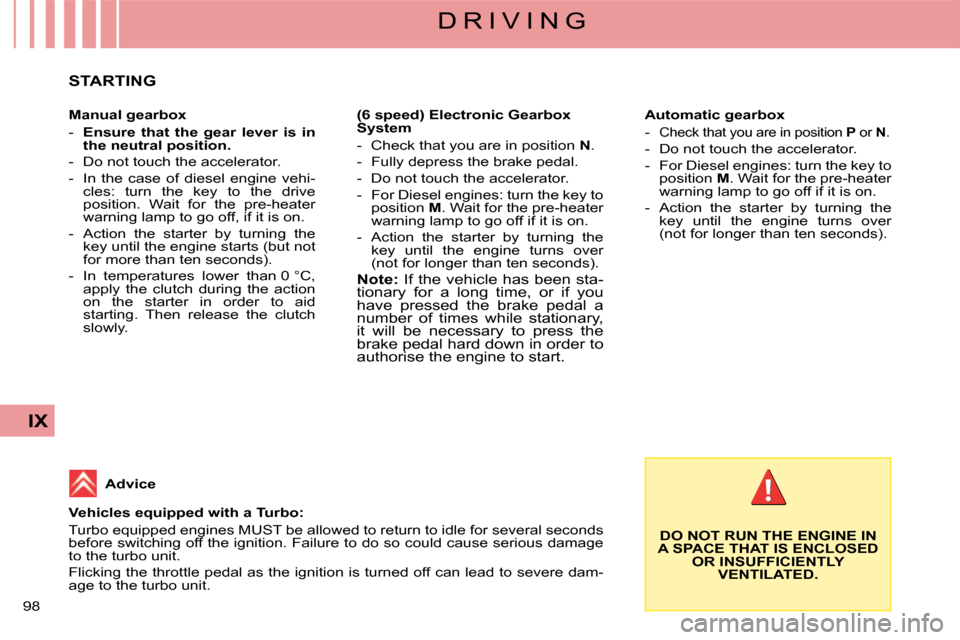

Manual gearbox
- Ensure that the gear lever is in the neutral position.
- Do not touch the accelerator.
- In the case of diesel engine vehi-cles: turn the key to the drive position. Wait for the pre-heater warning lamp to go off, if it is on.
- Action the starter by turning the key until the engine starts (but not for more than ten seconds).
- In temperatures lower than 0 °C, apply the clutch during the action on the starter in order to aid starting. Then release the clutch slowly.
DO NOT RUN THE ENGINE IN A SPACE THAT IS ENCLOSED OR INSUFFICIENTLY VENTILATED.
Automatic gearbox
- Check that you are in position P or N.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Advice
Vehicles equipped with a Turbo:
Turbo equipped engines MUST be allowed to return to idle for several seconds before switching off the ignition. Failure to do so could cause serious damage to the turbo unit.
Flicking the throttle pedal as the ignition is turned off can lead to severe dam-age to the turbo unit.
(6 speed) Electronic Gearbox System
- Check that you are in position N.
- Fully depress the brake pedal.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Note: If the vehicle has been sta-tionary for a long time, or if you have pressed the brake pedal a number of times while stationary, it will be necessary to press the brake pedal hard down in order to authorise the engine to start.
STARTING
Page 106 of 257
98
IX
D R I V I N G
Manual gearbox
- Ensure that the gear lever is in the neutral position.
- Do not touch the accelerator.
- In the case of diesel engine vehi-cles: turn the key to the drive position. Wait for the pre-heater warning lamp to go off, if it is on.
- Action the starter by turning the key until the engine starts (but not for more than ten seconds).
- In temperatures lower than 0 °C, apply the clutch during the action on the starter in order to aid starting. Then release the clutch slowly.
DO NOT RUN THE ENGINE IN A SPACE THAT IS ENCLOSED OR INSUFFICIENTLY VENTILATED.
Automatic gearbox
- Check that you are in position P or N.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Advice
Vehicles equipped with a Turbo:
Turbo equipped engines MUST be allowed to return to idle for several seconds before switching off the ignition. Failure to do so could cause serious damage to the turbo unit.
Flicking the throttle pedal as the ignition is turned off can lead to severe dam-age to the turbo unit.
(6 speed) Electronic Gearbox System
- Check that you are in position N.
- Fully depress the brake pedal.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Note: If the vehicle has been sta-tionary for a long time, or if you have pressed the brake pedal a number of times while stationary, it will be necessary to press the brake pedal hard down in order to authorise the engine to start.
STARTING
Page 107 of 257
99
IX
D R I V I N G

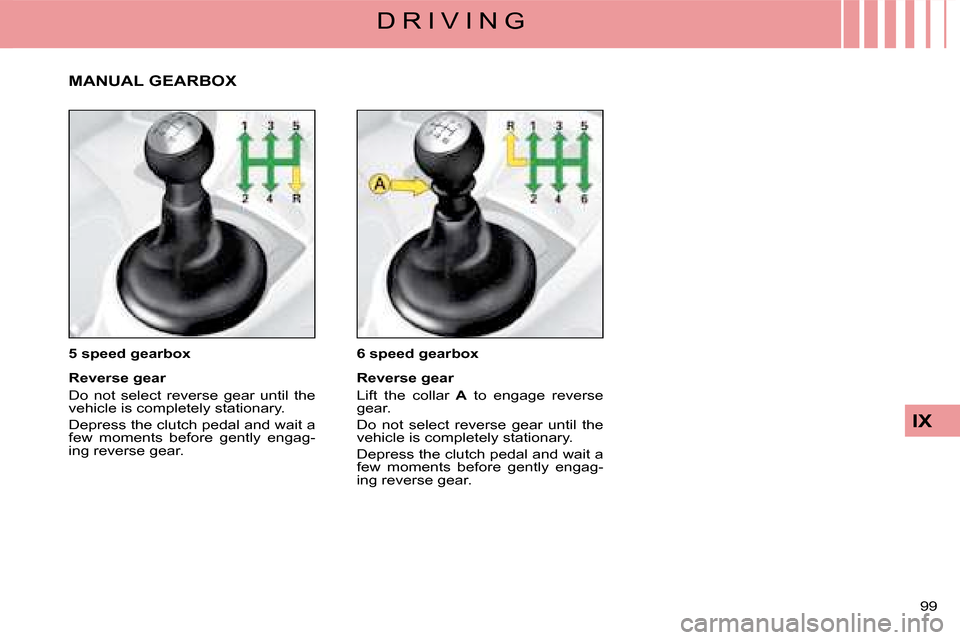

6 speed gearbox
Reverse gear
Lift the collar Acollar to engage reverse gear.
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
5 speed gearbox
Reverse gear
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
MANUAL GEARBOX
Page 108 of 257
98
IX
D R I V I N G
Manual gearbox
- Ensure that the gear lever is in the neutral position.
- Do not touch the accelerator.
- In the case of diesel engine vehi-cles: turn the key to the drive position. Wait for the pre-heater warning lamp to go off, if it is on.
- Action the starter by turning the key until the engine starts (but not for more than ten seconds).
- In temperatures lower than 0 °C, apply the clutch during the action on the starter in order to aid starting. Then release the clutch slowly.
DO NOT RUN THE ENGINE IN A SPACE THAT IS ENCLOSED OR INSUFFICIENTLY VENTILATED.
Automatic gearbox
- Check that you are in position P or N.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Advice
Vehicles equipped with a Turbo:
Turbo equipped engines MUST be allowed to return to idle for several seconds before switching off the ignition. Failure to do so could cause serious damage to the turbo unit.
Flicking the throttle pedal as the ignition is turned off can lead to severe dam-age to the turbo unit.
(6 speed) Electronic Gearbox System
- Check that you are in position N.
- Fully depress the brake pedal.
- Do not touch the accelerator.
- For Diesel engines: turn the key to position M. Wait for the pre-heater warning lamp to go off if it is on.
- Action the starter by turning the key until the engine turns over (not for longer than ten seconds).
Note: If the vehicle has been sta-tionary for a long time, or if you have pressed the brake pedal a number of times while stationary, it will be necessary to press the brake pedal hard down in order to authorise the engine to start.
STARTING
Page 109 of 257
99
IX
D R I V I N G
6 speed gearbox
Reverse gear
Lift the collar Acollar to engage reverse gear.
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
5 speed gearbox
Reverse gear
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
MANUAL GEARBOX
Page 110 of 257
100
IX
D R I V I N G

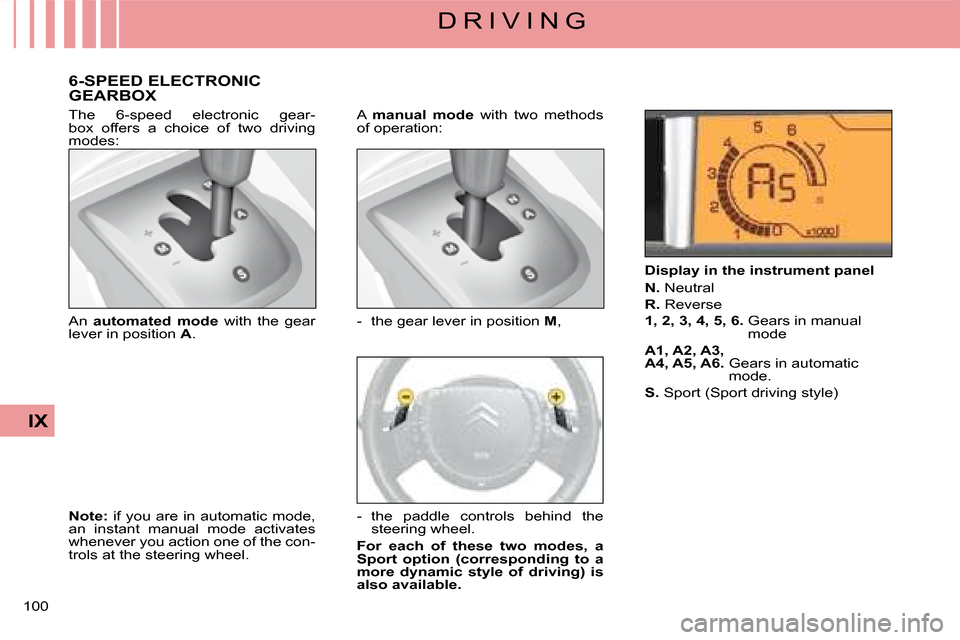

The 6-speed electronic gear-box offers a choice of two driving modes:
6-SPEED ELECTRONIC GEARBOX
A manual mode with two methods of operation:
Note: if you are in automatic mode, an instant manual mode activates whenever you action one of the con-trols at the steering wheel.
- the paddle controls behind the steering wheel.
- the gear lever in position M,
Display in the instrument panel
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6. Gears in manual mode
A1, A2, A3, A4, A5, A6. Gears in automatic mode.
S. Sport (Sport driving style)
For each of these two modes, a Sport option (corresponding to a more dynamic style of driving) is also available.
An automated mode with the gear lever in position A.
