4
F A M I L I A R I S A T I O N
E X T E R I O R
Directional headlamps
This lighting function automatically
improves forward vision when cor-
nering. Lane departure warning
system
Above 50 mph, this system is activated
automatically if you inadvertently wander
from your lane.
Parking sensors, front/rear
This system warns you if an obsta-
cle is detected when manoeuvring
the vehicle.
Guide-me-home lighting
The headlamps stay on for a short
period after switching off the ignition.
74
73
121
Vehicle maintenance
When washing your vehicle, hold
the end of the high pressure nozzle
more than 30 centimetres from the
s e l f - a d h e s i v e fi l m fi n i s h e r s .
Temporary puncture repair kit
This kit is a complete system, consis-
ting of a compressor and an integral
sealant product, for the temporary re-
pair of a tyre.
120
136
Page 5 of 284
8
F A M I L I A R I S A T I O N
D A S H B O A R D
1. Controls:
- Mirrors.
- Windows.
- Child safety
2. Bonnet release.
3. Fusebox cover.
4. Headlamp adjustment.
5. Controls:
- ESP.
- Parking sensors.
- Lane departure warning system.
- Anti-intrusion alarm.
6. Controls:
- Lighting.
- Direction indicators.
- Front foglamps
- Rear foglamps.
7. Fixed centred controls.
8. Direction indicator warning lamps.
9. Instrument panel.
10. Controls:
- Trip mileage recorder reset button.
- Display lighting rheostat.
- Display of alerts and status of functions.
11. Centre air vents.
12. Driver’s airbag.
13. Horn
14. Steering column adjustment lever.
Page 15 of 284
18
F A M I L I A R I S A T I O N
M O N I T O R I N G

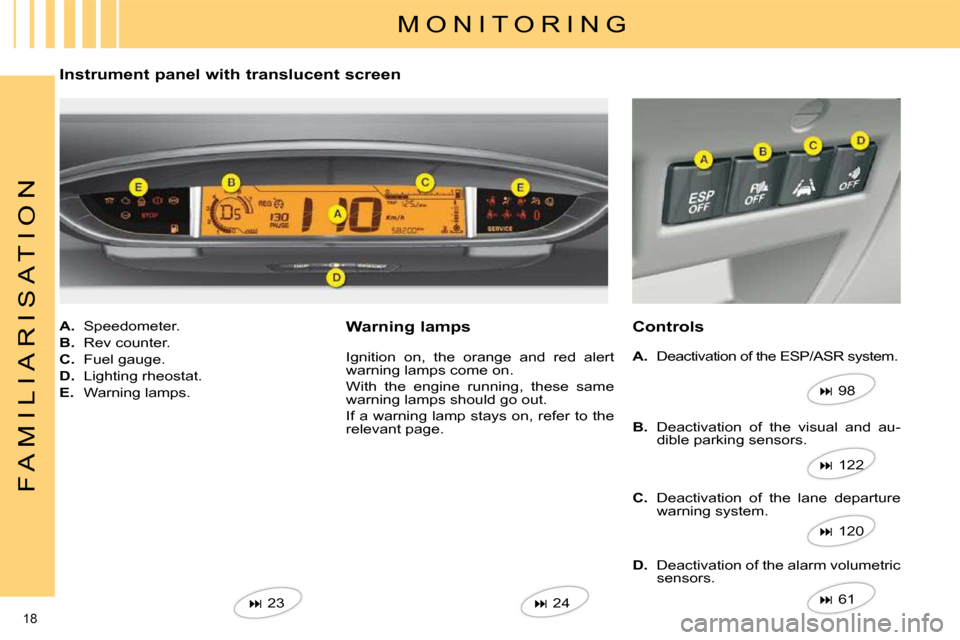

Instrument panel with translucent screen
A. Speedometer.
B. Rev counter.
C. Fuel gauge.
D. Lighting rheostat.
E. Warning lamps. Controls
Ignition on, the orange and red alert
warning lamps come on.
With the engine running, these same
warning lamps should go out.
If a warning lamp stays on, refer to the
relevant page.
Warning lamps
23
24
A. Deactivation of the ESP/ASR system.
98
B. Deactivation of the visual and au-
dible parking sensors.
122
C. Deactivation of the lane departure
warning system.
120
D. Deactivation of the alarm volumetric
sensors.
61
Page 47 of 284
42
III
C O M F O R T
Air conditioning
To ensure that your system operates
correctly, it is recommended to have
it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the windows
closed.
If after a lengthy stop in bright sunlight
the interior temperature is excessive,
ventilate the passenger compartment
by opening the windows for a few
moments, then close them again.
The air conditioning operates by using
power from the engine. This results in
a slight increase in fuel consumption.
Dust filter/Odour filter
(active carbon)
T h e r e i s a fi l t e r f o r e x c l u d i n g o d o u r s
and dust.
T h i s fi l t e r h a s t o b e c h a n g e d i n a c -
cordance with the vehicle servicing
schedule (see "Maintenance and
Warranty Guide").
Air circulation
Maximum comfort is obtained when
there is a good distribution of air in
the passenger compartment, both in
the front and in the rear.
F o r o p t i m u m o p e r a t i n g e f fi c i e n c y ,
take care not to obstruct the air out-
lets under the front seats.
Air vents
The face-level air vents have grilles
and thumbwheels to adjust the air
fl o w a n d d i r e c t i o n ( u p - d o w n , r i g h t -
left).

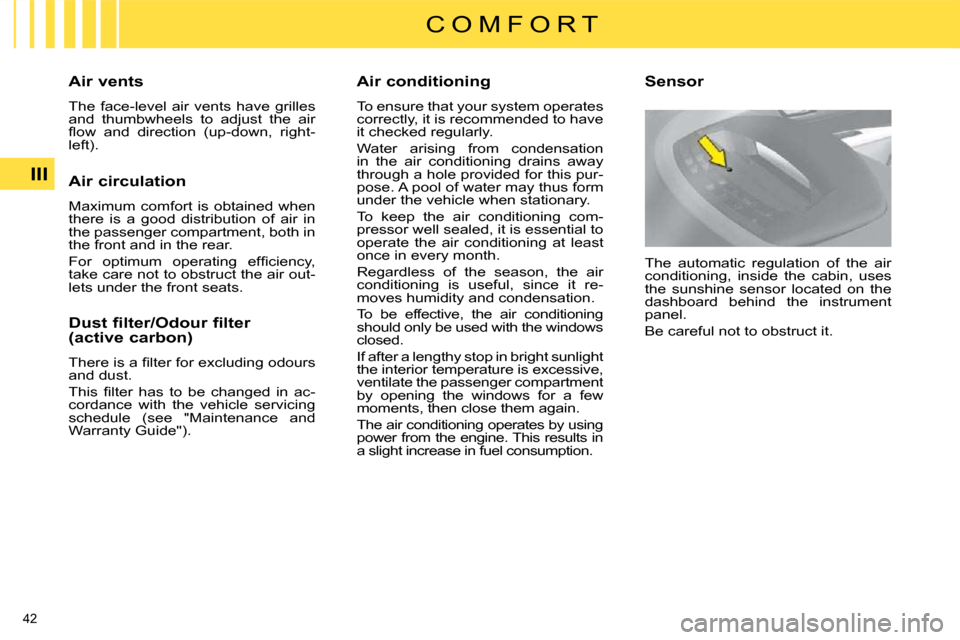

The automatic regulation of the air
conditioning, inside the cabin, uses
the sunshine sensor located on the
dashboard behind the instrument
panel.
Be careful not to obstruct it.
Sensor
Page 60 of 284
55
III
C O M F O R T
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
M a n u a l d a y / n i g h t m o d e l
Adjustment
Adjust the mirror so that the
glass is directed correctly in the
"day" position.
D a y / n i g h t p o s i t i o n
Pull the lever to change to the
"night" anti-dazzle position.
Push the lever to change to the
normal "day" position. By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this reduc-
es any driver discomfort caused by
the light beam of following vehicles,
the sun...
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
STEERING WHEEL ADJUSTMENT
The height and reach of the steer-
ing wheel can be adjusted to adapt
the driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
W h e n s t a t i o n a r y , pull the con-
trol lever to unlock the steering
wheel adjustment.
Adjust for height and reach.
Push the control lever to lock the
steering wheel adjustment.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
A u t o m a t i c d a y / n i g h t m o d e l
As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
Page 80 of 284
71
V I S I B I L I T Y
V

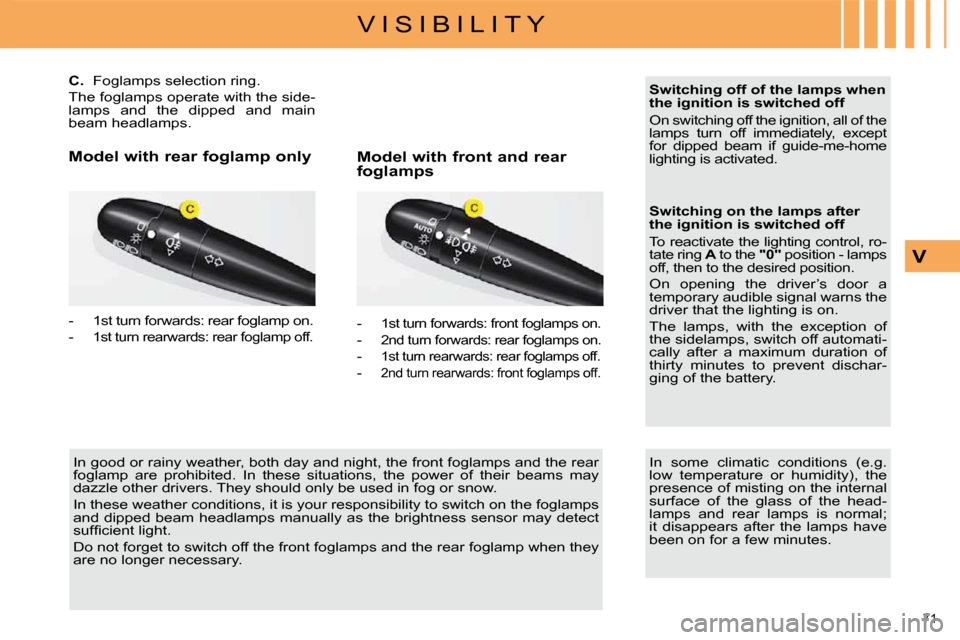

C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.
- 1 st turn forwards: rear foglamp on.
-
1 st turn rearwards: rear foglamp off. - 1 st turn forwards: front foglamps on.
-
2 nd turn forwards: rear foglamps on.
-
1 st turn rearwards: rear foglamps off.
-
2 nd turn rearwards: front foglamps off.
Model with rear foglamp only Model with front and rear
foglamps
In good or rainy weather, both day and night, the front foglamps and the rear
foglamp are prohibited. In these situations, the power of their beams may
dazzle other drivers. They should only be used in fog or snow.
In these weather conditions, it is your responsibility to swit ch on the foglamps
and dipped beam headlamps manually as the brightness sensor may d etect
s u f fi c i e n t l i g h t .
Do not forget to switch off the front foglamps and the re ar foglamp when they
are no longer necessary. Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all of the
lamps turn off immediately, except
for dipped beam if guide-me-home
lighting is activated.
Switching on the lamps after
the ignition is switched off
To reactivate the lighting control, ro-
tate ring
A to the "0" position - lamps
off, then to the desired position.
On opening the driver’s door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a maximum duration of
thirty minutes to prevent dischar-
ging of the battery.
In some climatic conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
Page 82 of 284

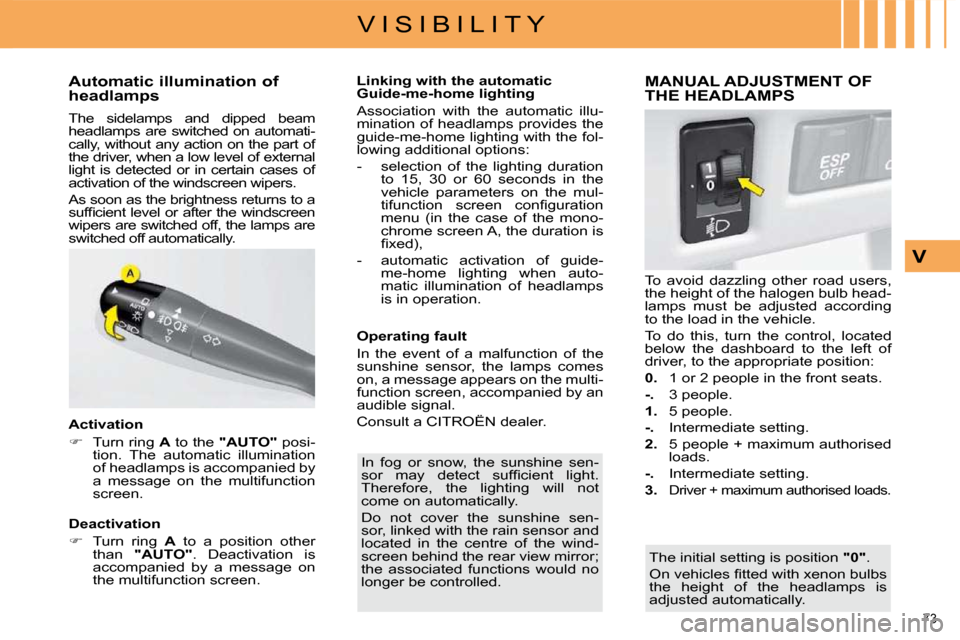

73
V I S I B I L I T Y
V
Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic illumination
of headlamps is accompanied by
a message on the multifunction
screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
Guide-me-home lighting
Association with the automatic illu-
mination of headlamps provides the
guide-me-home lighting with the fol-
lowing additional options:
- selection of the lighting duration
to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of guide- me-home lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer.
In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.

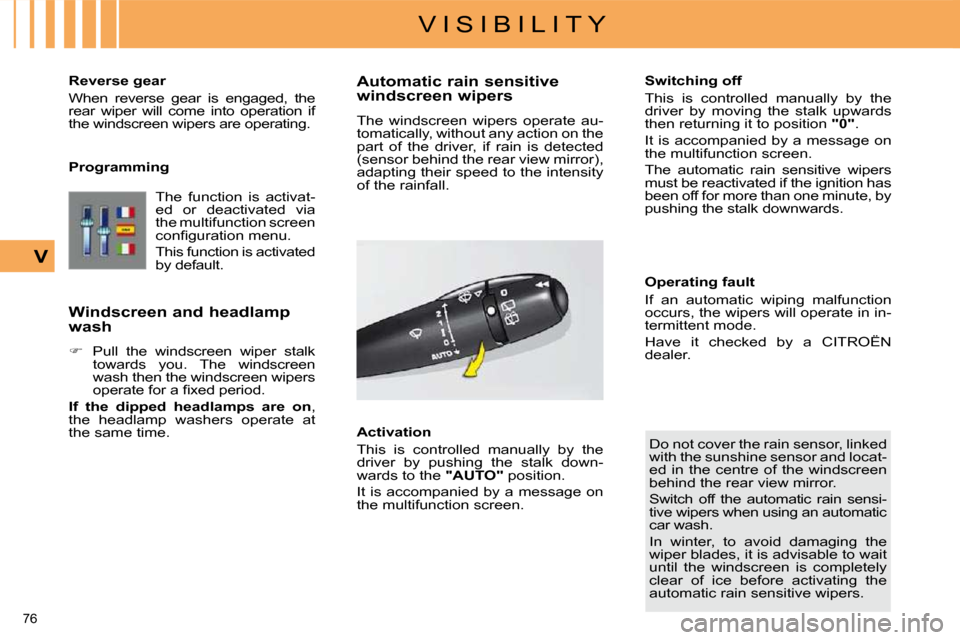

Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
The initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is
adjusted automatically.
Page 84 of 284
73
V I S I B I L I T Y
V
Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic illumination
of headlamps is accompanied by
a message on the multifunction
screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
Guide-me-home lighting
Association with the automatic illu-
mination of headlamps provides the
guide-me-home lighting with the fol-
lowing additional options:
- selection of the lighting duration
to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of guide- me-home lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer.
In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
The initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is
adjusted automatically.
Page 87 of 284
76
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by pushing the stalk down-
wards to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. Switching off
This is controlled manually by the
driver by moving the stalk upwards
then returning it to position
"0" .
It is accompanied by a message on
the multifunction screen.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
Page 118 of 284
96
VIII
S A F E T Y

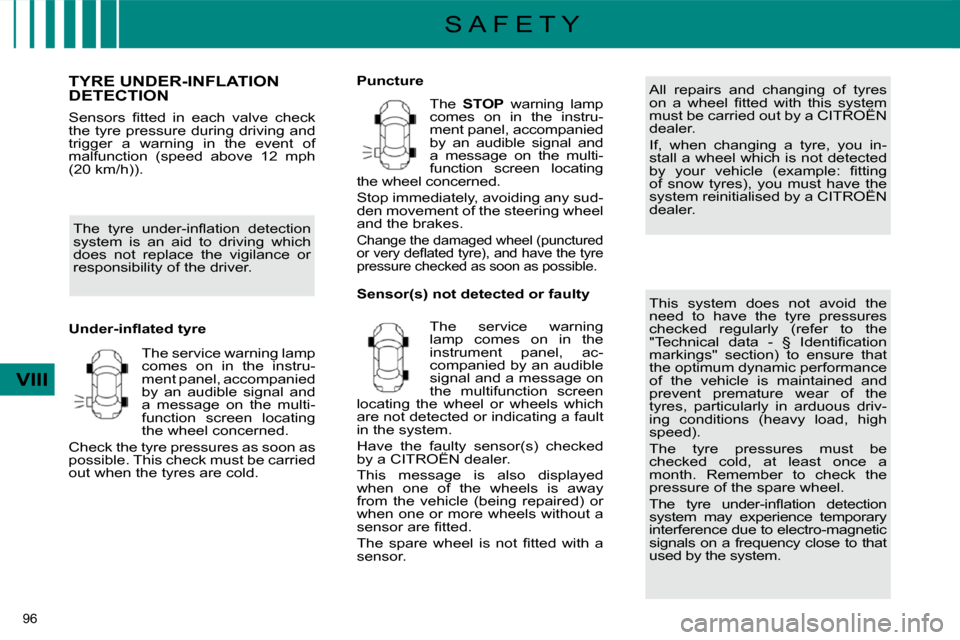

TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
U n d e r - i n fl a t e d t y r e T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punctured
o r v e r y d e fl a t e d t y r e ) , a n d h a v e t h e t y r e
pressure checked as soon as possible.
S e n s o r ( s ) n o t d e t e c t e d o r f a u l t y
The service warning
lamp comes on in the
instrument panel, ac-
companied by an audible
signal and a message on
the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and
prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to electro-magnetic
signals on a frequency close to that
used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
