display Citroen C4 DAG 2011.5 2.G Owner's Manual

291
04 AUDIO

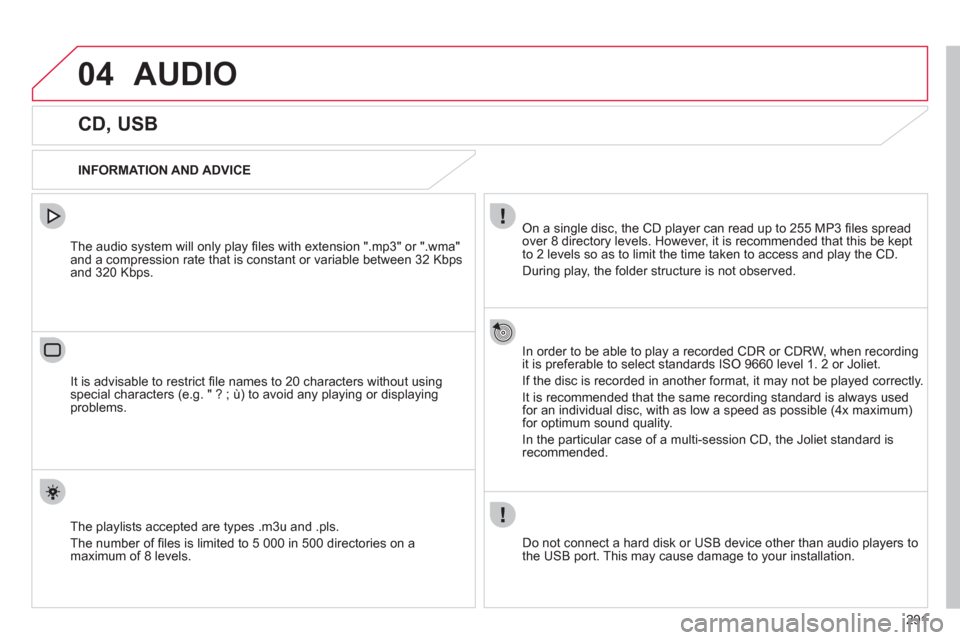

CD, USB


INFORMATION AND ADVICE

On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 directory levels. However, it is recommended that this be kept
to 2 levels so as to limit the time taken to access and play the CD.
During play, the folder structure is not observed.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1. 2 or Joliet.
If the disc is recorded in another format, it may not be played correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.

Do not connect a hard disk or USB device other than audio players to
the USB port. This may cause damage to your installation.

The audio system will only play fi les with extension ".mp3" or ".wma"
and a compression rate that is constant or variable between 32 Kbps
and 320 Kbps.

It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.

The playlists accepted are types .m3u and .pls.
The number of fi les is limited to 5 000 in 500 directories on a
maximum of 8 levels.

292
04
1
3
2
4
5












CD, USB

AUDIO

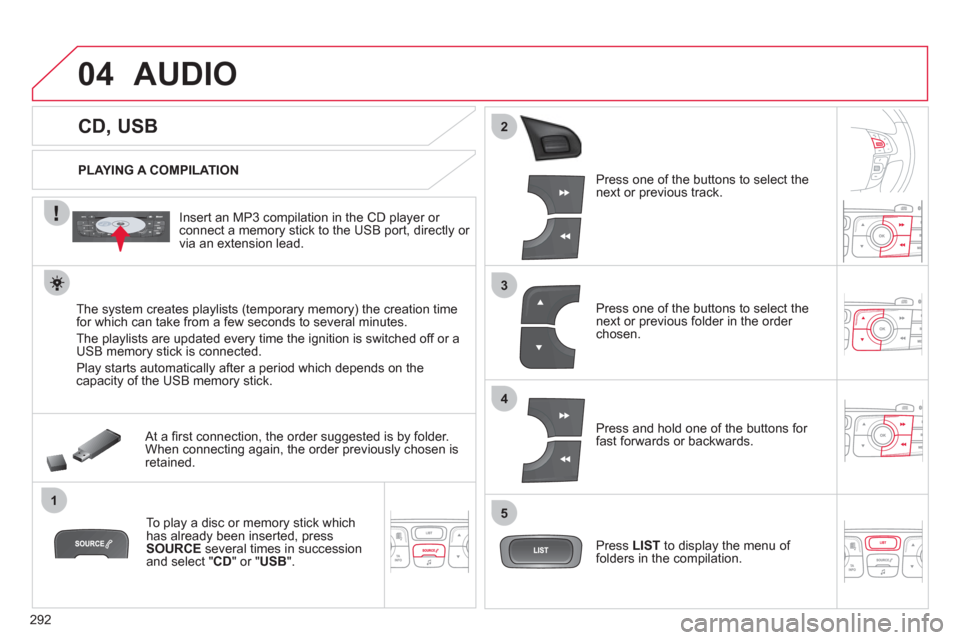

PLAYING A COMPILATION

Insert an MP3 compilation in the CD player or
connect a memory stick to the USB port, directly or
via an extension lead.

The system creates playlists (temporary memory) the creation time
for which can take from a few seconds to several minutes.
The playlists are updated every time the ignition is switched off or a
USB memory stick is connected.
Play starts automatically after a period which depends on the
capacity of the USB memory stick.

At a fi rst connection, the order suggested is by folder.
When connecting again, the order previously chosen is
retained.

To play a disc or memory stick which
has already been inserted, press
SOURCE
several times in succession
and select " CD
" or " USB
".


Press one of the buttons to select the
next or previous track.

Press one of the buttons to select the
next or previous folder in the order
chosen.

Press and hold one of the buttons for
fast forwards or backwards.

Press LIST
to display the menu of
folders in the compilation.

293
7
6
8
9
2
1
04

Select a line in the list.

Select a track or a folder.

Jump a page.

Up a level in the menu.

AUDIO

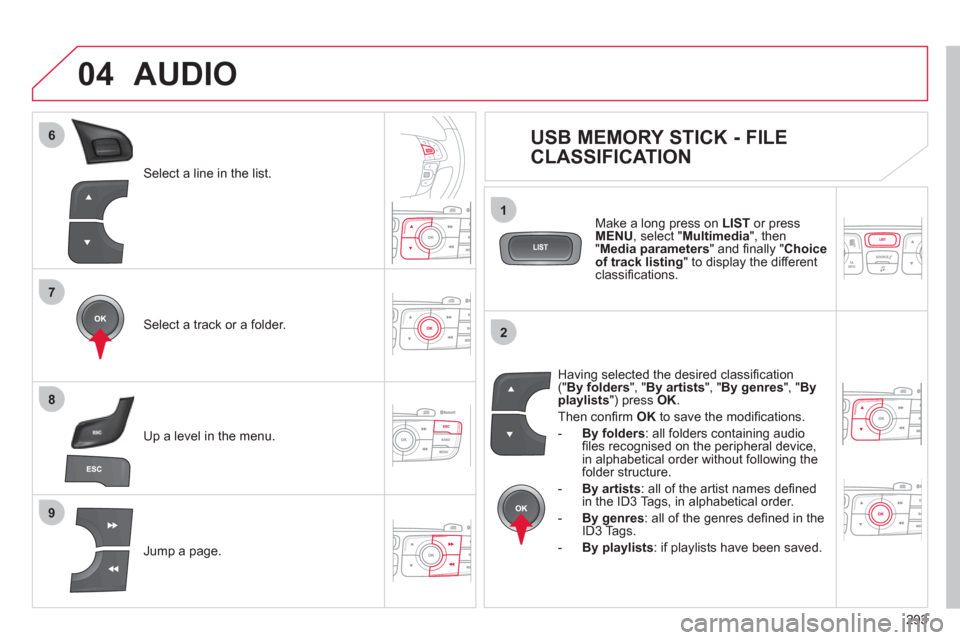

USB MEMORY STICK - FILE
CLASSIFICATION

Having selected the desired classifi cation
(" By folders
", " By artists
", " By genres
", " By
playlists
") press OK
.
Then confi rm OK
to save the modifi cations.


- By folders
: all folders containing audio
fi les recognised on the peripheral device,
in alphabetical order without following the
folder structure.

- By artists
: all of the artist names defi ned
in the ID3 Tags, in alphabetical order.

- By genres
: all of the genres defi ned in the
ID3 Tags.

- By playlists
: if playlists have been saved.


Make a long press on LIST
or press
MENU
, select " Multimedia
", then
" Media parameters
" and fi nally " Choice
of track listing
" to display the different
classifi cations.

295
3
2
4
04
1
AUDIO

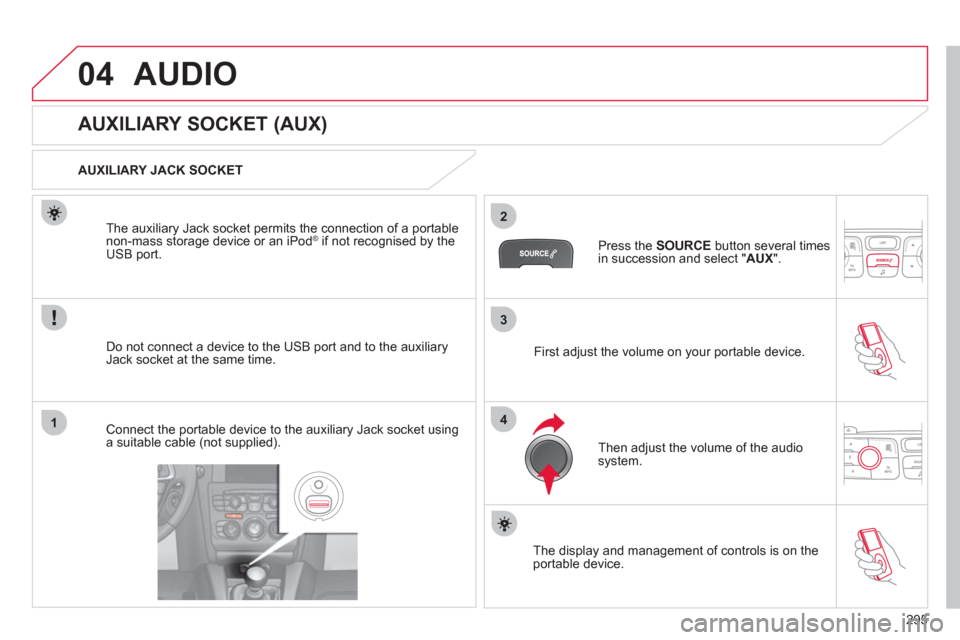

AUXILIARY SOCKET (AUX)


AUXILIARY JACK SOCKET

Do not connect a device to the USB port and to the auxiliary
Jack socket at the same time.
The auxiliary Jack socket permits the connection of a portable
non-mass storage device or an iPod
® if not recognised by the
USB port.

Connect the portable device to the auxiliary Jack socket using
a suitable cable (not supplied).
Press the SOURCE
button several times
in succession and select " AUX
".

First adjust the volume on your portable device.

Then adjust the volume of the audio
system.

The display and management of controls is on the
portable device.

296
04
1
2
1
2
3
4
5
AUDIO







STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH

Depending on the compatibility of the phone

Pair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profi les
(Profi les A2DP/AVRCP).

Activate the streaming source by pressing SOURCE
.
Control of playback is via the audio system. The
contextual information can be displayed in the screen.

In certain cases, playing of the audio fi les must be initiated from
the telephone.

The audio quality depends on the quality of the transmission from
the telephone.



PLAY MODE


The play modes available are:


- Normal: the tracks are played in order, depending on the
classifi cation of the selected fi les.

- Random: the tracks in an album or folder are played in a
random order.

- Random all: all of the tracks saved in the media are played in
random order.

- Repeat: the tracks played are only those from the current
album or folder.






Press OK
for access to the contextual menu.

or
Press MENU
.

Select " Multimedia
" and confi rm.

Select " Media parameters
" and
confi rm.

Select " Read mode
" and confi rm.

Select the desired play mode and
confi rm OK
to save the modifi cations.

297
05
1
2
5
3
4
6
USING THE TELEPHONE

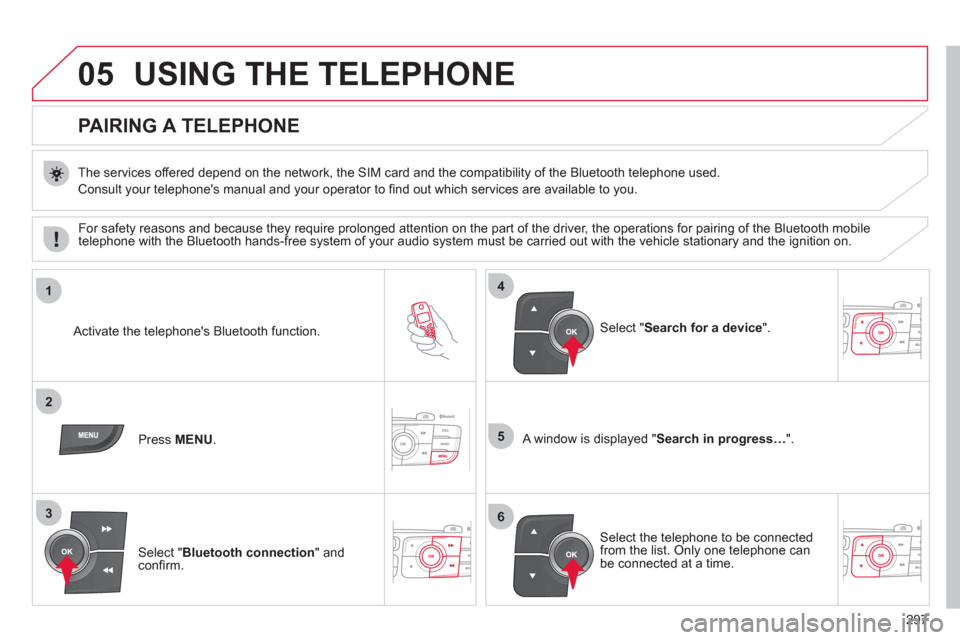

PAIRING A TELEPHONE


The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function.

Press MENU
.
A window is displayed " Search in progress…
".

Select the telephone to be connected
from the list. Only one telephone can
be connected at a time.
Select " Search for a device
".
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary and the ignition on.

Select " Bluetooth connection
" and
confi rm.

298
05
7
8
Saisir code authentification
01
OK Del23456789 _
9
10
USING THE TELEPHONE

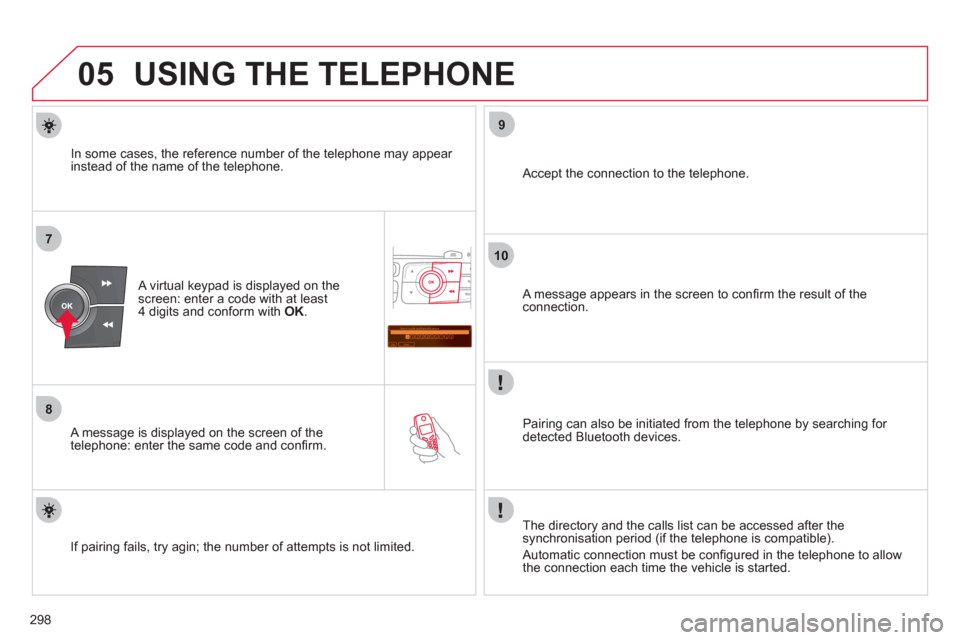

A virtual keypad is displayed on the
screen: enter a code with at least
4 digits and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try agin; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone may appear
instead of the name of the telephone.

299

05
1
2
4
3
USING THE TELEPHONE


To see the telephone status, press
MENU
.

Select " Telephone
" and confi rm.

Select " Telephone management
"
confi rm.
Select " Telephone status
" and confi rm.

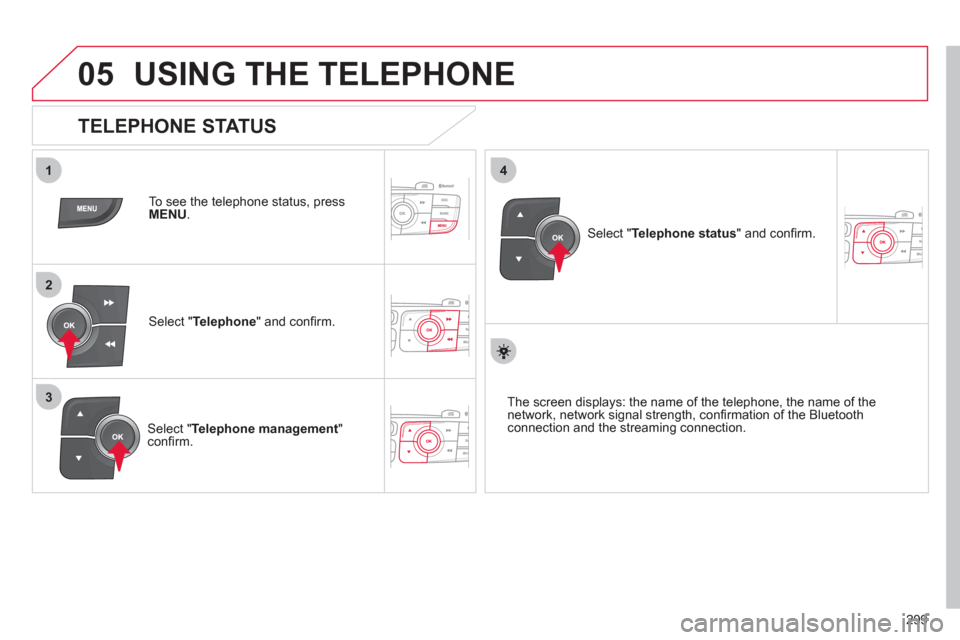

TELEPHONE STATUS


The screen displays: the name of the telephone, the name of the
network, network signal strength, confi rmation of the Bluetooth
connection and the streaming connection.

300


1
2
3
4
05
5
USING THE TELEPHONE


The telephone connection automatically includes hands-free
operation and audio streaming.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.

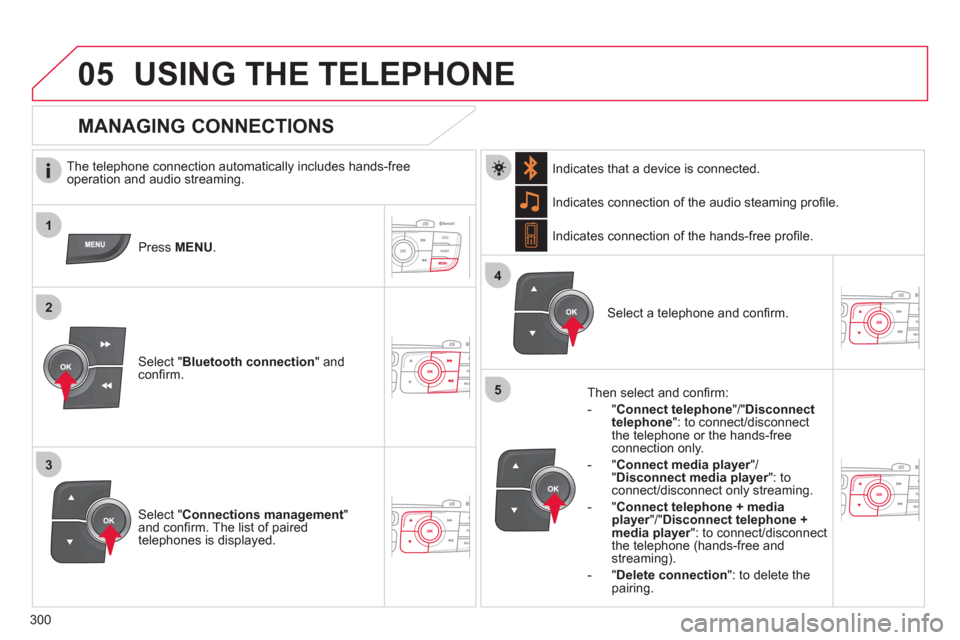

MANAGING CONNECTIONS


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
"/" Disconnect
telephone
": to connect/disconnect
the telephone or the hands-free
connection only.

- " Connect media player
"/
" Disconnect media player
": to
connect/disconnect only streaming.

- " Connect telephone + media
player
"/" Disconnect telephone +
media player
": to connect/disconnect
the telephone (hands-free and
streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.

301


1
2
1
4
2
33
05 USING THE TELEPHONE


To display the " TELEPHONE
" menu:


- Make along press on SOURCE
.

- Or, press OK
to display the
contextual menu. Select " Call
" and
confi rm.

- Or, press MENU
, select
" Telephone
" and confi rm. Select
" Call
" and confi rm.


Select " Dial
" to enter a number and
confi rm.
Repeat the previous step 1
to display
the " TELEPHONE
" menu.

Select OK
and confi rm to start the
call.

Select " Calls list
" and confi rm.


MAKING A CALL - DIALLING


Select numbers one at a time using
the
and
buttons and confi rm.


MAKING A CALL - RECENTLY CALLED
NUMBERS *


Select the number and confi rm to
start the call.

The calls list includes calls sent and received in the vehicle using the
connected telephone.

*

Depending on the compatibility of the telephone.


Correction allows numbers to be deleted one at a time.

It is possible to make a call directly from the telephone; park the
vehicle fi rst as a safety measure.
