display Citroen C4 DAG 2011.5 2.G Owner's Manual

278
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button,
then select "GPS coverage").
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone
may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system. A list of compatible Bluetooth mobile telephones
is available from the dealer network.
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an infl uence on the quality of telephone
communication. Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, ...).
Some contacts are
duplicated in the list. The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specifi c order. Modify the display setting in the telephone
directory.

279
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The system does not receive
SMS text messages.
The Bluetooth mode does not permit sending SMS text messages to the system.

The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
Le CD has been recorded in a format that is not compatible with the
player.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio system.

- Check that the CD is inserted in the player
the right way up.

- Check the condition of the CD: the CD
cannot be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio system's CD player does not play
DVDs.

- Some recorded CDs will not be played by
the audio system because they are not of
the correct quality.
There is a long waiting
period following the insertion
of a CD or connection of a
USB memory stick. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to a
few minutes. This phenomenon is normal.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without
selecting an ambience.
Some characters in the
media information are not
displayed correctly while
playing. The audio system does not display some types of characters. Use standard characters to name tracks and
folders.

280
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


Playing of streaming fi les
does not start. The peripheral device connected does not support automatic play. Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio. The Bluetooth profi le does not allow the transfer of this information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not
indicate a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
I cannot fi nd some radio
stations in the list of
stations received. The station is not received or its name has changed in the list.
Some radio stations send other information in place of their name (the
title of the song for example).
The system interprets this information as the name of the station. The name of the radio
station changes.

284
01
1
2
7
45
6
3
8
9
10
13
1112
14

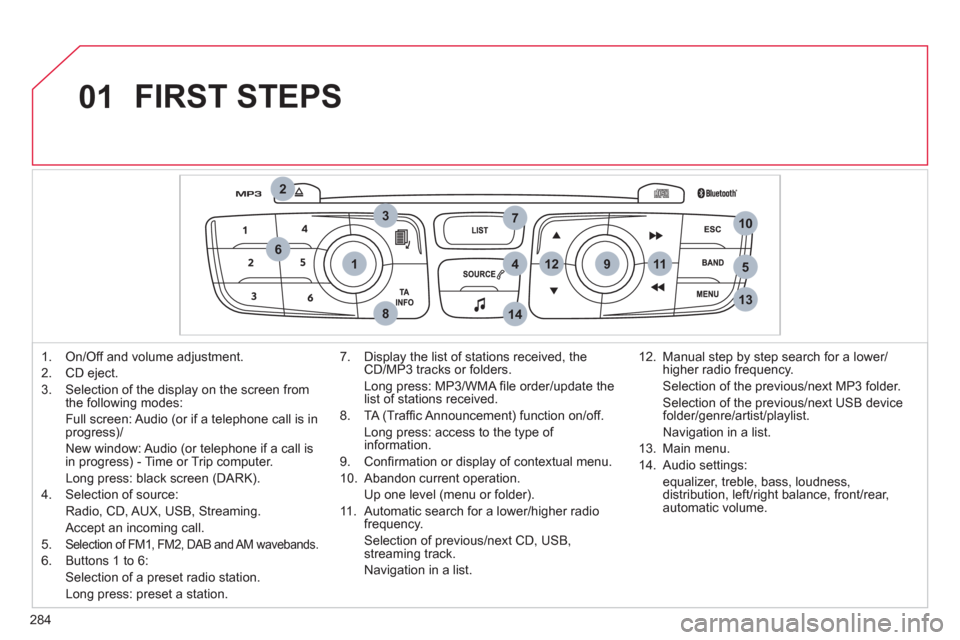

FIRST STEPS



1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from
the following modes:
Full screen: Audio (or if a telephone call is in
progress)/
New window: Audio (or telephone if a call is
in progress) - Time or Trip computer.
Long press: black screen (DARK).

4. Selection of source:
Radio, CD, AUX, USB, Streaming.
Accept an incoming call.

5.
Selection of FM1, FM2, DAB and AM wavebands.


6. Buttons 1 to 6:
Selection of a preset radio station.
Long press: preset a station.
7. Display the list of stations received, the
CD/MP3 tracks or folders.
Long press: MP3/WMA fi le order/update the
list of stations received.

8. TA (Traffi c Announcement) function on/off.
Long press: access to the type of
information.

9. Confi rmation or display of contextual menu.

10. Abandon current operation.
Up one level (menu or folder).

11 . Automatic search for a lower/higher radio
frequency.
Selection of previous/next CD, USB,
streaming track.
Navigation in a list.
12. Manual step by step search for a lower/
higher radio frequency.
Selection of the previous/next MP3 folder.
Selection of the previous/next USB device
folder/genre/artist/playlist.
Navigation in a list.

13. Main menu.

14. Audio settings:
equalizer, treble, bass, loudness,
distribution, left/right balance, front/rear,
automatic volume.

02
285

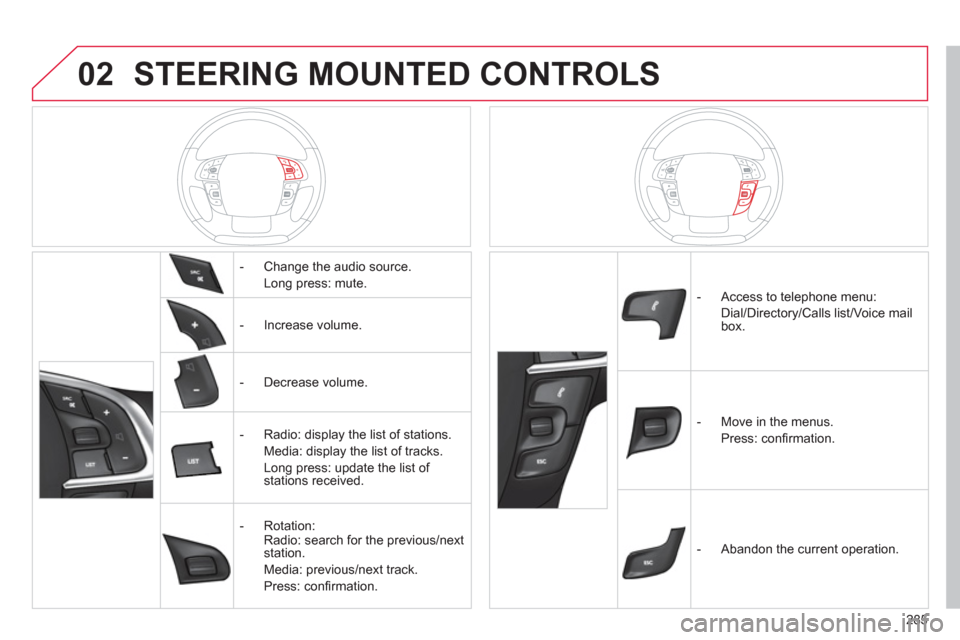

STEERING MOUNTED CONTROLS




- Change the audio source.
Long press: mute.


- Increase volume.


- Decrease volume.


- Radio: display the list of stations.
Media: display the list of tracks.
Long press: update the list of
stations received.




- Rotation:
Radio: search for the previous/next
station.
Media: previous/next track.
Press: confi rmation.

- Access to telephone menu:
Dial/Directory/Calls list/Voice mail
box.


- Move in the menus.
Press: confi rmation.


- Abandon the current operation.

286
03

" Multimedia
": Media parameters,
Radio parameters.

" Trip computer
": Warning log.

For a detailed global view of the menus
available, refer to "Screen menu maps"
in this section.









> SCREEN C

" Bluetooth connection
":
Connections management, Search
for a device.

" Telephone
": Call, Directory
management, Telephone
management, Hang up.

MAIN MENU











> MONOCHROME SCREEN A

" Personalisation-confi guration
": Defi ne the
vehicle parameters, Choice of language, Display
confi guration, Choice of units, Date and time
adjustment.

287
1
2
1

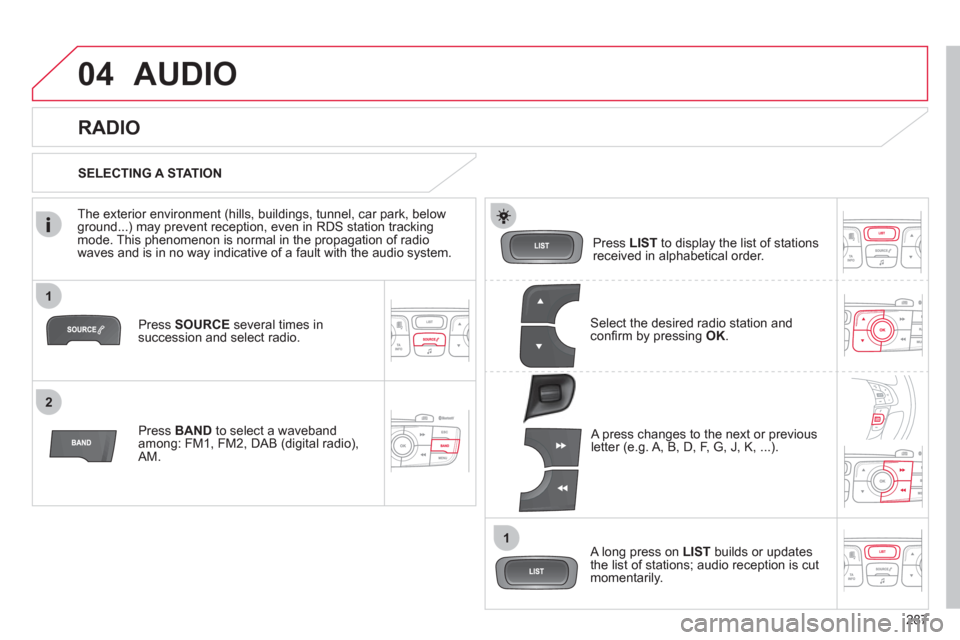

04 AUDIO


Press SOURCE
several times in
succession and select radio.

Press BAND
to select a waveband
among: FM1, FM2, DAB (digital radio),
AM.
Press LIST
to display the list of stations
received in alphabetical order.

A press changes to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...).







RADIO


Select the desired radio station and
confi rm by pressing OK
.
SELECTING A STATION

A long press on LIST
builds or updates
the list of stations; audio reception is cut
momentarily.

The exterior environment (hills, buildings, tunnel, car park, below
ground...) may prevent reception, even in RDS station tracking
mode. This phenomenon is normal in the propagation of radio
waves and is in no way indicative of a fault with the audio system.

288
1
2
04
1
1
2

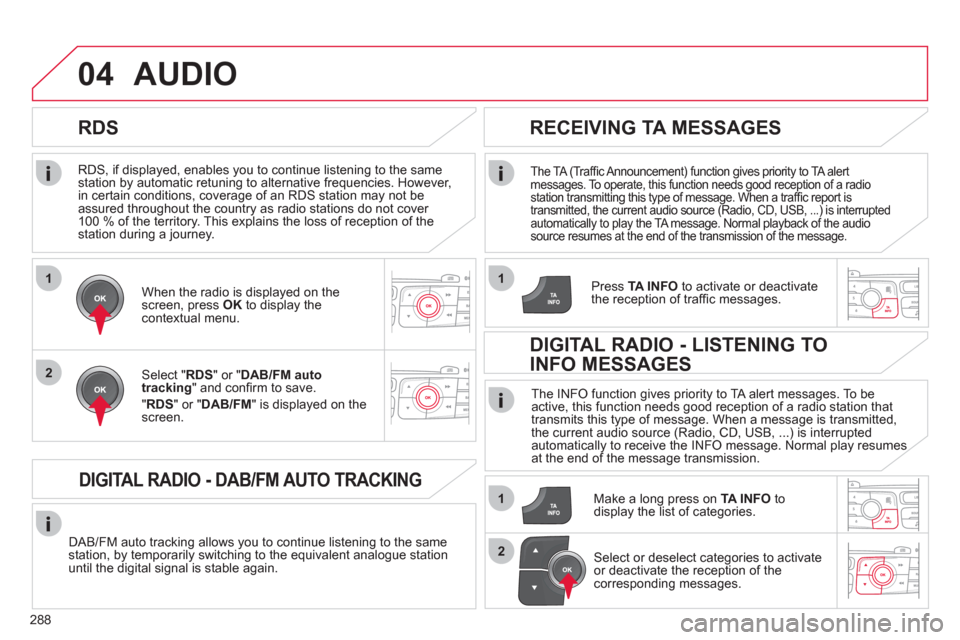

RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the
station during a journey.


AUDIO


RDS





RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a radio
station transmitting this type of message. When a traffi c report is
transmitted, the current audio source (Radio, CD, USB, ...) is interrupted
automatically to play the TA message. Normal playback of the audio
source resumes at the end of the transmission of the message.


Press TA INFO
to activate or deactivate
the reception of traffi c messages.


When the radio is displayed on the
screen, press OK
to display the
contextual menu.

Select " RDS
" or " DAB/FM auto
tracking
" and confi rm to save.
" RDS
" or " DAB/FM
" is displayed on the
screen.


DIGITAL RADIO - DAB/FM AUTO TRACKING


DAB/FM auto tracking allows you to continue listening to the same
station, by temporarily switching to the equivalent analogue station
until the digital signal is stable again.
The INFO function gives priority to TA alert messages. To be
active, this function needs good reception of a radio station that
transmits this type of message. When a message is transmitted,
the current audio source (Radio, CD, USB, ...) is interrupted
automatically to receive the INFO message. Normal play resumes
at the end of the message transmission.

Make a long press on TA INFO
to
display the list of categories.

DIGITAL RADIO - LISTENING TO
INFO MESSAGES
Select or deselect categories to activate
or deactivate the reception of the
corresponding messages.

289
1
2
3

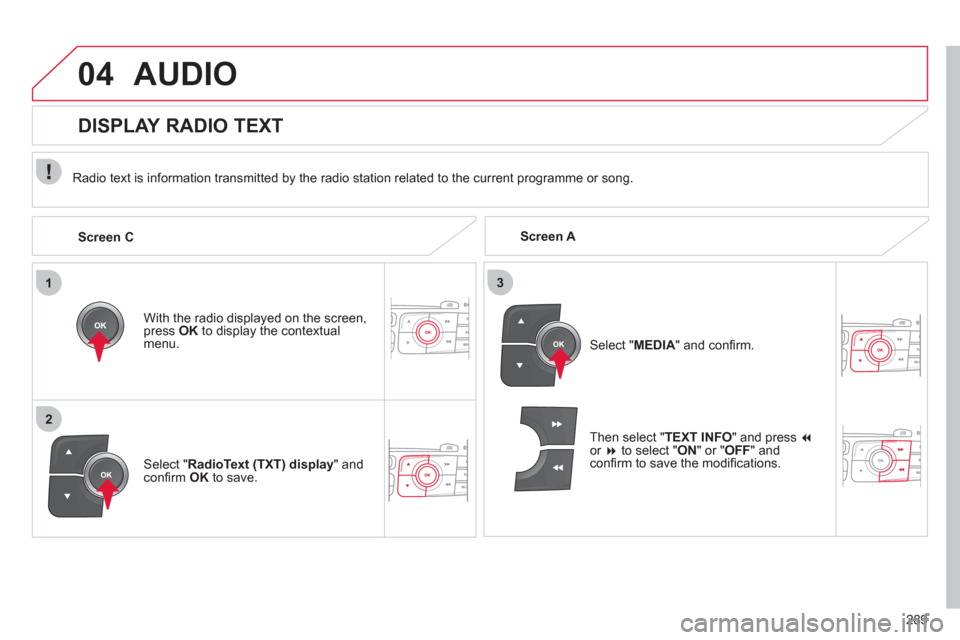

04 AUDIO



Screen A
Radio text is information transmitted by the radio station related to the current programme or song.

With the radio displayed on the screen,
press OK
to display the contextual
menu.

Select " RadioText (TXT) display
" and
confi rm OK
to save.



DISPLAY RADIO TEXT


Select " MEDIA
" and confi rm.

Then select " TEXT INFO
" and press

or
to select " ON
" or " OFF
" and
confi rm to save the modifi cations.

Screen C

290
04
1
2
3
AUDIO

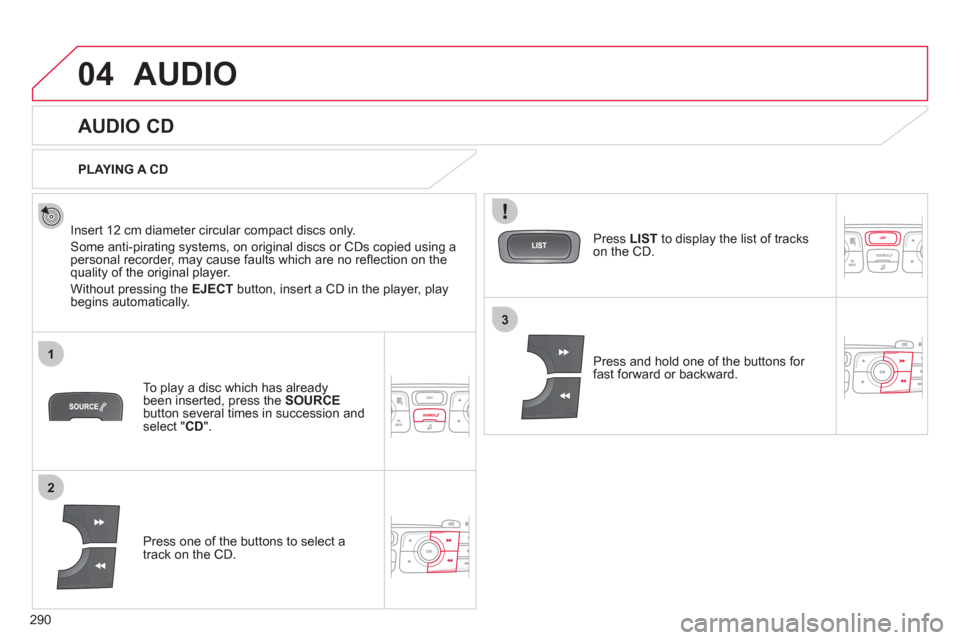

AUDIO CD


Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the
quality of the original player.
Without pressing the EJECT
button, insert a CD in the player, play
begins automatically.

To play a disc which has already
been inserted, press the SOURCE

button several times in succession and
select " CD
".

Press one of the buttons to select a
track on the CD.
PLAYING A CD

Press LIST
to display the list of tracks
on the CD.

Press and hold one of the buttons for
fast forward or backward.
